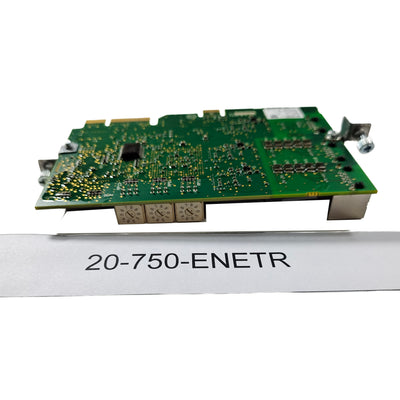

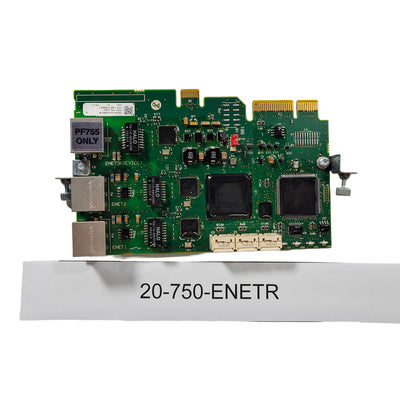

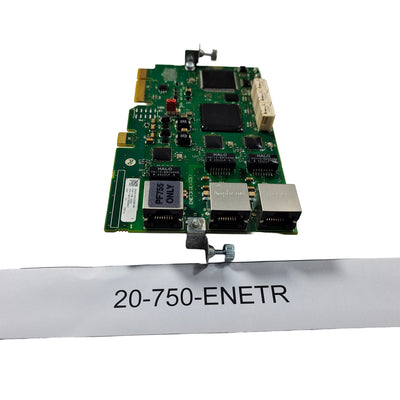

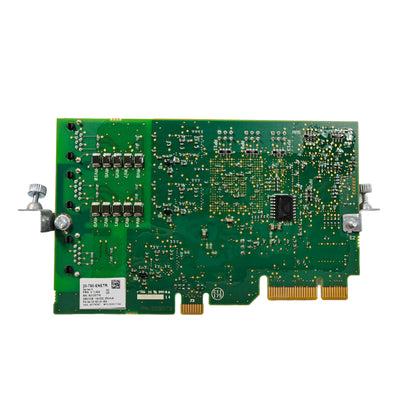

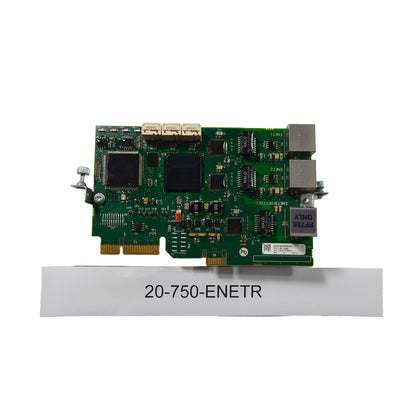

20-750-ENETR Ethernet Communication Module

Product Overview

The 20-750-ENETR is an industrial Ethernet communication module designed to provide high-speed network connectivity between drives and automation systems. Supporting EtherNet/IP communication, it enables real-time data exchange, remote monitoring, diagnostics, and system integration across industrial networks.

Its dual-port design simplifies network architecture and helps reduce installation complexity in modern manufacturing environments.

Technical Specifications

Parameter	Specification
Model	20-750-ENETR
Product Type	Ethernet Communication Module
Network Protocol	EtherNet/IP
Ethernet Ports	2 x RJ45
Transmission Speed	10/100 Mbps
Network Topology	Linear, Star, Device Level Ring (DLR)
Configuration	Network-Based
Status Indicators	Integrated LED Diagnostics
Installation	Plug-In Communication Module

Applications

Industrial automation networks
Conveyor systems
Packaging equipment
Material handling systems
Process control applications
Remote drive monitoring
Factory communication infrastructure

Key Features

The module enables seamless communication between networked devices while supporting efficient diagnostics and control. Its dual-port capability allows flexible network configurations and helps reduce additional switching hardware requirements.

FAQ

1. What is the primary purpose of the 20-750-ENETR?

It provides Ethernet-based communication between compatible industrial devices and automation networks.

2. Which protocol does it support?

The module supports EtherNet/IP communication.

3. How many Ethernet ports are available?

It features two RJ45 Ethernet ports.

4. Can it support network redundancy?

Yes. It supports Device Level Ring (DLR) network architecture.

5. Is remote monitoring possible?

Yes. The module enables remote diagnostics, monitoring, and data access over the network.
