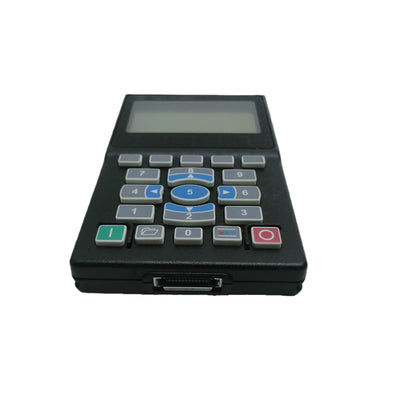

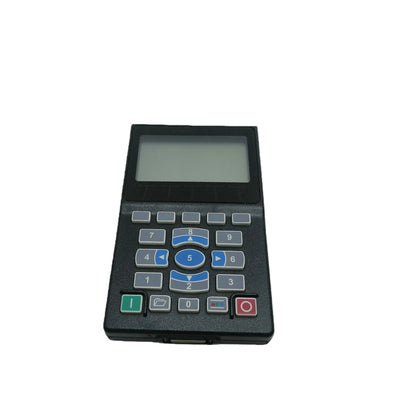

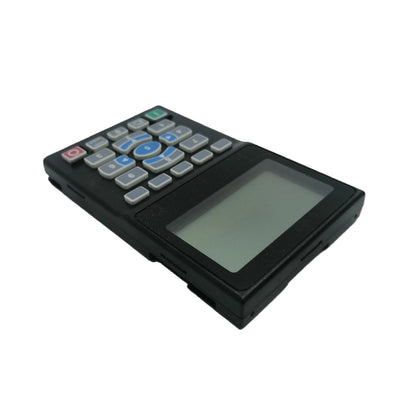

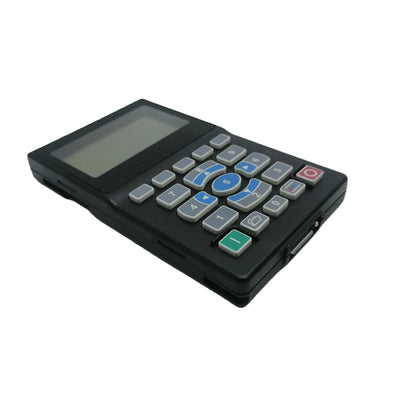

20-HIM-A6 Human Interface Module for Drive Configuration and Monitoring

The 20-HIM-A6 is a graphical human interface module designed to simplify drive setup, monitoring, and diagnostics. Its intuitive keypad and display provide convenient access to operating parameters, status information, and maintenance functions, improving commissioning and routine operation.

Product Specifications

Parameter	Specification
Product Type	Human Interface Module
Display Type	LCD Graphic Display
Interface	Keypad Navigation
Functions	Parameter Configuration, Monitoring, Diagnostics
Mounting Type	Handheld / Door Mount Compatible
Communication	Drive Communication Interface
Application	Drive Setup and Maintenance

Product Features

Clear graphical display
Simple menu-driven navigation
Fast parameter editing
Real-time drive monitoring
Convenient diagnostics and fault viewing

Typical Applications

Variable frequency drive commissioning
Motor control systems
Industrial control panels
Equipment maintenance
Manufacturing automation
Process control systems

FAQ

Q1: What is the primary function of this module?
A: It is used to configure, monitor, and diagnose compatible drives.

Q2: Does it display operating status?
A: Yes, it provides real-time status and fault information.

Q3: Can parameters be modified through the interface?
A: Yes, operating parameters can be viewed and adjusted.

Q4: Is it suitable for maintenance work?
A: Yes, it simplifies troubleshooting and commissioning.

Q5: Where is it commonly used?
A: Industrial motor control and automation systems.

20-HIM-A6 New Original 20HIMA6 Architecture Class HIM
