Elobau 207KS22D01 Float Switch: Precision & Reliability for Liquid Level Control

Upgrade your systems today and experience exceptional liquid level monitoring accuracy with unparalleled reliability! The Elobau 207KS22D01 Float Switch, German-engineered for demanding industrial environments.

Product Overview

The Elobau 207KS22D01 is a high-performance, highly reliable side-mount float switch specifically engineered for precise liquid level detection and control. Constructed from robust, glass-fiber reinforced polyamide (PA-GF), this switch guarantees excellent chemical resistance and mechanical stability across a wide range of industrial applications. Its unique Normally Open (NO) function and flexible mounting options make it an ideal choice for systems requiring accurate level monitoring and automated control. Whether dealing with corrosive media or high-viscosity liquids, the Elobau 207KS22D01 delivers consistent and accurate performance.

Key Technical Features & Benefits

Side-Mount Design: Unique side-mounting configuration saves space and is perfectly suited for installation on the side walls of tanks, containers, and reservoirs, especially in confined spaces.
Normally Open (NO) Function: Features a Normally Open contact configuration, meaning the contacts close when the liquid level reaches the set point, triggering a signal. This provides flexibility for activating pumps, valves, or alarm systems at specific liquid levels.
Highly Corrosion-Resistant Materials: Both the float and housing are made from high-quality glass-fiber reinforced polyamide (PA-GF), ensuring superior resistance to a wide range of corrosive media including acids, alkalis, solvents, and oils, thereby extending the product's lifespan.
Wide Temperature Range: Operates effectively across a broad temperature spectrum, from -20°C to +100°C, accommodating diverse industrial requirements.
High Electrical Load Capacity: Contact ratings up to 250V AC/DC and a maximum switching current of 1.0A with a maximum switching power of 50W/VA allow direct control of relays or small loads, simplifying control circuits.
Compact Design: Small footprint, easy to install, and high integration capability contribute to optimized system design and reduced overall space requirements.
IP67 Protection Rating: Offers excellent dust-tightness and water ingress protection, ensuring stable operation even in harsh, wet, or dusty industrial environments.
German Engineered Quality: Manufactured in Germany by Elobau, guaranteeing precision craftsmanship and stringent quality control for exceptional performance and long-term reliability.

Technical Data Overview

Parameter	Elobau 207KS22D01 Specification
Mounting Type	Side Mounting
Contact Function	Normally Open (NO)
Housing/Float Material	Glass-fiber reinforced Polyamide (PA-GF)
Max. Switching Voltage	250V AC/DC
Max. Switching Current	1.0 A
Max. Switching Power	50 W / VA
Operating Temperature Range	-20°C to +100°C (-4°F to +212°F)
Protection Class	IP67
Electrical Connection	0.5m PUR Cable
Thread Connection	M16 x 1.5
Max. Pressure	5 bar
Certifications	CE, RoHS Compliant

Application Areas

Thanks to its outstanding performance and reliability, the Elobau 207KS22D01 Float Switch is widely used in the following industries and applications:

Machine Building: Liquid level monitoring for machine tool coolants and lubrication oil tanks.
Water Treatment: Wastewater treatment, purification systems, water tank level alarms, and control.
Chemical Industry: Level monitoring for storage tanks containing corrosive liquids.
Pharmaceutical Industry: Liquid level control in vessels and reactors.
Food & Beverage: Level detection for cleaning agents and beverage ingredient tanks.
Hydraulic Systems: Hydraulic oil tank level monitoring.
Pump Protection: Preventing pump dry-running or overflow situations.

Installation & Maintenance

The Elobau 207KS22D01 Float Switch features a compact design for straightforward installation. Please follow these steps for optimal performance:

Select the Correct Mounting Position: Ensure the float can move freely with changing liquid levels, avoiding interference with tank walls or internal structures.
Threaded Connection: Securely mount the switch using the M16 x 1.5 thread connection on the side wall of the container. It is recommended to use a sealing ring to ensure a tight seal.
Electrical Connection: Connect the 0.5m PUR cable according to your control system's requirements, ensuring compliance with electrical safety standards.
Regular Inspection: Periodic checks are recommended to ensure the float remains clean and free of deposits that could impede its movement, ensuring long-term reliable operation.

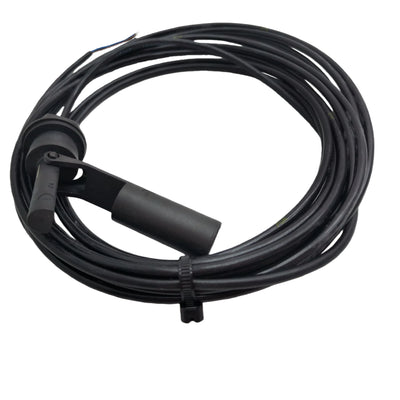

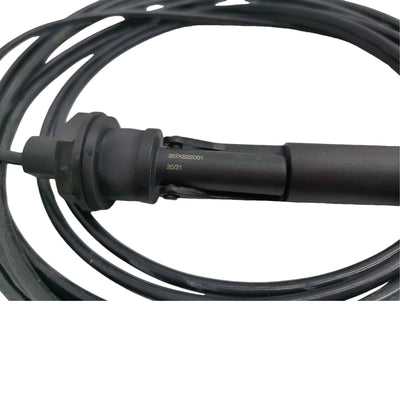

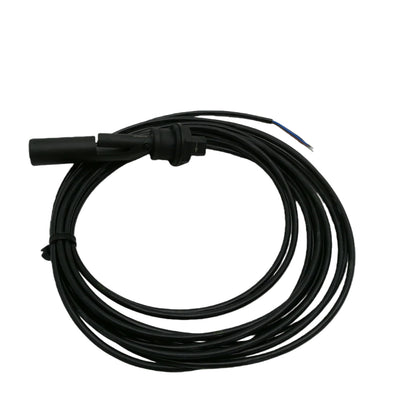

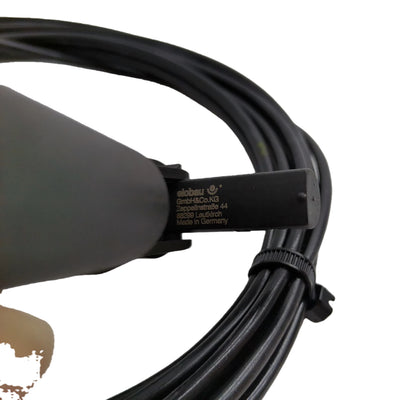

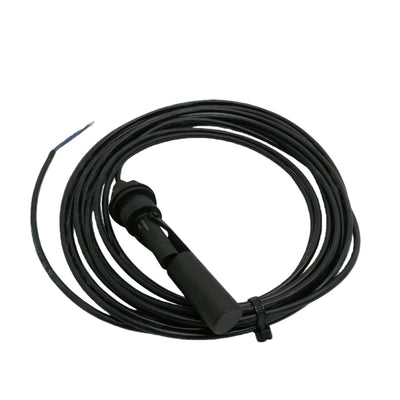

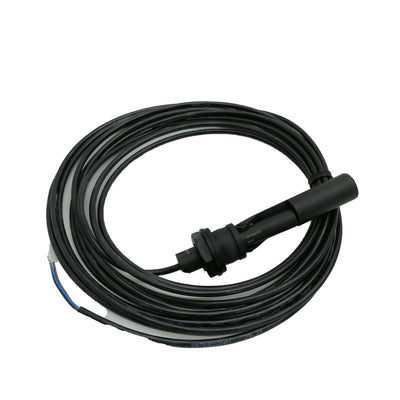

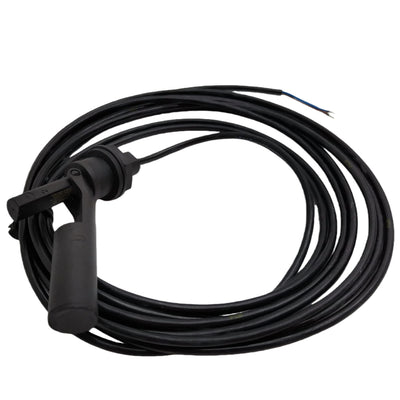

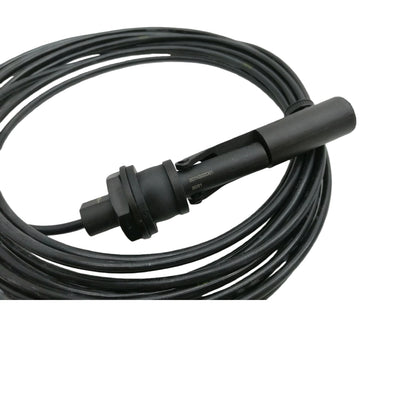

207KS22D01 Elobau 207KS22D01 Float Switch New Factory Sealed
