2090-CFBM7DD-CEAA25 — Kinetix VP Servo Feedback Cable, SpeedTec DIN to Flying Lead, 2.5 m

The 2090-CFBM7DD-CEAA25 is a factory-assembled servo feedback cable for Kinetix VP motors. It connects the motor's SpeedTec DIN feedback connector to a drive-side flying lead — an unterminated end ready for connection to the Kinetix 5500 or 5700 drive's feedback terminal block or flying-lead connector. Length is 2.5 m. The cable carries the encoder's differential signal pairs, the multi-turn absolute battery backup lines, and the motor identification data wire in a shielded, individually-paired construction matched to the signal integrity requirements of the Kinetix VP feedback interface.

Specifications

Parameter	Value
Part Number	2090-CFBM7DD-CEAA25
Motor Connector	SpeedTec DIN (rotating) — motor end
Drive End	Flying lead (unterminated, individual conductors)
Cable Length	2.5 m
Compatible Motors	Kinetix VP series (VPL, VPH, VPF)
Compatible Drives	Kinetix 5500, Kinetix 5700 (flying-lead feedback connection)
Cable Type	Individually shielded twisted pairs, overall braid shield
Flex Rating	Standard (not continuous-flex rated)
Signals Carried	Encoder A/B/Z differential pairs, battery backup, motor ID, shield

Feedback Cable Engineering

Servo feedback cables carry low-level differential signals — encoder A, B, and Z channel pairs at TTL levels — alongside the motor identification wire that the drive reads on power-up to verify the connected motor type. These signals are far more noise-sensitive than the motor power conductors and cannot tolerate the same routing tolerances that power cables permit.

The individual shielded pairs inside this cable provide per-pair noise rejection. The overall braid shield handles common-mode interference. Both shields require correct grounding to function — the cable shield must be terminated at the drive end to the drive's chassis ground stud, not at the motor end. Grounding both ends creates a shield current loop that injects noise rather than rejecting it, degrading encoder signal integrity exactly when the shield's purpose is to prevent that.

Installation and Routing

Minimum bend radius: do not route the cable around tight bends during installation. The minimum bend radius for the standard (non-flex) variant is typically 7–10× the cable diameter. Kinking the cable at the connector entry point is the most common damage location — leave a stress-relief loop at both ends.
Route separately from motor power cables: maintain at least 75–100 mm separation from motor power conductors throughout the run. Motor power cables carry high-frequency PWM currents that generate magnetic fields coupling noise into adjacent feedback conductors.
SpeedTec DIN connector: the quarter-turn locking mechanism at the motor end requires alignment of the connector key with the motor socket before pushing in and rotating. A connector that hasn't fully locked (heard/felt the retention click) is the leading cause of intermittent feedback faults in the field.
Flying lead termination: verify wire color codes against the drive's feedback terminal block wiring diagram before terminating. Incorrect pair assignments produce encoder count direction errors or complete feedback loss.

FAQ

Q: Can this cable be used with Kinetix 5500 drives that have an M8 or M23 feedback connector rather than flying lead?

No. This cable's drive end is a flying lead — unterminated individual wires for direct terminal block connection. Drives with a circular feedback connector require a cable with the matching circular connector on the drive end. Verify the drive's feedback connector type before ordering.

Q: Can the cable be extended if 2.5 m isn't long enough?

Cable extension splices in the feedback signal path are not recommended — every splice introduces an impedance discontinuity and potential noise entry point in a circuit that carries millivolt-level differential signals. If the standard lengths (2.5 m, 5 m, 10 m, etc.) don't reach, order the correct length from the 2090-CFBM7 series rather than splicing.

Q: What happens if the encoder cable shield is grounded at both ends?

A shield grounded at both ends forms a loop antenna — it picks up magnetic field variations between the two ground points and conducts the resulting current through the shield. This current appears as common-mode noise on all enclosed conductors. Ground the shield at the drive end only (single-point grounding) to prevent this.

Q: Is this cable compatible with the continuous-flex service of a cable track (energy chain)?

No. The standard CEAA variant is not rated for continuous flexing in a cable track. For moving axis applications where the cable travels in an energy chain, the continuous-flex variant (CFAA or equivalent in the 2090 series) is required.

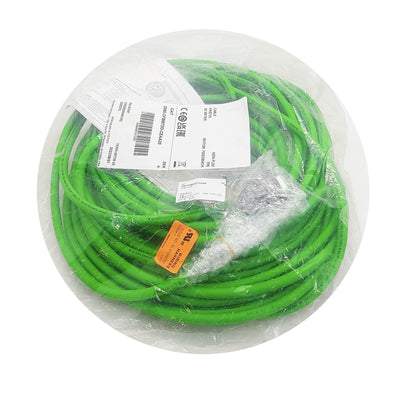

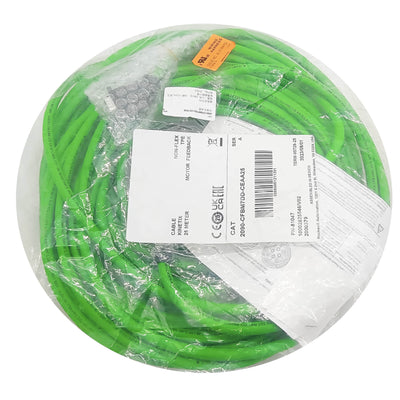

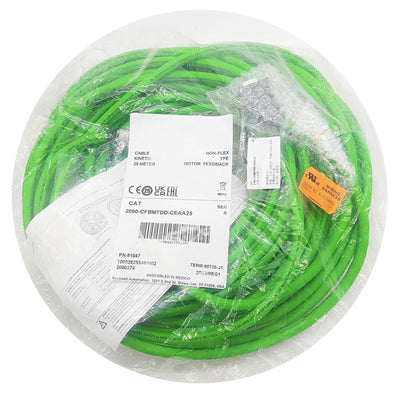

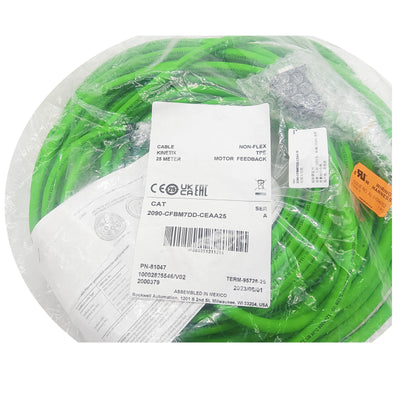

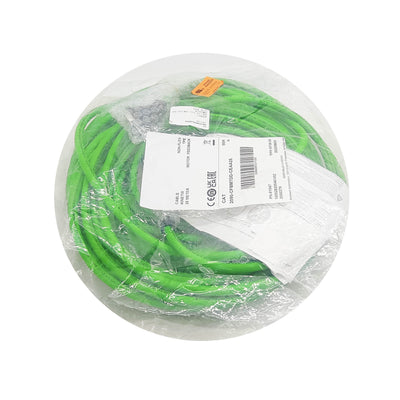

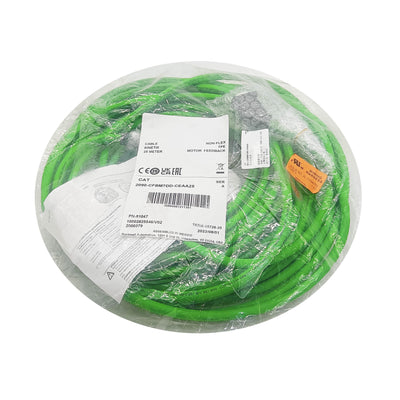

2090-CFBM7DD-CEAA25 New 2090CFBM7DDCEAA25 Servo Encoder Signal Feedback Cable
