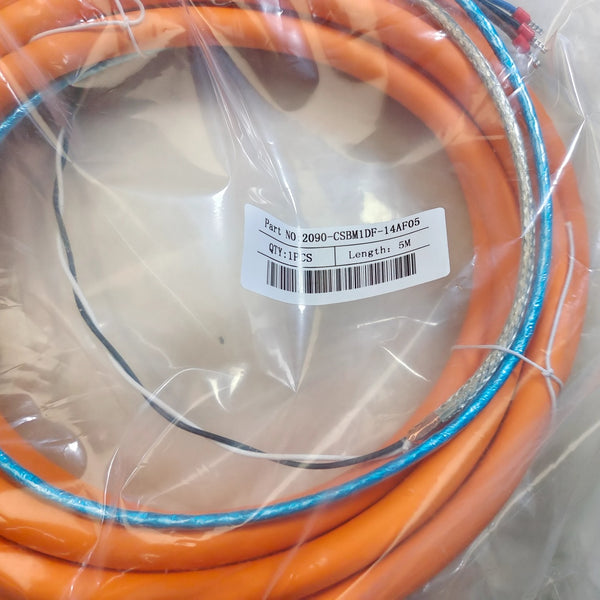

2090-CSBM1DF-14AF05 New 2090CSBM1DF14AF05 Kinetix Cable Single DSL 2090 Series
PRODUCT DETAILS

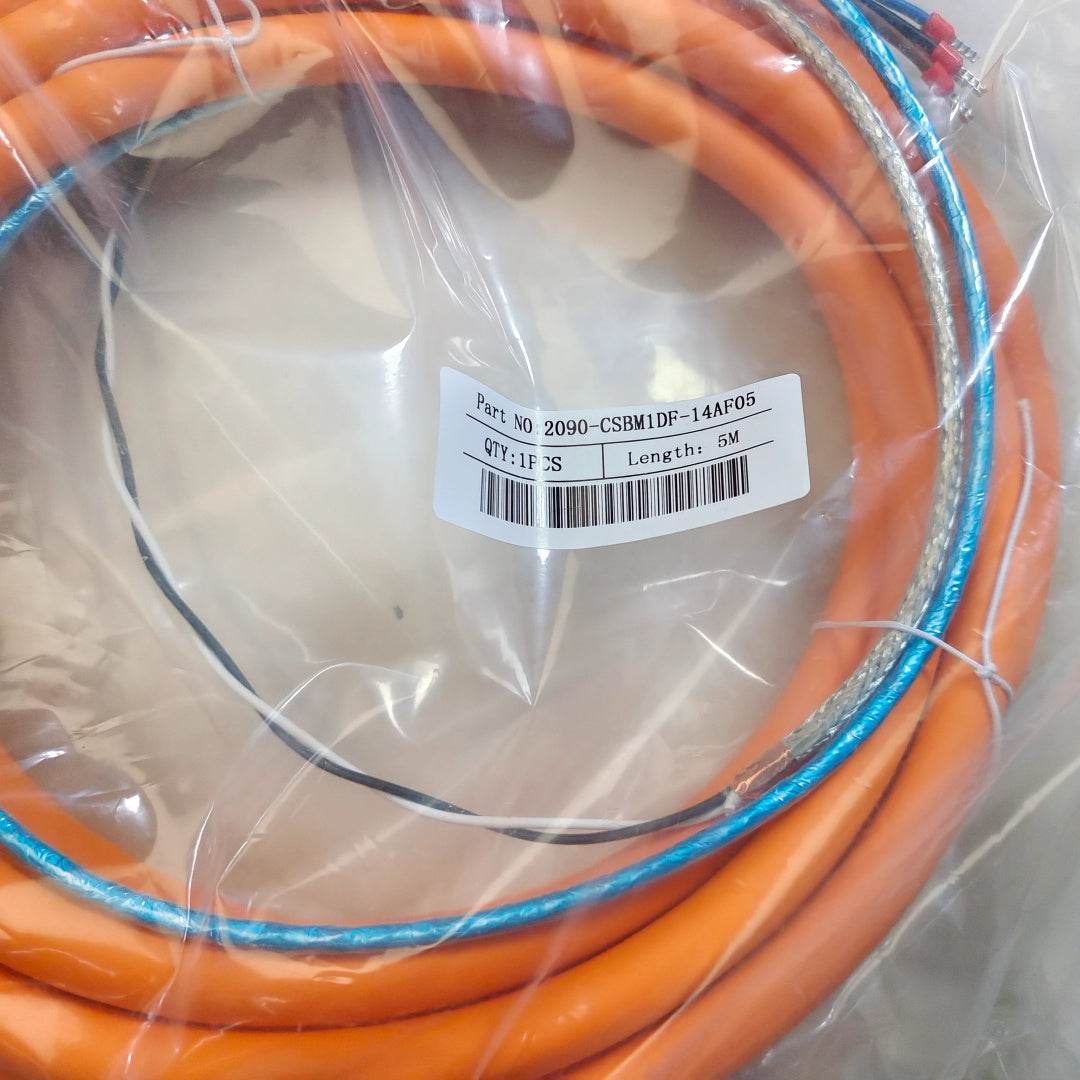

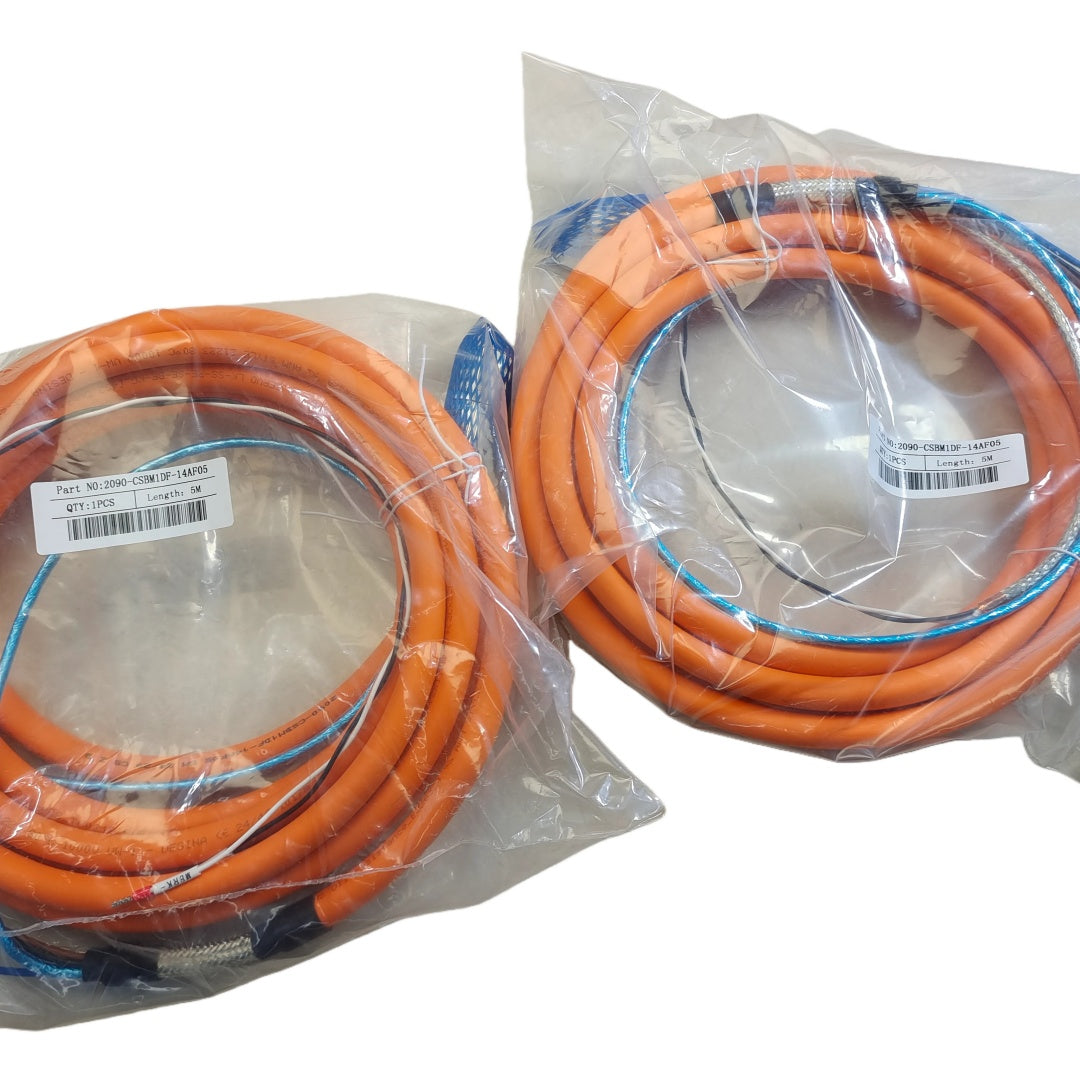

2090-CSBM1DF-14AF05 Industrial Servo Motor Power and Feedback Cable
The 2090-CSBM1DF-14AF05 is an integrated servo cable designed to transmit both motor power and feedback signals through a single cable assembly. Its durable construction simplifies wiring while maintaining reliable signal integrity in demanding automation environments.
Technical Specifications
| Parameter | Description |
|---|---|
| Product Type | Servo Power and Feedback Cable |
| Cable Function | Integrated Power and Feedback |
| Connector Type | Factory-Assembled Industrial Connectors |
| Cable Length | 5 m |
| Shielding | Industrial Shielded Construction |
| Installation | Fixed Industrial Equipment |
| Jacket Material | Industrial-Grade Flexible Jacket |
Installation Guide
-
Route the cable separately from high-voltage power wiring.
-
Maintain the recommended bending radius during installation.
-
Secure both connectors before system startup.
-
Avoid excessive mechanical stress or twisting.
-
Inspect cable routing after installation.
Typical Applications
-
Servo drive systems
-
Industrial robots
-
CNC machinery
-
Packaging equipment
-
High-speed assembly lines
-
Precision automation systems
FAQ
Q1: What signals does this cable carry?
It carries both motor power and feedback signals.
Q2: Is the cable shielded?
Yes. It uses industrial shielding for reliable signal transmission.
Q3: Can it simplify cabinet wiring?
Yes. The integrated design reduces cable routing complexity.
Q4: Where is it typically used?
Servo-driven machinery and precision automation systems.
Q5: Is it intended for fixed installation?
Yes. It is designed for industrial equipment installation.
