2094-BM05-S — Kinetix 6000 Single-Axis Inverter Module, 5A, with Safety Option

The 2094-BM05-S is a single-axis inverter module for the Kinetix 6000 multi-axis servo platform, rated for 5A continuous output current. Unlike a converter-equipped module, this is a pure inverter — it draws DC bus power from a separate converter module on the same 2094 power rail rather than rectifying its own AC supply. The "-S" suffix indicates integrated hardwired safety functionality on this axis module, supporting safe-state outputs as part of the system's broader safety architecture.

Specifications

Parameter	Value
Part Number	2094-BM05-S
Series	Kinetix 6000
Axis Output Current	5 A continuous
Bus Connection	Shared DC bus via 2094 power rail (requires separate converter)
Communication	SERCOS or CIP Motion (platform/firmware dependent)
Safety Function	Hardwired safety inputs/outputs (-S variant)
Enclosure	IP20
Operating Temperature	0°C to 50°C

Feedback and Safety Integration

Feedback type and connector depend on the specific motor paired with this axis — verify compatibility between the motor's feedback device and this inverter's supported feedback interfaces before commissioning.
The -S safety variant's hardwired safety connections must be wired into the machine's overall safety circuit and validated as part of the complete safety function — installing the module alone does not constitute a validated safety system.
Confirm the axis's bus rail position follows the system's wiring sequence rules, since physical placement relative to the converter affects current distribution across the shared bus.
Document the axis's safety wiring and test results separately from standard commissioning records, since safety functions require their own validation evidence distinct from general motion performance testing.

FAQ

Q: Can this inverter module run without any converter module on the bus?

No. This module has no AC rectifier of its own and depends entirely on a separate converter module supplying the shared DC bus for any operation.

Q: How many 2094-BM05-S modules can share one converter's bus?

This depends on the converter's total current rating and the combined demand of all axes sharing that bus — not a fixed module count. Verify the complete axis group against the converter's rated capacity using the platform's system sizing tools.

Q: Does the -S safety function require a dedicated safety controller?

Not necessarily — hardwired safety inputs on this module type can typically be driven by a standard safety relay. Whether a safety controller is needed depends on the broader machine safety architecture, not this module specifically.

Q: Is this module compatible with the Kinetix 5500 or 5700 platforms instead?

No. The 2094 series is specific to the Kinetix 6000 bus architecture and its power rail connector system — it is not interchangeable with the bus modules used in Kinetix 5500 or 5700 systems.

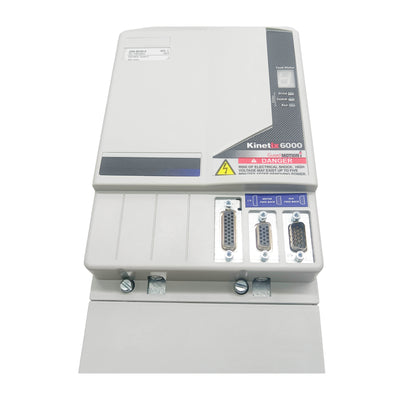

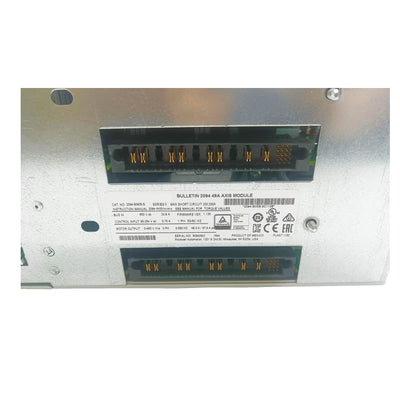

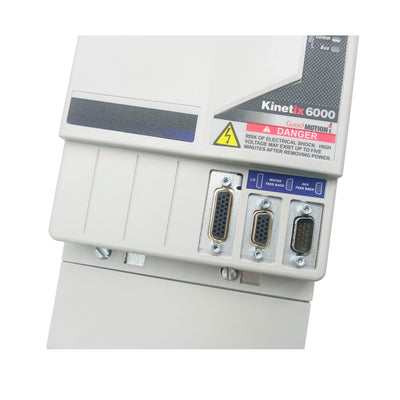

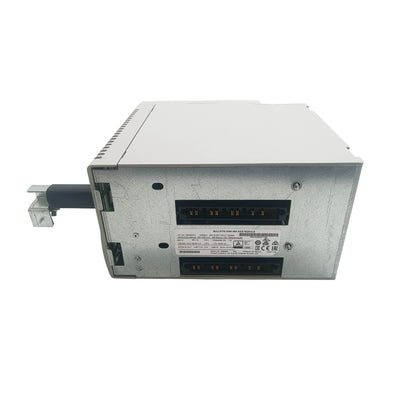

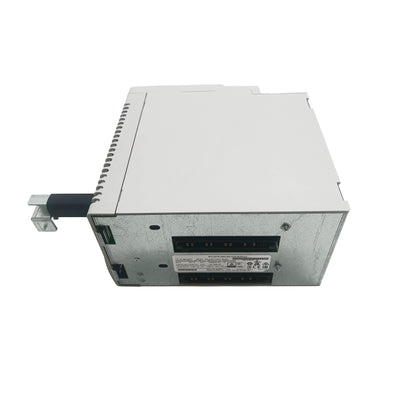

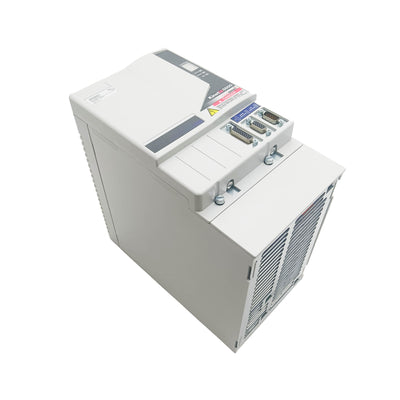

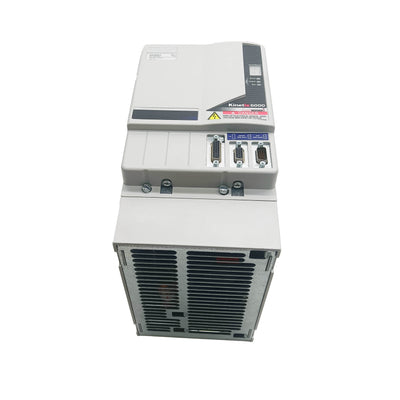

2094-BM05-S New Factory Sealed 2094BM05S Kinetix 6000 Servo Drive
