20BD014A0AYNANC0 AC Drive

PowerFlex 700 Variable Frequency Drive | 480VAC | 10 HP | Frame 1

Product Description

The 20BD014A0AYNANC0 PowerFlex 700 AC Drive is a high-performance variable frequency drive designed for precise motor speed and torque control in industrial automation applications. Operating on 480VAC, 60Hz, three-phase power, this drive delivers reliable 10 HP output with advanced vector control for demanding motion and process control systems.

Note: This model has been discontinued by the manufacturer. Factory warranty no longer applies; however, it is fully covered by a Radwell 2-Year Warranty for added assurance.

Key Features

480VAC, 3-Phase Industrial AC Drive
10 HP / 14 Amp Normal Duty Rating
Advanced Vector Control (VCTR CTRL)
Integrated Brake IGBT
Built-in CE Filter with Common Mode Choke
RS-485 Communication Interface
24 VDC Control & I/O
Compact Frame 1 Design
IP20 / NEMA Type 1 Enclosure
HIM Blank Cover (HIM not included)

Technical Specifications

Item	Specification
Part Number	20BD014A0AYNANC0
Series	PowerFlex 700
Product Type	AC Drive / VFD
Input Voltage	480 VAC
Frequency	60 Hz
Phase	3 Phase
Output Current	14 Amps
Output Power	10 HP
Frame Size	Frame 1
Control Mode	Vector Control
Control Voltage	24 VDC I/O
Communication	RS-485
Braking	Built-in Brake IGBT
EMC / Emission	CE Filter / CM Choke
Enclosure Rating	IP20 / NEMA Type 1
HIM Interface	Blank cover
Documentation	Manual included
Product Status	Discontinued by manufacturer
Warranty	Radwell 2-Year Warranty (Factory warranty does not apply)

Product Identification

Part Number: 20BD014A0AYNANC0
Category: Drives
Subcategory: AC Drive / Variable Frequency Drive (VFD)

Electrical Ratings

Input Voltage: 480 VAC
Frequency: 60 Hz
Phase: Three-phase (3 PH)

Performance Ratings

Normal Duty (ND) Current: 14 A
Normal Duty Power: 10 HP
Frame Size: Frame 1

Mechanical & Environmental

Enclosure Rating: IP20
Net Weight: 14.0 lbs

Control & Interface

Control Mode: Vector Control
Control Power Supply: 24 VDC I/O
HIM Interface: Blank cover (HIM not included)

Braking & EMC

Brake Type: Built-in brake IGBT
EMC / Emission: CE Filter with Common Mode Choke (CM Choke)

Typical Applications

Industrial motor control systems
Conveyor and material handling equipment
Pumps, fans, and compressors
Machine automation and OEM installations

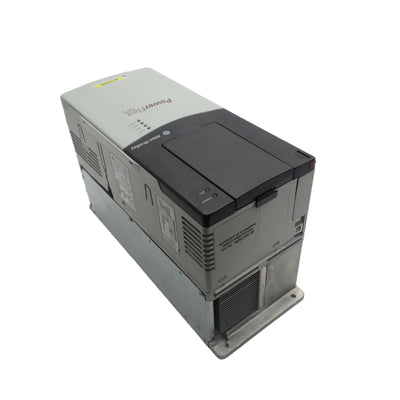

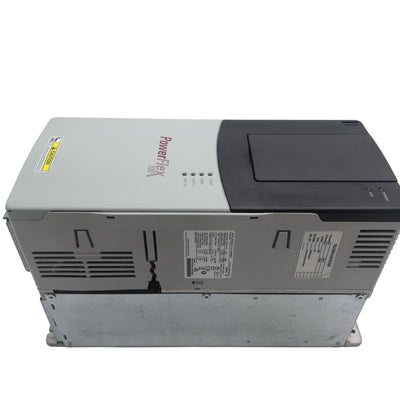

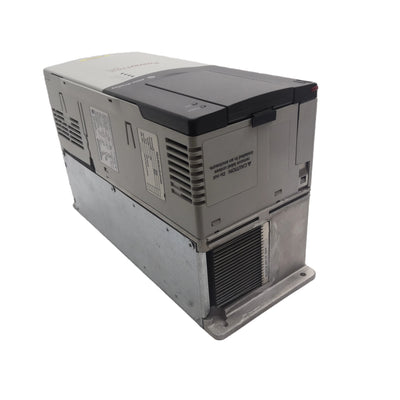

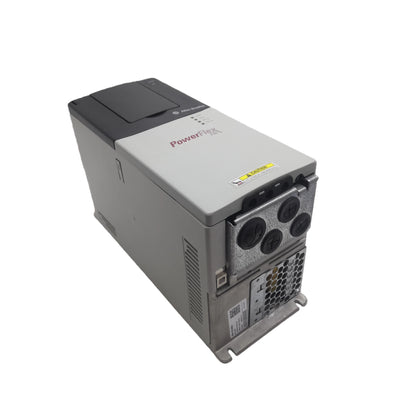

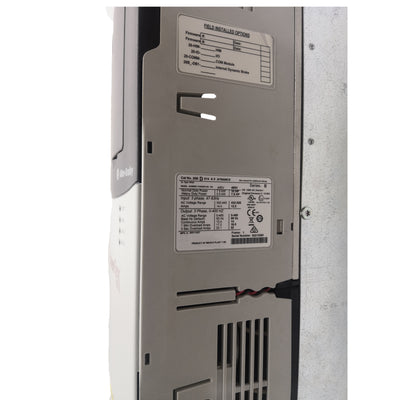

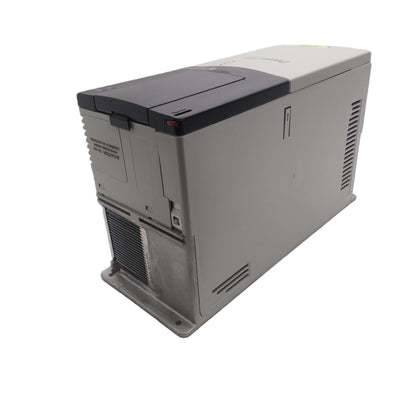

20BD014A0AYNANC0 New Original AB PowerFlex 700 AC Drive 20BD014A0AYNANC0
