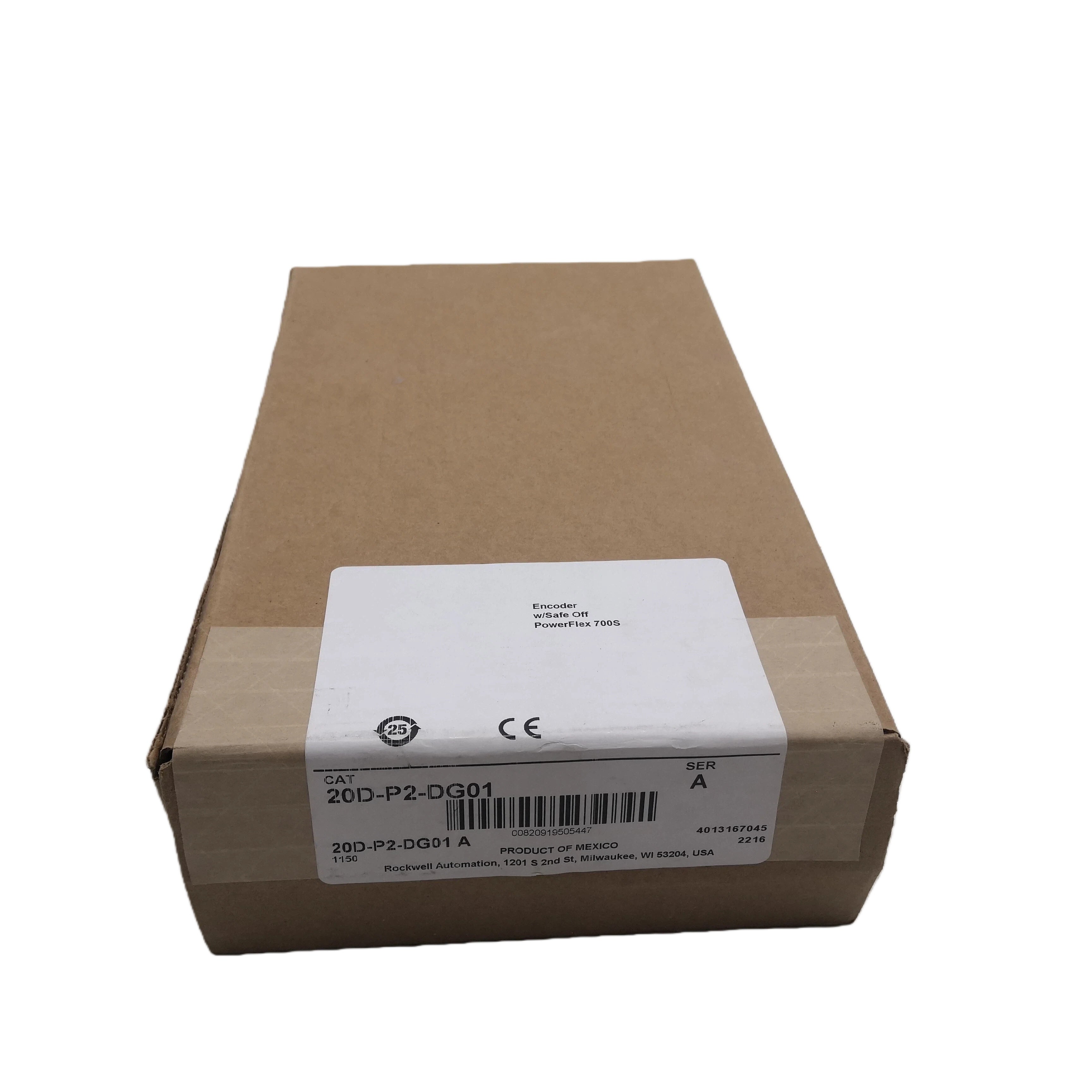

20D-P2-DG01 Genuine Driveguard Safe-Off Board 20DP2DG01
PRODUCT DETAILS
20D-P2-DG01 DriveGuard SAFE-Off Board
The 20D-P2-DG01 is a DriveGuard SAFE-Off board designed for industrial drive systems requiring functional safety. It provides a hardware-based Safe Torque Off (STO) function to help prevent unintended motor torque while supporting a second encoder interface for advanced motion control applications.
Key Specifications
| Parameter | Description |
|---|---|
| Product Type | DriveGuard SAFE-Off Board |
| Safety Function | Safe Torque Off (STO) |
| Encoder Support | Second encoder interface |
| Installation | Internal drive option board |
| Compatibility | PowerFlex 700S Phase II drives |
| Cooling | Passive |
| Application | Functional safety for motion control |
Applications
Typical applications include:
-
Motion control systems
-
Packaging machinery
-
Conveyor equipment
-
Automated production lines
-
Robotics
-
Industrial machine safety systems
Product Features
-
Provides hardware-based Safe Torque Off functionality.
-
Supports integration of a second encoder.
-
Helps improve machine functional safety.
-
Compact option board for easy drive integration.
-
Designed for demanding industrial automation environments.
FAQ
Q1: What is the primary function of this board?
A: It provides a Safe Torque Off (STO) safety function for compatible drives.
Q2: Does it support encoder feedback?
A: Yes. It supports connection of a second encoder.
Q3: Where is the board installed?
A: It is installed internally as an option board within a compatible drive.
Q4: What applications is it suitable for?
A: It is used in motion control and machine safety applications requiring functional safety.
Q5: Does the board replace external safety devices?
A: No. It is intended to operate as part of an overall machine safety system.
