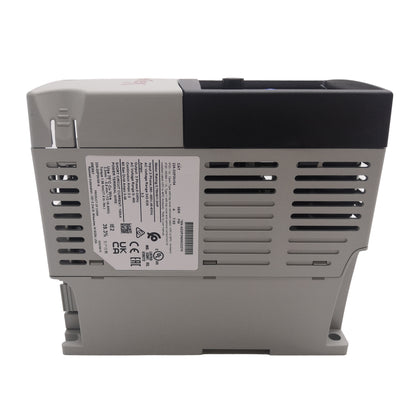

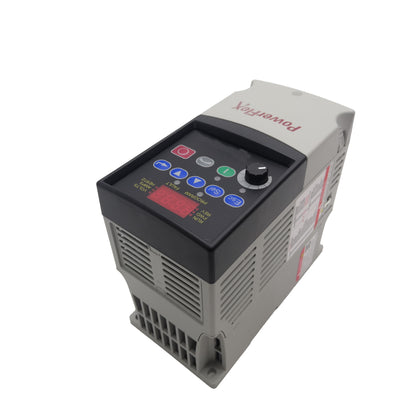

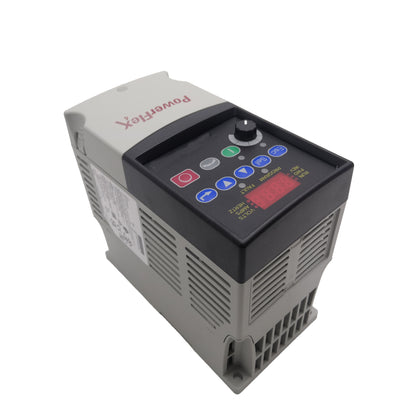

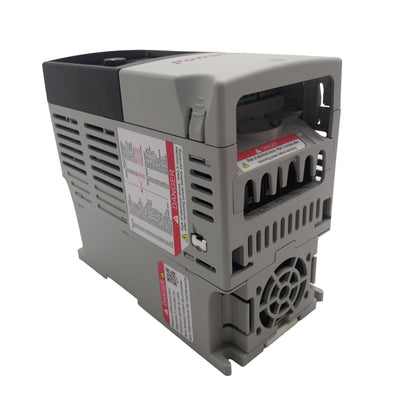

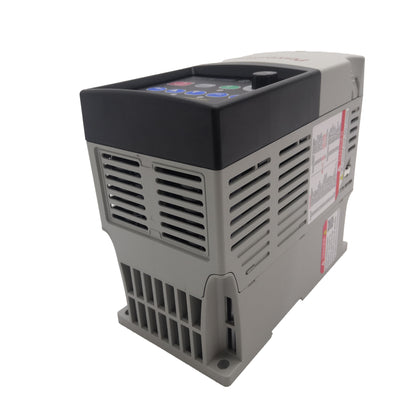

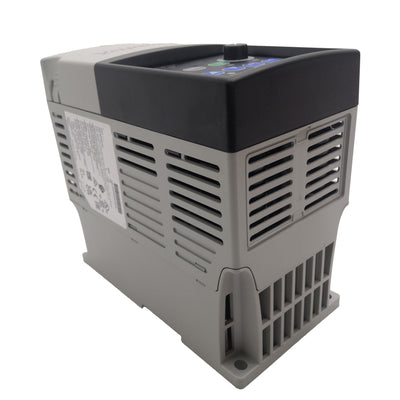

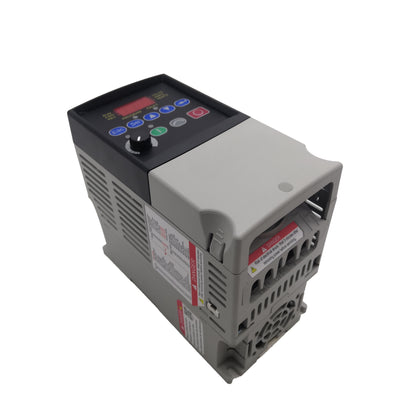

22A-D2P3N104 Variable Frequency Drive for Compact Motor Control Applications

The 22A-D2P3N104 is a compact variable frequency drive designed to provide efficient speed regulation for three-phase AC motors. It delivers stable motor control, smooth acceleration, and dependable operation, making it suitable for a wide range of industrial automation equipment.

Product Specifications

Parameter	Specification
Product Type	Variable Frequency Drive
Input Voltage	380–480 VAC, 3 Phase
Rated Output Current	2.3 A
Control Method	V/Hz Control
Output Frequency	0–500 Hz
Enclosure Rating	IP20
Mounting Type	Panel Mount

Installation Guide

Mount the drive vertically inside a control cabinet.
Maintain adequate clearance for ventilation.
Connect input power and motor wiring correctly.
Verify protective grounding before startup.
Configure motor parameters before operation.
Perform a no-load test before full-load use.

Typical Applications

Conveyor systems
Pumps
Fans and blowers
Packaging equipment
Small production machines
Material handling systems

FAQ

Q1: What is the primary function of this drive?
A: It controls the speed of AC motors.

Q2: What installation method is recommended?
A: Panel mounting inside a control cabinet.

Q3: Is it suitable for continuous operation?
A: Yes, it is designed for industrial duty.

Q4: What type of motor can it control?
A: Compatible three-phase AC motors.

Q5: Where is it commonly used?
A: In compact industrial automation equipment.

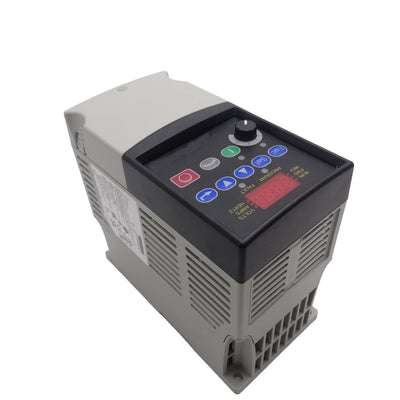

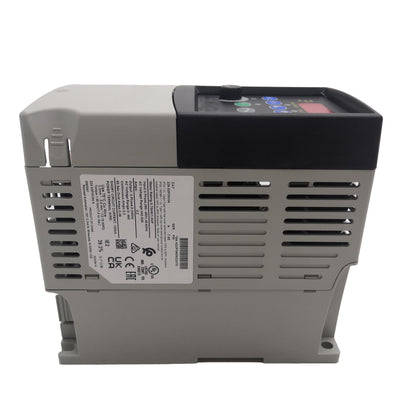

22A-D2P3N104 New Sealed 22AD2P3N104 0.75 kW 1 HP AC Drive
