22C-D017N103 Genuine 22CD017N103 AB PowerFlex 400 AC Drive
PRODUCT DETAILS

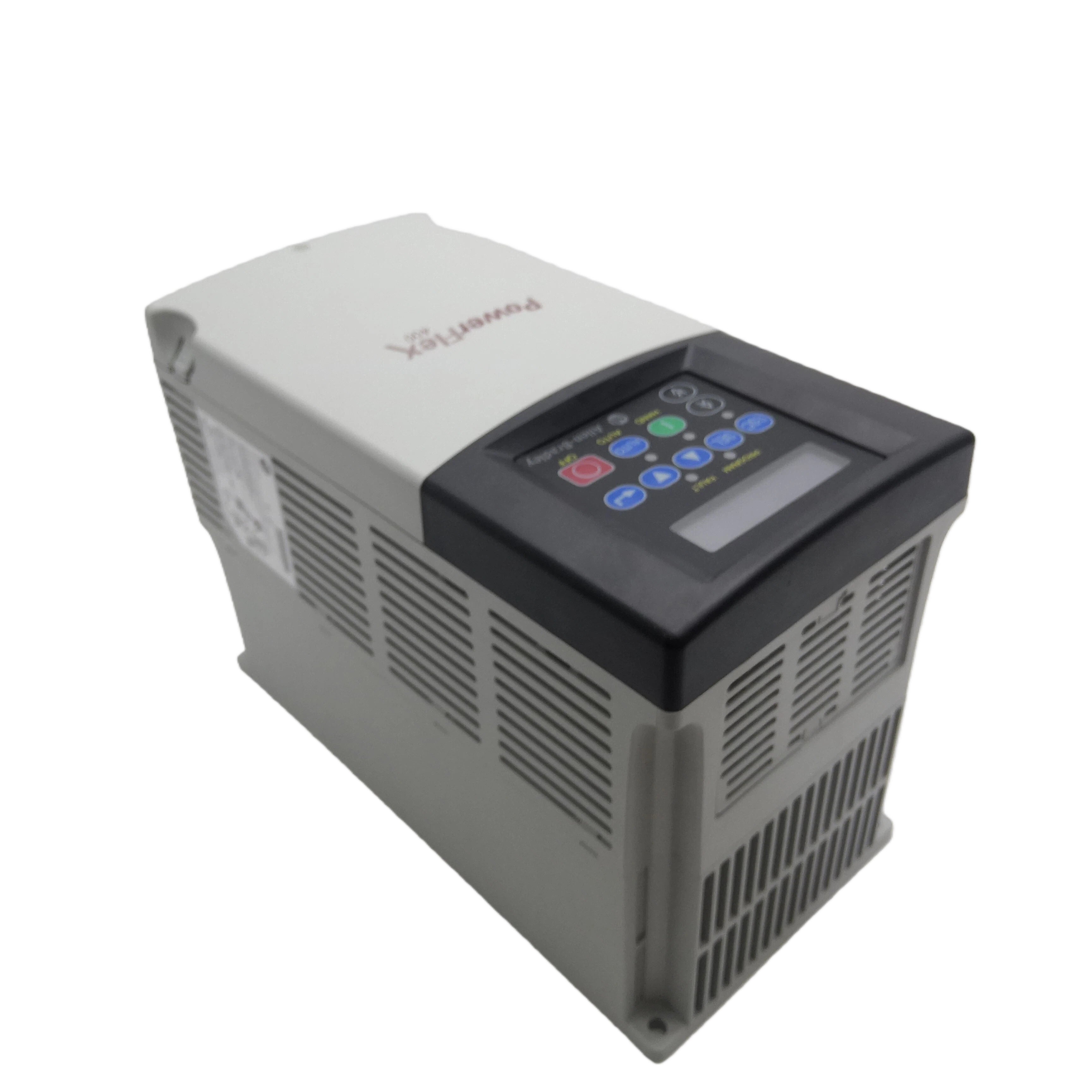

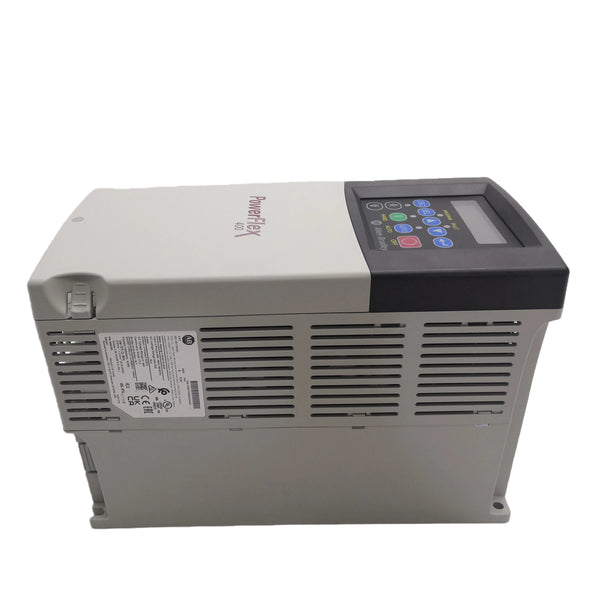

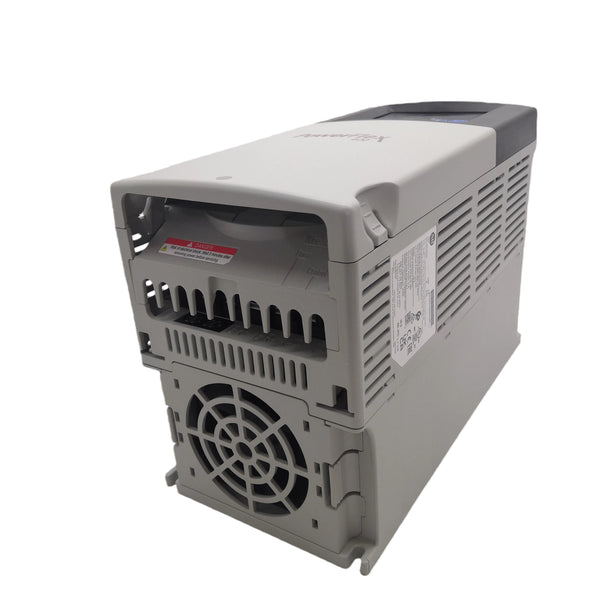

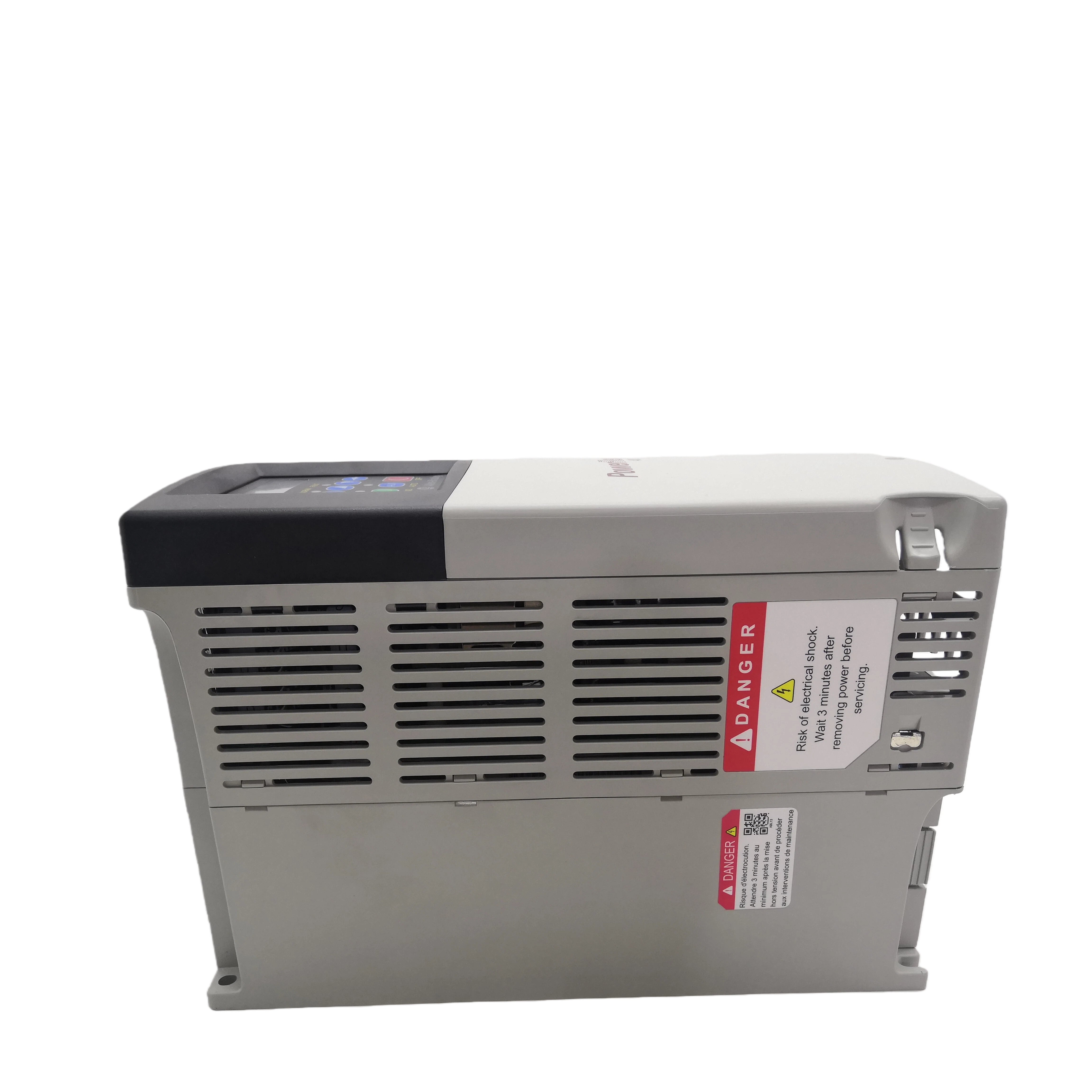

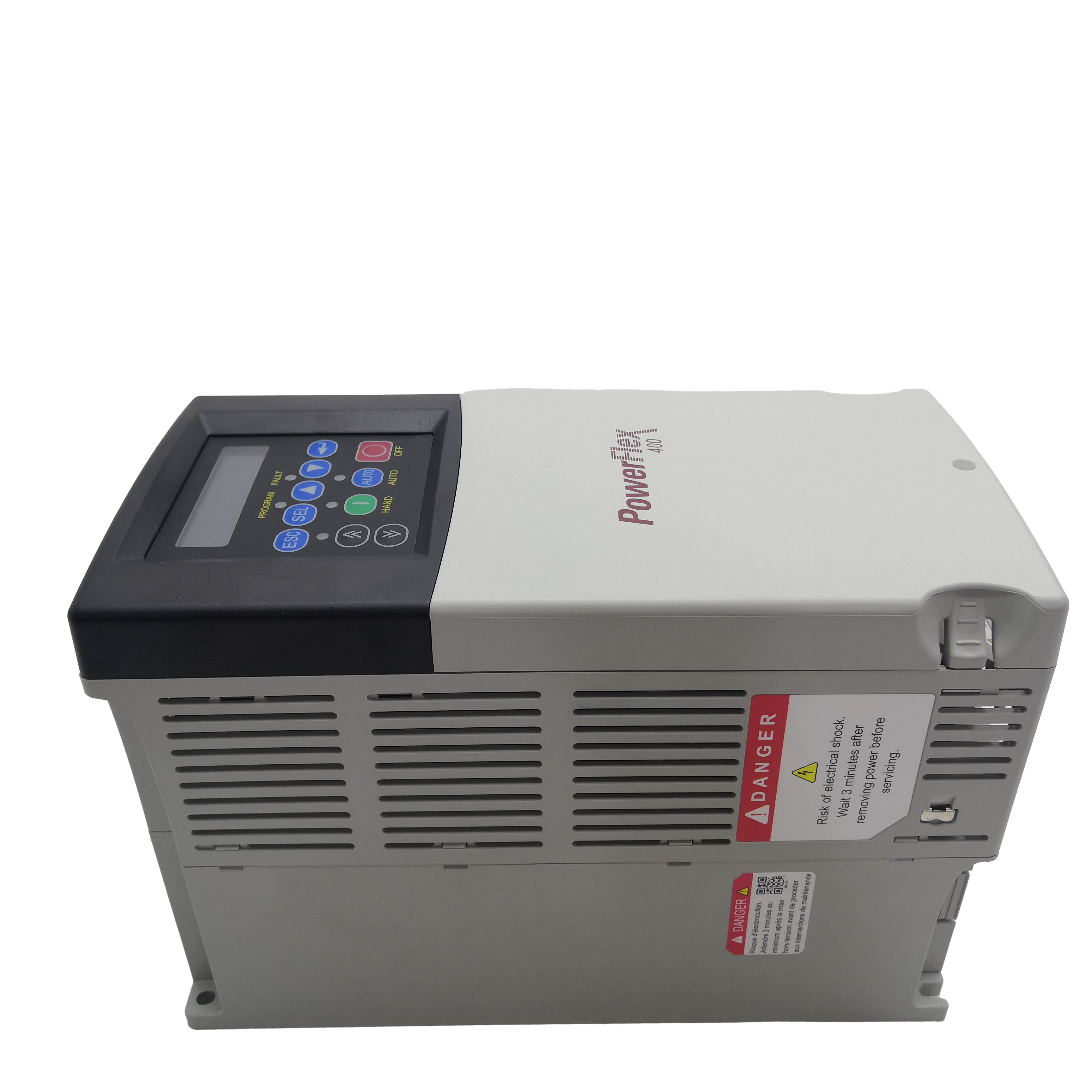

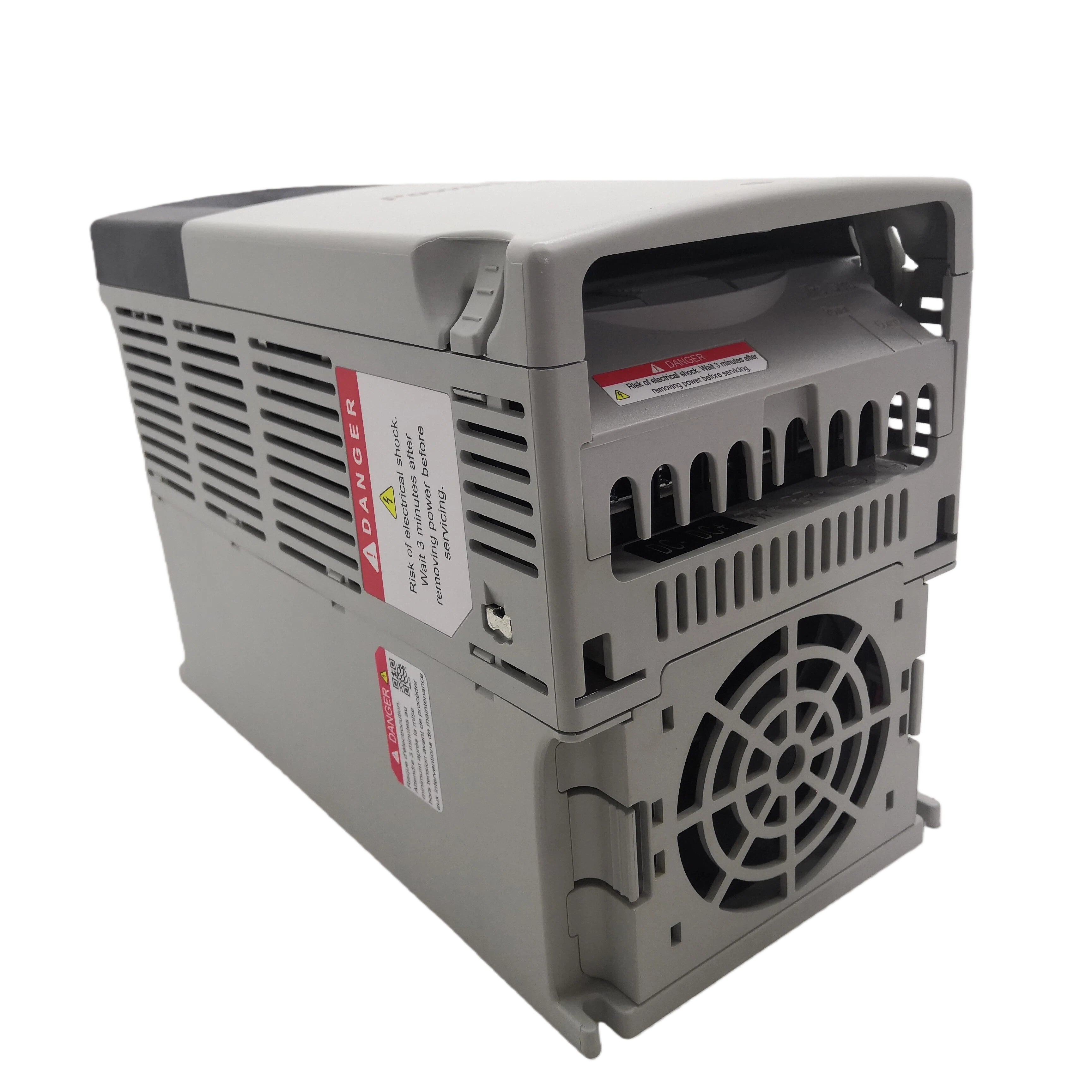

22C-D017N103 PowerFlex 400 AC Drive
Product Title
22C-D017N103 Allen-Bradley PowerFlex 400 AC Drive | New Sealed 0.75 kW / 1 HP Industrial VFD
Product Overview
The 22C-D017N103 PowerFlex 400 AC Drive from Allen-Bradley is a brand new, factory-sealed industrial variable frequency drive (VFD). Designed for 0.75 kW (1 HP) motors, this genuine Allen-Bradley PowerFlex 400 drive provides precise speed and torque control, ideal for pumps, fans, conveyors, and other industrial machinery.
Compatible with single-phase and three-phase motors, this AC drive delivers reliable, energy-efficient performance and comes with built-in overload, short-circuit, and thermal protection—making it perfect for manufacturing, process automation, and OEM equipment.
Key Features
-
Brand: Allen-Bradley / Rockwell Automation
-
Model / Part Number: 22C-D017N103
-
Type: PowerFlex 400 AC Drive / Industrial VFD
-
Condition: New Sealed, Genuine
-
Output Power: 0.75 kW / 1 HP
-
Input Voltage: 200–240 V AC, 1-phase / 3-phase
-
Output Voltage: 0–240 V AC
-
Output Frequency: 0–400 Hz
-
Motor Control: V/Hz, Sensorless Vector Control
-
Compact panel mount design for easy installation
-
LED indicators for operational and fault monitoring
-
Built-in overload, short-circuit, and overtemperature protection
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Allen-Bradley / Rockwell Automation |
| Model / Part Number | 22C-D017N103 |
| Series | PowerFlex 400 |
| Output Power | 0.75 kW / 1 HP |
| Input Voltage | 200–240 V AC, 1/3-Phase |
| Output Voltage | 0–240 V AC |
| Output Frequency | 0–400 Hz |
| Control Mode | V/Hz, Sensorless Vector |
| Current Rating | 4 A typical |
| Protection | Overload, Short-Circuit, Overtemperature |
| Status Indicators | LED Run / Fault / Stop |
| Mounting | Panel mount / DIN Rail adapter |
| Operating Temperature | 0°C – 50°C |
| Condition | Brand New, Factory Sealed |
| Manufacturer | Allen-Bradley |
Performance Data & Technical Advantages
-
Efficiency: >96% typical for motor load range
-
Torque Control: High starting torque at low speeds
-
Speed Regulation: ±0.5% under stable load conditions
-
Reliability: Industrial-grade electronic components rated for 24/7 operation
-
Safety & Compliance: UL, CE, RoHS compliant
Applications
-
Allen-Bradley PowerFlex 400 VFD for industrial motors
-
0.75 kW AC drive for pumps, fans, conveyors
-
Rockwell Automation motor control drive for manufacturing
-
Replacement AC drive for OEM machinery
-
Industrial VFD for process automation and HVAC
📊 Allen‑Bradley PowerFlex 400 Series VFD Comparison
| Parameter | 22C‑D017N103 | 22C‑D012N103 | 22C‑B017N103 | 22C‑D022N103 | 22C‑D030N103 |
|---|---|---|---|---|---|
| Brand | Allen‑Bradley | Allen‑Bradley | Allen‑Bradley | Allen‑Bradley | Allen‑Bradley |
| Series | PowerFlex 400 | PowerFlex 400 | PowerFlex 400 | PowerFlex 400 | PowerFlex 400 |
| Condition | New / Genuine | New / Genuine | New / Genuine | New / Genuine | New / Genuine |
| Power Rating | 7.5 kW (10 HP) | 5.5 kW (7.5 HP) | 3.7 kW (5 HP) | 11 kW (15 HP) | 15 kW (20 HP) |
| Input Voltage | 380‑480 V AC, 3‑phase | 380‑480 V AC, 3‑phase | 200‑240 V AC, 3‑phase | 380‑480 V AC, 3‑phase | 380‑480 V AC, 3‑phase |
| Output Current | ~17 A | ~12 A | ~17 A | ~22 A | ~30 A |
| Frame Size | C | C | C | C | C |
| Enclosure | IP20 / UL‑NEMA Open | IP20 / UL‑NEMA Open | IP20 / UL‑NEMA Open | IP20 / UL‑NEMA Open | IP20 / UL‑NEMA Open |
| Control Methods | V/Hz, Slip Compensation, PID | V/Hz, Slip Compensation | V/Hz, Slip Compensation | V/Hz, Slip Compensation | V/Hz, Slip Compensation |
| Communications | RS485 / Optional Networks | RS485 / Optional Networks | Integral Keypad & Display | RS485 / Optional Networks | RS485 / Optional Networks |
| Typical Use | Fan & Pump Control | Small Motor Control | Light Industrial Drives | Larger Motor Control | Higher Power Drives |
| Notes | Up to 10 HP fan/pump VFD | Mid‑range VFD | Lower power 200‑240 V AC | Mid‑range 15 HP | Higher power 20 HP |
PowerFlex 400 is a versatile AC drive family optimized for fan/pump and general industrial motion control across a wide range of power ratings.
📌 Key Differences Explained
✔ 22C‑D017N103 – 7.5 kW (10 HP) PowerFlex 400 drive with ~17 A output for fan & pump applications in 380‑480 V systems.
✔ 22C‑D012N103 – 5.5 kW (7.5 HP) variant, slightly lower power and output current for medium loads.
✔ 22C‑B017N103 – 3.7 kW (5 HP) VFD at 200‑240 V AC, ideal for smaller industrial motors.
✔ 22C‑D022N103 – 11 kW (15 HP) version, suitable for larger fan/pump systems.
✔ 22C‑D030N103 – 15 kW (20 HP) model with higher current, for bigger industrial motor applications.
Why Choose Allen-Bradley PowerFlex 400?
-
Genuine factory-sealed product ensures full service life and compatibility
-
High-efficiency and reliable motor control saves energy and reduces wear
-
Easy commissioning reduces installation time
-
Built-in protection ensures safe continuous operation
-
Trusted globally by industrial automation engineers
Shipping & Packaging
-
Original Allen-Bradley factory-sealed packaging
-
Industrial-grade protection for safe shipping
-
Fast worldwide delivery available
