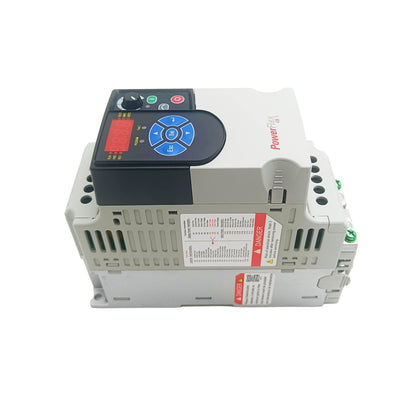

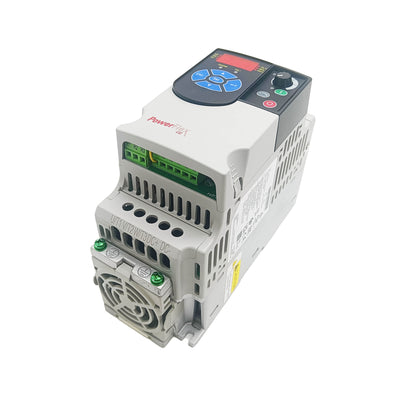

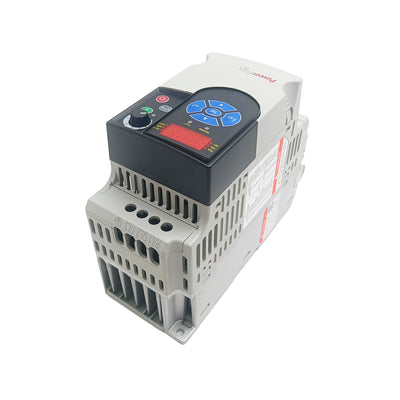

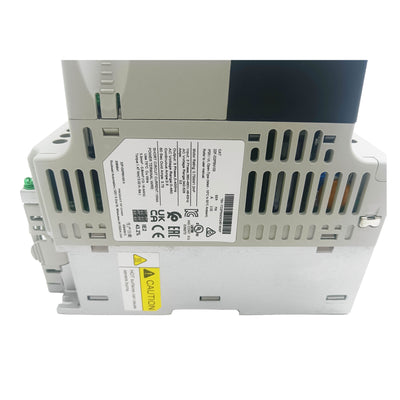

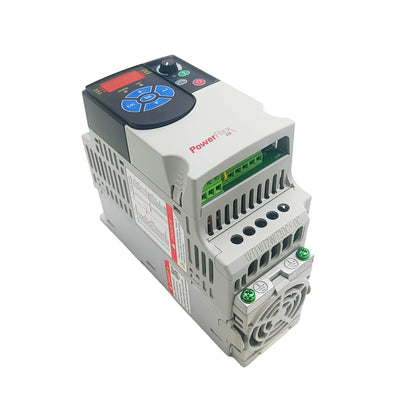

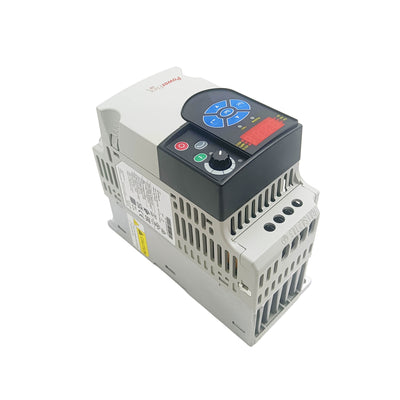

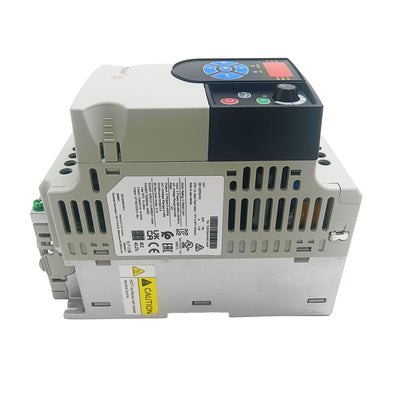

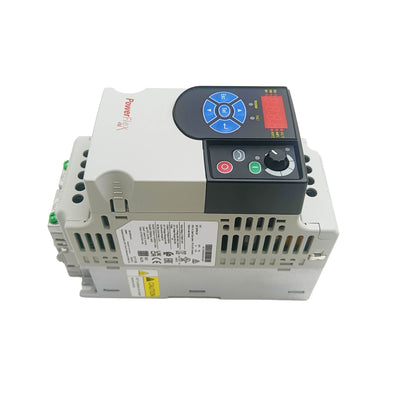

22F-D2P5N103 — V-mini Micro Drive, 480V Three-Phase, 0.4 kW, IP30

The 22F-D2P5N103 is a V-mini series micro drive rated at 0.4 kW / 0.5 HP, configured for 380–480V AC three-phase input with 2.5A output current. The IP30 / NEMA 1 enclosure adds a top cover suited to open-rack or semi-exposed mounting. With the standard 55 mm V-mini footprint, V/Hz control, and a compact I/O set, it covers small 480V three-phase loads where panel space is at a premium.

Specifications

Parameter	Value
Part Number	22F-D2P5N103
Power Rating	0.4 kW / 0.5 HP
Input Voltage	380–480V AC, Three-Phase
Output Current	2.5 A
Control Mode	V/Hz
Digital Inputs	4 × 24V DC
Analog Input	1 × 0–10V DC
Relay Output	1 × Form A (NO)
Enclosure	IP30 / NEMA 1
Mounting Width	55 mm
Operating Temperature	−10°C to 50°C

Installation Notes

Mount vertically — cooling airflow depends on correct orientation; horizontal or inverted mounting risks overtemperature faults under sustained load.
Dedicate an appropriately rated circuit breaker or fuse per drive — the V-mini has no internal branch circuit protection.
Keep motor cable runs under 30 m; longer runs increase reflected wave voltage stress at the motor terminals and may require an output reactor.
Record all non-default parameters after commissioning — there's no onboard parameter backup, so a replacement drive requires manual reconfiguration from documented values.

FAQ

Q: Can this drive run from 208V or 240V three-phase instead of 480V?

No. The input range is fixed at 380–480V three-phase. For lower-voltage three-phase supplies, a different catalog number rated for that voltage range is required.

Q: Is there a fieldbus communication option for this drive?

No. The V-mini series has no option port and cannot accept communication expansion cards. For network connectivity, the 22A or 22B series drives with option ports are the appropriate alternative.

Q: Can the relay output signal a fault condition to a PLC?

Yes. Configure the relay output function to trigger on fault — the contact changes state when the drive trips, providing a hardwired signal independent of any network connection.

Q: What's the minimum practical operating frequency for a fan load on this drive?

For standard self-cooled fan motors under V/Hz control, sustained operation below roughly 10–15 Hz risks inadequate motor cooling since the shaft-mounted fan slows along with the motor — verify the specific motor's thermal tolerance at low speed before running continuously in that range.

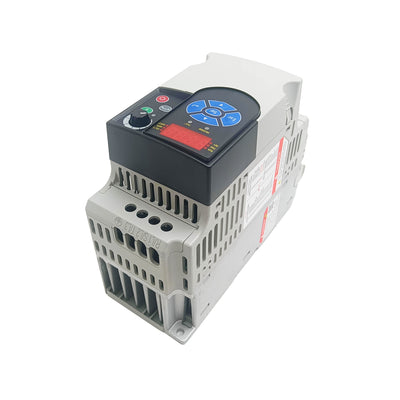

22F-D2P5N103 New Original 22FD2P5N103 0.75kW 1HP AC Drive
