25B-D010N114 — 525 Series AC Drive, 480V Three-Phase, 4 kW / 5 HP, with EMC Filter

The 25B-D010N114 is a 4 kW / 5 HP variable frequency drive from the 525 series, rated for 380–480V AC three-phase input with 10.5A output current under both Normal Duty and Heavy Duty ratings. It includes an integral EMC filter, a brake IGBT for dynamic braking, embedded dual EtherNet/IP ports, and hardwired Safe Torque Off as standard — covering both V/Hz and closed-loop control including permanent magnet motor support in one Frame B unit.

Specifications

Parameter	Value
Part Number	25B-D010N114
Power Rating	4 kW / 5 HP (Normal Duty and Heavy Duty)
Input Voltage	380–480V AC, Three-Phase
Output Current	10.5 A
Output Frequency	0–500 Hz
Control Modes	V/Hz, Sensorless Vector, Closed-Loop Vector, Permanent Magnet Motor Control
Communication	EtherNet/IP, dual-port (embedded)
Onboard I/O	7 digital inputs, 2 opto outputs, 2 relay outputs, 2 analog inputs, 1 analog output
Safe Torque Off	Category 3 / PLd, SIL 2 (hardwired, standard)
EMC Filter	Integral
Brake Transistor	Built-in (external resistor required)
Enclosure	IP20 / NEMA Type Open

5 HP With the Full Feature Set Standard

At 5 HP, this configuration doesn't trim any capability for the sake of a simpler build — the integral EMC filter, dual EtherNet/IP ports, and onboard Safe Torque Off are all built in rather than optional. For applications needing CE-compliant EMC performance straight out of the box, the integral filter removes a separate line item and the wiring associated with an external filter on most standard installations.

Support for permanent magnet motor control alongside the standard induction motor modes is notable at this power level — facilities standardizing on IPM (interior permanent magnet) motors for their efficiency advantage can use the same drive platform across both motor types rather than maintaining separate drive families for induction versus permanent magnet applications.

FAQ

Q: Can this drive control a permanent magnet motor without additional hardware?

Yes. Permanent magnet motor control is a selectable control mode on this drive, requiring accurate motor parameter entry and an autotune, but no separate hardware beyond the standard drive.

Q: Is an external braking resistor included with the drive?

No. The drive includes the internal brake transistor (IGBT), but an appropriately sized external resistor must be connected separately for dynamic braking applications.

Q: Does the dual EtherNet/IP port support DLR ring topology?

Dual-port EtherNet/IP on this drive platform generally supports Device Level Ring topology — verify the specific firmware revision's DLR capability against current documentation before designing a ring network around this drive.

Q: Can the relay outputs be configured to signal different drive conditions?

Yes. The two relay outputs are configurable in the drive parameters for various status conditions — run status, fault, at-speed confirmation, and other selectable functions depending on application needs.

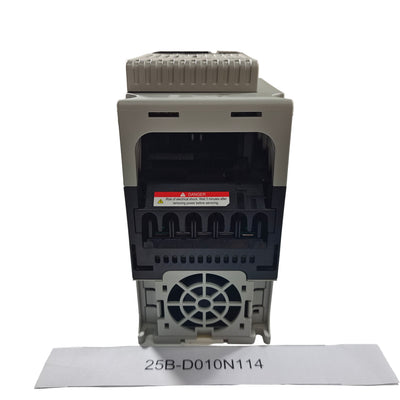

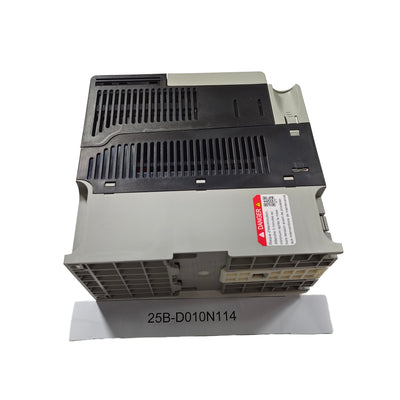

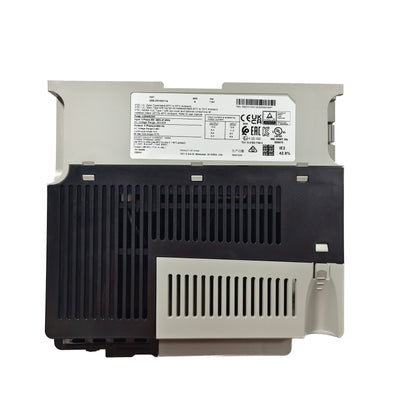

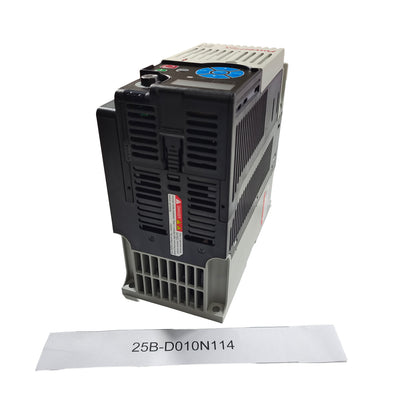

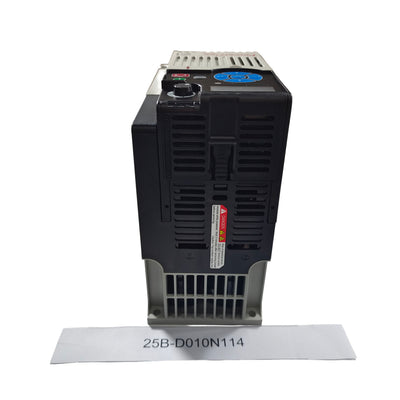

25B-D010N114 New In Stock 5.0HP 3PH 480V AC Drive 25BD010N114
