25C-A4P8N114 — 525 Series AC Drive, 120V Single-Phase, 0.75 kW, IP66

The 25C-A4P8N114 is a 0.75 kW / 1 HP variable frequency drive from the 525 series, rated for 100–120V AC single-phase input and delivering 4.8A output current. The distinguishing feature of this variant is the IP66 / NEMA 4X enclosure — the drive is fully sealed against dust and water jets, including from any direction. This makes it suitable for direct panel mounting in environments where a standard IP20 open-type drive would need to be inside a separately sealed enclosure.

The 525 platform brings EtherNet/IP as a standard onboard feature at every power rating, and this IP66 model is no exception. Two RJ-45 ports are built in, supporting linear and Device Level Ring topologies without additional hardware. For wash-down environments, food processing areas, and outdoor machinery where both network connectivity and environmental sealing are mandatory, the 25C-A4P8N114 addresses both requirements in a single unit.

Specifications

Parameter	Value
Part Number	25C-A4P8N114
Series	525 Series
Power Rating	0.75 kW / 1 HP
Input Voltage	100–120V AC, Single-Phase
Output Current	4.8 A
Output Frequency Range	0–500 Hz
Control Modes	V/Hz, Sensorless Vector (SVC)
Embedded Communication	EtherNet/IP dual-port (built-in)
DLR Support	Yes
Digital Inputs	6 × 24V DC
Analog Inputs	2 × 0–10V / 0–20 mA
Safe Torque Off (STO)	Category 3 / PLd (hardwired)
Enclosure	IP66 / NEMA 4X
Operating Temperature	−10°C to 50°C
Approvals	UL, CE, RCM

When the IP66 Enclosure Changes the Design

In a typical machine control panel, drives are mounted in a sealed enclosure — the panel provides the environmental protection, and the drives inside it can be IP20 open type. This is cost-effective when all the drives are centralized in one enclosure. The economics shift when drives need to be distributed close to motors in harsh environments.

Running long motor cables from a central panel to distributed motors introduces voltage drop, EMC issues, and the cost of cable tray runs. Placing IP66 drives close to their motors eliminates long motor cable runs at the expense of needing each drive to be independently sealed. The 25C-A4P8N114 handles its own environmental sealing — it can be mounted on a machine frame, inside a junction box, or in a local enclosure that doesn't need to meet IP66 itself. Total cost of materials and installation often favors the distributed approach on larger machines with motors spread across a significant footprint.

IP66 in Practice — What It Covers and What It Doesn't

IP66 means the enclosure is completely dust-tight and withstands powerful water jets from any direction. In the context of food processing and wash-down environments, this covers the daily cleaning cycles with high-pressure hoses that most industrial equipment faces. It does not cover continuous immersion — for that, IP68 would be required. And the IP rating applies to the sealed enclosure body; cable entry points must use IP66-rated conduit fittings or cable glands to maintain the rating at the cable penetrations.

NEMA 4X adds corrosion resistance to the IP66 sealing, which matters in food processing areas with acidic or alkaline cleaning agents, or in coastal environments where salt air accelerates corrosion. Verify the mounting hardware (bolts, brackets) is also stainless or coated appropriately — the drive enclosure being NEMA 4X doesn't protect mounting hardware from corrosion.

FAQ

Q: Can this drive be mounted outdoors without additional protection?

IP66 / NEMA 4X covers rain, water jets, and dust — sufficient for most outdoor machinery in sheltered or semi-sheltered locations. For direct exposure to sunlight, UV degradation of the enclosure and potential overheating from solar radiation are separate concerns from the IP rating. Mount in a shaded location or add a sun shield for sustained outdoor use.

Q: Are standard RJ-45 Ethernet cables compatible with the IP66 model?

No. The IP66 525 series uses M12 D-coded circular connectors for Ethernet. Standard RJ-45 patch cables do not mate with M12 connectors. Use industrial M12 Ethernet cables assembled for EtherNet/IP applications.

Q: Does the IP66 enclosure affect the drive's thermal performance?

Yes. A sealed enclosure reduces heat dissipation compared to an open-type drive. The 25C IP66 model has a derated current output versus the equivalent IP20 model at the same power rating to account for this. Verify the derating curve at the application's ambient temperature before commissioning.

Q: Does sensorless vector control require autotune on this drive?

Yes. For SVC mode to work correctly, the drive needs accurate motor parameters obtained through a static or rotating autotune routine. Without autotune, SVC operates on default parameters that rarely match the actual motor, resulting in poor low-speed torque and potential instability.

Q: Can the STO inputs be accessed without opening the sealed enclosure?

The STO terminals are inside the drive's control terminal section, accessed through the sealed conduit entries. Wiring the STO circuit requires opening the terminal cover. Once wired, the cover must be re-sealed. Pre-wiring the STO circuit before sealing the final installation saves having to break the seal later.

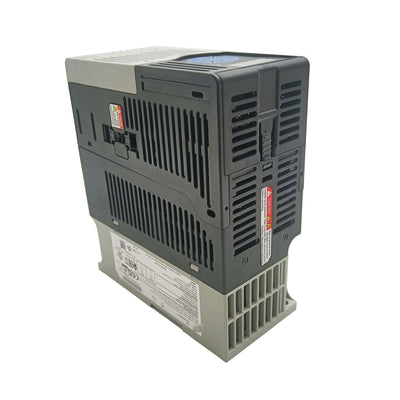

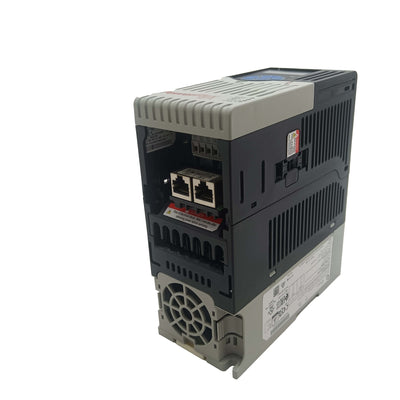

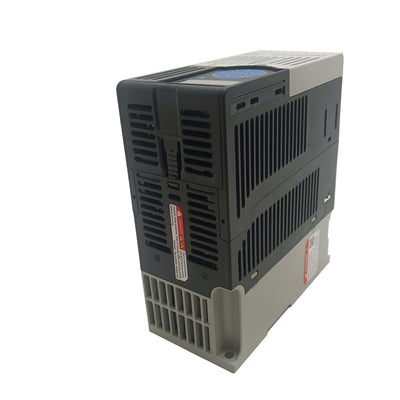

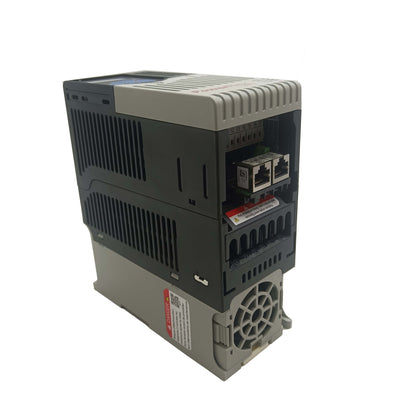

25C-A4P8N114 Brand New Original 527 VFD Drive 25CA4P8N114
