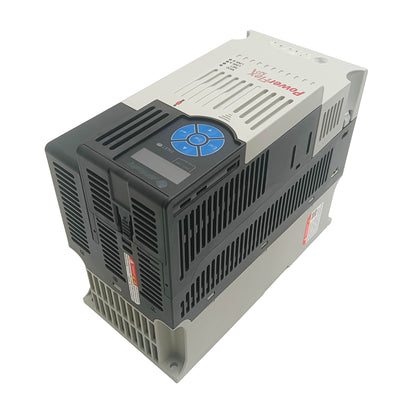

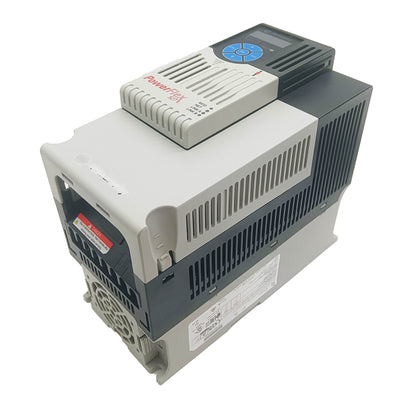

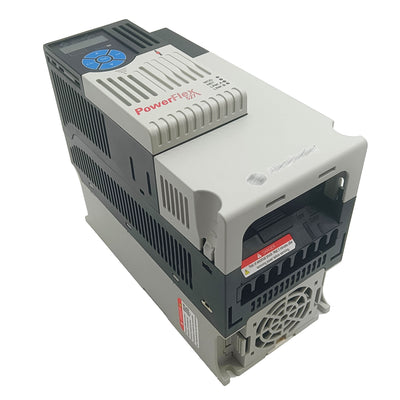

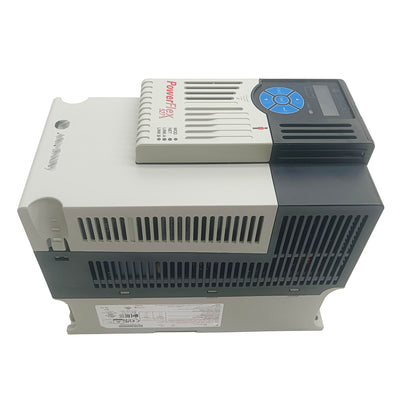

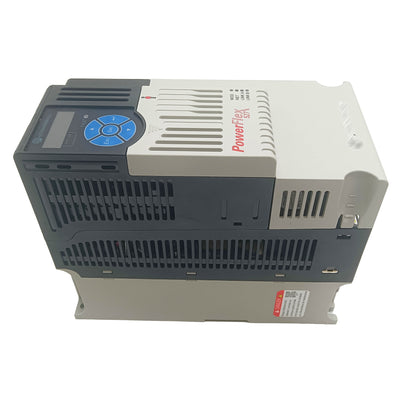

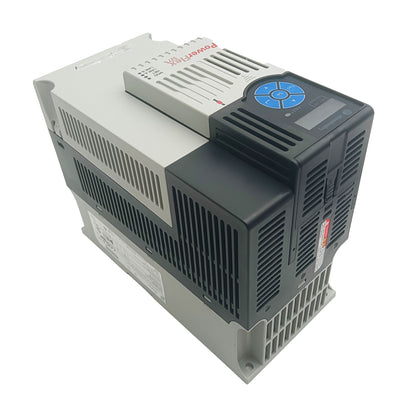

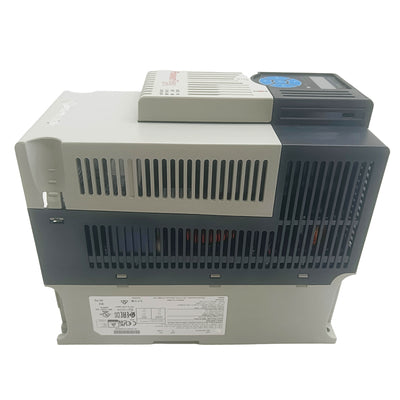

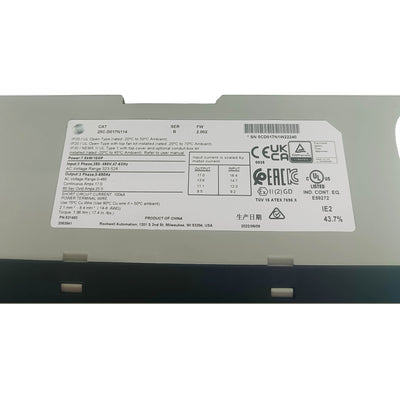

25C-D017N114 — AC Drive, 480V Three-Phase, 10 HP / 7.5 kW, Frame C

The 25C-D017N114 is a 10 HP / 7.5 kW AC drive (rated identically for Normal Duty and Heavy Duty), accepting 380–480V AC three-phase input (323–528V rated range) and delivering 17A output current in a Frame C housing. It supports V/Hz and sensorless vector control with a 0–500 Hz output frequency range, and shares its core control module and accessory card architecture with closely related drives in the same broader platform family.

Specifications

Parameter	Value
Part Number	25C-D017N114
Power Rating	10 HP / 7.5 kW (Normal and Heavy Duty)
Input Voltage	380–480V AC, Three-Phase (323–528V rated range)
Output Current	17 A
Output Frequency	0–500 Hz
Control Modes	V/Hz, Sensorless Vector
Frame Size	C
Branch Short-Circuit Protection	Not provided by drive — external protection required
Enclosure	IP20 / NEMA Open Type
Operating Temperature	−20°C to 50°C (mounting-dependent derating)

A Wiring Detail That Matters on This Platform

This drive shares its broader catalog structure and accessory compatibility with closely related drive families, but its control circuitry differs in a specific, important way: connecting terminals 01 and 11 together — a wiring shortcut that may be harmless on a related drive family — causes an internal short on this platform and can damage internal components. This is exactly the kind of detail that gets missed when wiring practices are carried over from a visually similar but electrically different drive without checking the specific wiring diagram for the unit actually being installed.

The drive itself doesn't provide branch short-circuit protection — this must be supplied externally per the installation's electrical code requirements, typically through a properly sized circuit breaker or fuse set ahead of the drive. At 7.5 kW, the EMC filter is optional rather than standard at this rating tier; verify whether the specific unit ordered includes the filter before assuming CE compliance is automatically covered.

FAQ

Q: Can terminals 01 and 11 be jumpered the same way they might be on a related drive platform?

No. Connecting these terminals together on this specific drive causes an internal short circuit and can damage components — always wire strictly according to this drive's own wiring diagram rather than assuming compatibility with a visually similar drive family.

Q: Does this drive include branch circuit short-circuit protection internally?

No. External short-circuit protection — a correctly rated circuit breaker or fuse set — must be provided ahead of the drive as part of the installation.

Q: Is the EMC filter included as standard at this power rating?

Not necessarily — filter inclusion varies by specific catalog configuration at this power level. Verify whether the unit ordered includes the integral filter before assuming CE compliance is covered without additional filtering.

Q: What mounting clearance does this drive need at Frame C?

Clearance requirements depend on mounting orientation and whether a control module fan kit is installed — vertical mounting with the fan kit requires more clearance than standard horizontal zero-stacking configurations. Consult the specific mounting method's clearance table before finalizing panel layout.

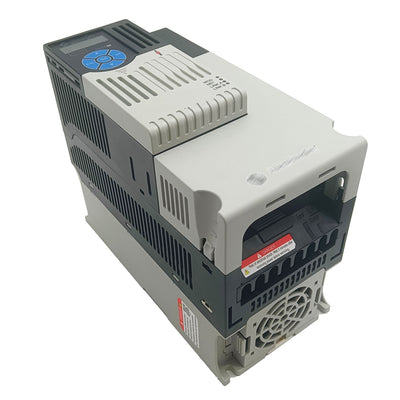

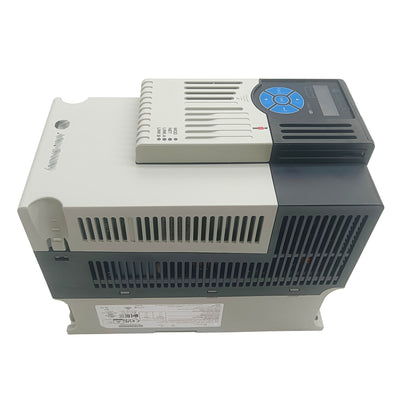

25C-D017N114 New Original 25CD017N114 Ser B 7.5kW 10Hp AC Drive
