2711P-B10C22D9P — PanelView Plus 7 Standard 10-Inch Keypad + Touch HMI, 24V DC

The 2711P-B10C22D9P is a 10-inch PanelView Plus 7 Standard HMI terminal with both resistive touchscreen and physical function keypad input, running on 24V DC. Two independent Ethernet ports and an RS-232 serial port handle controller communication; the embedded FactoryTalk View ME runtime runs the operator interface application. The 10-inch WSVGA display gives operators noticeably more screen area than the 7-inch variant — enough for detailed process graphics, multi-parameter data displays, and trend charts that would be cramped on a smaller screen.

PanelView Plus 7 Standard is the entry-level tier of the PanelView Plus 7 family, positioned for machine-level operator interfaces rather than supervisory or multi-controller applications. For a standalone machine — a packaging line, a conveyor system, a batch process unit — where the HMI connects to one controller and displays a defined set of operator screens, the Standard tier covers the application without the overhead of the Performance tier's expanded capabilities.

Specifications

Parameter	Value
Part Number	2711P-B10C22D9P
Series	PanelView Plus 7 Standard
Display Size	10 inch (diagonal)
Display Type	Color TFT LCD, 65,536 colors
Resolution	1024 × 600 pixels (WSVGA)
Input Method	Resistive touchscreen + physical function keypad
Keypad Keys	Function keys (F1–F10), navigation keys, numeric keypad
Power Input	24V DC (18–32V DC)
Power Consumption	~30 W typical
Communication	2 × Ethernet (10/100 Mbps), 1 × RS-232, 1 × USB host, 1 × USB device
Runtime Software	FactoryTalk View ME
Application Memory	512 MB flash
Front Panel Rating	NEMA 4/4X, IP65 (front face)
Backlight Life	~50,000 hours
Operating Temperature	0°C to 55°C
Standards	UL 508, CE, cUL

10 Inches in a Machine Environment

The step from 7 to 10 inches isn't just bigger numbers — the 1024 × 600 resolution of the 10-inch model gives application designers significantly more freedom than the 800 × 480 of the 7-inch. A 10-inch screen comfortably accommodates a real-time trend chart alongside a status panel and alarm banner on a single screen without the cramped layout that makes the same attempt on a 7-inch look cluttered. Navigation button banks can be larger, reducing mis-touch errors in environments where operators wear gloves.

For machines with complex processes or many monitored parameters, the 10-inch format often eliminates several screens from the application by fitting more information on each screen without sacrificing legibility. Fewer screens means simpler navigation, less operator training, and fewer places for inconsistencies to appear in the application design.

The physical panel cutout for the 10-inch model is approximately 290 mm × 215 mm — verify the panel door has adequate space. Control cabinet doors in the 400–600 mm width range typically accommodate it; smaller doors may require the 7-inch model instead.

Application Development and Deployment

Applications run on FactoryTalk View ME, developed in FactoryTalk View Studio on a Windows PC. The development environment is the same across all PanelView Plus 7 Standard models — an application developed on a 7-inch terminal can be adapted for the 10-inch format by adjusting screen layouts for the larger resolution, without rebuilding the tag database or communication configuration.

Deployment options for field updates:

USB drive: copy the compiled .MER file to a USB drive, insert into the terminal's host port, and load from the configuration menu. No laptop or network access required — practical for updating many terminals on a floor.
Ethernet download from FactoryTalk View Studio: connect from a PC on the same network, go online, and download directly. The terminal must be in configuration mode during the transfer.

Keep application backups in at least two places — the development PC and a network share or USB archive. A terminal that requires replacement without a backup means rebuilding the application from scratch, which is a significant downtime event on any production-critical machine.

FAQ

Q: Can the function keys replace the touchscreen entirely for navigation?

If the application is designed for it, yes. All screen navigation and data entry can be assigned to keypad keys. Touch-only objects won't respond to keypad input, so the application must use keypad-compatible objects throughout if full keypad-only operation is required.

Q: What controllers can this terminal communicate with?

FactoryTalk View ME supports EtherNet/IP communication natively to any compatible EtherNet/IP controller. The RS-232 port with appropriate driver support handles serial-connected controllers. Third-party Ethernet protocols (Modbus TCP, Profinet) are not natively supported without a third-party driver add-in.

Q: How does the PanelView Plus 7 Standard differ from the Performance model?

Performance has a faster processor and more memory, supporting larger applications — more tags, more screens, heavier trend logging. Standard handles the majority of machine-level interfaces without issue. Performance becomes justified when application complexity consistently approaches Standard's limits.

Q: Is the resistive touchscreen usable with industrial gloves?

Yes. Resistive touch responds to pressure from any object — bare finger, nitrile glove, rubber glove, or stylus. Thick insulated gloves work too, though very rigid gloves may reduce touch precision on small targets. This is a deliberate design choice for industrial use, unlike capacitive screens which require skin contact.

Q: Can the backlight be replaced in the field?

Backlight replacement is a depot repair, not a field-replaceable procedure. At the ~50,000-hour rated life, scheduling replacement during a planned maintenance window — rather than waiting for failure — is the standard approach for terminals in continuous 24-hour production environments.

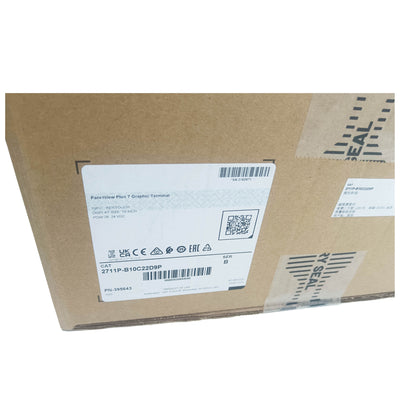

2711P-B10C22D9P New In Box 2711PB10C22D9P Plus 7 Graphic Terminal
