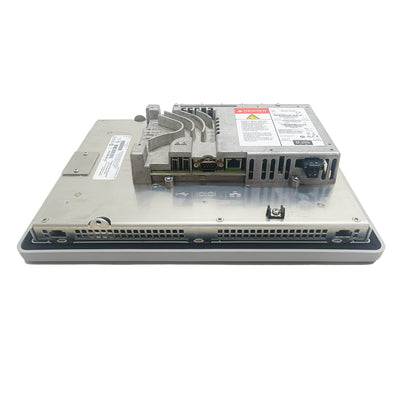

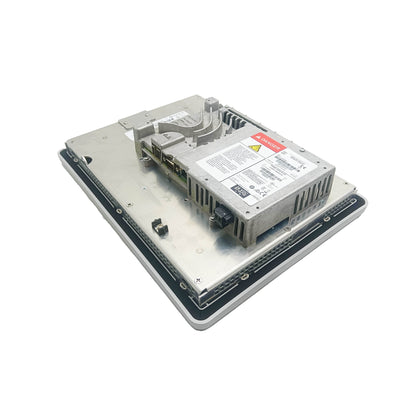

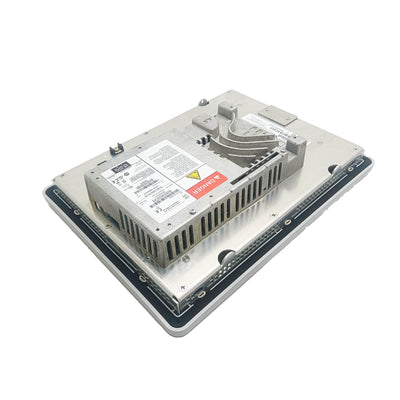

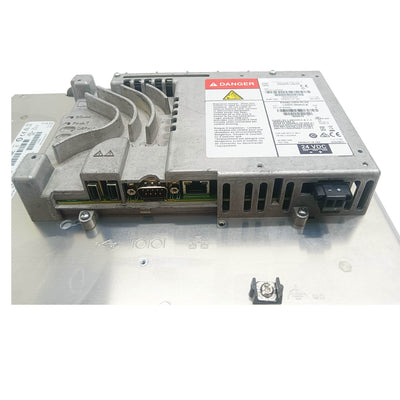

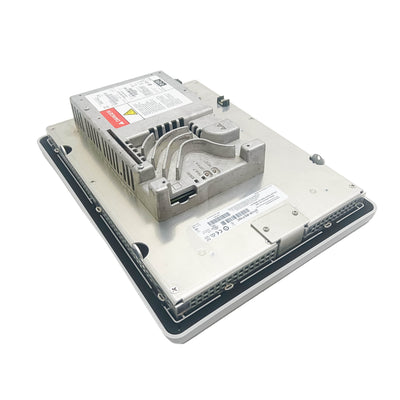

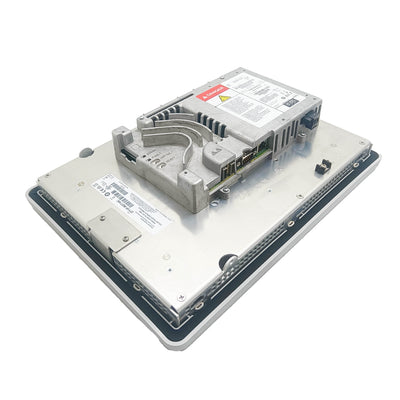

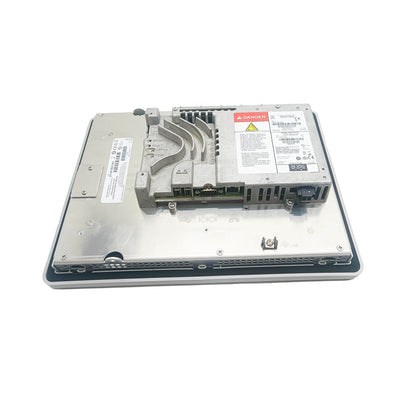

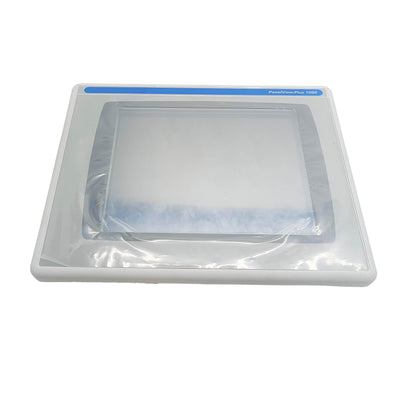

2711P-T10C4D8 — PanelView Plus 7 Standard 10-Inch Touch HMI, 24V DC

The 2711P-T10C4D8 is a 10-inch touch-only HMI terminal from the PanelView Plus 7 Standard family, running on 24V DC with a single Ethernet port and resistive touchscreen as the sole input method. The 1024 × 600 WSVGA display gives application designers meaningfully more screen real estate than the 7-inch variants, fitting trend charts, multi-parameter status panels, and larger navigation buttons without the cramped layout a smaller screen forces.

Specifications

Parameter	Value
Part Number	2711P-T10C4D8
Display Size	10 inch (diagonal)
Resolution	1024 × 600 (WSVGA)
Input Method	Resistive touchscreen (touch only, no keypad)
Power Input	24V DC
Communication	1 × Ethernet, 1 × USB host, 1 × USB device
Runtime Software	FactoryTalk View ME
Front Panel Rating	NEMA 4/4X, IP65 (front face)
Operating Temperature	0°C to 55°C

Touch-Only at This Screen Size

Without a physical keypad, every interaction depends on the touch layer — application screens need touch targets sized generously enough for gloved operation, and numeric entry relies on on-screen keypads rather than physical keys. The larger 10-inch canvas helps offset this: touch buttons can be sized comfortably without crowding the layout, something that's a real constraint on smaller touch-only terminals. For applications where keypad-driven function keys aren't a requirement and the priority is maximum visual information density, this configuration covers it efficiently.

The single Ethernet port is sufficient for most machine-level deployments connecting to one controller, though installations needing a second network segment or pass-through connectivity should consider the dual-port variant instead.

FAQ

Q: Is there a keypad version of this same 10-inch terminal available?

Yes, the PanelView Plus 7 Standard family includes a keypad-plus-touch variant at the same screen size for applications needing physical function keys alongside the touchscreen.

Q: Can this terminal communicate with non-EtherNet/IP controllers?

FactoryTalk View ME's native driver support is centered on EtherNet/IP. For other protocols, a compatible third-party driver would be required, which isn't standard on this platform — verify protocol support before specifying for a non-EtherNet/IP system.

Q: How are application updates deployed to this terminal in the field?

Either by connecting to the same Ethernet network from a PC running FactoryTalk View Studio, or by copying the compiled application file to a USB drive and loading it through the terminal's host port — no network connection required for the USB method.

Q: Does the resistive touchscreen need recalibration over time?

Occasional recalibration may be needed as the screen ages, particularly with heavy use or temperature extremes. A calibration utility is accessible from the terminal's configuration menu and takes under a minute to run.
