2711P-T7C22D8S 7-Inch Color Touch Operator Terminal for Industrial HMI Applications

The 2711P-T7C22D8S is a 7-inch color touch operator terminal designed for machine visualization and process monitoring. It provides an intuitive user interface for real-time operation, diagnostics, and production management in industrial automation systems.

Technical Specifications

Parameter	Specification
Product Type	Operator Terminal
Display Size	7 in
Display Type	Color TFT LCD
Touchscreen	Yes
Communication	Ethernet / USB / Serial
Power Supply	24 VDC
Mounting	Panel Mount

Installation Guide

Cut the panel opening according to installation dimensions.
Secure the terminal using the supplied mounting clips.
Connect the 24 VDC power supply.
Attach the required communication cables.
Verify the display and communication after power-up.

FAQ

Q1: What is the primary function of this terminal?
A: Machine operation and process visualization.

Q2: Does it support touch operation?
A: Yes, it features a color touchscreen.

Q3: How is it installed?
A: Standard panel mounting.

Q4: Which communication interfaces are available?
A: Ethernet, USB, and serial communication.

Q5: Where is it commonly used?
A: Packaging, manufacturing, and automated production equipment.

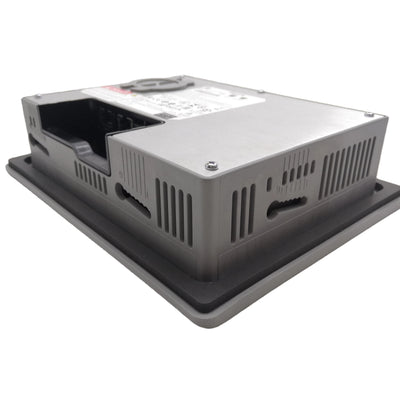

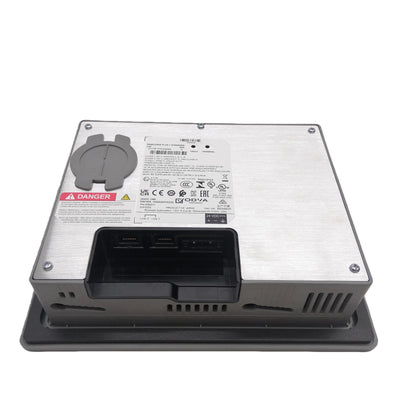

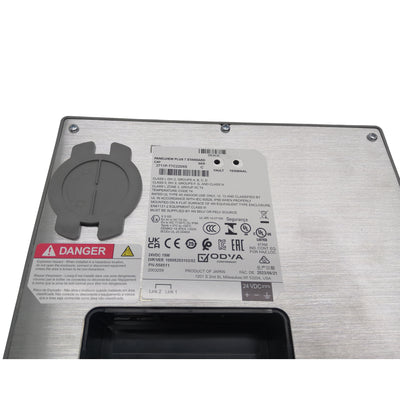

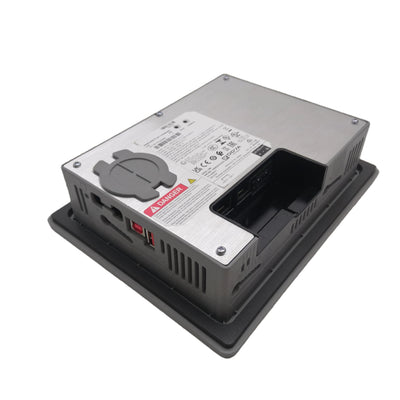

2711P-T7C22D8S New PanelView Plus 7 Standard 7 Terminal Touch Screen 2711PT7C22D8S
