3C-D Z73L SMC Magnetic Switch – New In Stock

Precision Position Detection for Pneumatic Automation Systems

In modern pneumatic automation, accurate cylinder position feedback is critical for system stability and cycle efficiency. The SMC 3C-D Z73L magnetic switch is designed to provide reliable, non-contact position detection for air cylinders, ensuring consistent signal output even in high-frequency industrial environments.

Product Overview

The 3C-D Z73L is a compact reed-type magnetic switch developed by SMC for direct mounting on compatible pneumatic cylinders. It detects piston movement through an internal magnet and delivers fast, stable switching signals to PLCs, controllers, and I/O modules. Its slim profile and standardized wiring make it ideal for both new installations and replacement applications.

Key Technical Specifications

Model: 3C-D Z73L
Type: Magnetic Reed Switch
Switching Output: Normally Open (NO)
Operating Voltage: 5–240 VAC / 5–30 VDC
Maximum Load Current: 100 mA
Maximum Switching Power: 10 W
Indicator: Red LED operation indicator
Cable Length: Approx. 0.5 m (standard)
Mounting Style: Direct cylinder mounting (SMC compatible)
Protection Rating: IP67
Operating Temperature: –10°C to +60°C
Condition: New Original, Factory Sealed, In Stock

Functional Advantages

Non-contact detection
Eliminates mechanical wear, improving service life and signal reliability.
Wide voltage compatibility
Supports both AC and DC control systems without additional converters.
High visibility LED indicator
Allows quick on-site diagnostics and easier commissioning.
Compact & lightweight design
Ideal for tight installation spaces on pneumatic actuators.
Industrial-grade durability
IP67-rated housing resists dust, moisture, and oil mist.

Typical Applications

Pneumatic cylinders (SMC and compatible series)
Automated assembly lines
Packaging machinery
Pick-and-place systems
Industrial PLC input monitoring
Factory automation and motion control systems

Packaging & Supply

Condition: Brand New, Original
Stock Status: In Stock, Ready to Ship
Packaging: Original SMC factory packaging

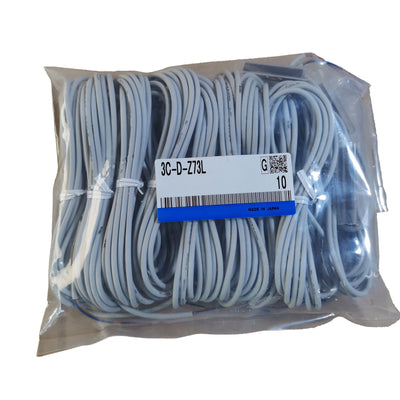

3C -D Z73L SMC Magnetic Switch New In Stock 3CDZ73L
