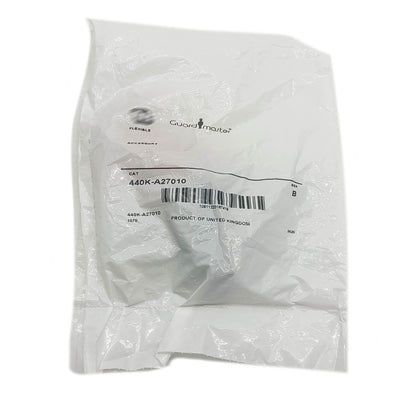

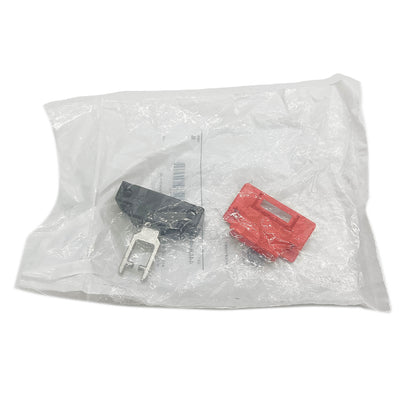

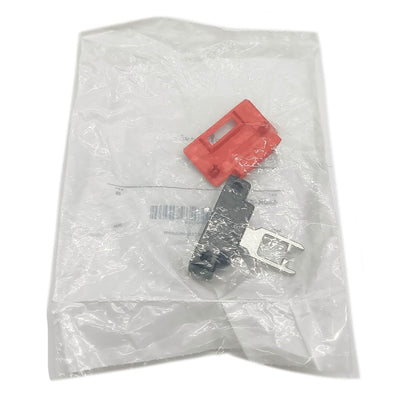

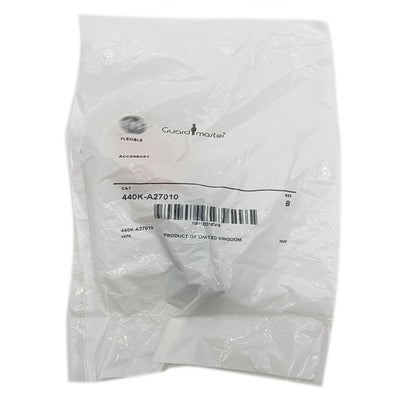

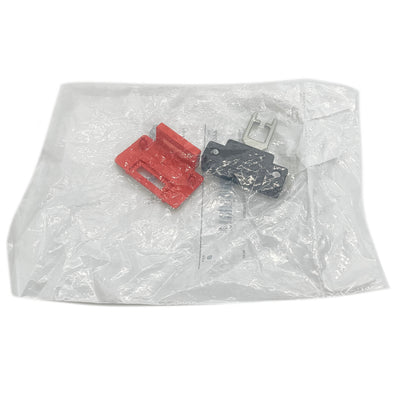

440K-A27010 — Alignment Guide with Fully-Flexible Actuator for Tongue-Style Safety Interlock Switches

The 440K-A27010 is an alignment guide and fully-flexible actuator accessory for a family of tongue-operated safety interlock switches, designed to compensate for guard doors that don't track perfectly straight as they open and close. Rather than a switch in its own right, this is a mechanical accessory that improves actuator alignment tolerance on compatible switch models — relevant wherever a sliding or hinged guard has some lateral play or misalignment over its travel.

Specifications

Parameter	Value
Part Number	440K-A27010
Function	Alignment guide with fully-flexible actuator
Compatible Switch Families	Trojan 5/6 and related tongue-style interlock switches (standard models, not GD2)
Mounting	Guard door leading edge
Material	Per compatible switch family standard construction

An Alignment Accessory, Not a Switch

Tongue-style interlock switches depend on the actuator entering the switch head along a consistent path every time the guard closes. A guard with even minor lateral play — common on long sliding doors, doors with worn rollers, or hinged guards that sag slightly over time — can cause the rigid standard actuator to bind or fail to seat fully, leading to nuisance faults or, worse, a switch that appears closed when alignment is actually marginal. The fully-flexible actuator in this accessory has built-in compliance that accommodates that misalignment, while the alignment guide itself helps direct the actuator into the switch head consistently despite the guard's imperfect travel.

This accessory is specifically for the standard (non-GD2) variant of compatible switch models — GD2 guard-locking variants use a different actuator and alignment system, and mixing accessory types between standard and GD2 switch variants isn't supported.

FAQ

Q: Is this accessory itself a safety-rated component?

It functions as part of the complete switch and actuator assembly's safety performance — the switch itself carries the safety rating, with this accessory contributing to reliable actuation rather than being independently rated on its own.

Q: Can this be used with GD2 guard-locking switch variants?

No. This alignment guide and actuator combination is intended for standard (non-GD2) switch models. GD2 variants require their own specific actuator accessories, and the alignment guide should be discarded if used with a GD2 model.

Q: How much misalignment can the fully-flexible actuator accommodate compared to a standard rigid actuator?

The flexible design provides meaningfully more tolerance for lateral and angular misalignment than a rigid standard actuator, though the exact compliance range should be checked against the specific switch model's installation documentation for the guard's actual travel characteristics.

Q: Does installing this accessory require removing the existing switch from the guard?

Installation typically involves replacing the actuator assembly at the guard's leading edge — verify the specific mounting procedure against the switch model's installation instructions, and always de-energize the safety circuit and confirm the machine is isolated before performing this work.
