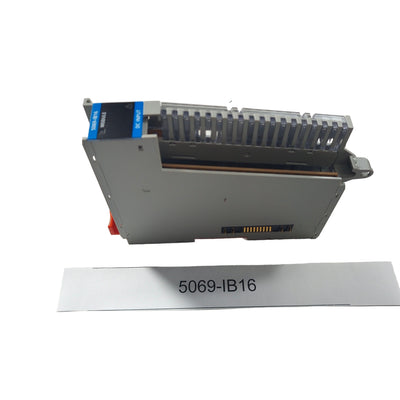

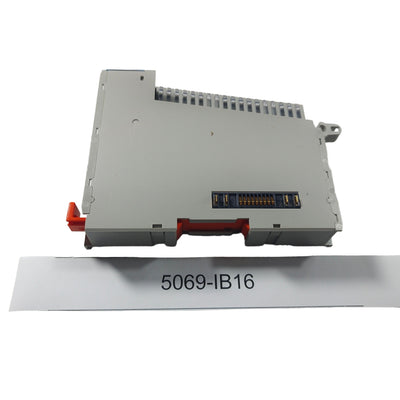

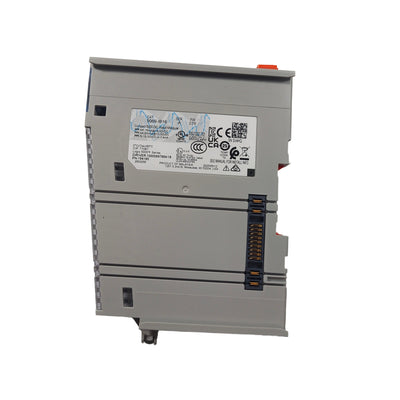

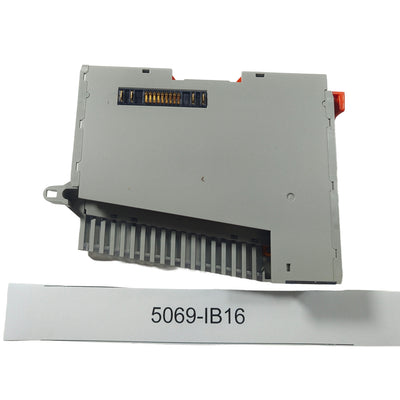

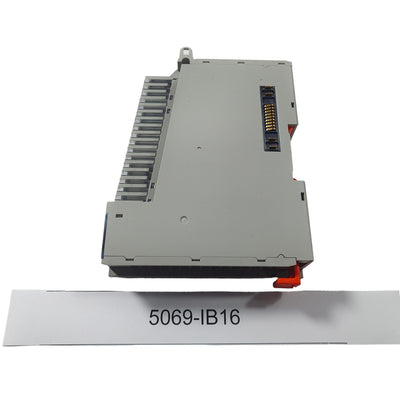

5069-IB16 Sixteen-Channel Digital Input Module

The 5069-IB16 is a compact digital input module designed for reliable signal detection from field devices such as switches and sensors. It provides fast and stable input response for industrial control systems.

Technical Specifications

Parameter	Specification
Product Type	Digital Input Module
Input Channels	16
Input Type	DC Digital Input
Mounting	DIN Rail System
Installation	Modular Backplane
Application	Signal Detection

Installation Guide

Install module on the DIN rail securely.
Verify backplane alignment before powering system.
Connect field devices to labeled terminals.
Separate input wiring from high-voltage lines.
Test all channels after wiring completion.

Applications

Limit switch monitoring
Proximity sensor input
Safety interlock systems
Machine status detection
Conveyor control systems
Automated production lines

FAQ

Q1: What devices can it read?
A: Switches, sensors, and digital field signals.

Q2: How many inputs does it support?
A: Sixteen digital inputs.

Q3: Is it suitable for fast switching signals?
A: Yes, it supports fast industrial response.

Q4: Can it be used in noisy environments?
A: Proper grounding improves stability.

Q5: Where is it commonly installed?
A: Industrial control panels.

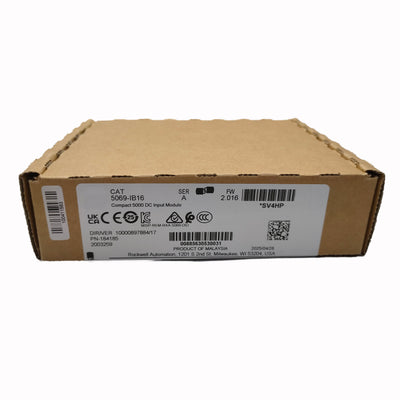

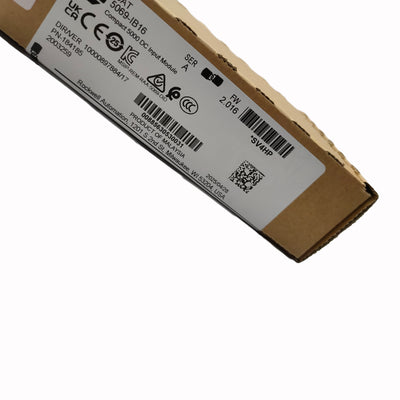

5069-IB16 New Sealed 5069IB16 Compact 5000 I/O 16-Ch Input Module
