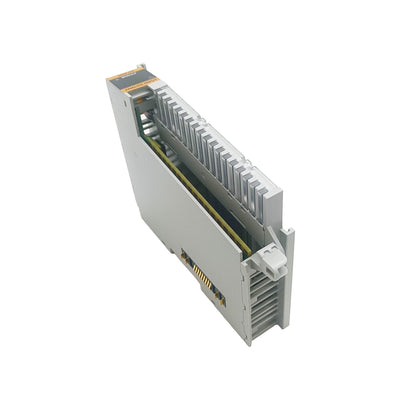

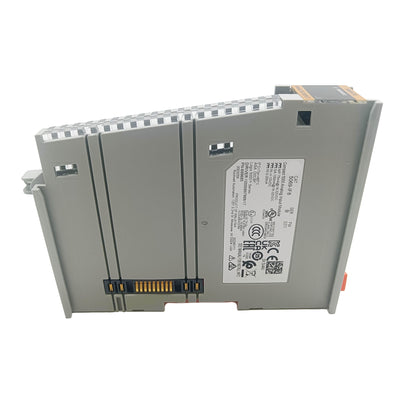

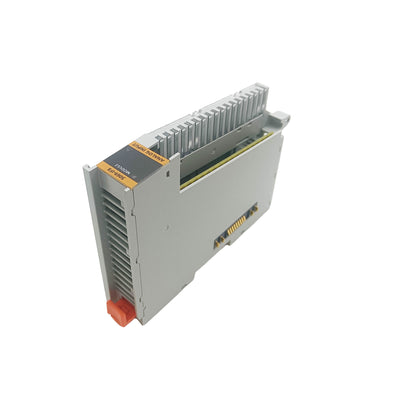

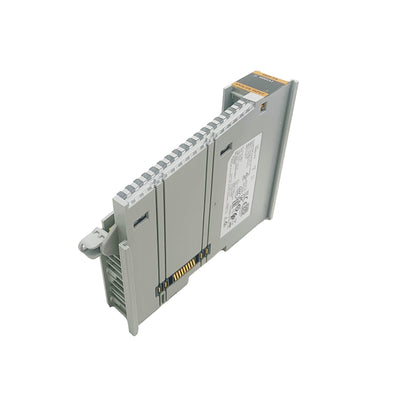

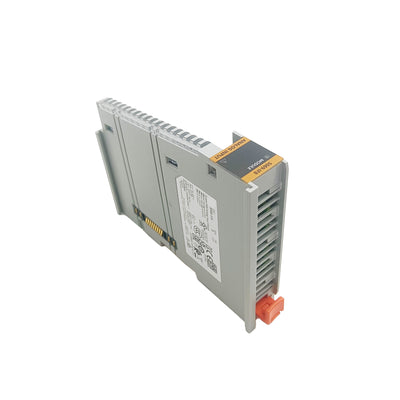

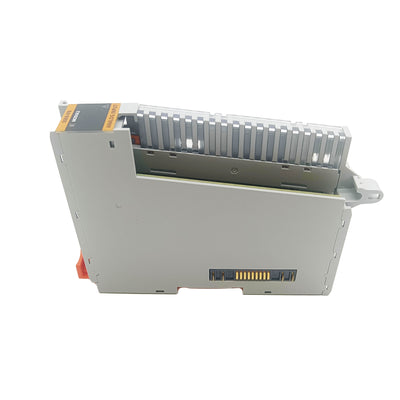

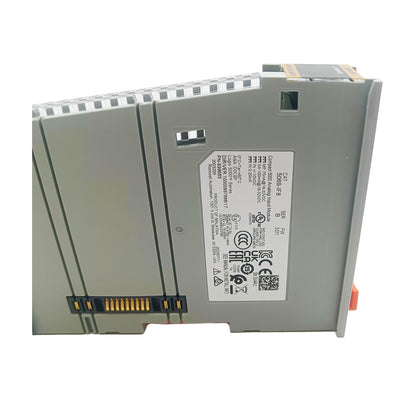

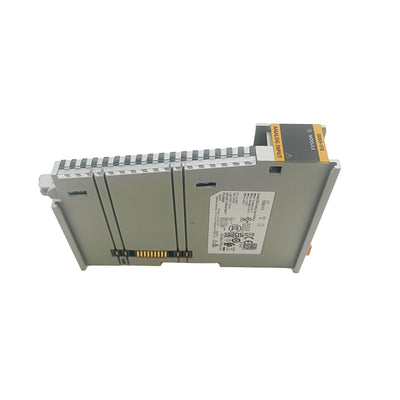

5069-IF8 — Compact 5000 8-Channel Analog Current/Voltage Input Module

The 5069-IF8 is an 8-channel analog input module for the Compact 5000 I/O platform, with each channel independently configurable for voltage or current signal types. It reports values directly in scaled engineering units as floating-point data rather than raw integer counts, which removes a manual conversion step that older-generation analog modules typically require in the controller program.

Specifications

Parameter	Value
Part Number	5069-IF8
Platform	Compact 5000 I/O (5069)
Input Channels	8
Voltage Ranges	0–5V, 0–10V, ±10V
Current Ranges	0–20 mA, 4–20 mA
Resolution	16-bit
Data Format	IEEE 754 floating point (REAL), scaled engineering units
Open-Wire Detection	Yes
Channel Isolation	Non-isolated, differential inputs
Mounting	35 mm DIN rail, side-mount bus connector

One Channel, Any Signal Type — No Hardware Tradeoff

Many analog input modules force a choice at the channel-group level — pick voltage or current for the whole bank, or buy two separate modules to cover both. The 5069-IF8 sets signal type per individual channel: a 4–20 mA pressure transmitter on channel 0 and a 0–10V valve position feedback on channel 1 coexist on the same module without any additional hardware or wiring workaround. For mixed-instrumentation process skids where the signal types aren't uniform across every measurement point, this removes a recurring specification headache.

The module's differential input architecture gives it meaningfully better resistance to electromagnetic interference than single-ended designs, which matters in panels where analog signal cables run anywhere near drive output cables or contactor switching circuits — common sources of induced noise on long analog runs.

FAQ

Q: Does the module require manual scaling from raw counts to engineering units in the program?

No. The module outputs data already in engineering units as a floating-point value — voltage or current is presented directly, removing the raw-to-engineering-unit conversion step needed on older analog modules.

Q: What does open-wire detection actually report?

It flags a broken or disconnected field wire on a channel by detecting the signal falling outside the expected range for an active connection — useful for distinguishing a genuine zero reading from a wiring fault.

Q: Can the module be used in a remote chassis over EtherNet/IP rather than local to the controller?

Yes. The 5069 platform supports both local installation directly on the controller's bus and remote installation through a Compact 5000 EtherNet/IP adapter.

Q: Is a removable terminal block included with the module?

No. The RTB must be ordered separately to match the module's wiring requirements — it does not ship bundled with the analog input module itself.
