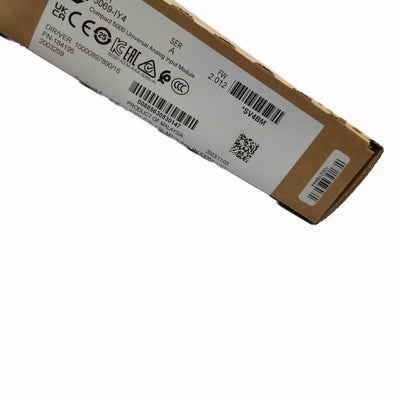

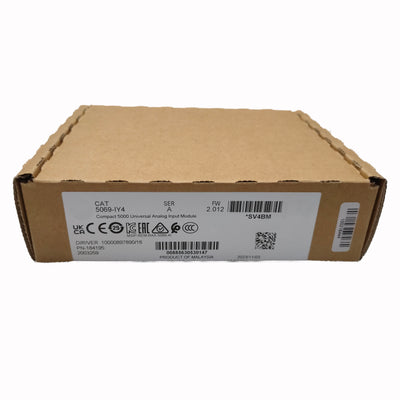

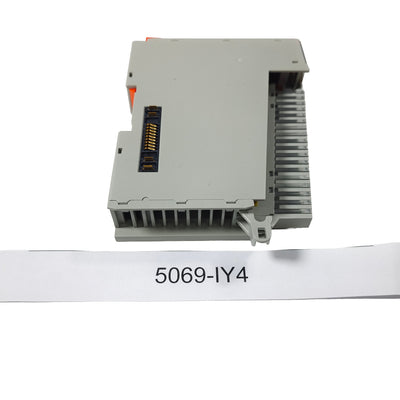

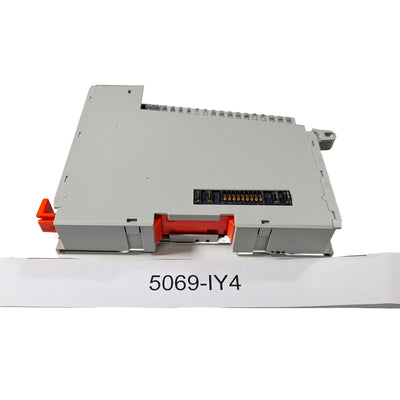

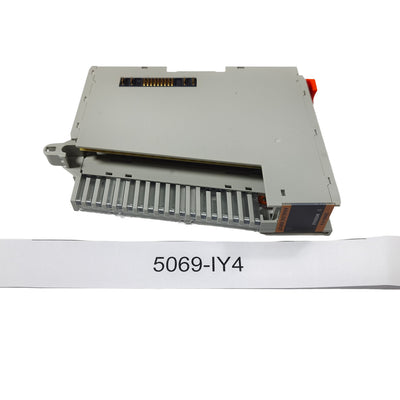

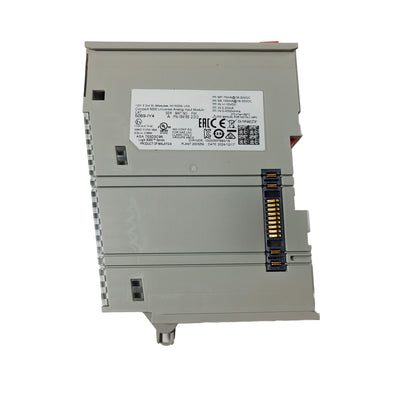

5069-IY4 Analog Input Module for Industrial Signal Processing

The 5069-IY4 is an analog input module designed for precise signal acquisition in automation environments. It converts field analog signals into digital data for control systems, supporting stable monitoring of process variables.

Technical Specifications

Parameter	Specification
Product Type	Analog Input Module
Input Channels	4
Signal Type	Voltage / Current Analog
Installation	Modular I/O System
Mounting	DIN Rail
Application	Process Signal Acquisition

Installation Guide

Ensure system power is disconnected before installation.
Mount securely onto the I/O rack.
Connect signal wires according to channel labeling.
Keep analog wiring separated from power cables.
Verify signal scaling in controller configuration.

Applications

Process monitoring systems
Temperature and pressure sensing
Industrial data acquisition
Machine condition monitoring
Automated production lines

FAQ

Q1: What signals can it read?
A: Standard industrial analog voltage and current signals.

Q2: How many inputs are available?
A: Four analog input channels.

Q3: Can it be used in noisy environments?
A: Yes, with proper shielding and grounding.

Q4: Is configuration required?
A: Yes, scaling must be set in the controller.

Q5: Where is it typically used?
A: Industrial monitoring and automation systems.

5069-IY4 Genuine Logix 5000 Input Module 5069IY4
