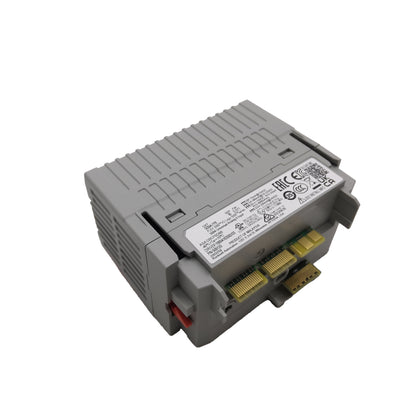

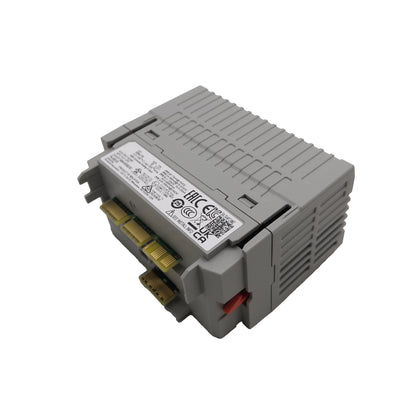

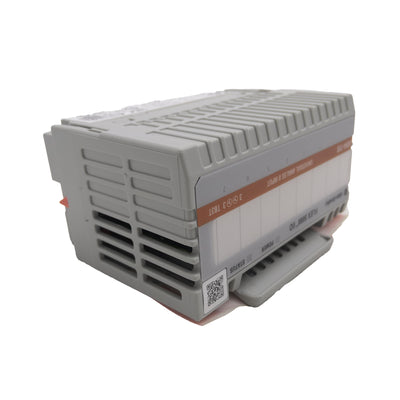

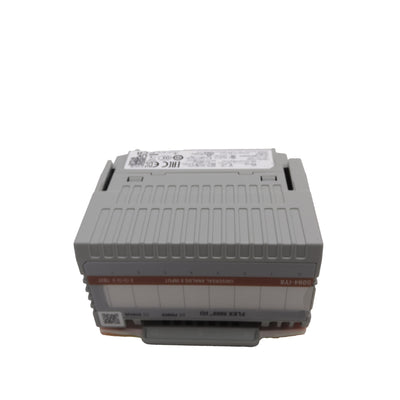

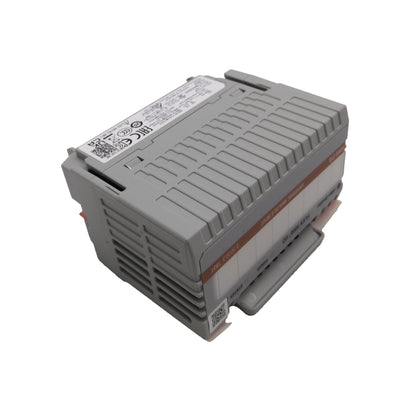

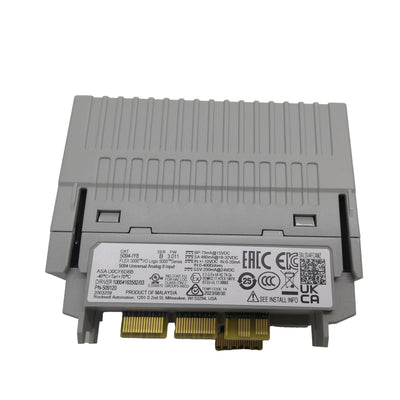

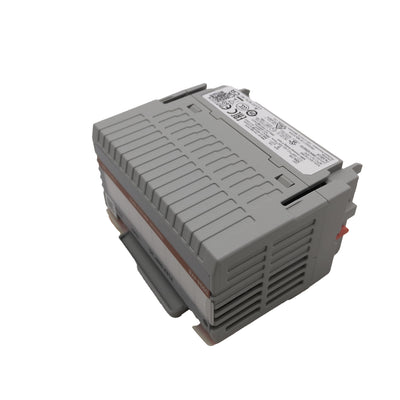

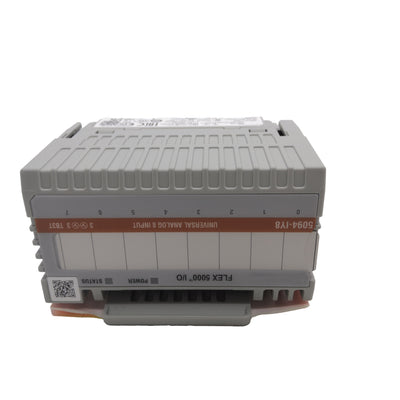

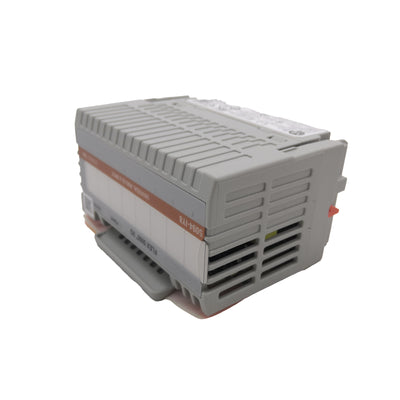

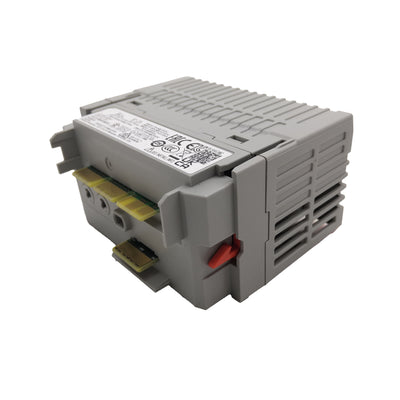

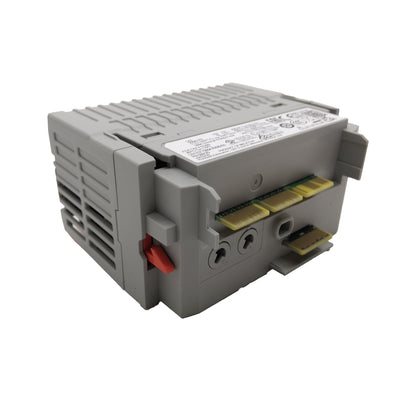

5094-IY8 High-Density Analog Input Module for Process Monitoring Systems

The 5094-IY8 is a high-density analog input module designed for accurate signal acquisition in industrial automation environments. It converts multiple analog field signals into digital data for monitoring and process control applications.

Product Specifications

Parameter	Specification
Product Type	Analog Input Module
Input Channels	8 Channels
Signal Type	Current Input
Input Range	0–20 mA / 4–20 mA
Resolution	16-bit
Mounting Type	DIN Rail Mount
Function	Process Signal Acquisition

Installation Guide

Mount the module on a standard DIN rail
Ensure proper grounding connection
Connect analog field wiring to input terminals
Verify correct polarity and signal range
Apply power and check channel indicators
Configure channel parameters in controller system

Typical Applications

Process automation systems
Chemical production monitoring
Water treatment plants
Energy management systems
Industrial instrumentation
Remote I/O data collection

FAQ

Q1: What does this module do?
A: It collects analog signals from field devices.

Q2: How many inputs are available?
A: It provides eight analog input channels.

Q3: What signal types are supported?
A: It supports 0–20 mA and 4–20 mA signals.

Q4: Is it suitable for process control?
A: Yes, it is designed for industrial process monitoring.

Q5: How is it installed?
A: It is mounted on a DIN rail.

5094-IY8 Genuine New Analog 8 Input Controller 5094IY8
