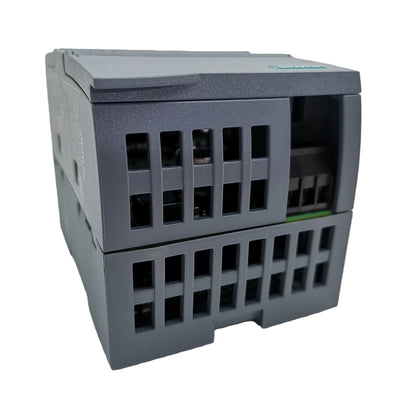

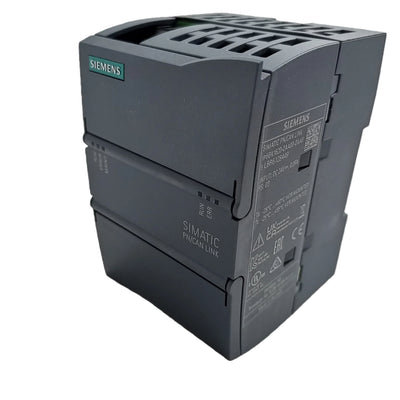

🔗Siemens PN/CAN Link Gateway Module – 6BK1620-0AA00-0AA0

New, Genuine Siemens Industrial Communication Module

Enhance mixed-protocol automation networks with the Siemens PN/CAN Link 6BK1620‑0AA00‑0AA0 — a high-performance PROFINET to CAN/CANopen gateway designed for industrial automation systems and reliable device communication. This module bridges Ethernet-based PROFINET IO controllers and field-level CAN or CANopen networks with robust connectivity.

📌 Core Technical Parameters

Model: Siemens 6BK1620-0AA00-0AA0 (6BK16200AA000AA0)
Type: Industrial PROFINET/CAN Link Gateway Module
Firmware Version: V2.0.0 | Support firmware update 📥
Power Supply: DC 24V (20.4~28.8V allowable) | Reverse/overvoltage/short-circuit protection ⚡
Power Consumption: 0.09A rated current | 2.2W typical power loss

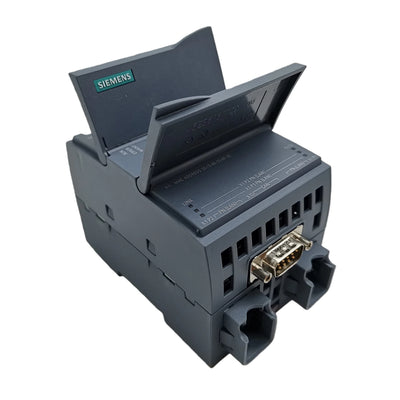

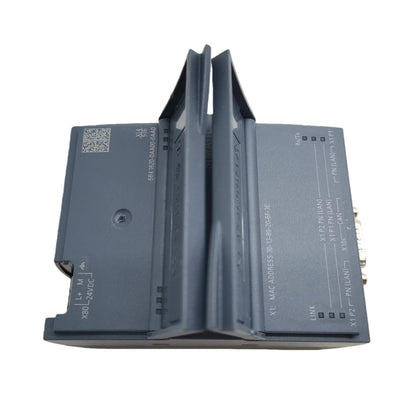

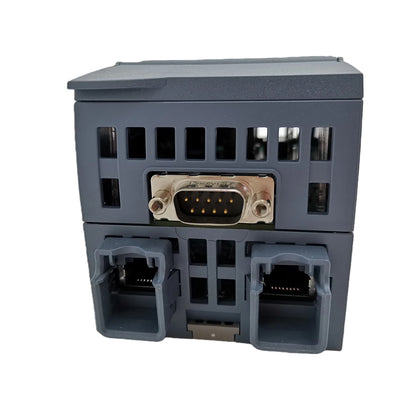

Communication Interfaces: 2×RJ45 PROFINET ports | 1×9-pin Sub-D CAN port
Transmission Rate: PROFINET 100 Mbit/s | CAN 50 kbit/s ~ 1000 kbit/s
Network Capacity: Max 126 CANopen slave nodes | 16 parallel SDO | 512 PDO (Tx/Rx)
Isolation Performance: CAN port 500V AC/707V DC | PROFINET port 1500V AC/2250V DC 🛡️
Mechanical Size: 70mm(W)×112mm(H)×75mm(D) | Net weight 212g
Mounting Mode: DIN rail/wall/panel mounting | Any installation position available 🛠️

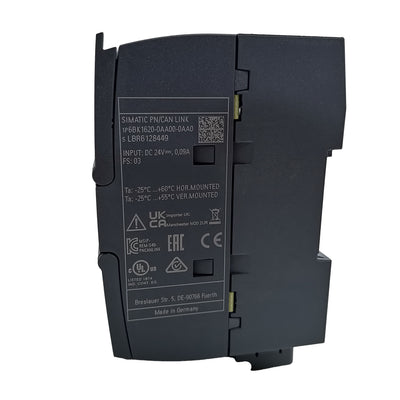

Operating Temperature: -25~60℃ (horizontal) | -25~55℃ (vertical) | Storage: -40~85℃
Humidity Resistance: Max 95% RH (non-condensing)
Protection Grade: IP20 | Suitable for switch cabinet installation
Certifications: CE, UL, cULus, RCM, KC, EAC | Marine classification society certified 📜
Configuration Software: STEP 7 TIA Portal (V14 and above) | Plug-and-configure

📊 Technical Specifications

Feature	Specification
Brand	Siemens SIMATIC
Model	6BK1620-0AA00-0AA0
Type	PN/CAN Link Gateway Module
Protocols	PROFINET IO, CAN 2.0A/B, CANopen (CiA301/302)
Ethernet	2 × RJ45 (10/100 Mbps)
CAN Interface	1 × 9-pin D-Sub
Supply Voltage	24 V DC
Protection	IP20
Mounting	DIN-rail / Panel
Operating Temp	–25 °C to +60 °C
Width	~70 mm

🏭 Typical Applications

✔ Mixed automation environments requiring PROFINET ↔ CAN/CANopen connectivity
✔ Machine tools, distributed IO networks, and fieldbus integration
✔ Process automation linking Siemens PLCs with CAN-based actuators and sensors
✔ Legacy upgrades and protocol bridging in industrial systems

📦 Included

✔ 1 × Siemens 6BK1620-0AA00-0AA0 Gateway Module
✔ Factory packaging (availability may vary by seller)
✔ Documentation and mounting instructions if provided
