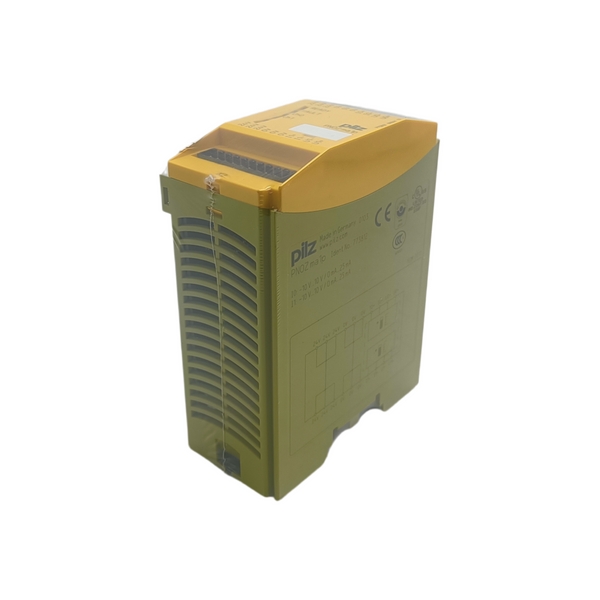

773812New Original 773812 Pilz Pnoz Ma1P Analog Input Module 2 Input 24VDC
PRODUCT DETAILS

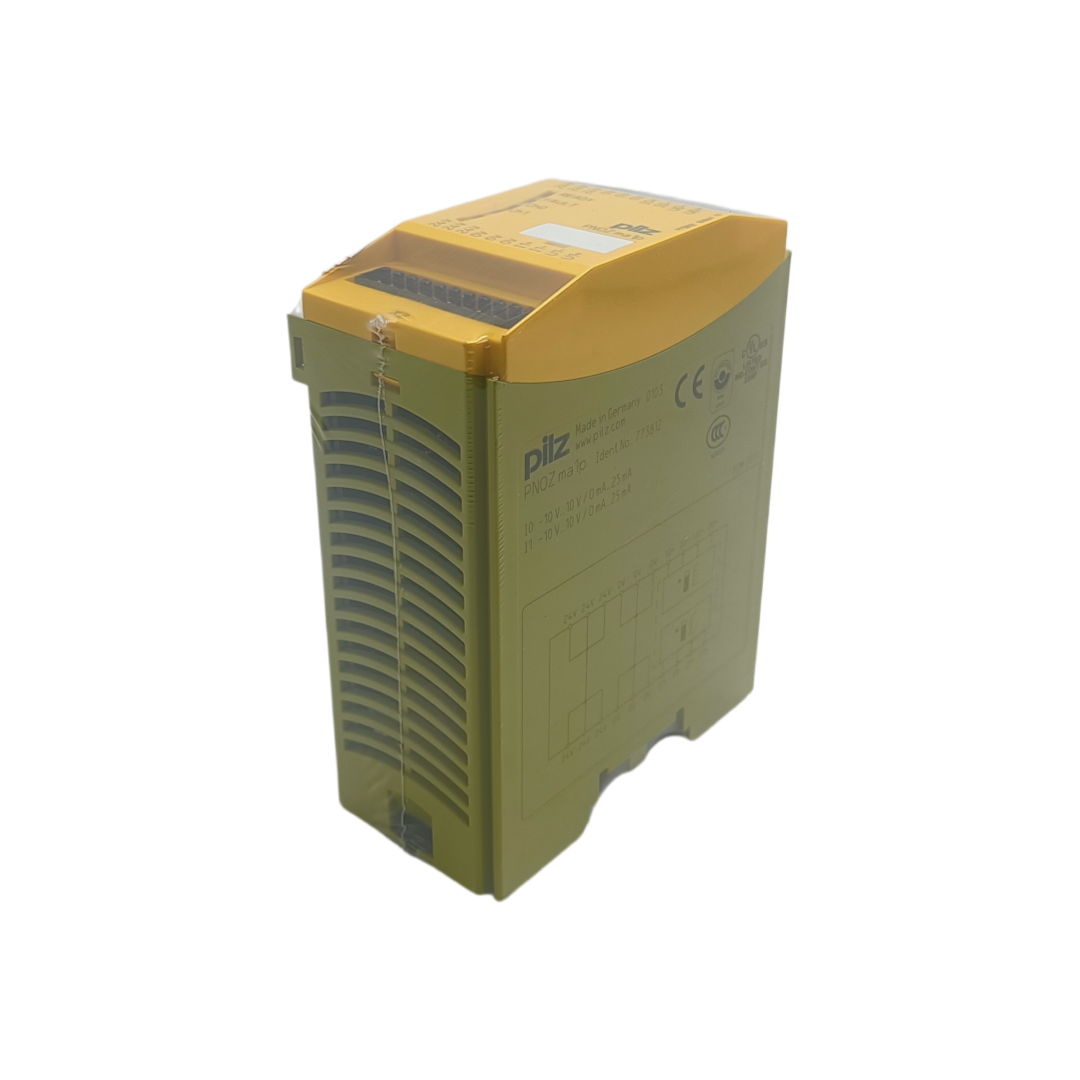

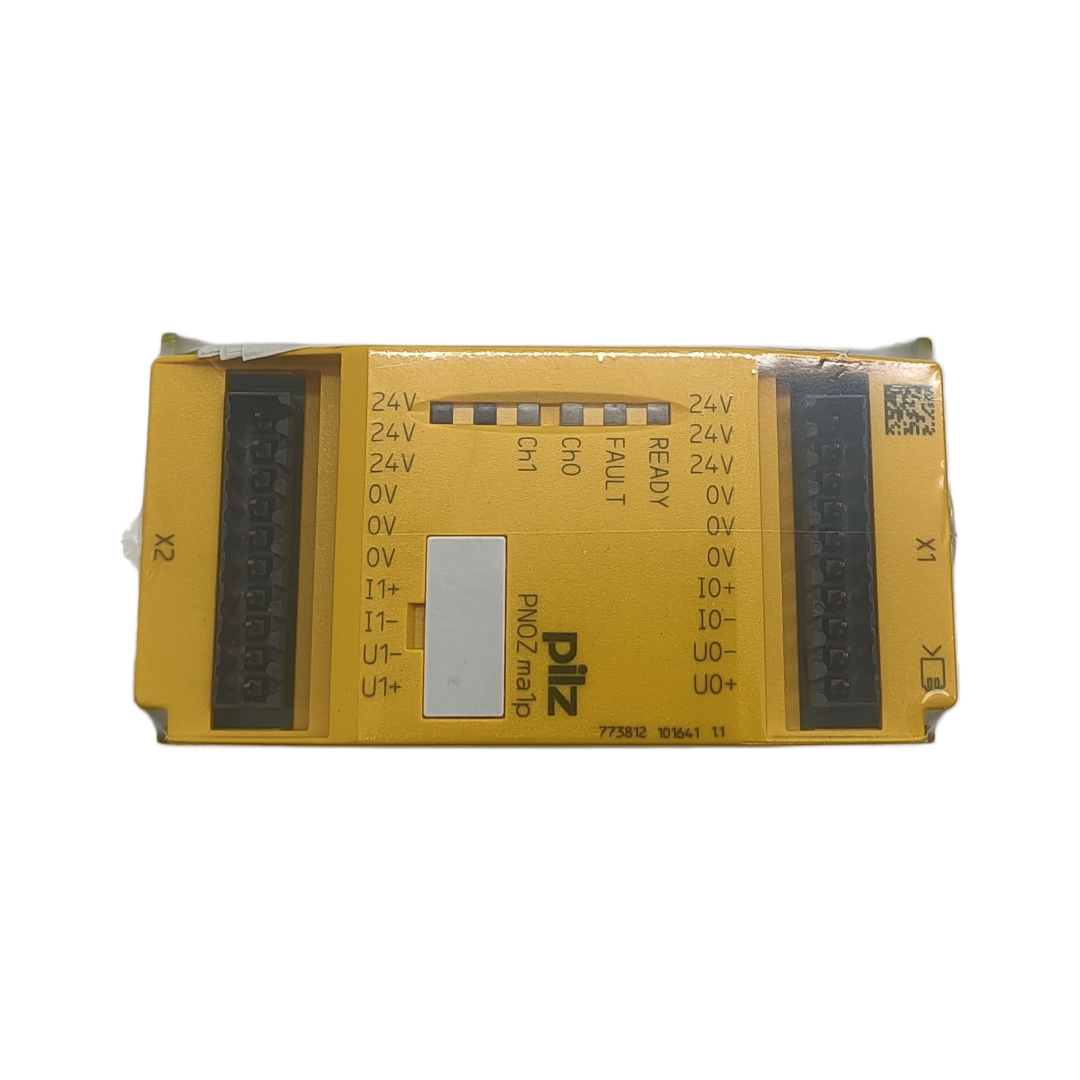

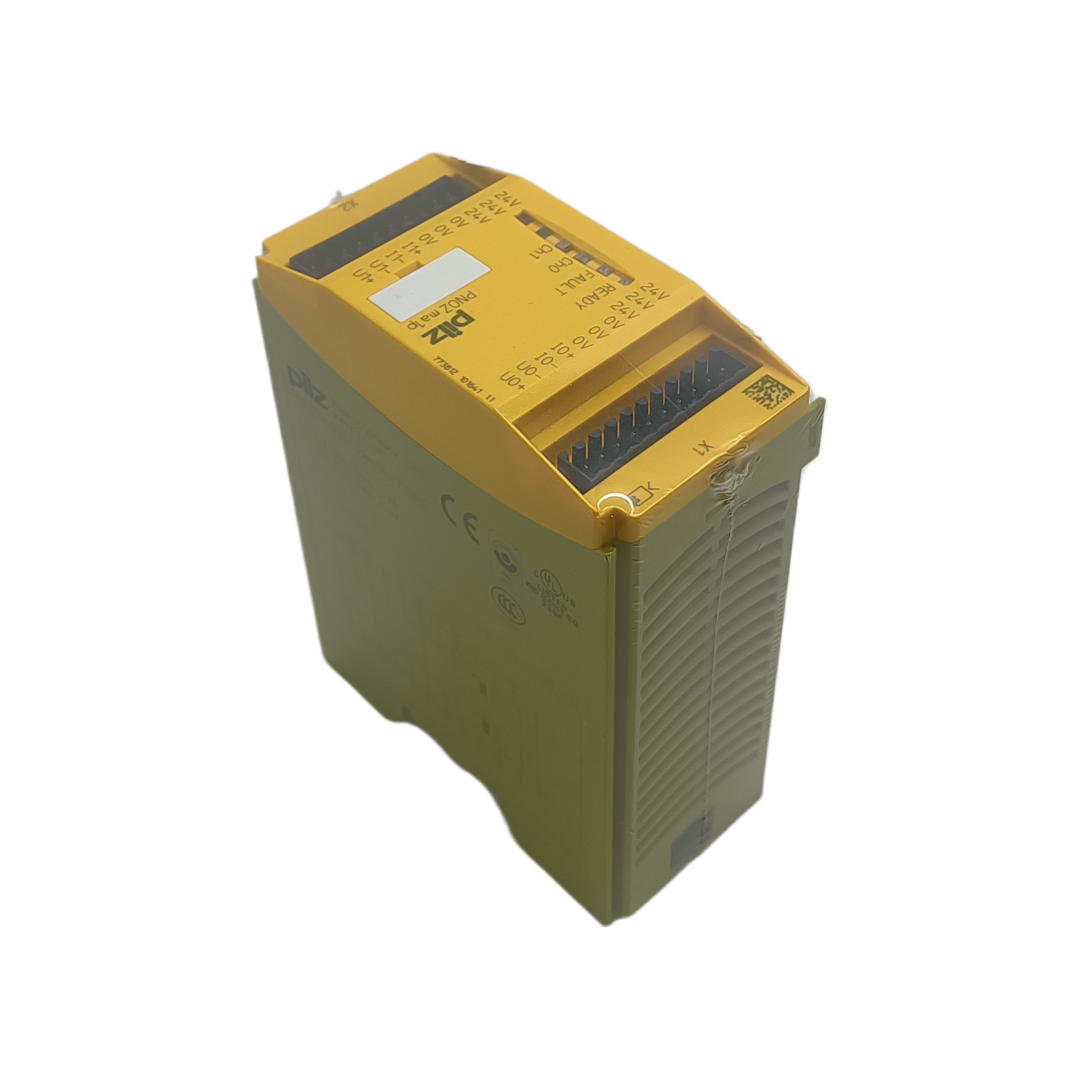

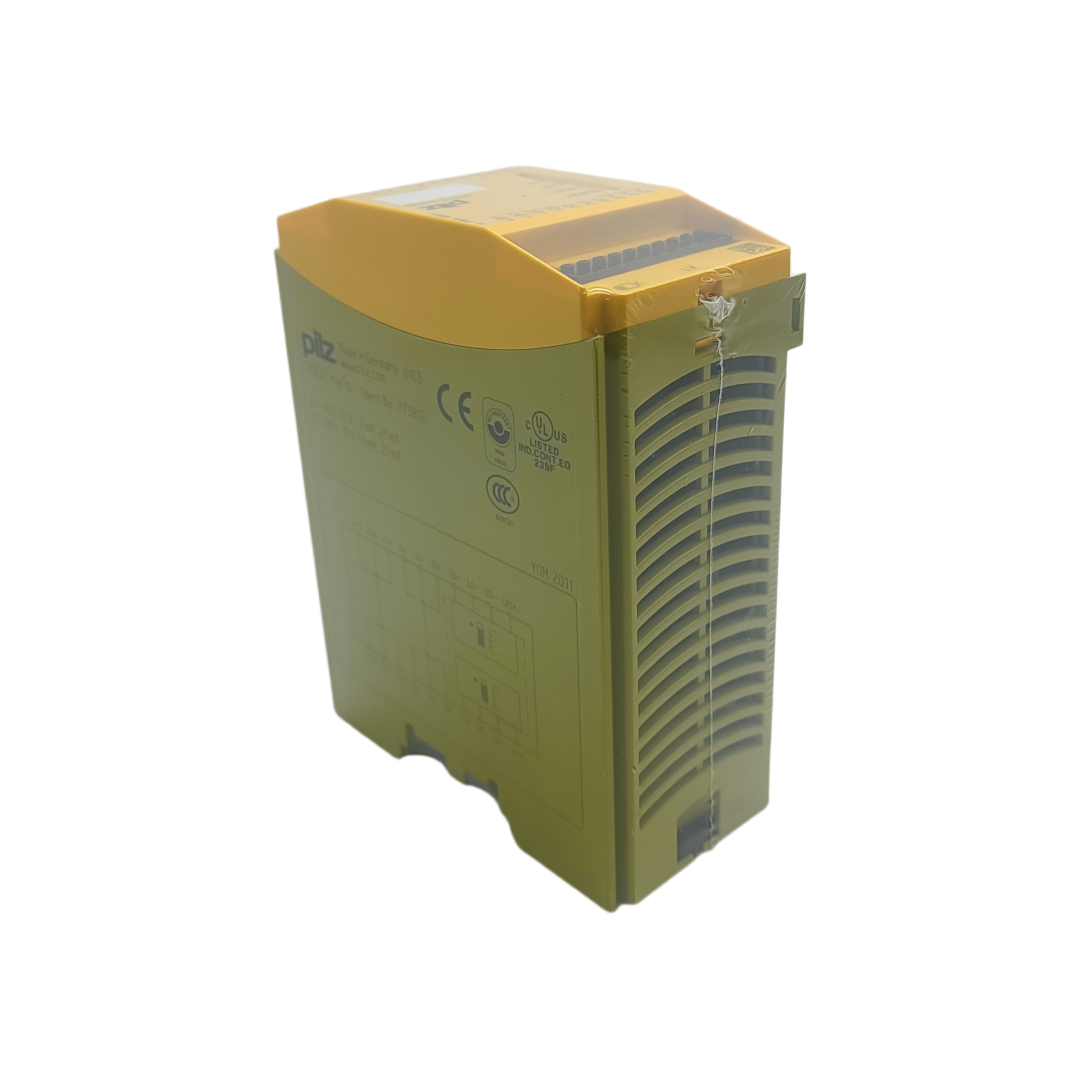

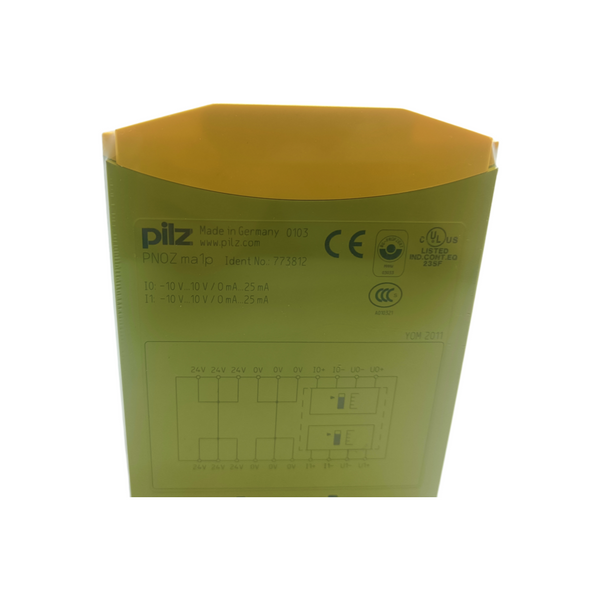

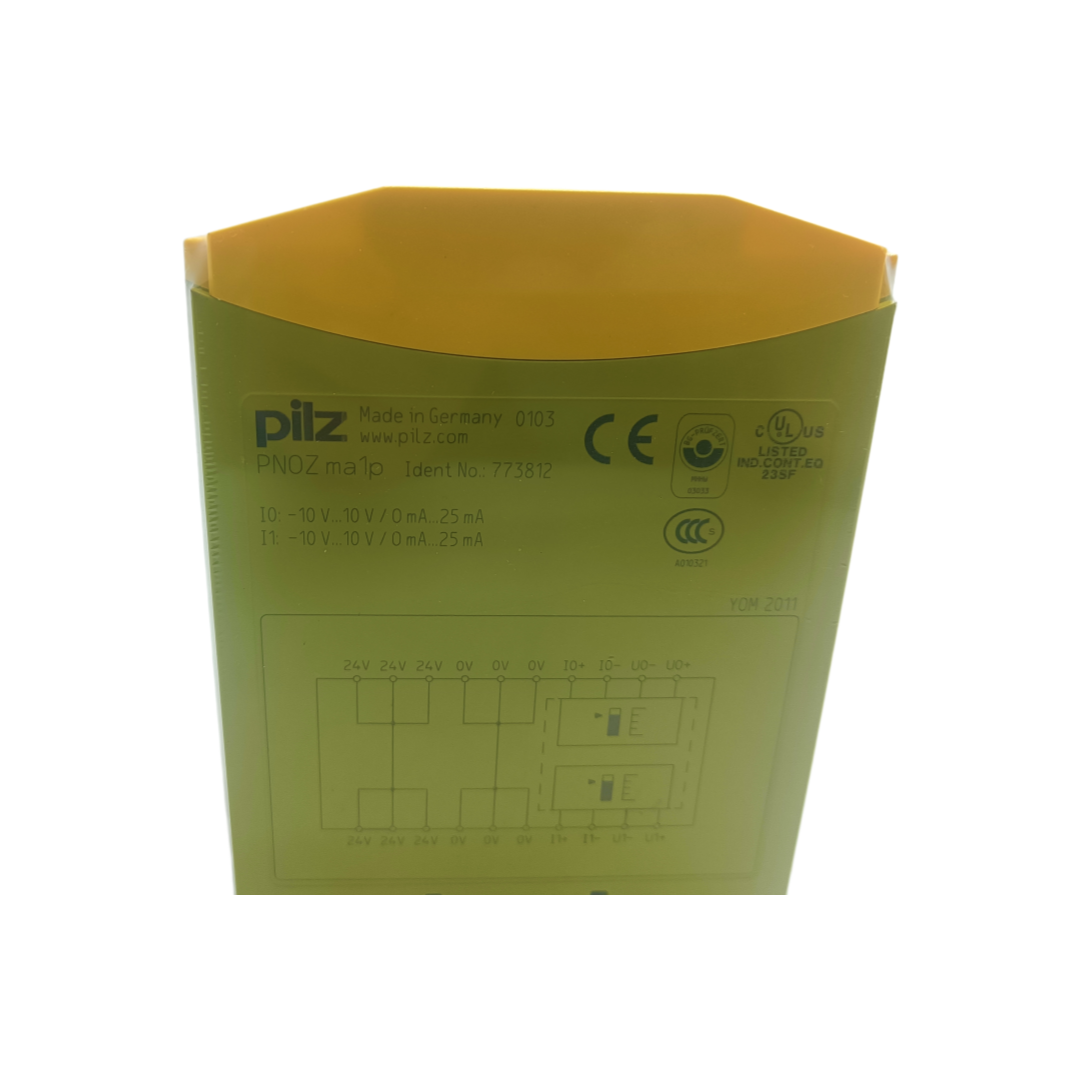

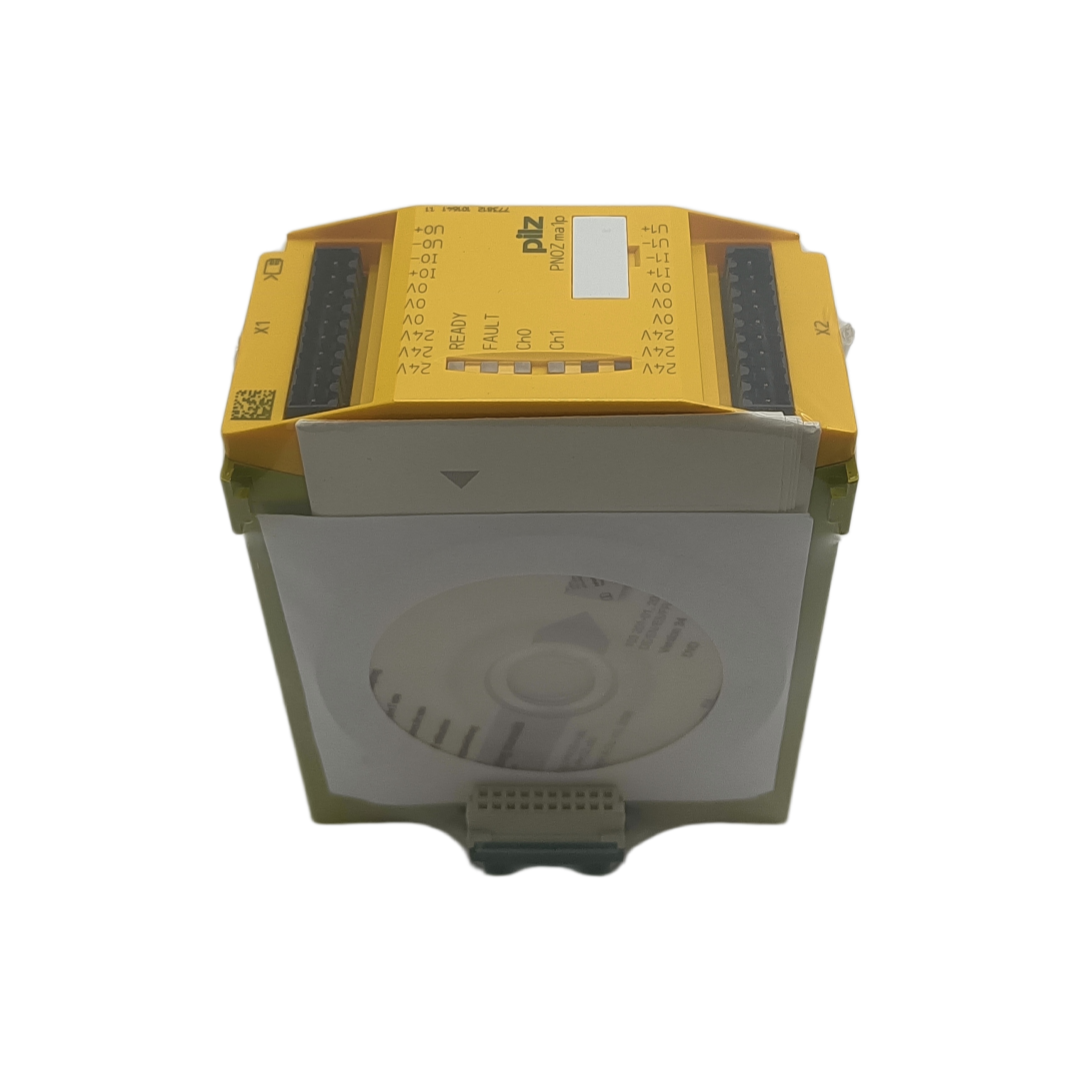

Pilz PNOZ ma1p 773812 Analog Input Expansion Module for PNOZmulti Safety Systems
The Pilz PNOZ ma1p 773812 analog input expansion module extends PNOZmulti configurable safety controllers with analog signal processing capabilities. It supports voltage and current input signals, providing reliable acquisition of analog process values for safety-related monitoring and industrial automation applications.
Product Specifications
| Product Specifications | Details |
|---|---|
| Brand | Pilz |
| Model | PNOZ ma1p |
| Order Number | 773812 |
| Product Type | Analog Input Expansion Module |
| Supply Voltage | 24 VDC |
| Analog Inputs | 2 Channels |
| Input Range | ±10 V, 0–25 mA |
| Mounting | DIN Rail |
| Compatible System | PNOZmulti Safety Controller |
Product Features
-
Supports two independent analog input channels
-
Accepts voltage and current process signals
-
Integrates directly with PNOZmulti safety systems
-
Compact DIN rail design for control cabinets
-
Reliable analog monitoring for safety applications
Typical Applications
-
Machine safety systems
-
Process monitoring
-
Industrial automation equipment
-
Safety control cabinets
-
Manufacturing production lines
Installation Guide
-
Mount the module on a standard DIN rail.
-
Connect the module to the PNOZmulti base unit.
-
Wire analog input signals according to the terminal diagram.
-
Configure input parameters using the controller software.
-
Verify analog signal values before commissioning.
FAQ
Q1: What is the primary function of PNOZ ma1p?
A: It expands a PNOZmulti controller with analog input capability.
Q2: How many analog inputs are available?
A: Two independent analog input channels.
Q3: Which signal types are supported?
A: Voltage (±10 V) and current (0–25 mA) signals.
Q4: Where is this module typically installed?
A: Inside industrial control cabinets on a DIN rail.
Q5: Which systems is it compatible with?
A: Pilz PNOZmulti configurable safety controller systems.
