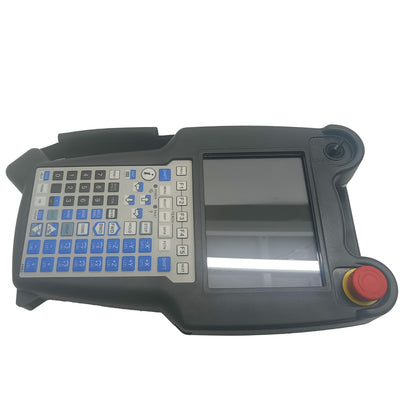

Fanuc A05B-2255-C105#EAW — Touch Screen Glass Panel + LCD Display Assembly for Series 30i / 31i / 0i-D/F | Genuine New OEM

When a CNC machine's operator panel display goes dark, or the touch response starts drifting and missing inputs, production stops — and it usually stays stopped until the right panel assembly arrives. The Fanuc A05B-2255-C105#EAW is the complete touch screen and LCD assembly used in Fanuc's Series 30i, 31i, 32i, and 0i-D/F CNC operator panels. It's not a generic aftermarket part — it's a genuine Fanuc OEM unit supplied as the combined touch glass overlay and LCD module, tested to Fanuc's specifications and ready for direct installation.

At $1,925, this is not a cheap component. That price reflects exactly what it is: a genuine Fanuc part for a machine control system where the alternative — non-genuine or incompatible panels — can cause persistent touch calibration failures, display artifacts, or outright incompatibility with the CNC's display controller board. On a machine that produces revenue every hour it runs, the cost of downtime from a bad panel swap far exceeds the difference between OEM and aftermarket.

✅ Genuine Fanuc OEM. Brand new factory sealed. Ships worldwide.

What the Part Number Tells You

A05B - 2255 - C 1 0 5 # E A W
│ │ │ │ │ │ │ │ └── W: White LED backlight
│ │ │ │ │ │ │ └───── A: English language / ASCII character set
│ │ │ │ │ │ └──────── E: Export version (outside Japan)
│ │ │ │ │ └──────────── 5: Product variant / configuration
│ │ │ │ └─────────────── 0: Series generation indicator
│ │ │ └───────────────────1: Size/type within C group
│ │ └────────────────────── C: Complete panel assembly (glass + LCD combined)
│ └─────────────────────────────── 2255: Fanuc Series 30i/31i/0i-D/F operator panel platform
└───────────────────────────────────────── A05B: Fanuc peripheral/operator interface category

The #EAW suffix is important for ordering accuracy. "E" confirms this is the international/export version rather than the Japan-domestic unit. "A" means the display and system interface operates with English (ASCII) character encoding — relevant when the machine's CNC software is configured for English. "W" designates the white LED backlight type. If your machine uses a different language panel or an older CCFL-backlit variant, the suffix will differ, and ordering the wrong suffix can result in a panel that physically fits but doesn't integrate correctly with the CNC's display controller.

Compatible CNC Systems

The A05B-2255 series operator panel platform is used across several Fanuc CNC generations:

CNC Series	Typical Machine Type	Panel Use
Fanuc Series 30i-A / 30i-B	High-speed 5-axis machining centers	Full operator station display
Fanuc Series 31i-A / 31i-B	Turning centers, grinding machines	Operator panel primary display
Fanuc Series 32i-B	Compact CNC machining applications	Operator interface display
Fanuc 0i-D	General-purpose CNC lathes, mills	Main HMI touch panel
Fanuc 0i-F / 0i-F Plus	Current-generation 0i machines	Operator panel display

Note on cross-compatibility: While the physical dimensions and connector may match across variants, always verify your existing panel's part number before ordering. The suffix characters (#EAW vs #JAW for Japanese domestic, for example) and the C-group number (C101, C102, C105) indicate different hardware revisions with potentially different electrical interfaces. Installing an incompatible variant can result in display errors even if the panel physically seats correctly.

Technical Specifications

Parameter	Specification
Manufacturer	Fanuc
Part Number	A05B-2255-C105#EAW
Assembly Type	Combined touch glass panel + LCD display module
Touch Technology	Resistive (single-point) — stylus or gloved hand compatible
Display Technology	TFT LCD
Resolution	640 × 480 (VGA)
Backlight Type	LED (White — "W" suffix)
Backlight Life	Significantly longer than CCFL predecessors (no mercury, no degrading gas)
Color Depth	256 colors (Fanuc CNC UI standard)
Viewing Angle	Approx. 120° horizontal / vertical
Language / Encoding	English / ASCII (#A suffix)
Version	Export/international (#E suffix)
Operating Temperature	0°C to +50°C
Storage Temperature	–20°C to +60°C
Compatible CNC	Fanuc Series 30i, 31i, 32i, 0i-D, 0i-F
Condition	Genuine New / Factory Sealed

Resistive Touch Technology in CNC Environments

Worth explaining for engineers specifying this panel: CNC operator panels use resistive touch screens, not capacitive. This is a deliberate design choice, not a cost-cutting measure. Here's why it matters in a machine shop environment:

Resistive touch responds to physical pressure rather than electrical capacitance. That means it works equally well whether the operator is using a bare fingertip, a gloved hand, a stylus, or even the eraser end of a pencil. In a machine shop — where operators routinely wear cut-resistant or chemical-resistant gloves — a capacitive screen simply wouldn't respond to most touches. Resistive also works perfectly with coolant-contaminated or oil-covered hands, which is a daily reality on turning and machining center operations.

The tradeoff is that resistive screens are single-point (no multi-touch gestures) and can require periodic recalibration if the overlay ages or is damaged. That's what this replacement part addresses: when the touch response drifts, the overlay surface is scratched beyond acceptance, or the combined assembly has failed, the A05B-2255-C105#EAW replaces the entire touch + display stack as a single unit.

Glass Panel Only vs Full Assembly — Which Do You Need?

Fanuc touch screen replacements come in two forms, and ordering the wrong one is a costly mistake:

Touch glass panel only — just the resistive overlay, no LCD. Used when the LCD is still functioning correctly but the touch glass is cracked, scratched, or has dead zones. Lower cost, but requires careful separation of the existing overlay from the LCD (risk of damaging the LCD during disassembly).

Combined touch glass + LCD assembly (this unit, A05B-2255-C105#EAW) — the complete display stack. Used when both the LCD and touch are replaced together, when the LCD has failed (backlight dead, display artifacts, lines across the screen), or when the panel is being completely refurbished. Higher cost, but clean installation with no risk from disassembly of the existing unit.

The #EAW part number ending in "-C105" indicates this is the complete combined assembly — not just the glass. If you only need the touch glass, that would be a different part number. Confirm which component has actually failed before ordering to avoid purchasing the full assembly when only the overlay is needed.

Diagnosing Your Fanuc Panel Before Ordering

Before committing to a replacement, it's worth spending 10 minutes on diagnosis. Common failure modes and their indicators:

Touch response only — LCD still clear: The touch glass overlay has failed (digitizer dead zones, drift, no response). The LCD backlight and image are fine. You may be able to replace the touch glass only rather than the full assembly.

Backlight dead — display visible in direct light: The LED backlight has failed. The LCD panel itself may still be functioning. This is a full assembly failure on LED-backlit units since the backlight is integrated.

Display artifacts, lines, color shift: LCD panel failure. Full assembly replacement required.

Intermittent display — sometimes works, sometimes blank: Often a connector or cable issue rather than the panel itself. Check the display cable connection at the back of the panel and at the CNC display controller board before ordering a replacement panel.

Touch and display both failed after impact: Physical damage — full assembly replacement is the correct path.

📦 Procurement & Shipping

🔒 Genuine Fanuc OEM — factory sealed, full part number label verification
✅ Brand new — not refurbished, not repaired, not a pulled surplus unit
📦 Original protective packaging — display panels are fragile in transit without correct foam packing
🌍 Worldwide express shipping (DHL / FedEx / UPS)
⚡ In stock — dispatches within 1–2 business days

❓ FAQ — Fanuc A05B-2255-C105#EAW Touch Screen + LCD Display

Q1: Which specific Fanuc CNC series is the A05B-2255-C105#EAW compatible with?

The A05B-2255 operator panel platform is used with Fanuc Series 30i-A/B, 31i-A/B, 32i-B, 0i-D, and 0i-F/F Plus CNC systems. These cover a wide range of machine types including vertical and horizontal machining centers, CNC turning centers, grinding machines, and general-purpose mills and lathes. To confirm compatibility with your specific machine, check the part number label on the existing panel — it should match A05B-2255-C105#EAW exactly, including the suffix. If the existing panel has a different C-number (C101, C102, etc.) or a different suffix, verify with the machine manufacturer or Fanuc service documentation before ordering.

Q2: What does the #EAW suffix mean — will a panel with a different suffix work on my machine?

The suffix encodes three characteristics: E = export/international version (not Japan domestic), A = English/ASCII language encoding, W = white LED backlight. A panel with a different suffix — for example #JAW (Japanese domestic) or #EAB (different backlight type) — may physically fit into the panel housing but can cause issues ranging from incorrect character display to electrical incompatibility with the display controller. For replacement purposes, the suffix should match the original panel exactly unless you have confirmed from Fanuc service documentation that a specific cross-reference is acceptable. When in doubt, match the full part number including suffix.

Q3: Is this the complete panel assembly or just the touch glass overlay?

The A05B-2255-C105#EAW is the complete combined assembly — touch glass panel and LCD display together as a single unit. You receive both components pre-assembled. If you only need to replace the touch glass overlay (because your LCD is functioning correctly and only the touch surface is damaged), that is a different part. The complete assembly replacement is appropriate when the LCD has failed, when both components need replacing simultaneously, or when performing a full panel refurbishment. Ordering the full assembly when only the touch glass needs replacing is more expensive but eliminates the risk of damaging the LCD during glass separation.

Q4: Why does this CNC panel use resistive touch instead of capacitive like modern smartphones?

Resistive touch is the industry standard for CNC operator panels for a practical reason: it responds to physical pressure regardless of what's applying it. A machinist wearing heavy-duty work gloves, nitrile chemical-resistant gloves, or cut-resistant gloves can operate a resistive touch panel without removing them — a capacitive screen requires bare skin contact. Additionally, resistive panels work correctly when hands are covered with coolant, cutting oil, or metal chips, conditions that would cause erratic behavior on a capacitive display. For CNC environments, these characteristics outweigh the multi-touch capability that capacitive offers.

Q5: My Fanuc panel shows display lines or artifacts — is that definitely a panel failure, or could it be something else?

Display artifacts (horizontal or vertical lines, color blocks, flickering) on a Fanuc CNC panel can have two causes. First, LCD panel failure — the display itself is damaged. Second, and more commonly than people expect, a failing or loose display cable between the panel and the CNC's display PCB. Before ordering a replacement panel, inspect the display cable connections at both ends — at the back of the operator panel housing and at the display controller board inside the CNC cabinet. A reseated connector sometimes resolves artifacts that look exactly like panel failure. If reseating the cable doesn't help, or if the cable shows physical damage (pinched, kinked, or connector corrosion), replace the cable first. If the artifacts persist with a known-good cable, the panel assembly itself is the likely fault.

Q6: Can I replace this panel myself, or does it require a Fanuc service engineer?

Panel replacement on Fanuc CNC machines is generally within the capability of a competent maintenance technician with CNC experience — it does not require a factory-trained Fanuc service engineer in most cases. The procedure involves: powering down and locking out the machine, removing the operator panel housing (typically 4–6 screws), disconnecting the display cable and touch screen cable connectors, removing the mounting screws holding the panel assembly, installing the new assembly in reverse order, and performing a touch screen calibration after power-up. Fanuc provides panel replacement procedures in the relevant maintenance manual for each CNC series. The most important precaution is handling the panel assembly carefully — LCD glass is fragile, and the replacement unit should not be placed face-down on hard surfaces. Keep the original packaging to protect the old panel during return or disposal.

Q7: How do I verify the A05B-2255-C105#EAW is a genuine Fanuc OEM part and not aftermarket?

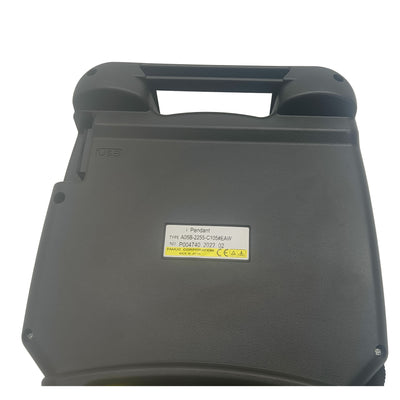

Genuine Fanuc OEM panel assemblies have the following identifiers: the Fanuc logo is printed (not a sticker) on the unit frame; the part number label on the back shows the full A05B-2255-C105#EAW designation with a Fanuc serial number and date code; the LCD cable and connector use Fanuc-standard pinout and connector types; and the unit ships in Fanuc's standard protective packaging with a Fanuc part number label on the outer box. Aftermarket panels often have subtly different connector positions, slightly different housing dimensions, and either no part number label or a printed adhesive label rather than an embossed/genuine OEM label. For a $1,925 component on a production-critical CNC machine, sourcing from a traceable supplier and verifying these physical indicators before installation is worth the extra few minutes.

A05B-2255-C105#EAW Genuine A05B2255C105#EAW Fanuc Touch Screen Glass PANEL+LCD Display
