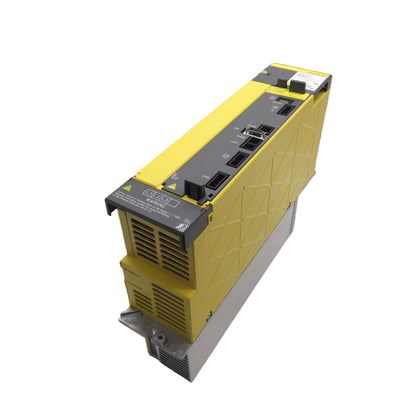

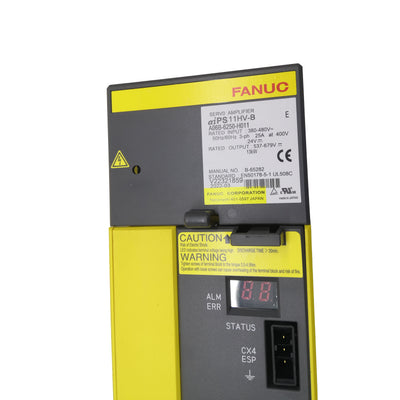

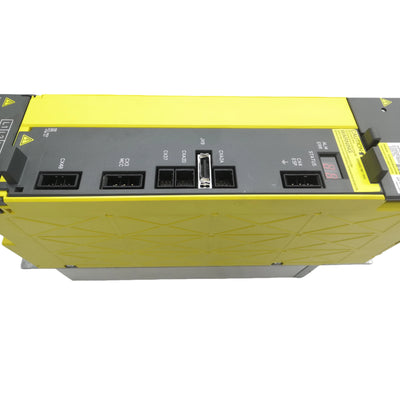

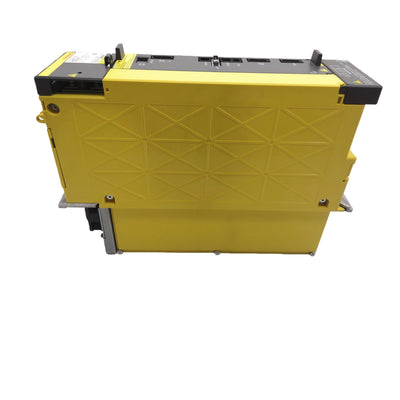

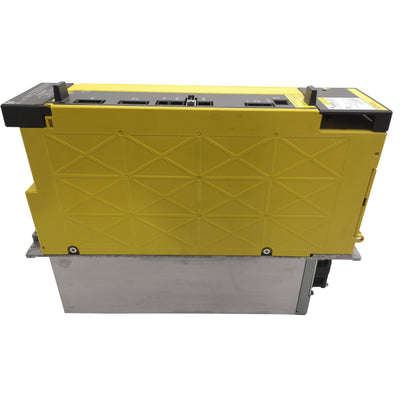

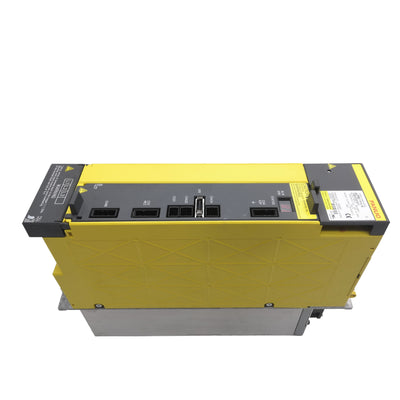

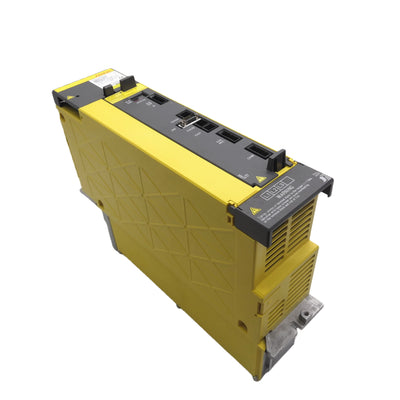

🚀 A06B-6250-H011 | FANUC αiSV Servo Amplifier Module – New In Stock – Original Factory Sealed

📦 Availability Status: ✅ NEW IN STOCK – Immediate Global Shipping Available
🛡️ Condition: Brand New Original FANUC – Manufactured in Japan
⚡ Warranty: 12-Month Comprehensive Warranty Included

📋 Product Overview

The A06B-6250-H011 is a genuine FANUC αiSV series servo amplifier module designed for high-performance motion control in CNC machining centers and industrial automation systems. This servo drive unit delivers precise current control for αi series servo motors, utilizing advanced FSSB (FANUC Serial Servo Bus) fiber optic communication for real-time position feedback processing.

As a critical component of the FANUC αi servo system, the A06B6250H011 provides reliable power amplification with built-in protection circuits, ensuring stable operation in demanding 24/7 manufacturing environments. The unit comes factory-sealed with original FANUC packaging and certification documentation.

⚙️ Technical Specifications

Parameter	Specification
Model Number	A06B-6250-H011
Product Series	FANUC αiSV (Alpha i Servo)
Rated Output Current	40 A (RMS)
Input Voltage	200-240 VAC ±10%, 50/60 Hz, 3-Phase
Control Power Supply	200-240 VAC Single Phase
Bus Voltage	DC 325-375V
Applicable Motors	αiF 12/3000, αiF 22/3000, αiS 12/4000, αiS 22/4000, βiS 12/3000, βiS 22/3000
Feedback Interface	FSSB (FANUC Serial Servo Bus) – Optical Fiber
Encoder Support	Serial αi Pulse Coder, αiA Encoders (Absolute/Incremental)
Protection Rating	IP54 (Enclosure)
Cooling Method	Forced Air Cooling (Internal Fan)
Operating Temperature	0°C to +55°C (Ambient)
Storage Temperature	-20°C to +60°C
Humidity	75% RH or less (non-condensing)
Vibration Resistance	0.5G or less
Installation Method	Back-panel mounting (Vertical orientation recommended)
Dimensions (W×H×D)	150mm × 300mm × 200mm (Approximate)
Weight	Approximately 6.8 kg
Color	FANUC Standard White (RAL 9001)

✨ Key Features & Advantages

🔹 High-Speed FSSB Communication – Fiber optic servo bus interface eliminates electrical noise interference, ensuring microsecond-level position command response for ultra-precision machining operations.

🔹 Intelligent Power Management – Built-in regenerative discharge capability with dynamic braking control, reducing external braking resistor requirements for standard applications.

🔹 Advanced Protection Systems – Comprehensive fault detection including overcurrent, overvoltage, undervoltage, overload, overtemperature, and encoder feedback error monitoring with automatic shutdown protection.

🔹 Compact Modular Design – Space-efficient heat sink architecture allows dense panel mounting configurations while maintaining optimal thermal performance through intelligent fan control.

🔹 Plug-and-Play Compatibility – Automatic motor parameter recognition when paired with compatible FANUC αi series servomotors, minimizing setup time and commissioning complexity.

🔹 Battery-Less Absolute Encoder Support – Compatible with αiA 1000 and αiA 128 absolute encoders, maintaining position data integrity without backup battery maintenance.

🔗 System Compatibility

Compatible CNC Controls:

✅ FANUC 0i-MD / 0i-TD Series
✅ FANUC 0i-MF / 0i-TF Series
✅ FANUC 31i-B / 31i-B5 Series
✅ FANUC 32i-B Series
✅ FANUC 35i-B Series
✅ FANUC Power Mate i-D / i-H Series

Required Accessories:

🔌 FSSB Optical Fiber Cable (A66L-6001-0026 series)
⚡ Three-Phase Power Input (L1, L2, L3)
🔋 24VDC Control Power Supply
🔨 External Regenerative Discharge Unit (for high inertia applications)

Compatible Servo Motors:

🎯 αiF 12/3000HV (High Voltage)
🎯 αiF 22/3000
🎯 αiS 12/4000
🎯 αiS 22/4000
🎯 βiS 12/3000 (with parameter adjustment)
🎯 βiS 22/3000 (with parameter adjustment)

🏭 Application Scenarios

⚙️ CNC Machining Centers – Primary axis drive control for vertical and horizontal machining centers requiring 40A current capacity for medium to high torque servomotors.

🤖 Robotic Automation – Precision servo control for articulated robot joint applications requiring synchronized multi-axis motion trajectories.

🔄 Turning Centers – Spindle orientation and turret indexing control in CNC lathe systems requiring fast response positioning.

📦 Industrial Machinery – Packaging equipment, printing presses, and material handling systems utilizing FANUC servo technology.

🔧 System Retrofit – Direct replacement amplifier for failed A06B-6250-H011 units without requiring CNC parameter reconfiguration.

📦 Packaging & Logistics

📋 Package Contents:

1× A06B-6250-H011 Servo Amplifier Unit (Factory Sealed)
1× FANUC Original Packaging Box with Shock Absorption
1× Product Certificate & Quality Inspection Report
1× Installation Manual (English/Japanese)

A06B-6250-H011 Fanuc A06B-6250-H011 New Original Servo Amplifier New In Stock
