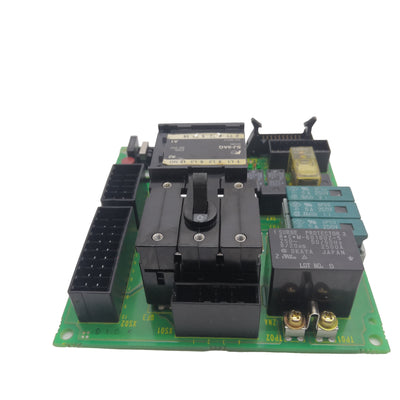

Fanuc A20B-1008-0640 — I/O Link Interface PCB | CNC Series 0/16i/18i/21i | New Original

When a Fanuc CNC machine loses communication with its I/O devices — operator panel, machine operator's panel, PMC I/O boards — the A20B-1008 family of interface boards is often at the center of the diagnosis. The A20B-1008-0640 is a Fanuc I/O Link interface PCB, serving as the communication bridge between the Fanuc CNC unit and the distributed I/O devices connected via the Fanuc I/O Link (serial I/O bus).

This board is used across multiple Fanuc CNC system generations — the 0-Series (0M, 0T, 0C), the 16i/18i/21i families, and related machine tool control configurations — making it one of the more universally useful Fanuc PCB part numbers in a maintenance stock.

✅ New original. Factory sealed. Serial number traceable. Ships worldwide.

Part Number Decoded — A20B-1008-0640

Fanuc part numbers follow a consistent structure that tells you the product category and design revision:

A20B — CNC circuit board category. "A20B" boards are Fanuc's standard CNC PCBs — the second-generation designation used from the 1980s through the 2000s across 0-Series, 15, 16, 18, and 21 family systems.

1008 — Sub-category identifier. In Fanuc's internal numbering, 1008 boards are communication and interface boards — specifically boards handling the I/O Link serial communication interface.

0640 — Design variant and revision code. The "0640" identifies this as a specific I/O Link interface board configuration within the 1008 sub-family, with a defined connector layout and firmware revision appropriate for the compatible CNC systems.

What Is the Fanuc I/O Link?

Understanding what the I/O Link actually does helps when diagnosing failures. The Fanuc I/O Link is a proprietary high-speed serial bus that Fanuc developed to connect distributed I/O units to the CNC without requiring individual wire runs for each I/O point. In a typical Fanuc machining center, the I/O Link connects:

The Fanuc I/O Unit-MODEL A (A03B-0807-C002, etc.) — the standard distributed I/O modules that handle machine switches, solenoids, and indicator lights
The machine operator's panel — the buttons, switches, and indicator lights on the operator console
The sub-panel I/O — additional I/O points distributed around the machine body
Fanuc Power Mate controllers in some configurations

A single I/O Link serial cable (2-wire differential signal) handles the communication to all these devices. When the A20B-1008-0640 fails, the CNC loses the ability to communicate with all I/O Link devices simultaneously — the PMC program can't read inputs from or write outputs to any of the connected I/O units. The machine typically faults with a communication error referencing I/O Link Group 1 or Group 2 (depending on which link group the failed board manages).

Technical Specifications

Parameter	Specification
Part Number	A20B-1008-0640
Manufacturer	Fanuc
Board Category	CNC Interface PCB (A20B series)
Function	Fanuc I/O Link interface
Compatible Systems	Fanuc CNC Series 0 (0M/0T/0C), 16i, 18i, 21i, related variants
Power Supply	5V DC from CNC backplane
Bus Interface	I/O Link serial differential signal
Mounting	CNC unit backplane / rack connector
Connector Type	Multi-pin edge connector + I/O Link coaxial/differential connector
Operating Temperature	0°C to +55°C
Storage Temperature	–20°C to +70°C
Condition	New Original / Factory Sealed

Compatible CNC System Identification

Fanuc CNC systems from the 1990s through early 2000s that commonly use the A20B-1008-0640 include: Fanuc 0M (machining center), Fanuc 0T (turning center), Fanuc 16i-MB / 16i-TB, Fanuc 18i-MB / 18i-TB, and Fanuc 21i-MB / 21i-TB. The specific backplane slot and I/O Link configuration depend on the individual machine builder's hardware configuration.

The safest way to confirm compatibility with your specific machine is to pull the failed board from the CNC unit and compare the part number directly — the A20B-1008-0640 number is printed on the PCB silkscreen and on the board's label. If the failed board has the same part number, the replacement is correct. If the part numbers differ (for instance, A20B-1008-0641 or A20B-1008-0800), those are different variants — verify the exact number before ordering.

Diagnosing I/O Link Failures Before Replacing the Board

Before replacing an A20B-1008-0640, it's worth confirming the board is actually the failed component. I/O Link communication errors can also be caused by cable faults or failed I/O unit modules — replacing the CNC-side interface board won't fix a problem in the field wiring.

Check the I/O Link cable — the serial link cable runs from the A20B-1008-0640's I/O Link connector to the first I/O unit in the chain. Examine the cable and connectors for damage, corrosion, or loose seating. A break in the I/O Link cable produces exactly the same fault symptom as a failed interface board.

Check the first I/O unit in the chain — if the I/O Link cable is intact and the first module in the chain is the A03B-0807 series, try disconnecting all downstream modules and leaving only the first one connected. If communication is restored with a single module, the fault may be in a downstream module rather than the CNC-side board.

Verify 5V supply to the CNC backplane — the A20B-1008-0640 operates from the CNC unit's 5V DC supply. A failing CNC power supply that produces low 5V can cause intermittent I/O Link communication errors that mimic board failure.

Replace the board as a last step — once cable integrity and module chain have been ruled out, the A20B-1008-0640 replacement is appropriate.

Original vs Refurbished Fanuc PCBs — A Practical Assessment

Used Fanuc PCBs circulate widely in the repair market, and many are sold as "tested" or "refurbished" at lower prices than new originals. Whether this matters depends on your situation:

For a machine in emergency downtime where a refurbished board gets production running while a new original is on order — a tested refurbished board is a reasonable short-term solution.

For a machine that is expected to run continuously for the next 5–10 years without major maintenance shutdowns — a new original board has a full component service life ahead of it, versus a refurbished board whose capacitors and other time-limited components have already accumulated some aging. An electrolytic capacitor in a refurbished board that was manufactured in 2005 is 20 years old regardless of whether the board was "refurbished" in 2023.

For production-critical machines where unexpected downtime has significant cost, maintaining a new original A20B-1008-0640 in spare stock is standard practice. The question isn't whether you'll ever need it — it's whether the cost of the spare is less than the cost of one unplanned downtime event while waiting for a board to arrive.

❓ FAQ — Fanuc A20B-1008-0640

Q1: Which specific Fanuc CNC systems is the A20B-1008-0640 compatible with?

This board is compatible with Fanuc CNC systems using the I/O Link communication interface, primarily the Series 0 (0M, 0T, 0C), 16i, 18i, and 21i families. The exact compatibility for a specific machine depends on the complete hardware configuration — the safest approach is to physically check the board currently installed in your CNC unit and confirm the part number printed on the PCB matches A20B-1008-0640 before ordering a replacement.

Q2: What CNC fault code indicates an A20B-1008-0640 failure?

A failed I/O Link interface board typically generates faults in the 900–999 series alarm range on Fanuc 0/16i/18i systems, specifically alarms like Alarm 930 (I/O Link communication error) or Alarm 934 (I/O Link Group 1/2 error). The specific alarm number depends on the system generation and configuration. The parameter diagnostics screen (Fanuc DGNOS screen) will show the I/O Link group status — a failed interface board shows all channels in the affected group as offline simultaneously.

Q3: Can I replace the A20B-1008-0640 with a different revision number, like A20B-1008-0641?

Different revision numbers (0640, 0641, 0800, etc.) within the A20B-1008 family indicate different design variants that may have different connector configurations or firmware. Substituting one revision for another is not guaranteed to work — in many cases it won't, because the backplane connector layout or I/O Link protocol version may differ. Always use the exact part number that was installed in the machine unless you have specific Fanuc documentation confirming cross-compatibility between revisions.

Q4: Do I need a Fanuc technician to install this board, or can I do it myself?

Installing a PCB replacement in a Fanuc CNC unit is a mechanical swap — power off the machine, observe ESD precautions, remove the failed board from its backplane slot, install the replacement in the same slot, and restore power. No software programming or parameter changes are typically required for an I/O Link interface board replacement — the parameters relevant to I/O Link configuration are stored in the CNC's battery-backed memory, not on the board itself. However, if you are unfamiliar with CNC electrical cabinet work, having a qualified maintenance technician perform the swap is advisable.

Q5: How do I confirm the new board is working after installation?

After installing the A20B-1008-0640 and powering on the CNC, the I/O Link communication error alarms should clear. Navigate to the Fanuc diagnostics screen (MDI → SYSTEM → DGNOS) and check the I/O Link Group status — all channels should show as communicating. Verify that the operator panel buttons and machine I/O (coolant relay, axes enable, cycle start) respond normally. If I/O Link alarms persist after board replacement, the fault may be in the I/O Link cable or field I/O modules as described in the diagnostics section above.

Q6: Is this the same board as A20B-1008-0641 or A20B-1008-0800?

No. These are distinct part numbers representing different board variants within the A20B-1008 I/O Link family. Each variant has a specific backplane connector configuration, I/O Link port arrangement, and applicable CNC system. They are not interchangeable without confirming compatibility. If you're searching for a board and see similar part numbers offered as substitutes, request documentation of confirmed compatibility with your specific CNC model from the supplier before purchasing.

Q7: How do I protect Fanuc PCBs during storage?

Fanuc boards are sensitive to electrostatic discharge (ESD) and humidity. Store in the original anti-static bag with the ESD warning, in a dry environment (< 75% RH), away from magnetic fields and direct sunlight. Temperature range for storage should be –20°C to +70°C. Avoid stacking boards without ESD packaging between them. If the original packaging is not available, use anti-static foam or conductive bags — never plain plastic bags or bubble wrap, which can generate static charge. A board stored correctly maintains its component aging profile; poor storage can degrade capacitors and cause board failures independent of installation time.

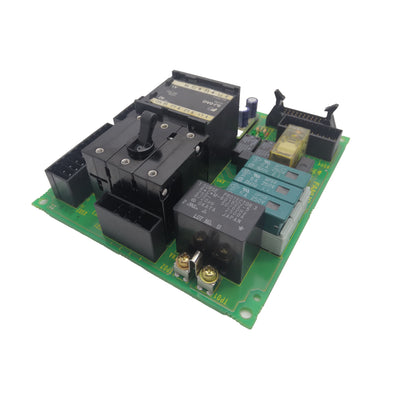

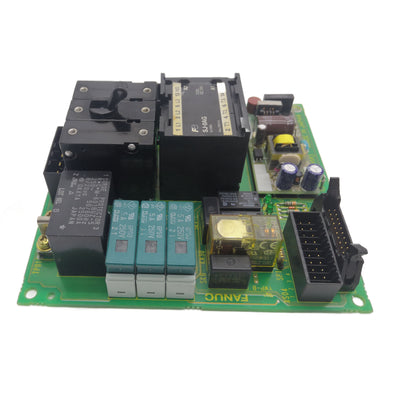

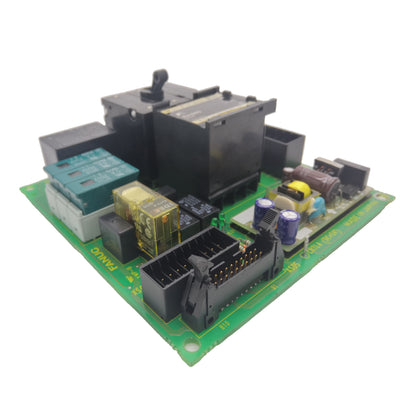

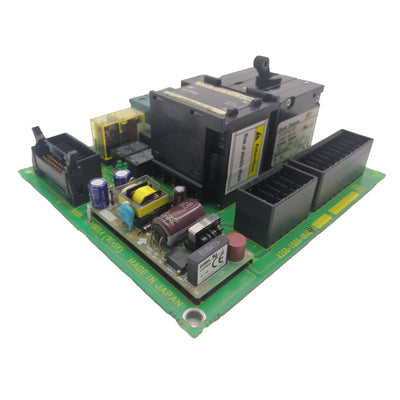

A20B-1008-0640 New Original 1PC A20B10080640 Fanuc Circuit Board
