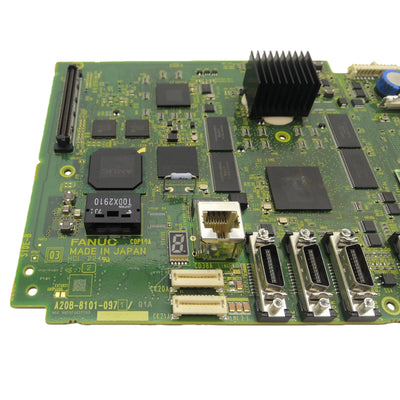

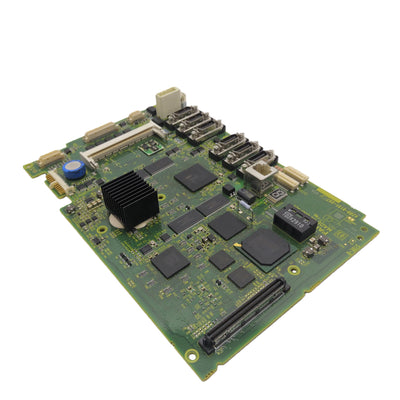

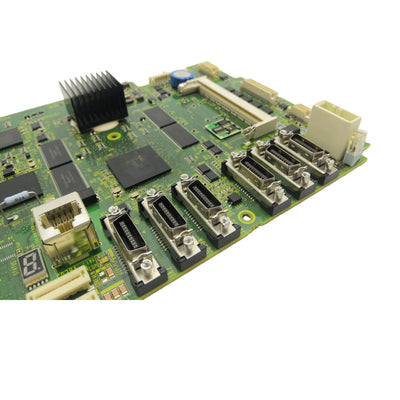

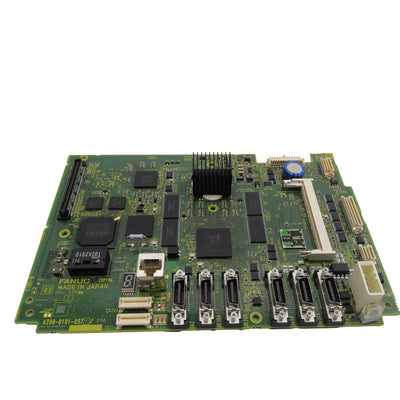

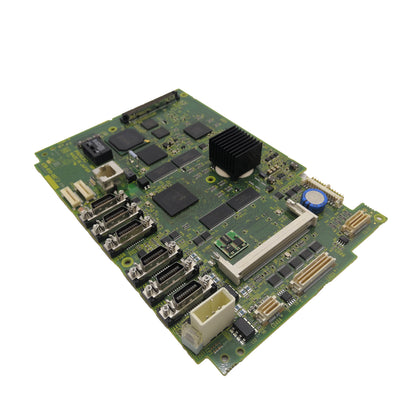

Fanuc A20B-8101-0971 — AP2 Main Board (Robot Controller PCB)

When a FANUC robot controller fails at the main board level, the consequences are immediate and total. The robot stops. The production line it serves stops with it. Every hour of unplanned downtime while a replacement board is sourced compounds the cost — and for a main board in a running system, that sourcing timeline is everything.

The A20B-8101-0971 is the FANUC AP2 Main Board: the central printed circuit board that forms the processing and coordination core of the AP2 robot controller. It handles the microprocessor functions, memory interfaces, peripheral circuit coordination, and inter-board communication that keep every robot axis moving in the right direction at the right time. When this board fails, no amount of software troubleshooting or peripheral replacement will restore robot operation — the board itself must be replaced.

Genuine FANUC OEM manufacture. Brand new original stock. In stock and available for immediate worldwide dispatch.

Product Identification

Parameter	Value
FANUC Part Number	A20B-8101-0971
Alternate Part Number	A17B-8100-0201
Description	AP2 Main Board
Component Type	Printed Circuit Board (PCB) — Main Controller Board
Product Series	A20B-8101
Manufacturer	FANUC Corporation
Country of Origin	Japan
Condition	New Original

Understanding FANUC's A20B Part Number Series

FANUC's part numbering for PCBs follows a consistent structure that allows experienced engineers to identify a component's type and generation at a glance. The A20B prefix designates a PCB assembly — a complete printed circuit board with all components populated and tested, as distinguished from A16B (an older PCB generation), A17B (a sub-assembly or daughterboard in some contexts), or other prefixes designating drives, motors, and mechanical parts.

The -8101 section within the A20B series identifies a specific board family — in this case, the main board and control PCB family used across a range of FANUC robot controller generations. The final four digits -0971 uniquely identify the specific board configuration within that family.

FANUC frequently assigns alternate part numbers to the same physical board across different documentation revisions and controller models. The A17B-8100-0201 has been identified as an alternate number for the A20B-8101-0971 in some applications. When ordering a replacement, the A20B-8101-0971 is the primary catalog number; the A17B-8100-0201 designation may appear on older documentation or on the board label itself in some production batches.

The Role of the Main Board in a FANUC Robot Controller

A FANUC robot controller is built around a layered PCB architecture. The main board (sometimes called the mother board or main PCB in FANUC documentation) sits at the centre of that architecture as the component that everything else connects to or depends upon.

At the functional level, the main board carries the primary microprocessor — the CPU executing the robot program and coordinating all motion commands. It provides the memory interfaces through which the system accesses FROM (Flash ROM, storing the system software and robot programs) and SRAM (battery-backed memory holding parameters, tool data, and system configuration). It manages the backplane connections through which axis control cards, I/O cards, communication boards, and option boards exchange data. And it coordinates the operator panel interface — the connection between the iPendant and the controller's internal state.

When the main board fails, the failure mode can take several forms: immediate power-on failure with no display; alarm codes indicating CPU or memory errors; intermittent faults correlating to specific operations; or gradual degradation in communication reliability between the board and its peripherals. In each case, isolating the main board as the fault source typically involves eliminating peripheral boards and external connections as the cause — a process that FANUC-trained technicians follow using the diagnostic procedures documented in the controller maintenance manual.

Why Main Boards Fail: Common Root Causes

Understanding what causes main board failures helps engineers make better decisions about both replacement and preventive maintenance.

Electrostatic discharge (ESD) during board handling or installation is one of the more frequent causes of latent damage — damage that doesn't produce an immediate failure but degrades component reliability over months of operation. FANUC PCBs, like all complex circuit assemblies, contain ESD-sensitive components. Boards that have been handled without proper ESD precautions may work initially but fail prematurely. This is why genuine new boards stored and shipped with proper ESD protection are strongly preferred over boards of unknown handling history.

Capacitor ageing affects PCBs that have been in service for many years. Electrolytic capacitors — used extensively in power supply filtering circuits on main boards — have a finite service life measured in operating hours at temperature. Boards that have run hot environments or operated continuously for more than a decade may begin exhibiting voltage rail instability caused by capacitor degradation well before any other component shows wear.

Voltage transients from external events — power supply faults, unexpected mains events, improper connection of peripheral devices — can damage board-level components in ways that produce immediate or delayed failures. Proper surge protection at the controller's mains input is the primary preventive measure.

Firmware-hardware incompatibility can cause apparent board failures that are actually software issues. A main board installed in a controller running unexpected firmware or with a FROM/SRAM module containing mismatched software may produce error conditions that resemble hardware failure. Confirming that the replacement board is appropriate for the specific controller model and software version is a necessary step in any board replacement procedure.

New Original vs. Repaired vs. Refurbished: Why It Matters

The FANUC robot controller spare parts market divides into three broad categories, and the distinction has practical consequences for the engineer placing the order.

New original boards — like the A20B-8101-0971 offered here — are factory-new, unused, manufactured by FANUC and distributed without prior installation or use. They carry the full FANUC OEM specification. Every parameter is at factory defaults; the board has no accumulated operating hours; there are no previous fault histories embedded in the system; and the component condition is as FANUC shipped it. For high-uptime applications or for installations where tracing prior-fault effects would be difficult, new original is the lowest-risk option.

Repaired boards are units that have been returned from a failed installation, fault-diagnosed by a repair workshop, and returned to specification through component-level repair. Quality varies significantly with the repair facility's technical capability and the nature of the original fault. Well-executed repairs on clearly identified component failures can produce reliable results; boards repaired after ESD damage or partial failures affecting multiple components may have reliability that is difficult to predict.

Refurbished boards may have been tested and inspected but not specifically repaired — or may have been repaired to varying depths. The term covers a wide range of actual conditions.

For a main board — the single component whose failure brings the entire robot to a halt — the cost premium of new original over repaired or refurbished is typically justified by the avoided risk of repeat failure and the predictability of performance over the replacement board's service life.

Handling and Installation Precautions

FANUC PCBs are ESD-sensitive assemblies. Correct handling practices apply from the moment the package is received:

The board should remain in its anti-static packaging until the moment of installation. Work should be performed at a properly grounded ESD workstation, with the technician wearing a wrist strap connected to the station's ground point. The controller's power supply should be fully de-energised before any board replacement — and confirmed de-energised by measurement, not assumed by switching off. Capacitors in the power supply section of the controller retain charge for some time after power removal; the maintenance manual specifies the required wait time before board access.

During installation, physical stress on the board — bending, pressure on component leads, or impact from dropped fasteners — can cause cracking of solder joints or component leads that may not produce immediate failure but will create intermittent faults under vibration and temperature cycling in service.

The FROM/SRAM module configuration must be verified as compatible with the replacement board before the controller is powered up. Bringing a system online with a mismatched memory configuration can cause system alarms or, in the worst case, overwrite parameters.

Frequently Asked Questions

Q: What controller model does the A20B-8101-0971 AP2 Main Board fit?

A: The A20B-8101-0971 is the main board for FANUC AP2 series robot controllers. Before ordering, confirm that the part number matches what is installed in your specific controller by referencing the board label inside the controller cabinet. FANUC uses similar-looking board numbers across different controller generations — matching by part number rather than visual similarity is essential.

Q: What is the alternate part number for this board?

A: The A17B-8100-0201 has been documented as an alternate part number for the A20B-8101-0971 in some applications and documentation. If your maintenance records or controller label show A17B-8100-0201, verify against the installed board's label to confirm these refer to the same unit in your specific controller revision.

Q: Does the replacement board come with the FROM/SRAM module?

A: No. The main board is supplied as a standalone PCB assembly. The FROM/SRAM module — which stores the system software, robot programs, and parameter data — is separate and must be transferred from the original board or sourced separately with the correct software revision for the robot system. Confirm FROM/SRAM module compatibility before installation.

Q: What is the difference between this board and the A20B-8102-0111 AP2 Main PCB?

A: The A20B-8101-0971 and A20B-8102-0111 are both AP2 main board variants documented within the same controller family, but carry different configuration or revision codes within the FANUC part numbering system. Always match the replacement part number exactly to the installed board's label. Functional compatibility between different part numbers in the same family should not be assumed without verification against FANUC's replacement cross-reference documentation.

Q: Can this board be repaired if it fails again?

A: FANUC PCBs can be subjected to component-level repair by qualified electronics repair workshops with FANUC expertise. Board-level repair is an option for reducing cost in some circumstances, but the repairability of a specific failure depends on the nature and extent of the damage. For production-critical systems, maintaining a spare new board in inventory — to avoid the turnaround time of a repair cycle — is the standard approach among maintenance engineers managing high-uptime robot installations.

Q: Is this a genuine FANUC OEM part?

A: Yes. This is genuine FANUC Corporation manufacture — an original OEM part, not a third-party reproduction or reverse-engineered replacement. It is supplied new in original FANUC packaging, unused and untested in any prior installation.

Q: What precautions should be taken when handling and installing this board?

A: Handle only at a grounded ESD workstation with a wrist strap. Keep the board in its anti-static packaging until the moment of installation. Fully de-energise and confirm power-off in the controller before board access. Do not apply mechanical stress to the board during installation. Verify FROM/SRAM module compatibility before powering up the system after replacement.
