Product Description

The A860-0202-T001 New Original FANUC A8600202T001 Manual Pulse Generator is a CNC handwheel pulse generator used for manual machine movement control, axis positioning, and operator adjustment. It is commonly used on CNC machine tools where precise manual feed control is required during setup, alignment, tool positioning, maintenance, and machining preparation.

This unit is also known as a manual pulse generator, MPG, or CNC handwheel pulse generator. The model is commonly described as a pulse generator without flange or handwheel-only style, so the installation structure and mounting method should be checked carefully before replacement.

In a CNC control system, the A860-0202-T001 converts manual handwheel movement into pulse signals for machine axis control. It helps operators move axes step by step, making it useful for machine setup, workpiece alignment, tool setting, and fine positioning. When replacing this part, the full model number A860-0202-T001 and compact model code A8600202T001 should be matched with the original unit to avoid wiring or mechanical mismatch.

Key Product Data

Item	Details
Part Number	A860-0202-T001
Compact Model Code	A8600202T001
Brand	FANUC
Product Type	Manual Pulse Generator / Pulse Generator
Common Name	CNC Handwheel / MPG
Structure Reference	Without flange / handwheel type
Product Series	A860-0202 Series
Function	Manual pulse signal generation for CNC axis movement
Common Use	CNC machine movement control and manual positioning
Installation Check	Confirm connector, mounting style, handwheel structure and system compatibility
Condition	New Original

Main Features

Manual CNC Axis Control

The A860-0202-T001 is used for manual axis movement in CNC systems. It allows operators to move machine axes in controlled increments during setup and adjustment.

Suitable for Fine Positioning

This pulse generator is useful when precise manual positioning is needed, such as tool approach, workpiece zero setting, alignment checking, and maintenance operation.

CNC Handwheel Operation

As a manual pulse generator, it works as the signal source behind handwheel movement. The pulse output is sent to the CNC control system for controlled axis response.

Compact Replacement Model

The compact model code A8600202T001 is often used for search and inventory matching, while the full printed code A860-0202-T001 should be used for final confirmation.

Important for Maintenance Work

A faulty pulse generator may cause unstable manual movement, no response from the handwheel, incorrect axis stepping, or inconsistent positioning. Replacing it with the correct model helps restore manual operation.

Application Areas

CNC machine tools
Milling machines
Turning centers
Machining centers
CNC control panels
Manual axis positioning systems
Machine setup and tool alignment
Maintenance and repair of CNC handwheel systems
Industrial automation control equipment

Why Choose This Product

The A860-0202-T001 FANUC manual pulse generator is suitable for CNC systems that require accurate manual axis control. It helps operators perform fine movement adjustment and positioning tasks more easily during machine setup and maintenance.

Before replacement, confirm the original part number, connector type, cable interface, mounting structure, handwheel design, and CNC system compatibility. The model should not be selected only by appearance because similar pulse generators may have different mounting or signal configurations.

FAQ

Q1: What is A860-0202-T001 used for?
A1: It is used as a manual pulse generator for CNC axis movement, handwheel operation, and fine positioning control.

Q2: Is A8600202T001 the same as A860-0202-T001?
A2: Yes. A8600202T001 is the compact writing format of A860-0202-T001. The full model code should still be checked on the part label.

Q3: Is this part a motor encoder?
A3: No. It is more accurately described as a manual pulse generator or CNC handwheel pulse generator, not a servo motor encoder.

Q4: What should be checked before replacing this pulse generator?
A4: Check the full model number, connector type, mounting style, handwheel structure, cable interface, and CNC system compatibility.

Q5: What symptoms may indicate a faulty manual pulse generator?
A5: Possible symptoms include no handwheel response, unstable axis movement, skipped manual pulses, incorrect step movement, or failure during manual positioning operation.

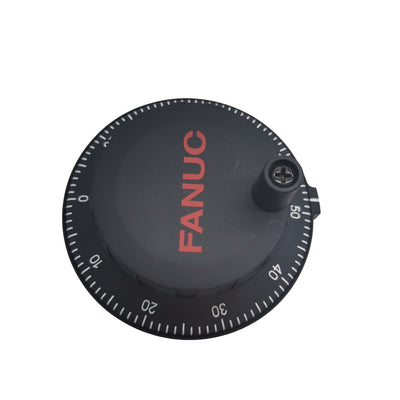

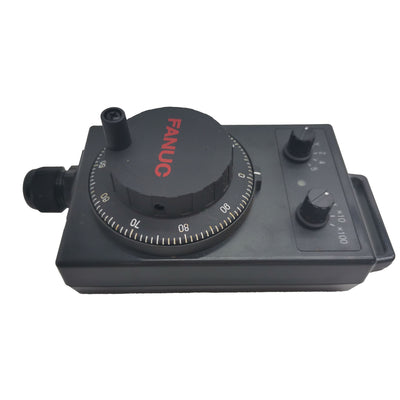

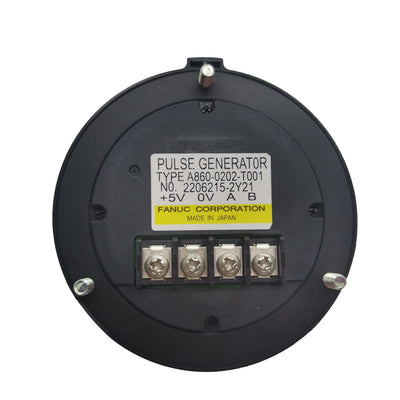

A860-0202-T001 New Original Fanuc A8600202T001 Pulse Generator
