E2E-X2D1-M3G New Original E2EX2D1M3GZ Omron Proximity Switch

Omron E2E-X2D1-M3G Inductive Proximity Sensor | M8, 2mm, DC 2-Wire NO, IP67

The Omron E2E-X2D1-M3G is a genuine new inductive proximity sensor from the trusted E2E series, designed for reliable ferrous metal detection in industrial automation environments. Featuring a compact M8 stainless steel body, 2mm sensing range, DC 2-wire Normally Open output, and IP67 protection, this sensor delivers consistent performance in CNC machines, conveyor systems, and robotic applications worldwide.

Product Overview

The E2E-X2D1-M3G belongs to Omron's E2E / E2E NEXT series — one of the most widely deployed inductive proximity sensor families in global industrial automation. Operating on 12–24V DC with a high switching frequency of up to 1,500 Hz, this sensor is engineered for precision positioning, high-speed counting, and object detection on demanding production lines. The flush-mount, shielded design allows embedding directly into metal fixtures without sacrificing sensing performance.

Key Features

•       Genuine Omron E2E series inductive proximity sensor — new original stock

•       2mm sensing range — accurate, repeatable ferrous metal detection

•       DC 2-Wire Normally Open (NO) output — simplified wiring, no polarity issues

•       M8 cylindrical body with 4-pin IEC connector — compact, space-saving design

•       IP67 rated — fully protected against dust ingress and temporary water immersion

•       1,500 Hz max switching frequency — suitable for high-speed counting applications

•       Stainless steel housing — corrosion-resistant, built for harsh environments

•       Flush / shielded mount — embeddable in metal brackets without sensing interference

•       12–24V DC supply — compatible with standard industrial PLC I/O modules

•       RoHS compliant — meets global environmental standards

Technical Specifications

Note: Sensing range is specified for standard mild steel (Fe360) targets. Sensing distance may vary for non-ferrous or smaller targets. Always verify compatibility with your control system before installation.

Wiring & Pin Configuration (M8 4-Pin IEC)

Tip: For DC 2-wire models, connect the sensor in series with the load between the supply voltage and ground. No separate output wire is required.

Typical Applications

•       CNC machine tool position detection and tool presence sensing

•       Conveyor belt object counting and speed monitoring

•       Robotic arm end-of-travel and home position detection

•       Packaging and assembly machine part detection

•       Automated production line component verification

•       Metal stamping and press machine safety interlocks

•       Spare parts replacement for existing Omron E2E installations

Why Choose the Omron E2E-X2D1-M3G?

•       Industry-proven reliability — the E2E series is trusted by engineers across manufacturing, automotive, and electronics industries globally

•       Plug-and-play replacement — direct M8 connector fit for existing Omron E2E installations

•       Minimal wiring complexity — DC 2-wire design eliminates NPN/PNP selection confusion

•       High-speed response — 1,500 Hz switching supports fast production line demands

•       Compact M8 form factor — ideal for tight machine spaces where larger sensors cannot fit

•       Long service life — stainless steel body and IP67 sealing resist oil, coolant, and vibration

Omron E2E Series Model Comparison

Compare key E2E series models to find the right sensing range and body size for your application:

Package Contents

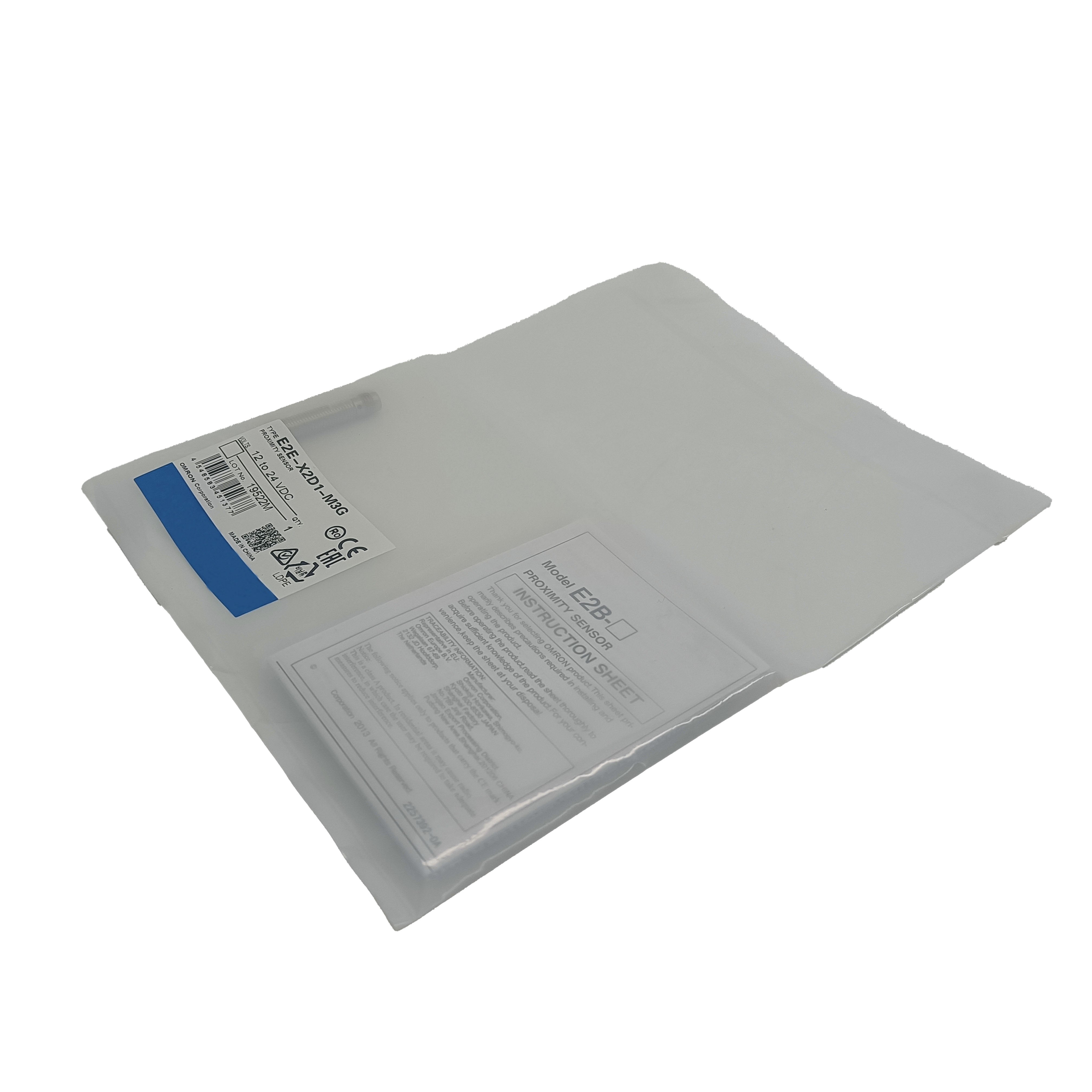

•       1 × Omron E2E-X2D1-M3G Inductive Proximity Sensor (Genuine New Original)

Important Notes

•       Confirm exact part number (E2E-X2D1-M3G) before ordering — not interchangeable with NC (Normally Closed) variant E2E-X2D2-M3G.

•       Sensing range is rated for standard mild steel targets (Fe360, 8×8mm). Smaller or non-ferrous targets will reduce effective range.

•       Do not exceed rated supply voltage (24V DC max). Overvoltage will damage the sensor.

•       Professional installation recommended. Refer to Omron E2E Series datasheet for full mounting and wiring instructions.

•       IP67 protection is valid only when the M8 connector is fully mated with a compatible IP67-rated cable connector.

Frequently Asked Questions (FAQ)

Q1: What is the sensing range of the Omron E2E-X2D1-M3G?

The E2E-X2D1-M3G has a nominal sensing range of 2mm for standard mild steel (Fe360) targets. The effective range may be shorter for smaller targets or non-ferrous metals such as aluminum or stainless steel. Always test in your actual application to confirm detection distance.

Q2: What is the difference between E2E-X2D1-M3G and E2E-X2D2-M3G?

The E2E-X2D1-M3G is a Normally Open (NO) output model — the output is OFF when no target is detected and switches ON when a target enters the sensing range. The E2E-X2D2-M3G is the Normally Closed (NC) equivalent, where the output is ON by default and switches OFF upon target detection. Choose NO or NC based on your PLC input logic and fail-safe requirements.

Q3: Is this sensor compatible with my PLC?

Yes. The E2E-X2D1-M3G operates on 12–24V DC and uses a DC 2-wire output, making it compatible with virtually all standard industrial PLC input modules (Siemens, Mitsubishi, Omron, Allen-Bradley, etc.). Check that your PLC input module supports 2-wire (leakage current) sensors, as some high-sensitivity inputs may require a bleed resistor.

Q4: What does IP67 mean for this proximity sensor?

IP67 means the sensor is fully protected against dust ingress (IP6X) and can withstand temporary immersion in water up to 1 meter depth for up to 30 minutes (IPX7). This makes it suitable for wash-down environments, coolant splash, and dusty factory floors — but it should not be used for continuous submersion.

Q5: How do I wire the E2E-X2D1-M3G to my control panel?

For DC 2-wire wiring: connect Pin 1 (Brown) to +V (12–24V DC), Pin 3 (Blue) to 0V/Ground, and connect your load (PLC input or relay) in series between the output (Pin 4, Black) and ground. The sensor switches current through the load when a metal target is detected. Pin 2 (White) is not connected in the 2-wire model.

Q6: Can the E2E-X2D1-M3G detect non-ferrous metals like aluminum or copper?

Inductive proximity sensors primarily detect ferrous metals (iron, steel) at rated range. Non-ferrous metals such as aluminum, copper, and stainless steel can also be detected, but at a reduced sensing distance — typically 30–60% of the rated range depending on the material. For reliable detection of non-ferrous targets, consider a sensor with a longer rated range or a capacitive sensor.

Q7: What is the maximum switching frequency of this sensor?

The E2E-X2D1-M3G supports a maximum switching frequency of 1,500 Hz, meaning it can detect up to 1,500 ON/OFF transitions per second. This makes it suitable for high-speed counting, rotary encoder replacement, and fast-moving conveyor applications.

Q8: Is the E2E-X2D1-M3G a genuine new Omron product?

Yes. The E2E-X2D1-M3G sold here is a genuine new original Omron component supplied in original manufacturer packaging. It has not been repaired, refurbished, or remanufactured. We source directly from authorized supply chains to ensure product authenticity and quality.
