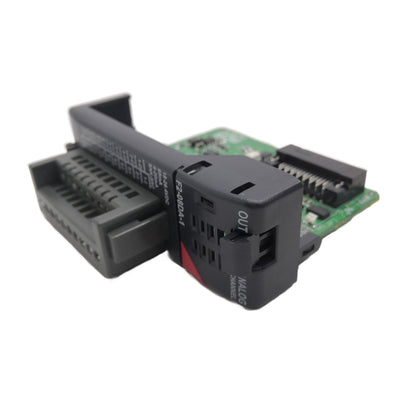

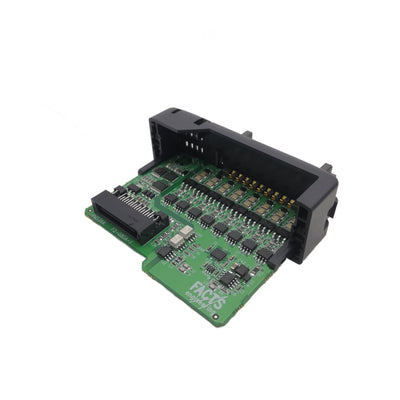

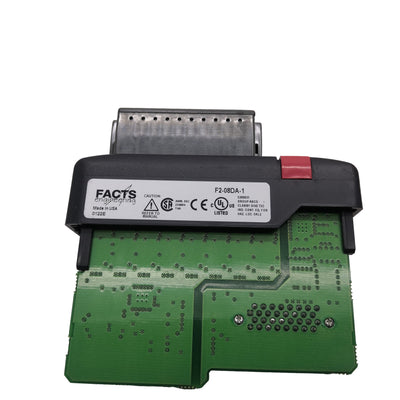

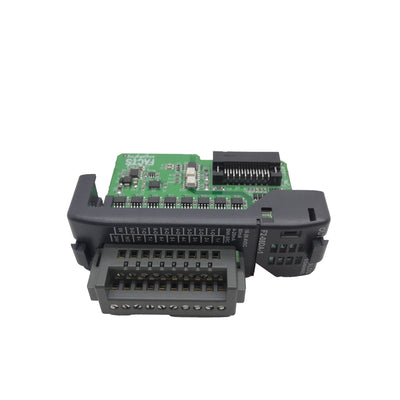

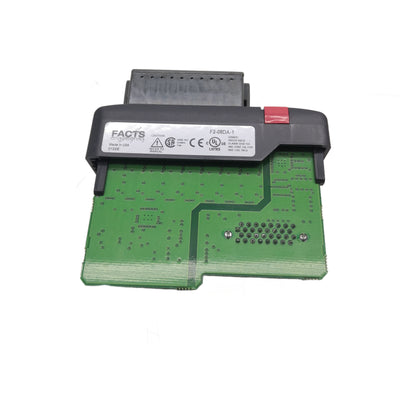

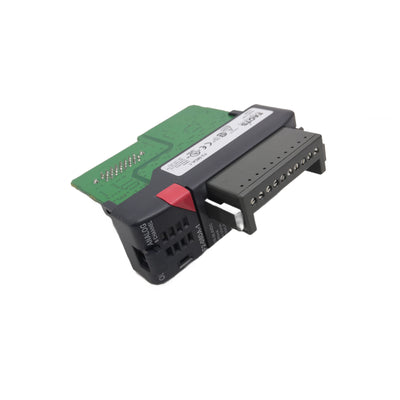

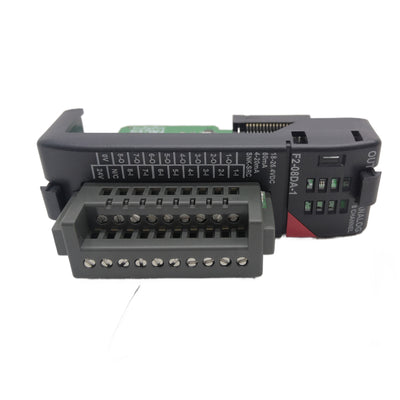

Facts Engineering F2-08DA-1 — DL205 8-Channel 4–20mA Analog Current Output Module | 12-Bit | Sink/Source | Optically Isolated | New Original

Most DL205 systems spend their working lives controlling physical processes — regulating flow through a proportional valve, trimming the speed of a variable frequency drive, setting a pressure setpoint on a smart transmitter. All of those functions depend on a reliable 4–20mA output signal. The F2-08DA-1 puts eight of those channels in a single DL205 slot, with optical isolation between the PLC logic and the field wiring, the flexibility to wire each channel as current sourcing or sinking depending on how the connected device is designed, and 12-bit resolution that translates to just under 4 microamps per count across the 16mA span. That level of resolution covers virtually every industrial control application without requiring external signal conversion.

The module is also the kind of workhorse that fits how DL205 systems are actually deployed: it goes in any available slot, the terminal block pulls off for wiring without disturbing the module, and programming follows the same V-memory structure used across the entire DL205 analog range. For engineers maintaining or expanding an existing DL205 panel, nothing about the F2-08DA-1 requires relearning.

✅ Genuine Facts Engineering / AutomationDirect. New original in stock. Ships worldwide via DHL / FedEx / UPS.

Technical Specifications

Parameter	Specification
Part Number	F2-08DA-1
Platform	DirectLogic DL205 — any slot, local or remote bases
Module Type	Analog Current Output
Number of Channels	8, single-ended
Output Range	4–20mA
Resolution	12-bit (1 in 4096)
Output Type	Current sinking and current sourcing (per channel)
Conversion Settling Time	400µs maximum (full-scale step change)
Linearity Error	±2 counts (±0.050% of full scale) maximum
Max Full Scale Inaccuracy 0–60°C	0.50% sinking / sourcing (125Ω load); 0.64% sourcing (250Ω); 0.83% sourcing (400Ω)
Max Full Scale Inaccuracy 0–25°C	0.30% sinking / sourcing (125Ω load); 0.44% sourcing (250Ω); 0.63% sourcing (400Ω)
Maximum Loop Supply Voltage	30VDC
Source Load Range	0–400Ω (loop supply 18–30V)
Sink Load Range	0–600Ω @ 18V; 0–900Ω @ 24V; 0–1200Ω @ 30V
External Field Power Supply	18–30VDC, 50mA (module) + 20mA per active loop
Backplane Power (5V Bus)	30mA @ 5VDC (supplied by base)
Optical Isolation	Yes — analog outputs isolated from PLC logic
Output Points Required	16 (Y) discrete output points
Data Word Format	12 binary data bits + 3 channel ID bits + 1 output enable bit
PLC Update Rate	All 8 channels per scan (D2-240/250-1/260/262, pointer method)
	1 channel per scan max (D2-230, multiplexing method)
Operating Temperature	0–60°C (32–140°F)
Storage Temperature	–20°C to +70°C (–4°F to +158°F)
Relative Humidity	5–95% non-condensing
Vibration	MIL STD 810C 514.2
Shock	MIL STD 810C 516.2
Noise Immunity	NEMA ICS3-304
Agency Approvals	UL Listed (E139594), UL Hazardous (E200031), CE, CSA (234884)
Programming Software	DirectSOFT v4.0 or later
Removable Terminal Block	Yes

Why 4–20mA? The Signal Standard That Survives Real Wiring

Voltage analog signals — 0–10V, 0–5V — work cleanly in a lab bench setup with short cables, low impedance loads, and no electrical noise sources nearby. In a production facility, those conditions rarely exist. Cable runs stretch across large machines, sharing trays with motor wiring. Ground loops develop between panels. Connectors corrode. Noise couples into signal conductors.

The 4–20mA current loop survives all of this far better than voltage signaling. A current loop is fundamentally a series circuit: the same current flows through every element in the loop regardless of wire resistance or contact resistance at connections. A 50-meter cable run that would drop a 10V signal to 9.7V due to wire resistance has essentially no effect on a 4–20mA signal, because the current level — not the voltage — carries the information. The receiving device measures current through a precision shunt resistor, and what it reads is what was transmitted.

The 4mA live-zero is the other practical advantage. With 4mA as the minimum signal value, a broken wire or failed transmitter produces zero current — clearly distinguishable from the 4mA that represents a zero process value. A VFD commanded to 0% speed receives 4mA; if that loop opens and drops to 0mA, the drive can detect the loss-of-signal condition and respond with a fault or safe state rather than silently running at minimum speed.

The F2-08DA-1's 4–20mA output range is directly compatible with every industry-standard 4–20mA receiving device: variable frequency drives, proportional and modulating control valves, smart actuator positioners, I/P converters for pneumatic valve control, distributed control system AI cards, current-input panel meters, and any transmitter or instrument accepting standard process current input.

Sink and Source Wiring — Both Supported Per Channel

The terms "sourcing" and "sinking" describe the direction of current flow through the output circuit, and they determine how the module connects to the external load device.

In sourcing (also called active source) configuration, the module provides the positive current to the loop. The module's output terminal supplies current, which flows through the load device and returns to the negative side. This is the standard two-wire transmitter wiring style: the module drives the loop, and the connected device is the passive load.

In sinking (also called active sink) configuration, the external loop power supply provides current through the load, and the module acts as the return path — the current flows into the module's output terminal rather than out of it. This arrangement is used with self-powered field devices that generate their own loop current, or with some PLC input cards and receivers that expect the output device to sink current.

The F2-08DA-1 handles both configurations without hardware jumpers or module-level configuration. The wiring diagram in the module manual shows channels 1 and 2 wired for sourcing and channels 7 and 8 wired for sinking simultaneously — different channels on the same module can use different wiring configurations, which is useful in panels driving mixed field device types.

The key constraint is load resistance. For sourcing configurations, the maximum load resistance is 400Ω when running from a 30VDC loop supply, scaling down to lower resistance limits at 18V and 24V supplies. For sinking, load capacity is higher: up to 1200Ω with a 30VDC supply, 900Ω at 24V, 600Ω at 18V. Standard 4–20mA field instrumentation typically uses 250Ω shunt resistors, well within both sourcing and sinking limits at standard 24V loop supply voltages.

Optical Isolation — What It Protects and Why It Matters

The F2-08DA-1's output circuits are optically isolated from the DL205 backplane logic. An optocoupler — a LED and phototransistor pair mounted in a single package — sits between the module's digital control circuitry and its analog output stage. Signals pass through this device as light rather than as electrical connection, so there is no conductive path between the 5VDC PLC logic bus and the field-side 4–20mA current loops.

This isolation provides protection in two directions. From the field into the PLC: if a wiring fault, lightning strike, or equipment failure injects a high voltage into the current loop wiring, the optocoupler blocks that voltage from reaching the CPU and other backplane modules. From the PLC into the field: ground loops between the PLC cabinet and field equipment — a common source of measurement noise in systems where multiple pieces of equipment share power references — are broken because there is no direct connection between the module's logic ground and its field-side output terminals.

For installations driving instrumentation in demanding electrical environments — near large motor drives, in facilities with poor grounding practices, or on long cable runs exposed to induced voltages — optical isolation isn't a premium feature; it's a reliability requirement.

Power Supply Planning for the F2-08DA-1

The module draws on two power sources simultaneously, and both must be accounted for during panel design.

Backplane 5VDC — The module takes 30mA from the DL205 base's internal 5VDC bus. This is one of the lowest-current analog modules in the DL205 range, so multiple F2-08DA-1 modules can coexist in a rack without straining the 5V budget in a typical configuration.

External field-side 18–30VDC — This is separate from the backplane supply and must be provided by the panel designer. The module itself requires 50mA at the field supply voltage for its internal circuitry. Each active current loop draws an additional 20mA from the same field supply. With all eight loops active, the total field supply current requirement is 50mA + (8 × 20mA) = 210mA. For 24VDC operation, this is just over 5W of power consumed from the field supply.

DL205 AC bases include a built-in 24VDC supply rated for 300mA, which can technically supply the F2-08DA-1's field power needs — but only if the total current draw across all modules powered from that supply stays within budget. In panel designs where multiple F2-08DA-1 modules are installed or where other 24V-powered devices share the built-in supply, an external dedicated 24VDC power supply for the analog output field power is the safer design choice. The module documentation includes an explicit warning that exceeding the internal 24V power budget can cause unpredictable system behavior.

The positive and negative sides of the field supply must both be routed to the module. If an external loop supply is used for some channels but the module's own supply for others, the negative (-) terminals of both supplies must be connected together to establish a common reference.

Understanding 12-Bit Resolution in Practice

With 12-bit resolution, the 4–20mA output range is divided into 4096 equal steps (counts 0 through 4095). Count 0 produces 4mA; count 4095 produces 20mA. The step size across the 16mA span is:

16mA ÷ 4095 = approximately 3.9µA per count

For a control application commanding a valve from 0–100% open position, each count represents about 0.024% of full travel. A standard 4–20mA valve positioner receiving that resolution cannot mechanically resolve movement smaller than its actuator dead band — which is typically much larger than 0.024%. In practice, 12-bit resolution is more than adequate for virtually every valve, drive, or actuator in industrial process control.

Where resolution becomes the relevant consideration is in applications commanding laboratory instruments, precision positioning actuators, or current calibrators — fields where 0.024% step resolution might be visible in the output. For those applications, the DL205 platform offers modules with higher resolution. For standard process control — the overwhelming majority of DL205 installations — 12 bits is the appropriate balance of cost, speed, and accuracy.

The digital value programmed into the ladder is converted to the engineering unit output by a linear formula. The manual provides the standard scaling equation and a worked example: converting a 0.0–99.9 PSI setpoint to the corresponding 0–4095 count requires multiplying the engineering value by 4095 and dividing by the full-scale span, with decimal handling managed by using integer multipliers in the ladder.

DL205 CPU Compatibility and Firmware Requirements

The F2-08DA-1 runs with the full range of DL205 CPUs, but minimum firmware versions apply to some:

D2-230 — Requires firmware version 2.7 or later. With a D2-230, the multiplexing method is mandatory: one channel updates per CPU scan, meaning all eight channels cycle through in eight scans. Slot placement must ensure the module's first output address falls on a V-memory boundary — the manual provides the valid Y starting addresses and their corresponding V-memory locations.

D2-240 — Requires firmware version 3.0 or later to use the pointer method. With the pointer method and a D2-240 or later CPU, all eight channels update in a single scan.

D2-250-1 — Requires firmware version 1.33 or later.

D2-260 and D2-262 — Compatible; no special firmware notes in the documentation beyond the general firmware requirements for the platform.

For the D2-240 and higher CPUs, the pointer method is recommended over multiplexing due to its simpler programming model: the CPU's special slot-dependent V-memory locations handle the channel sequencing automatically, and writing an output value is as straightforward as a Move instruction to the appropriate V-memory address.

DL205 Analog Output Comparison

Module	Channels	Range	Resolution	Type
F2-08DA-1	8	4–20mA	12-bit	Current (sink/source)
F2-08DA-2	8	0–5V / 0–10V	12-bit	Voltage (jumper-selected per channel)
F2-4AD2DA-1	4 out / 8 in combo	4–20mA	12-bit	Combination input/output current
F2-02DA-1	2	4–20mA	12-bit	Current, lower channel count

The F2-08DA-1 is the right choice when the application requires current output specifically — which includes most industrial process instrumentation — and eight channels justifies a dedicated output module. The F2-08DA-2 is its voltage-output counterpart for applications driving devices that expect 0–10V signals.

❓ FAQ — Facts Engineering F2-08DA-1

Q1: Can each channel be independently configured for sourcing or sinking, or does the entire module use one mode?

Each channel can be wired independently for either sourcing or sinking without any module-level hardware selection. The wiring diagram in the manual shows channels 1 and 2 in sourcing configuration and channels 7 and 8 in sinking configuration simultaneously on the same module — this is the intended design. The sink/source selection is entirely determined by how the external wiring is connected to the channel's output (O) and input (I) terminals and how the loop power supply is integrated into the circuit. There are no jumpers on the module to set, and there is no software parameter that needs to match the wiring choice. This flexibility allows a single F2-08DA-1 to serve mixed panels where some field devices expect to be driven (sourcing) and others expect to sink current into a powered loop.

Q2: The module needs an external 18–30VDC supply — can the DL205 base's built-in 24VDC supply be used instead of a separate PSU?

DL205 AC bases do include a built-in 24VDC supply rated at 300mA, and it can supply the F2-08DA-1's field power in designs where the current budget allows it. The total draw from this supply with all eight F2-08DA-1 channels active is 50mA (module) plus 20mA per active loop — up to 210mA for eight active channels. If no other modules or devices are drawing from the built-in 24V supply and the budget is confirmed to be within 300mA, using the internal supply is acceptable. The official documentation includes a warning that exceeding the internal 24V power budget can cause unpredictable system operation with risk of injury or equipment damage. In panels where the total demand is uncertain or where multiple analog modules are present, a dedicated external 24VDC supply for field power is the safer and recommended approach.

Q3: What does the output enable bit do, and what happens if it is OFF?

The 16-bit data word mapped to the F2-08DA-1's output points includes 12 data bits, 3 channel select bits, and 1 output enable bit. When the output enable bit is OFF (cleared to zero), all channel outputs are cleared — the module stops driving current to the field devices. This provides a software-controllable means to disable all analog outputs simultaneously without removing power from the module. In practical programming, the output enable bit is typically held ON continuously during normal operation using a power flow rung or SP0 (always-on special relay). Applications that require a controlled shutdown — bringing all analog outputs to zero before a controlled stop sequence, for example — can use this bit to clear outputs as part of that logic. Note that clearing outputs means the current drops to below 4mA, which most receiving devices will interpret as a loop fault or loss-of-signal condition, so the sequence of events around disabling this bit should be considered in the application logic.

Q4: How is the scaling from engineering units to digital counts calculated for a typical control loop?

The standard approach is to convert the process variable setpoint to a count in the range 0–4095 using a linear proportion formula. For the 4–20mA range: Digital Count = (Engineering Value / Engineering Full Scale) × 4095. Since ladder logic in DL205 CPUs operates on integers only, decimal values are handled by scaling up with a multiplier before the division, then scaling back down afterward. The manual provides a detailed worked example for a 0.0–99.9 PSI pressure setpoint: the value 49.4 PSI is entered as 494 (multiplied by 10 to preserve the decimal), the formula multiplies by 4095 and divides by 999 (the integer representation of 99.9 × 10), yielding the correct count. This same pattern — multiply up, calculate, divide down — applies to any engineering unit range and is directly compatible with DirectSOFT's MUL and DIV instructions.

Q5: What is the difference between the multiplexing method and the pointer method, and which should be used?

The multiplexing method is the older and more limited approach: the CPU sends data to one channel per scan, cycling through active channels sequentially. With all eight channels active, it takes eight scans to update the full set of outputs. With a D2-230 CPU, the multiplexing method is the only option. With D2-240 and higher CPUs, the pointer method is available and strongly recommended: the CPU uses special slot-dependent V-memory locations that the CPU firmware manages automatically, allowing all eight channels to be updated in a single scan with simpler programming. The practical difference for most process control applications — where PLC scan times are measured in milliseconds and process time constants in seconds or minutes — is primarily programming complexity rather than output update latency. The pointer method produces cleaner, more maintainable ladder code. For remote I/O bases (D2-RSSS based), the multiplexing method must always be used regardless of CPU type.

Q6: Is optical isolation between the analog outputs and PLC logic standard on this module, or an add-on option?

Optical isolation is a standard built-in feature of the F2-08DA-1, not a separately purchased option. Every channel's output circuit is isolated from the DL205 backplane 5VDC logic by an optocoupler barrier as part of the module's base design. This is documented in the module's hardware feature list in the official manual. For the panel designer, this means no additional isolation relays, isolation amplifiers, or external barriers are needed between the module's terminals and standard industrial 4–20mA field wiring. The isolation is designed to protect both the PLC from field-side voltage faults and the field instrumentation from ground loops originating in the PLC system's power and grounding.

Q7: Can multiple F2-08DA-1 modules be installed in the same DL205 rack?

Yes. Multiple F2-08DA-1 modules can occupy different slots in the same DL205 rack. Each module requires 16 discrete output points from the CPU's I/O point budget, so the number of modules that can coexist is limited by the total Y output points available in the system and the 5VDC backplane power budget — the F2-08DA-1's 30mA backplane draw is low enough that power budget is rarely the binding constraint. The more common constraint is Y point availability, particularly in smaller DL205 bases with D2-230 CPUs. For the D2-230, slot placement of each F2-08DA-1 must also be verified to ensure the module's output points start on V-memory boundaries. The DL205 analog manual provides both the valid starting addresses and worked examples of correct and incorrect module placement for D2-230 systems.
