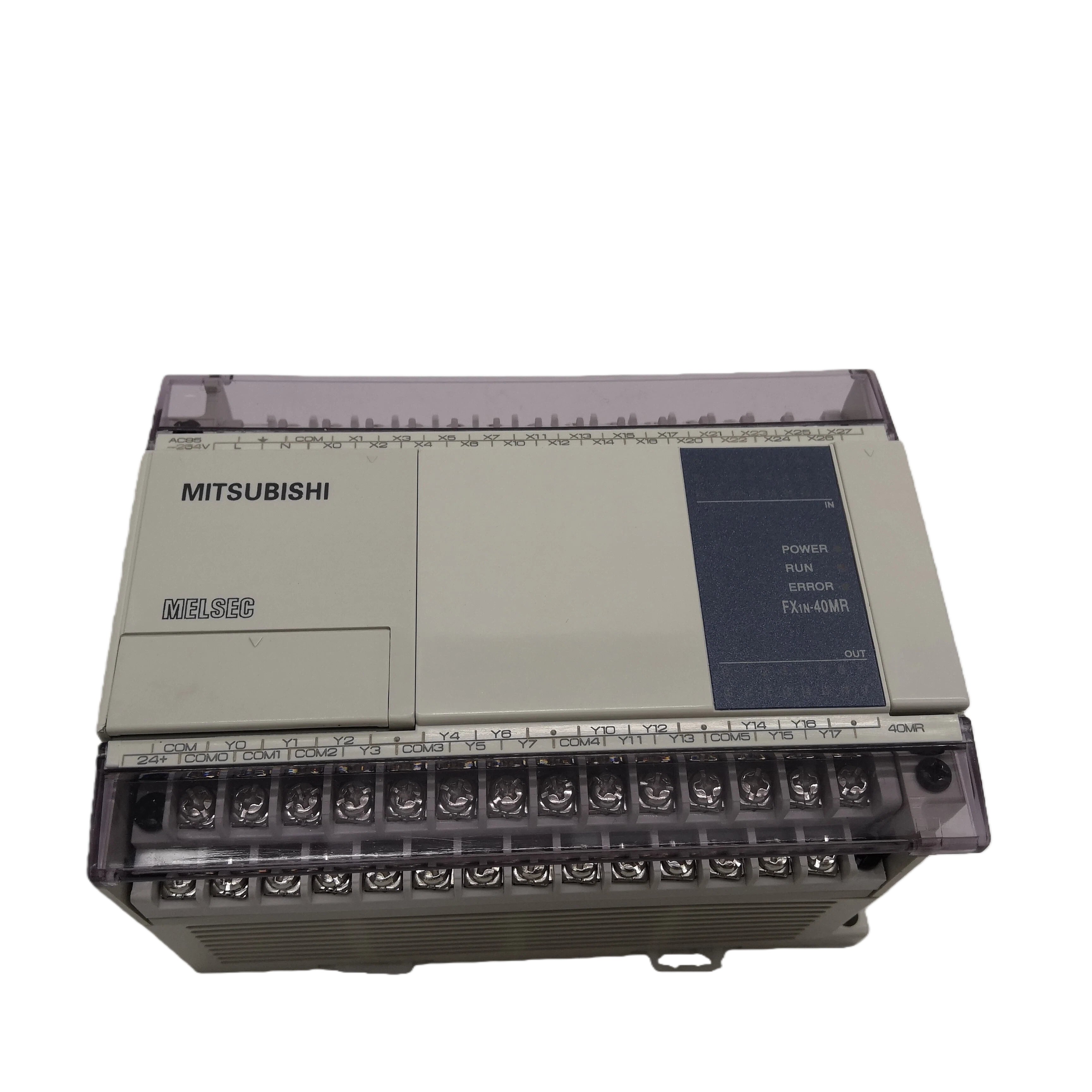

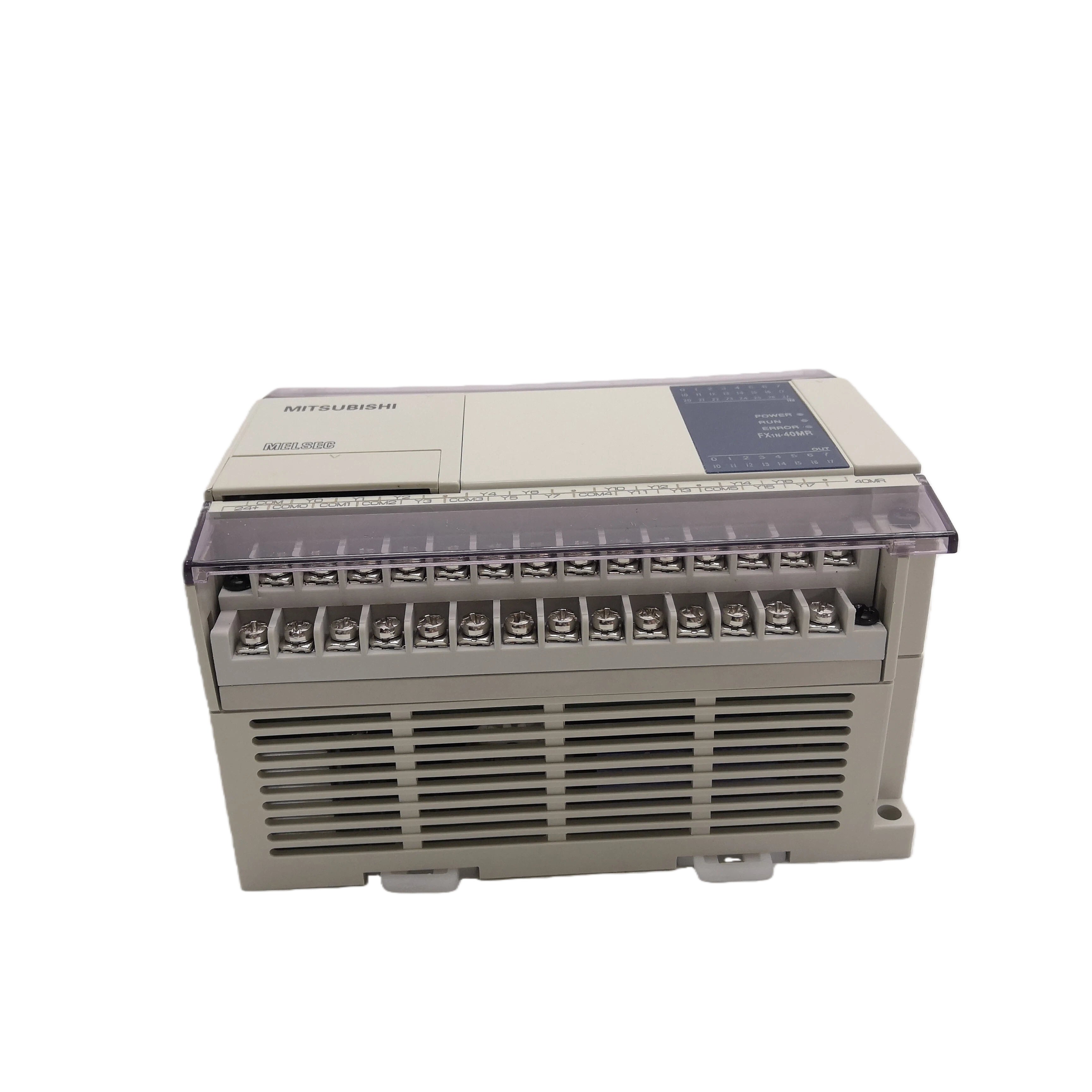

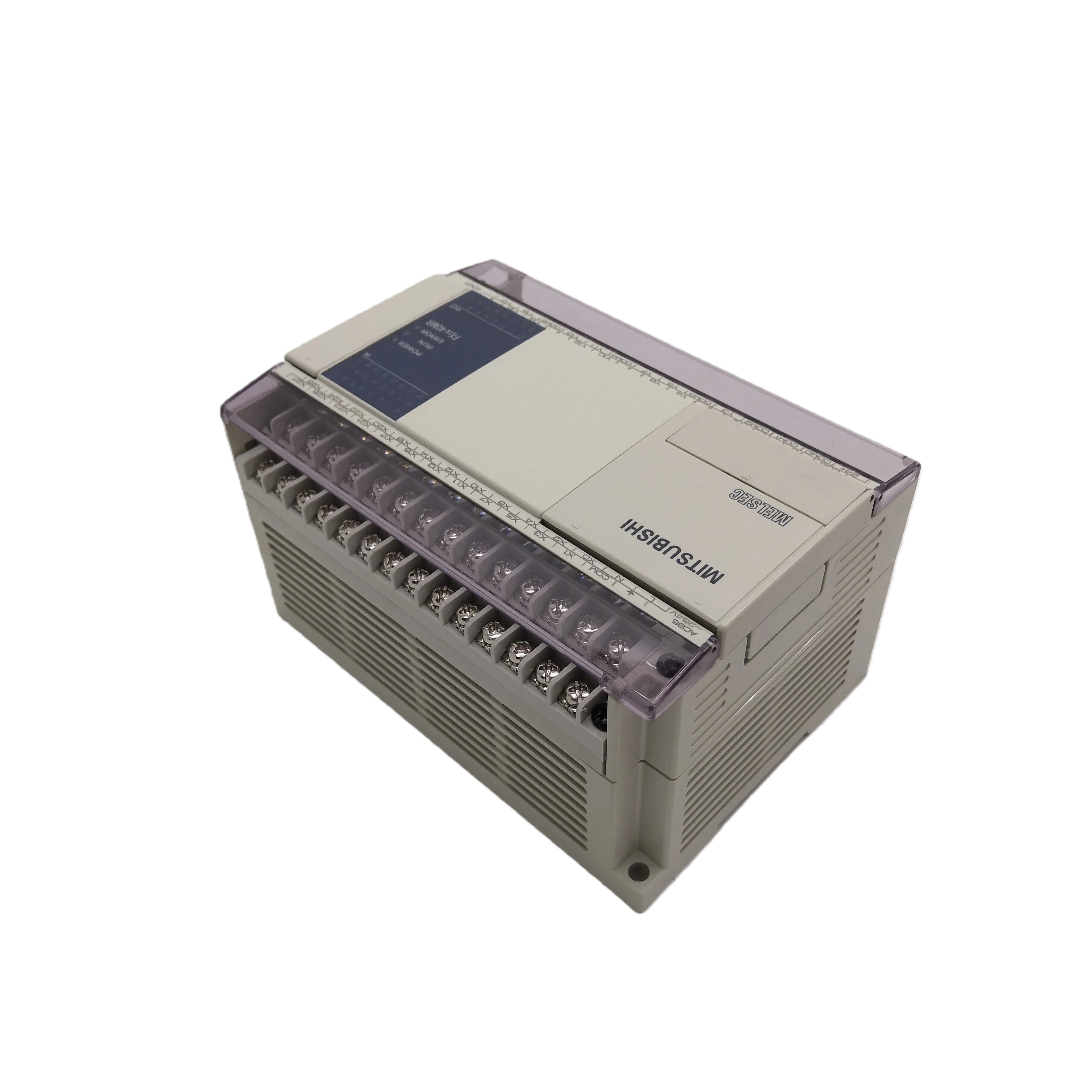

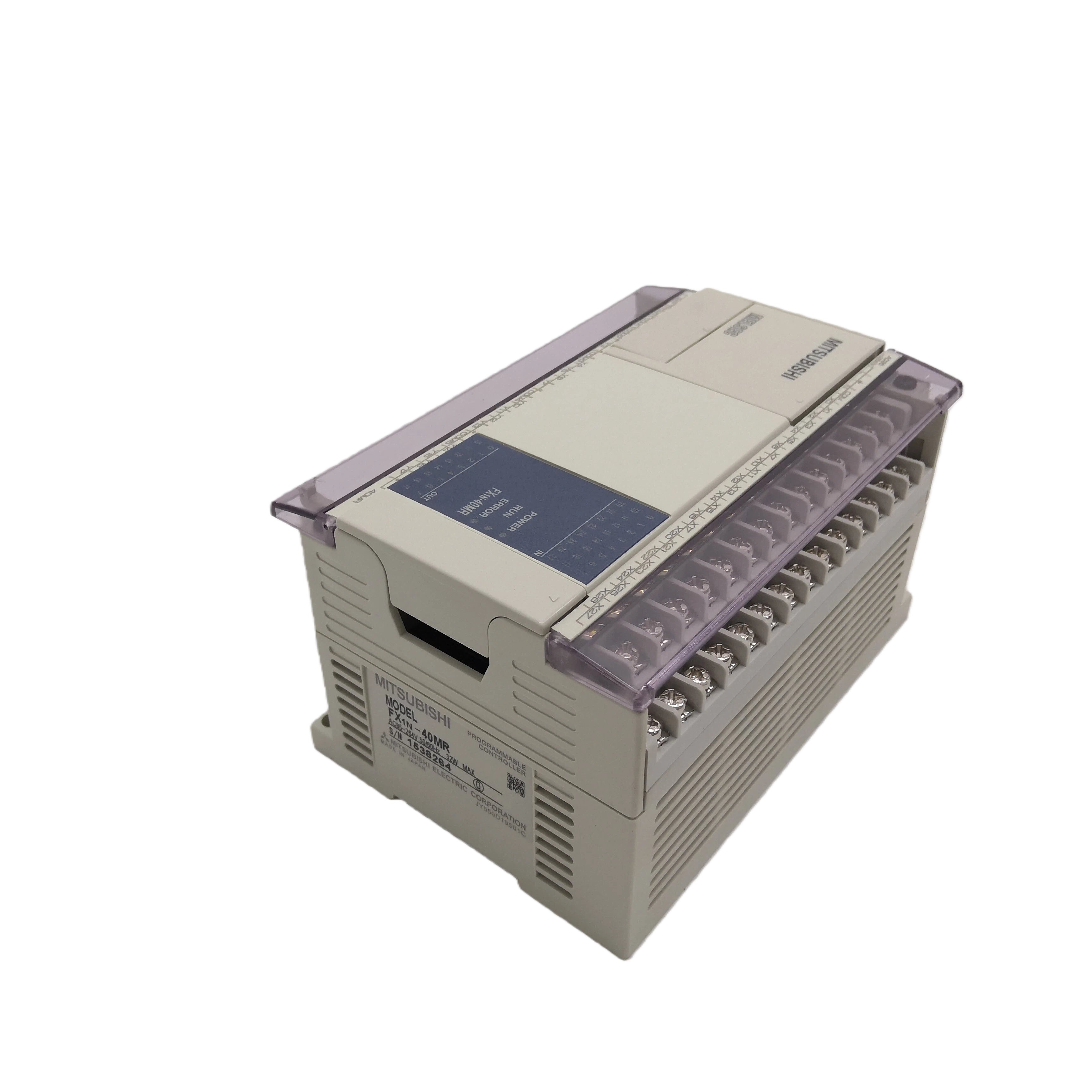

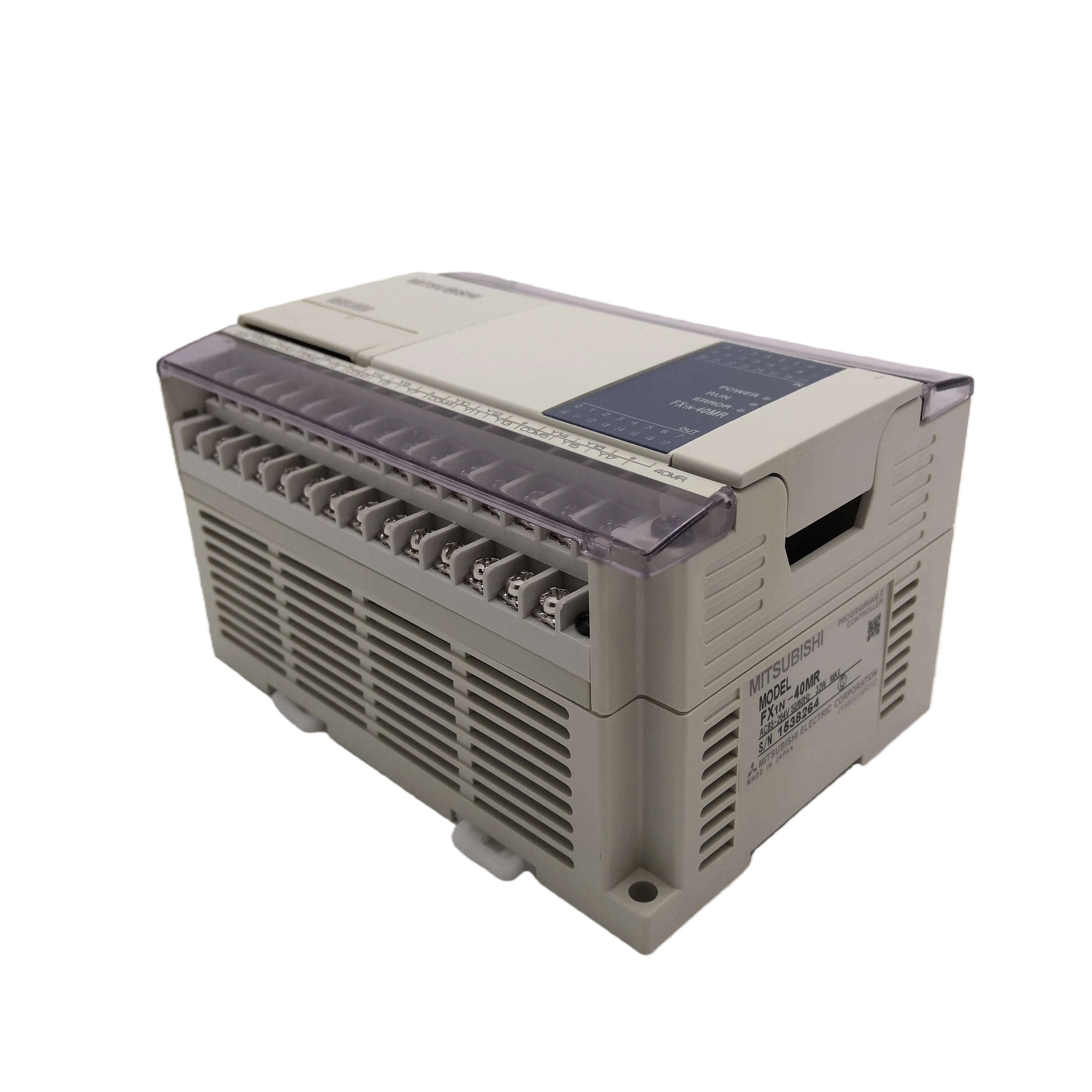

FX1N-40MR-D Mitsubishi Programmable Controller One New FX1N40MR
PRODUCT DETAILS
FX1N-40MR-D is a compact programmable logic controller (PLC) from Mitsubishi Electric FX series, designed for reliable discrete control in small to medium automation systems.
With 40 integrated I/O points, relay outputs, and 24V DC power supply, it provides stable signal control, flexible expansion capability, and long-term industrial reliability for OEM equipment and control panels.
Key Technical Specifications
-
Model: FX1N-40MR-D
-
Manufacturer: Mitsubishi Electric
-
Product Type: Programmable Logic Controller (PLC)
-
I/O Configuration:
-
Total I/O Points: 40
-
Digital Inputs: 24
-
Digital Outputs: 16 (Relay Output)
-
-
Power Supply: 24V DC
-
Output Type: Relay (MR)
-
Programming Language: Ladder Logic
-
Program Capacity: 8,000 Steps
-
Expansion Capability: Supports FX series expansion modules
-
Mounting Type: DIN Rail / Panel Mount
-
Operating Environment: Industrial-grade, high noise immunity
Core Features & Advantages
✔ Reliable Relay Output Design
Relay outputs provide strong compatibility with a wide range of loads, making the FX1N-40MR-D ideal for applications requiring robust switching and electrical isolation.
✔ Compact & Space-Saving Structure
The integrated 40-point I/O design minimizes panel space usage while maintaining high control performance.
✔ Flexible Expansion Support
Compatible with Mitsubishi FX series expansion modules for I/O, communication, and special function upgrades.
✔ Stable Industrial Performance
Designed for continuous operation in demanding industrial environments with high resistance to electrical noise and vibration.
✔ Easy Programming & Maintenance
Supports standard Mitsubishi programming software, reducing setup time and simplifying troubleshooting.
Typical Applications
-
Automated production lines
-
Conveyor and material handling systems
-
Packaging and labeling machines
-
Industrial control panels
-
OEM machinery automation
-
Process control and sequencing systems
📊 Mitsubishi PLC Model Comparison | FX1N-40MR-D vs FX1N-24MR vs FX2N
| Specification | FX1N-40MR-D | FX1N-24MR | FX2N Series |
|---|---|---|---|
| Series | FX1N (Micro PLC) | FX1N (Micro PLC) | FX2N (Advanced FX series) |
| I/O Points (Total) | 40 | 24 | 16–256 (varies by model) |
| Digital Inputs | 24 | 14 | up to 128+ |
| Digital Outputs | 16 | 10 | up to 128+ |
| Output Type | Relay | Relay | Transistor/Relay depending model |
| Power Supply | 24V DC | 24V DC / AC variant | AC 100–240V (typical FX2N) |
| Program Memory | 8000 steps | 8000 steps (typical FX1N) | Expandable, larger capacity (RAM/EEPROM) |
| Expandability | Supports expansion I/O & function modules | Supports expansion I/O & function modules | High expandability for I/O and special modules |
| High-Speed Counters / Pulse Outputs | Yes, up to 100kHz support | Yes, typical FX1N series supports up to two high-speed pulse outputs | FX2N may support advanced special pulse modules |
| Mounting | DIN Rail | DIN Rail | DIN Rail |
| Typical Applications | Small/medium automation, OEM machines | Small scale automation | Wider automation range with advanced functions |
| Programming Software | GX Developer / GX Works | GX Developer / GX Works | GX Developer / GX Works / advanced linkage |
| Target Control Size | Up to ~128 I/O (extended) | Up to ~128 I/O (extended) | Up to ~256 I/O with modules |
| Typical Use Case | General sequence control | General sequence control | Larger control tasks with higher I/O and expansion |
| End of Life Status | Discontinued (replacement by FX3G suggested) | Discontinued (replacement by FX3G suggested) | Discontinued; FX3U / FX3G recommended |
🧠 Key Notes for Product Page Use
✅ FX1N-40MR-D
-
40-point PLC with 24 DI + 16 Relay Outputs — ideal for compact automation panels.
-
DC24V powered with expandable I/O and optional communication modules.
✅ FX1N-24MR
-
Smaller 24-point version — suitable for simpler control systems.
-
Can expand I/O and connect analog or communication modules.
✅ FX2N Series
-
Larger family with a broader range (up to 256 I/O points).
-
Supports more advanced functions and modules for complex applications
Why Choose FX1N-40MR-D?
-
Genuine Mitsubishi Electric product
-
Proven FX1N series reliability
-
Strong compatibility with legacy systems
-
Ideal balance of performance, cost, and expandability
-
Widely supported in industrial automation worldwide
Condition & Delivery
-
Condition: 100% Brand New, Original
-
Stock Status: In Stock
-
Packaging: Factory-sealed
-
Shipping: Fast global delivery available
-
