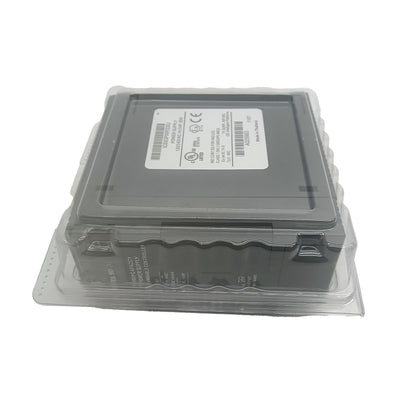

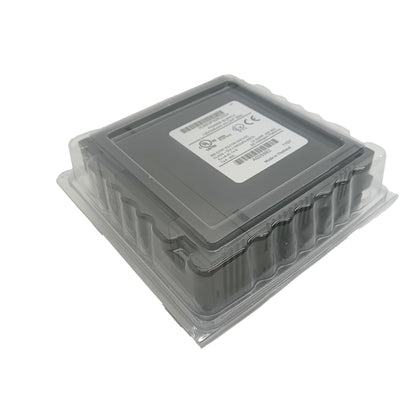

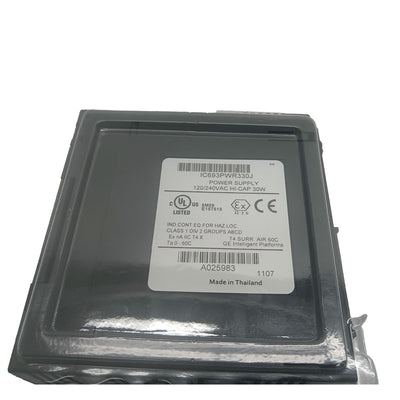

GE IC693PWR330J — Series 90-30 High-Capacity PLC Power Supply | New Sealed

The IC693PWR330J is General Electric's (now Emerson / Intelligent Platforms) high-capacity power supply module for the Series 90-30 PLC family — the standard power supply for full 10-slot racks running a dense mix of CPU, analog, and high-current I/O modules. When a Series 90-30 system is pushing the limits of a standard supply, this is the part you reach for.

The "J" revision letter at the end of the part number is worth understanding: GE used alphabetical suffix letters to track hardware revisions, and the "J" revision is a mature, stable production run with known field performance. Earlier revisions (like -C or -D) exist in the installed base but may differ slightly in component sourcing and thermal management details. For spare parts procurement, always try to match or exceed the revision of the unit being replaced.

✅ Genuine GE. New factory sealed. Ships worldwide.

Technical Specifications

Parameter	Specification
Part Number	IC693PWR330J
Manufacturer	GE / General Electric (now Emerson / Intelligent Platforms)
PLC Family	GE Series 90-30
Input Voltage	120V AC or 240V AC (switch-selectable)
Input Frequency	47–63 Hz
Output: +5V DC	Up to 8A
Output: +24V DC	Up to 2A
Output: Isolated +24V DC	Shared / combined regulation
Total Power Output	~60W combined (5V and 24V buses)
Classification	High-Capacity (HI-CAP)
Overcurrent Protection	Both output rails independently protected
Status Indicator	Power OK LED on front panel
Mounting	Direct rack mount (Series 90-30 backplane)
Input Voltage Selection	Manual switch on supply (120V / 240V) — must set before power-on
Operating Temperature	0°C to 60°C
Condition	New Sealed / Factory Sealed
Certifications	UL, CE

Standard vs Hi-Cap — Why the 330 Exists

The Series 90-30 product line includes two power supply options: the standard IC693PWR321 and the high-capacity IC693PWR330. Understanding the difference is important before ordering.

Model	+5V Output	+24V Output	Best For
IC693PWR321 (standard)	5A	1A	Small racks, CPU + digital I/O only
IC693PWR330J (hi-cap)	8A	2A	Full 10-slot racks, analog I/O, heavy I/O loads

The +5V bus is the critical one — the CPU and all I/O modules draw from it, and the 5V draw per module varies significantly. Digital I/O modules are relatively light. Analog modules (IC693ALG series) draw more. The CPUs themselves (IC693CPU364, IC693CPU374, etc.) have their own 5V requirements. In a fully populated 10-slot rack with several analog modules and a high-end CPU, the standard 321 supply simply doesn't have enough headroom. The 330J provides 3 extra amps on the 5V rail — enough to power the most demanding Series 90-30 configurations without supply current violations.

If you're replacing a failed supply and uncertain which variant was installed, the model number is printed on the supply faceplate label. A full 10-slot rack with analog modules almost certainly had a 330 series supply.

Input Voltage Switch — The Setting People Forget

One detail that causes real field problems: the IC693PWR330J has a physical voltage selection switch that must be set to match the supply voltage before the first power-on. The switch positions are labeled 120V and 240V. The module ships from the factory in one default position (typically 120V for North American distribution), and if you're installing in a 230V European or Asian facility without checking the switch, you will damage the supply — this is not a self-recovering fault.

Before installation: confirm the input voltage you're connecting to, locate the voltage selection switch on the module housing, verify it's set correctly, then connect power. This takes 30 seconds and prevents an expensive mistake.

Identifying Your Series 90-30 Rack Configuration

The IC693PWR330J mounts in the leftmost slot of any Series 90-30 baseplate and is not interchangeable with Series 90-70 or RX3i power supplies, despite some physical similarities. The compatible baseplates include: IC693CHS391 (5-slot), IC693CHS392 (10-slot), IC693CHS393 (5-slot with serial expansion), and expansion baseplates paired with IC693CHS398 or IC693CHS399.

One thing to check before purchasing a replacement: the power budget for your specific rack configuration. GE published detailed power budget worksheets for Series 90-30 in the hardware installation manual (GFK-0356). Add up the current draw for each module in the rack to confirm the 330J's 8A on +5V and 2A on +24V is sufficient for your configuration. If the existing installation had the 321 standard supply, it's possible the rack never actually needed the hi-cap unit — but it's also possible someone tried the 321 and upgraded to the 330 because they were hitting the limit.

❓ FAQ — GE IC693PWR330J

Q1: What is the difference between the IC693PWR330J and IC693PWR330F or other letter revisions?

The letter suffix (F, G, H, J, etc.) indicates the hardware revision. Later revisions typically incorporate component updates, improved thermal management, or compliance changes — they are functionally equivalent and electrically compatible. The "J" revision is a recent production run with current component specifications. When replacing an older revision, the J is a direct drop-in; there are no configuration changes required. If your failed unit is a -D or -E revision, the -J replacement will work correctly in the same slot.

Q2: Can this power supply work in both 120V and 240V installations?

Yes, but not automatically — you must manually set the voltage selection switch on the module to match your supply voltage before connecting power. The switch is clearly labeled on the housing. Setting the switch incorrectly and applying power will damage the module. This is one of the most common installation errors with Series 90-30 power supplies. Always verify the switch position during incoming inspection and again before installation.

Q3: Is the IC693PWR330J compatible with Series 90-30 expansion racks?

Yes — the 330J can be used in both the main (local) rack and in expansion racks. However, expansion racks in Series 90-30 systems that use the IC693CMM321 or IC693CMM311 communication modules may have their own power requirements. Confirm that the 330J's +5V and +24V budgets cover all modules in the specific expansion rack where it will be installed, using GE's Series 90-30 power budget calculation tool.

Q4: How do I know if my power supply is failing versus a module failure?

A failing IC693PWR330J typically shows one or more of these symptoms: the CPU enters fault mode without a specific I/O or program fault, I/O modules lose power intermittently (especially during high-load periods like high-speed output scanning), the +5V LED on the supply faceplate is dim or flickering, or the rack powers up normally but then experiences random module faults after warming up. To isolate: measure the +5V rail at the backplane connector while the rack is running under load — healthy output should be 4.9–5.1V. If voltage is low or drops under load, the supply is degraded. Comparing to a known-good spare is the fastest diagnostic approach.

Q5: Can I run two IC693PWR330J supplies in parallel for redundancy?

No — Series 90-30 power supplies are not designed for parallel operation. The backplane has a single power supply slot, and the electrical design does not support active load sharing between two supplies in a standard rack. For redundant power in critical Series 90-30 systems, the approach is external redundancy: two AC sources switching at the incoming AC feed, with the appropriate transfer switch, such that if one AC source fails, the supply continues to receive power from the other. The redundancy is at the AC level, not at the DC supply level.

Q6: The power supply has no visible fuse — is there internal protection?

Yes. The IC693PWR330J has internal electronic overcurrent protection on both the +5V and +24V output rails. There is no user-serviceable fuse inside the module — it's not field-repairable in the traditional sense. If the output current exceeds the rated limit, the supply limits or shuts down the affected rail, and removes power from the protection condition before attempting restart. If the supply has been subjected to a sustained short circuit and does not recover after removing the fault, the internal protection may have reached its thermal limit — in that case, replacement is the appropriate action rather than attempting repair.

Q7: Where can I find GE Series 90-30 manuals for this power supply?

The relevant documentation is the GE Series 90-30 Hardware Installation Manual (document number GFK-0356), which contains the power supply specifications, installation procedure, power budget calculation worksheet, and troubleshooting guidance for the IC693PWR330 series. This document is available through the Emerson / GE Automation & Controls document portal and widely distributed through industrial automation documentation archives online. For replacement part cross-references and approved substitutions, GE also published the Series 90-30 Product Catalog (GFK-0638).
