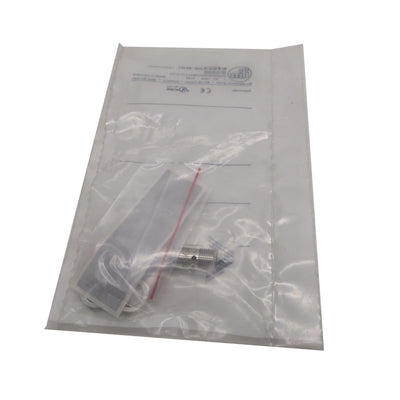

IFM efector IF5896 — Inductive Proximity Sensor | M12×1 / 60mm | 4mm Flush | PNP/NPN Programmable | IP68 | New in Box

Machine tool spindles, coolant-flooded milling centers, CNC lathes — these are the environments where most inductive proximity sensors give up. Clogged sensing faces, corroded housings, connector ingress from high-pressure coolant washdown. The IF5896 is IFM's answer to exactly this problem. Designed under the ifm efector "Coolant" series, this sensor carries the full IP68 rating and is specifically engineered for metalworking environments where the sensor body may be continuously submerged in coolant, emulsions, or cutting oils.

What makes it stand out from a generic M12 inductive sensor comes down to three things: the IP68 sealed housing that actually survives coolant immersion (not just splash resistance), the dual PNP/NPN programmable output that eliminates stocking separate variants for different controller input types, and the 2-LED optical alignment aid that takes the guesswork out of proper mounting. For maintenance engineers who install sensors in tight coolant-drenched fixtures, that last feature alone is worth the price difference over cheaper alternatives.

✅ Genuine IFM efector. New in original box. Manufactured in Romania. Ships worldwide.

Part Number Decoded — IF5896 / IFK2004BFRKG/M/2LED/US-104

IFM uses two parallel identifiers for this product: the sales order number IF5896 and the full technical designation IFK2004BFRKG/M/2LED/US-104. Understanding the technical designation is useful when cross-referencing or specifying replacements:

IFK — Product family code. IFK designates IFM's flush-mount inductive sensor range for coolant-resistant applications within the Standard M12 (IF-series) family.

2004 — Physical form factor and sensing range. The 2004 code indicates an M12-diameter cylindrical body with a 4mm nominal sensing range on a standard (Fe360) ferrous steel target.

BFRKG — Housing and installation variant. Specifies the flush-embeddable mounting (sensor face is level with the mounting surface, not protruding), metal threaded housing (brass, white-bronze coated), with M12×1 thread pitch at 60mm body length.

M — Connection type: M12 4-pin male connector (plug-in, not pigtail). This is the standard for industrial automation — M12 cordsets are universally available, and the plug-in design allows the sensor to be replaced without disturbing the wiring.

2LED — Dual LED optical setting and status aid — one LED for the yellow alignment indicator (helps confirm target proximity during setup), one LED for the green/red operating state indicator.

US-104 — Specifies the output type: 2-wire, DC, PNP/NPN selectable, normally open or normally closed programmable. The "US" designation in IFM's coding indicates the universal switching output — the single sensor supports PNP sourcing, NPN sinking, NO, or NC configurations through simple programming.

Technical Specifications

Parameter	Value
IFM Order Number	IF5896
Technical Designation	IFK2004BFRKG/M/2LED/US-104
Sensor Type	Inductive proximity (eddy current loss principle)
Housing Form	Cylindrical, M12×1 threaded
Body Length	60 mm
Sensing Range (Sn)	4 mm (flush mountable, nominal on Fe360 steel)
Mounting Type	Flush (embeddable)
Supply Voltage	10...36V DC
Max Output Current	100 mA
Switching Frequency	700 Hz
Output Function	PNP/NPN, NO/NC programmable
Connection	M12, 4-pin plug
IP Rating	IP68 (coolant resistant)
Operating Temperature	-25°C to +70°C
Housing Material	Brass, white-bronze coated (active face: PBT)
Setting Aid	2 LEDs (optical alignment + output status)
Country of Origin	Romania
Short-circuit protection	Yes
Reverse polarity protection	Yes
Output type	2-wire DC (universal switching)

What "Flush Mounting" Actually Means — and Why It Matters

The distinction between flush and non-flush (non-embeddable) inductive sensors is one of the first selection criteria in any installation, but it's often misunderstood.

A flush-mountable sensor like the IF5896 can be installed with the sensing face level with or recessed into a metal mounting bracket or fixture without degrading the sensing range. The magnetic field is shaped such that adjacent metal does not significantly affect the trigger point. This is critical in machine tool fixtures where the sensor mounts in a drilled-and-tapped hole in a steel block — if you installed a non-flush sensor in the same location, the surrounding metal would detune the coil and either reduce sensing distance dramatically or cause the output to stay permanently triggered.

Non-flush sensors project their field outward more strongly (typically achieving 2× the sensing distance for the same housing diameter), but they require a metal-free zone around the sensing face. In a coolant manifold block or a fixture plate where multiple sensors mount in close proximity to metal surfaces, only flush-mount sensors are practical.

At 4mm sensing range, the IF5896 detects standard ferrous steel targets at that distance reliably, with appropriate reduction factors for other metals: roughly 70% for stainless steel, 45% for aluminum, and 30% for copper (standard IFM reduction factor ratios for inductive sensors on non-Fe360 targets).

PNP/NPN Programmable Output — The Practical Advantage

Traditional inductive sensors come in discrete output variants: PNP (sourcing, positive-switching, common in European controls) and NPN (sinking, negative-switching, historically common in Japanese and some North American PLC inputs). Stocking both variants doubles the spare parts requirement. Wiring errors — connecting a PNP sensor to an NPN input — are a common commissioning mistake.

The IF5896's universal PNP/NPN programmable output changes this. The single unit can be configured for PNP or NPN output through the programming procedure, making it compatible with Siemens, Beckhoff, Fanuc, Mitsubishi, Allen-Bradley, and any other PLC input card regardless of its sourcing/sinking requirement. Similarly, the NO/NC programmable function means you don't need to stock separate normally-open and normally-closed variants.

The output function — normally open or normally closed — is programmable, and IFM's dual LED design makes the programming process straightforward: the yellow LED confirms target presence during setup, while the status LED confirms the current output state. On a correctly installed sensor, you can verify operation without a multimeter.

IP68 Rating in Metalworking — What the Number Means in Practice

IP68 is the highest standard liquid ingress protection rating under IEC 60529, indicating protection against continuous immersion in liquid under conditions specified by the manufacturer. For the IF5896, this means the sensor can operate continuously in coolant, water-soluble cutting fluid, and emulsions without liquid entering the housing.

This is meaningfully different from IP67, which covers temporary immersion up to 1 meter for 30 minutes. CNC machine tools with through-spindle coolant or high-pressure flood coolant can direct fluid jets directly onto sensors mounted in the work envelope. A sensor rated only IP67 will eventually fail in this environment as microscopic seal fatigue allows coolant to wick into the housing.

IFM specifically highlights this sensor's resistance to oils and coolants, which reflects the engineering focus behind the sealed housing design. The white-bronze-coated brass housing resists the chemical attack of water-soluble cutting fluids better than standard brass or zinc-alloy housings, which can develop surface corrosion that compromises the thread fit over time.

Applications

CNC Machining Centers and Turning Centers — Tool presence confirmation in turrets and automatic tool changers, workpiece clamping status in hydraulic fixtures, pallet position verification in pallet changers. All of these positions see continuous coolant exposure and require flush mounting in metal fixture components.

Metalworking Transfer Lines — Part detection at each station, orientation verification, reject/pass sensing. In transfer line applications, sensors typically run 24/7 at production rates where the 700Hz switching frequency provides adequate response for even high-speed indexing applications.

Temperature and Industrial Furnace Applications — The -25°C to +70°C operating range covers most ambient conditions outside the immediate heat zone. For ambient temperature monitoring positions near furnaces or heat-treatment equipment, the IP68 rating protects against condensation during thermal cycling.

Welding Cells — While IFM offers dedicated weld-immune sensor variants for high-intensity weld field environments, the IF5896's robust housing handles the general robotic welding cell environment where mechanical impact and coolant-equivalent spatter exposure are concerns.

Hydraulic and Pneumatic System Monitoring — Cylinder position detection, valve position feedback, and end-stop sensing in hydraulic and pneumatic circuits where fluid leakage or mist exposure is expected.

Selecting the Right IF-Series Variant — IF5896 vs. Related Models

Model	Key Difference vs. IF5896
IF5896	This unit — flush, 4mm, PNP/NPN, NO/NC programmable, IP68, M12 connector
IF5826	M12 flush, 4mm, fixed PNP output only
IF5836	M12 flush, 4mm, fixed NPN output only
IF5906	M12 non-flush, 4mm extended range, PNP/NPN, NO/NC programmable
IF5796	M8 housing (smaller diameter), flush, 2mm range
IF5898	M12 flush, similar spec, IO-Link enabled

For applications where the PLC is known and won't change, the fixed-output variants (IF5826/IF5836) are slightly simpler. Where flexibility is needed — spares that work across multiple machine types with different PLC brands — the IF5896's universal output makes it the more practical choice.

❓ FAQ — IFM IF5896

Q1: What is the difference between the IF5896 and IF5936 — are they the same sensor?

This is a common source of confusion. Both IF5896 and IF5936 share the same technical designation — IFK2004BFRKG/M/2LED/US-104 — and are electrically and mechanically identical. The difference is the suffix on the technical designation: IF5896 carries the "-IRF" suffix indicating Romanian origin, while IF5936 carries the same part number without that specific country suffix in some markets. From a functional standpoint, they are interchangeable direct replacements. When replacing a failed sensor, either order number will provide the same electrical and mechanical performance. Confirm by verifying the technical designation (IFK2004BFRKG/M/2LED/US-104) on the packaging, which will be consistent regardless of the IF-number used.

Q2: How do I program the PNP/NPN and NO/NC output function?

The IF5896 uses IFM's standard programming procedure for the universal switching output. With power applied, hold a target within the sensing range to trigger the sensor, then follow the button/LED sequence described in the IFM installation instructions (downloadable from ifm.com/product/IF5896). The process involves a short actuation of the programming input using a standard teach button or by using the target approach method. The yellow LED confirms target detection during setup, and the status LED confirms the active output state after programming. IFM provides a QR code or direct URL to the installation instructions on the sensor packaging. The programmed state is stored in non-volatile memory and is retained through power cycling — you do not need to reprogram after power loss.

Q3: Can the IF5896 detect non-ferrous metals — aluminum, stainless steel, copper?

Yes, but with reduced sensing distance compared to standard Fe360 ferrous steel. IFM's inductive sensors operate on the eddy current loss principle, which induces currents in any conductive material. However, the magnitude of the effect varies by material conductivity and permeability. For the IF5896's 4mm nominal range on Fe360 steel, expect approximately 2.8mm on stainless steel (reduction factor ≈ 0.7), 1.8mm on aluminum (≈ 0.45), and 1.2mm on brass or copper (≈ 0.30). These are standard IFM reduction factors for the IF series and should be verified against the actual target material and geometry before finalizing a mounting position. For guaranteed reliable detection of non-ferrous targets at fixed distances, mounting the sensor closer than the reduced sensing distance provides adequate margin.

Q4: The IF5896 has an M12 4-pin connector. What cable do I need?

The IF5896 terminates in a standard 4-pin M12 male (plug) connector with A-coding, which is the most common M12 format in industrial automation. You need an M12 female (socket) to the appropriate termination for your control cabinet — typically M12 female to pigtail/flying leads for field wiring, or M12 female to M12 female for extension cables. IFM offers a full range of compatible cordsets (EVC and EVF series), and third-party M12 cables from any industrial connectivity supplier are compatible. For coolant environments, use M12 cables rated IP67 or higher at the mating connector; unprotected cable joins in the coolant zone are a common failure point even with a well-sealed sensor. Pin assignment: pin 1 = brown (L+/supply positive), pin 3 = blue (L-/supply negative), pin 4 = black (output signal).

Q5: What happens if the IF5896 is accidentally wired with reversed polarity?

Nothing permanent. The IF5896 incorporates reverse polarity protection, meaning an incorrect L+/L- wiring will not damage the sensor. The output simply will not function until the polarity is corrected. Similarly, the short-circuit protection prevents damage from an accidental direct short of the output to supply or ground. Both protection features are standard in modern IFM inductive sensors and are specifically intended for the industrial environment where wiring errors during commissioning or maintenance are possible. After correcting the wiring, the sensor operates normally without requiring replacement or reset.

Q6: How does the IF5896 compare to cheaper M12 inductive sensors from other brands at the same specifications?

The specification sheet comparison looks similar — 4mm range, IP68, M12 connector, PNP/NPN. The differences are in what the specs don't fully capture. IFM's "Coolant" series sensors undergo extended testing in actual cutting fluid formulations, not just clean water. The white-bronze-coated brass housing resists chemical attack from water-soluble emulsions that can attack standard zinc alloy or plain brass housings. The dual LED alignment aid genuinely reduces installation time in recessed fixtures. And the universal PNP/NPN/NO/NC programmable output eliminates the need to stock multiple variants. For a one-time project or a non-critical position, a lower-cost alternative may be acceptable. For production equipment running three shifts in a machine shop, the IF5896's reliability track record in metalworking applications justifies the price point — unplanned downtime to replace a failed sensor in a production CNC typically costs more than the sensor itself.

Q7: Is the IF5896 still an active IFM part, and what is the current replacement if it has been discontinued?

As of early 2026, the IF5896 remains an active, in-stock product at major distributors including RS Components (Stock No. 71944817), DigiKey, Selectum, and others. IFM efector's IF-series M12 inductive sensors have been a stable product line for many years with no announced discontinuation. The closely related IF5936 (same technical designation, same function) represents an alternative order path in some markets. If IFM ever discontinues this specific configuration, the immediate replacement path would be within IFM's current IF-series lineup under the same technical designation criteria (IFK2004BFRKG/M/2LED). IFM maintains product transition documentation on their website for any superseded parts.
