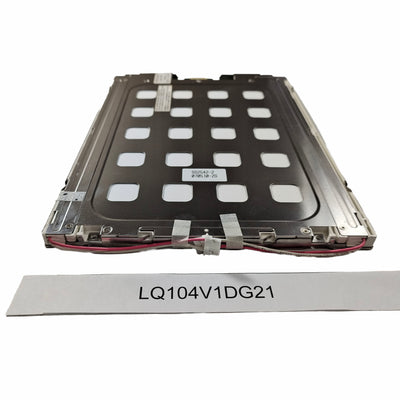

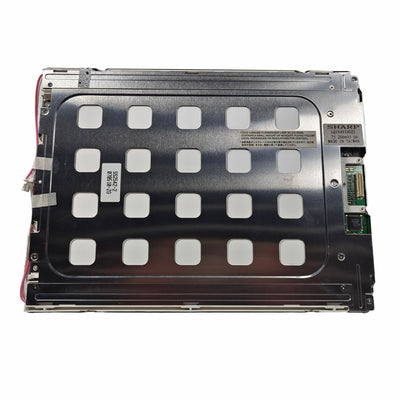

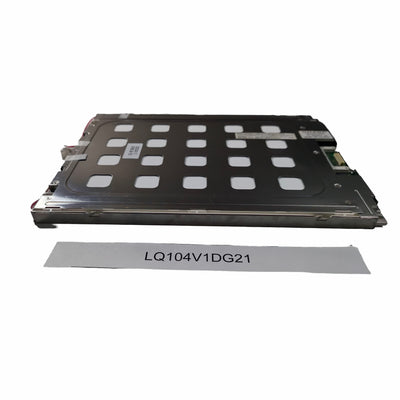

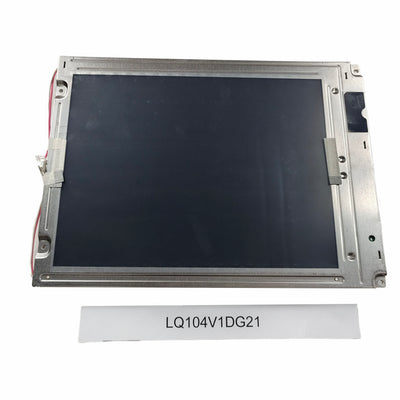

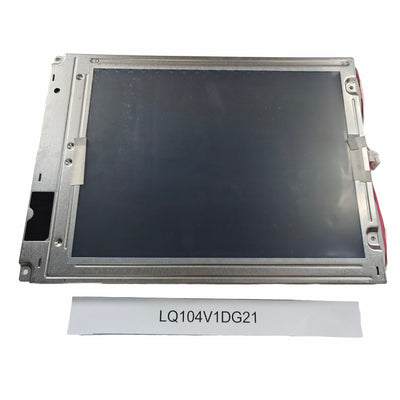

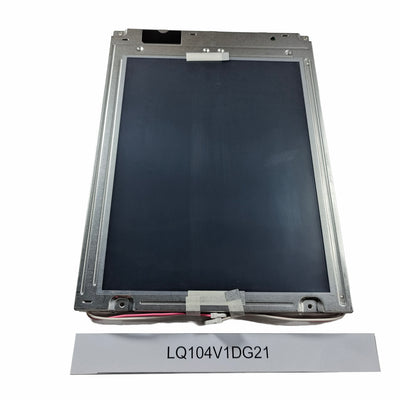

Sharp LQ104V1DG21 10.4-Inch TFT-LCD Display Module

The Sharp LQ104V1DG21 is a 10.4-inch TFT-LCD module designed for industrial display integration. It provides VGA resolution, a parallel RGB interface, and a CCFL backlight. Its compact panel format suits equipment where a dedicated display module is required.

Key Specifications

Parameter	Specification
Brand	Sharp
Model	LQ104V1DG21
Product Type	TFT-LCD Module
Display Size	10.4 inch
Resolution	640 × 480
Display Type	a-Si TFT-LCD
Brightness	350 cd/m²
Contrast Ratio	300:1
Display Colors	262K
Interface	Parallel RGB, 6-bit
Backlight	CCFL
Operating Temperature	-10°C to +65°C

Display Performance

The panel uses a 640 × 480 VGA format with a 4:3 aspect ratio. The 350 cd/m² typical brightness supports clear image presentation in controlled industrial environments.

The 6-bit RGB interface provides direct digital image transmission. The CCFL backlight is integrated into the module design.

Industrial Applications

Industrial control panels
HMI equipment
Industrial PCs
CNC machine interfaces
Factory automation equipment
Test and measurement systems
Machine monitoring displays

FAQ

Q1: What type of display is the LQ104V1DG21?
A: It is a 10.4-inch TFT-LCD module.

Q2: What is its native resolution?
A: The native resolution is 640 × 480 pixels.

Q3: What type of backlight does it use?
A: It uses a CCFL backlight.

Q4: What interface does the display use?
A: It uses a parallel RGB 6-bit interface.

Q5: What is the operating temperature range?
A: The specified operating range is -10°C to +65°C.
