Mitsubishi MDS-B-SPJ2-75 AC Servo Drive — 7.5kW | Genuine New Factory Sealed

The Mitsubishi MDS-B-SPJ2-75 is a genuine 7.5kW AC servo drive from Mitsubishi Electric's MDS-B series — the dedicated spindle and servo amplifier platform for Mitsubishi CNC systems including the M64, M65, M66, and E68 series controllers. Rated at 200–230V AC input with a 30A peak output current, it delivers the precise velocity and torque control that high-speed CNC spindle and feed axis applications demand.

✅ 100% genuine Mitsubishi Electric product. Brand new and factory sealed. Ready for immediate worldwide shipment.

Understanding the MDS-B-SPJ2-75 — What Makes This Drive Unique

The MDS-B series is Mitsubishi's purpose-built servo drive platform for CNC-integrated motion control, distinct from the general-purpose MR-J series used in standalone automation. Key differences:

Feature	MDS-B Series (This Drive)	MR-J Series (General Automation)
Primary Use	CNC spindle & feed axis control	General servo automation
Controller Interface	Mitsubishi CNC optical fiber (SSCNET)	Analog / SSCNET III
Tuning	CNC parameter-integrated	Standalone servo amplifier tuning
Typical Machine	Machining centers, lathes, grinders	Robots, conveyors, packaging

For a CNC machine equipped with Mitsubishi M-series or E-series controls, the MDS-B-SPJ2-75 is the correct replacement drive — an MR-J series amplifier cannot substitute in this application.

Full Technical Specifications

Parameter	Specification
Manufacturer	Mitsubishi Electric
Model	MDS-B-SPJ2-75
Series	MDS-B (CNC Servo Drive)
Drive Type	AC Servo Drive — Spindle / Feed Axis
Rated Power	7.5 kW
Input Voltage	200–230V AC ±10% (3-phase)
Peak Output Current	30 A
Control Mode	Position / Velocity / Torque
Communication	Mitsubishi CNC optical fiber (SSCNET)
Protection	Overcurrent, overvoltage, thermal, short circuit
Cooling	Forced air / fan-assisted
Operating Temp	0°C ~ 55°C
Mounting	Panel mount
Condition	New / Factory Sealed
Origin	Japan

💡 Before ordering: Confirm the full model number — MDS-B-SPJ2-75 — matches the label on your existing drive. The "-75" suffix indicates the 7.5kW rating. Adjacent models (MDS-B-SPJ2-55 = 5.5kW, MDS-B-SPJ2-110 = 11kW) are not interchangeable due to different current ratings and parameter sets.

Decoding the MDS-B-SPJ2-75 Model Number

MDS - B - SPJ2 - 75
│ │ │ └─ 75: 7.5kW rated output power
│ │ └────── SPJ2: Spindle drive, J2 generation, integrated power
│ └────────── B: MDS-B series (second generation CNC servo)
└────────────── MDS: Mitsubishi Drive System (CNC-integrated)

The SPJ designation identifies this as a spindle drive — it controls the main cutting spindle motor on CNC machining centers and lathes. This differs from SV (servo) variants which control feed axes (X/Y/Z). Ensure you are replacing a spindle drive with a spindle drive, and a feed axis drive with a feed axis drive.

MDS-B-SPJ2 Series — Power Rating Comparison

Model	Rated Power	Peak Current	Typical Spindle Motor	Best For
MDS-B-SPJ2-37	3.7 kW	~18A	Small CNC lathe spindles	Light cutting, small machines
MDS-B-SPJ2-55	5.5 kW	~24A	Medium CNC machining centers	General-purpose milling
MDS-B-SPJ2-75	7.5 kW	30A	Standard CNC spindles	⭐ Most common replacement rating
MDS-B-SPJ2-110	11.0 kW	~42A	Heavy-duty machining centers	High-torque, large spindle motors
MDS-B-SPJ2-150	15.0 kW	~55A	Large horizontal machining centers	High-power production machining

Selection rule: Always match the drive power rating to the spindle motor's nameplate rated output — never upsize or downsize a spindle drive without reconfiguring CNC spindle parameters.

Compatible Mitsubishi CNC Systems

The MDS-B-SPJ2-75 is designed for use with these Mitsubishi CNC controller series:

M64 / M64A / M64S — Mitsubishi CNC (machining center and lathe)
M65 / M65A / M65S — Advanced CNC with embedded PC
M66 / M66A — High-performance CNC for 5-axis machining
E68 — Economical Mitsubishi CNC for standard machining
C64 / C64M — Mitsubishi CNC integrated controller

⚠️ The MDS-B series uses optical fiber SSCNET communication to the CNC controller. Verify the fiber optic cable connection type and CNC axis card compatibility before installation.

Typical Machine Applications

The MDS-B-SPJ2-75 is found in the spindle drive cabinet of a wide range of CNC equipment:

Vertical machining centers (VMC) — spindle drive for milling operations up to 10,000+ RPM
CNC turning centers / lathes — main spindle speed and torque control
Horizontal machining centers (HMC) — high-power spindle control for heavy cutting
CNC grinding machines — grinding wheel spindle drive
Multi-axis CNC machining — spindle amplifier in 4/5-axis machining centers
OEM machine replacement — direct swap for failed MDS-B-SPJ2-75 in service

Shipping & Quality Guarantee

🔒 100% genuine Mitsubishi Electric product — factory sealed
🔍 Pre-shipment inspection on every unit
📦 Original factory packaging maintained for full traceability
🌍 Worldwide express shipping available
⚡ In-stock orders dispatched within 1–2 business days

FAQ — Mitsubishi MDS-B-SPJ2-75 Servo Drive

Q1: Is the MDS-B-SPJ2-75 a genuine Mitsubishi Electric product? Yes. Every unit we supply is a 100% genuine Mitsubishi Electric MDS-B-SPJ2-75 — factory new and sealed. We do not supply aftermarket or refurbished servo drives. Genuine Mitsubishi drives include factory-set parameters, certified protection circuits, and SSCNET optical communication hardware that cannot be replicated in non-OEM units.

Q2: What is the difference between the MDS-B-SPJ2-75 and MDS-B-SV series drives? The key difference is function: the SPJ2 designation indicates a spindle drive for controlling the main cutting spindle motor. The SV series are servo drives for feed axis (X/Y/Z) control. Both use SSCNET optical fiber communication to the CNC, but they control different types of motors with different control algorithms. Always replace a spindle drive with a spindle drive of the same power rating.

Q3: Which Mitsubishi CNC controllers are compatible with the MDS-B-SPJ2-75? The MDS-B-SPJ2-75 is compatible with Mitsubishi M64, M65, M66, E68, and C64 series CNC controllers. Compatibility depends on the specific CNC version and axis card configuration. Verify your machine's CNC model and current drive configuration against the Mitsubishi MDS-B technical manual before ordering.

Q4: Can I use this drive to replace an MDS-B-SPJ2-75 that shows an alarm code? Yes — it is a direct drop-in replacement. Before installation: (1) Document all existing CNC spindle parameters (PA and PB parameter groups); (2) Verify the optical fiber SSCNET connections are intact; (3) After fitting the new drive, confirm the spindle parameters are correctly loaded from the CNC. A new drive ships without machine-specific parameters set, so having a parameter backup is essential for fast re-commissioning.

Q5: What common alarm codes indicate the MDS-B-SPJ2-75 has failed? Common Mitsubishi CNC alarms pointing to spindle drive failure include: Alarm 30 (spindle drive fault), Alarm 32 (spindle motor overcurrent), Alarm 35 (spindle parameter error), and SP alarm codes (SP10–SP99) displayed on the CNC screen. These indicate issues originating in the spindle amplifier circuit and typically require drive replacement after confirming the spindle motor and cabling are not the root cause.

Q6: Does the MDS-B-SPJ2-75 require parameter initialization after replacement? Yes. A new MDS-B-SPJ2-75 contains Mitsubishi factory default parameters, not your machine's specific spindle tuning parameters. After mechanical and electrical installation, you must restore the spindle parameters from your CNC backup or re-enter them manually from the machine documentation. Failure to restore correct parameters will result in spindle alarms or incorrect spindle behavior at startup.

Q7: Do you offer bulk pricing or urgent express shipping for production downtime situations? Yes on both counts. For urgent machine-down situations, we can arrange next-flight-out express shipping to minimize production interruption — contact us immediately via WhatsApp for fastest response. Volume pricing is available for machine tool service companies and maintenance teams building critical spare inventory.

Machine down due to a spindle drive fault? Share your CNC model, alarm code, and drive nameplate details via WhatsApp — our technical team will confirm part compatibility and arrange the fastest possible shipment.

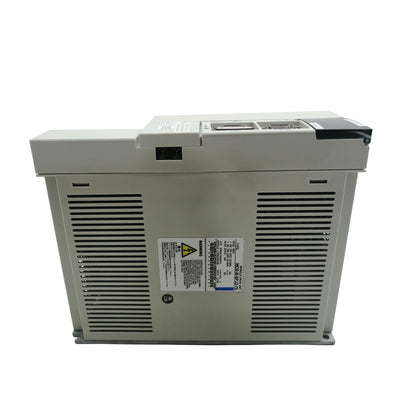

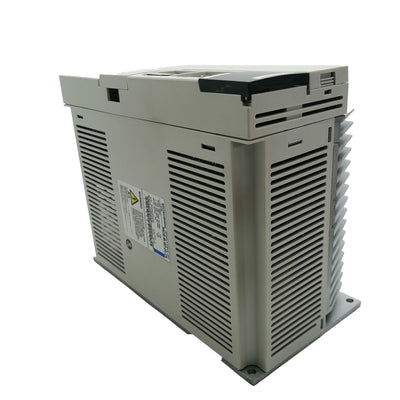

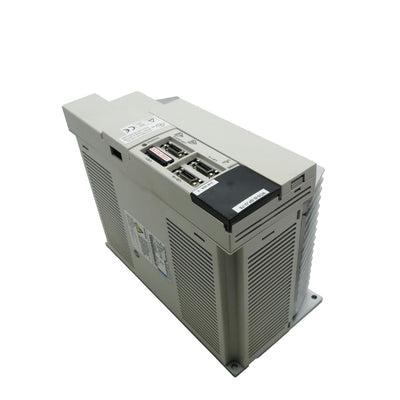

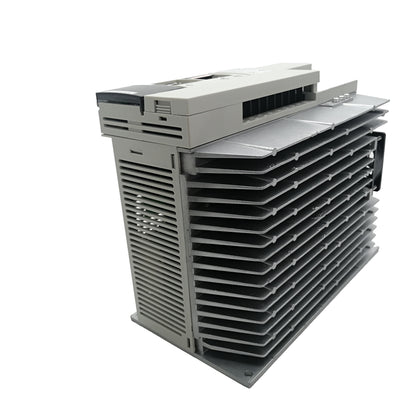

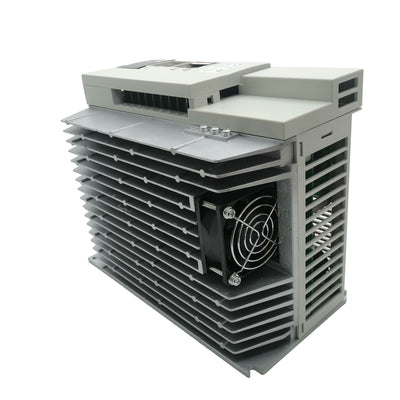

MDS-B-SPJ2-75 New Sealed Mitsubishi Servo Drive MDSBSPJ275
