Q26UDVCPU Mitsubishi CPU Unit PLC | Brand New

Industrial Automation Intelligence at the Heart of Your System

In automated manufacturing, the CPU unit is the brain of the system, coordinating processes, inputs, and outputs with precision. The Mitsubishi Q26UDVCPU provides high-speed processing, reliable I/O management, and robust program execution, making it ideal for controlling complex industrial operations. Engineered for SIMATIC-class industrial environments, this CPU unit ensures stability and consistent performance, even under heavy computational loads or continuous operation.

Key Features

Mitsubishi Q-series PLC CPU unit, designed for industrial automation
High-speed program execution for complex control processes
Built-in memory and I/O management for seamless system integration
Robust industrial construction with protection against vibration and environmental factors
Compatible with Mitsubishi Q-series PLC modules, supporting flexible expansion
Supports real-time process monitoring, data logging, and networked communication

Technical Specifications

Specification	Details
Manufacturer	Mitsubishi Electric
Model	Q26UDVCPU
Product Type	CPU Unit / PLC Central Processing Unit
CPU Type	High-performance industrial processor
Program Memory	32K Steps (verify official datasheet)
Data Memory	2 MB (verify official datasheet)
I/O Management	256 points (expandable with Q-series modules)
Communication	Built-in serial / Ethernet ports for networking
Operating Temperature	0°C to +55°C
Storage Temperature	−25°C to +70°C
Mounting	DIN rail / panel mount
Condition	Brand New
Application	Industrial automation, process control, manufacturing lines, data acquisition

Typical Applications

Factory automation PLC systems
Complex manufacturing lines with multi-axis control
Process monitoring and data logging
Integration with HMIs and SCADA systems
Any industrial setup requiring centralized programmable control

🔷 Mitsubishi Q-Series PLC CPU Units Technical Comparison

Specification	Q26UDVCPU	Q13UDVCPU	Q06UDVCPU	Q04UDVCPU
Series	MELSEC‑Q Universal CPU	MELSEC‑Q Universal CPU	MELSEC‑Q Universal CPU	MELSEC‑Q Universal CPU
Program Capacity (Steps)	260K (≈ 1,040 KB)	130K (≈ 520 KB)	60K (≈ 240 KB)	40K (≈ 160 KB)
I/O Points (Standard)	4,096	2,051	1,025.5	168
Basic Processing Speed (LD)	1.9 ns	1.9 ns	1.9 ns	1.9 ns
USB Port	Yes	Yes	Yes	Yes
Ethernet Port	Yes	Yes	Yes	Yes
Memory Card Support	SD / SDHC	SD / SDHC	SD / SDHC	SD / SDHC
Extended I/O Support	Up to 8,192 (via CC‑Link)	Varies	Varies	N/A

🔎 Technical Insight

1. Program Capacity (Step Memory)

Q26UDVCPU supports 260K steps, roughly double that of the Q13UDVCPU and significantly more than smaller models, making it more suitable for complex logic and larger control programs.
Q04UDVCPU and lower‑end CPUs offer smaller memory footprint for compact systems.

2. I/O Capacity & Expansion

Q26UDVCPU supports a larger number of I/O points (4,096 basic) and can be expanded up to 8,192 via CC‑Link, ideal for large distributed systems.
Smaller models offer proportionally fewer I/O points, fitting smaller automation tasks.

3. Communication Interfaces

All compared units provide USB and Ethernet ports for programming and network connectivity — important for integration with control software and HMI/SCADA systems.
Memory card support (SD/SDHC) on all models allows easy system backup and firmware/data management.

4. Processing Speed & Efficiency

All Universal QCPU models (Q04 to Q26) share the same 1.9 ns basic processing speed, ensuring responsive real‑time control and efficient execution of ladder logic. This consistency simplifies selection based on memory and I/O needs rather than instruction speed.

🧠 How to Use This Table

Choose Q26UDVCPU when your application needs larger program memory and higher I/O count (e.g., multi‑axis control, extensive sensor arrays).
Select Q13UDVCPU or smaller for medium to small systems with moderate complexity and fewer I/O requirements.
All models support standard communication and memory card features, making them compatible with Mitsubishi’s GX Works2 programming environment and industrial automation workflows.

Advantages for Engineers

Reliable performance: Handles continuous operation in industrial environments
Flexible expansion: Supports modular Q-series I/O and peripheral devices
High-speed processing: Enables real-time control for complex systems
Easy maintenance: Standardized architecture allows quick troubleshooting and replacement

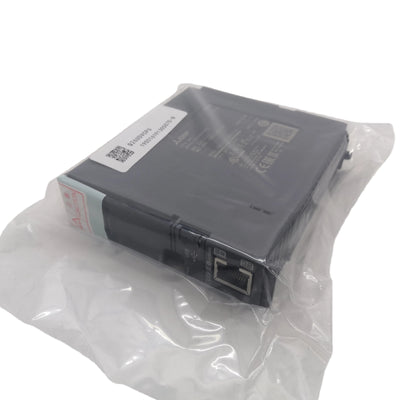

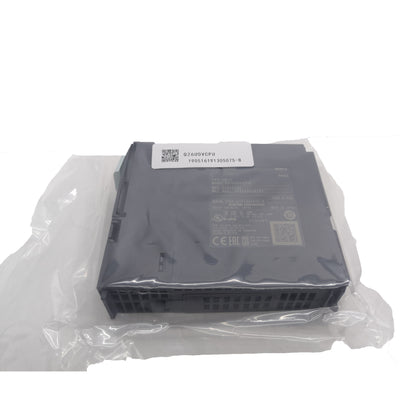

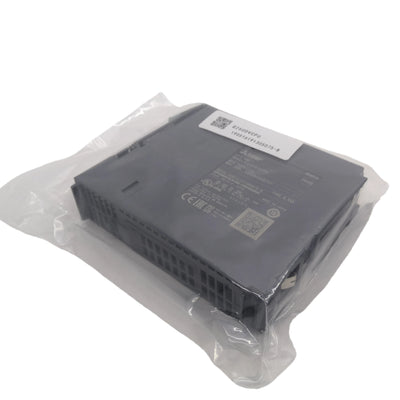

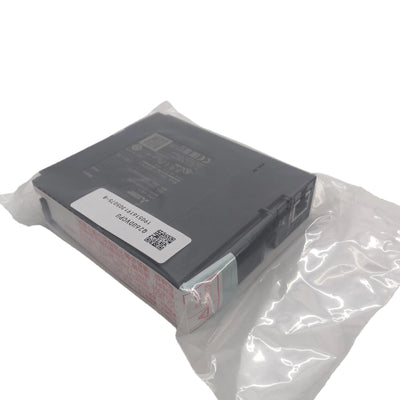

Q26UDVCPU Brand New Q26UDVCPU Mitsubishi CPU Unit PLC Central Processing Unit
