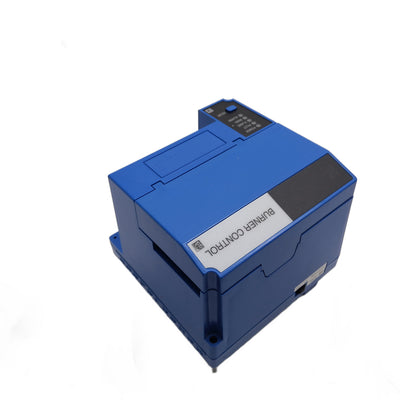

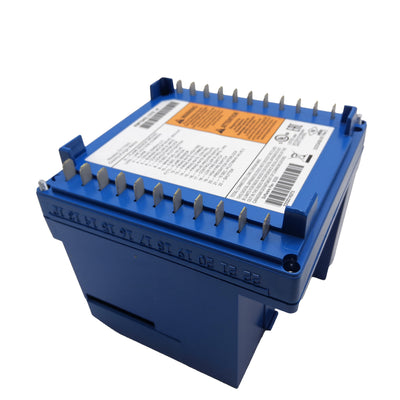

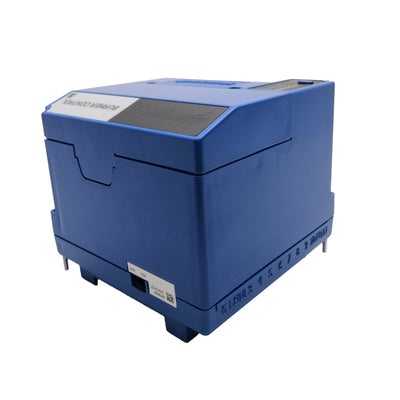

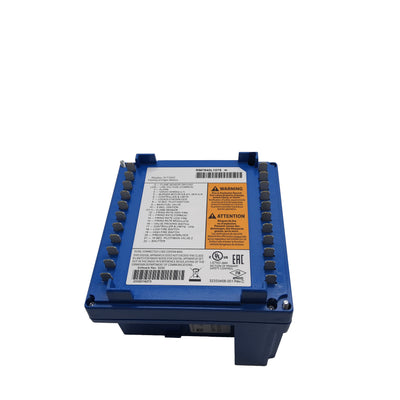

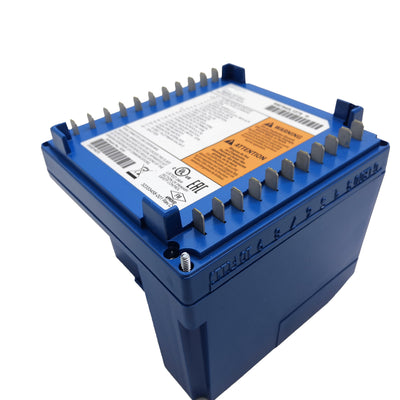

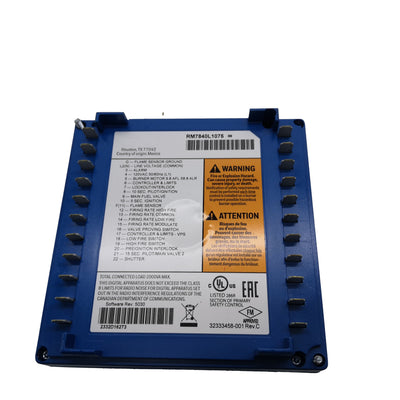

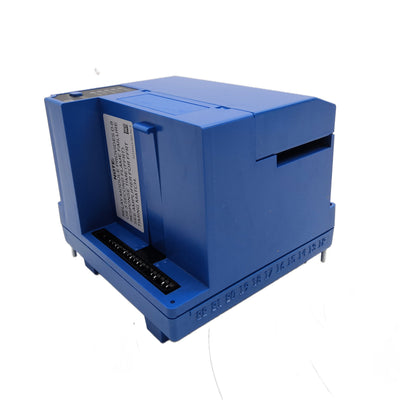

Honeywell RM7840L1075 — 7800 Series Integrated Burner Control with Valve Proving System | 120V AC | New Genuine

There's a reason the Honeywell 7800 Series has been the workhorse of industrial combustion control for decades: the platform balances genuine safety capability with practical serviceability in a way that later, more complex systems rarely match. The RM7840L1075 is the enhanced variant of the RM7840 with factory-configured Valve Proving System (VPS) — the specific model required when regulations or insurance requirements mandate automated gas valve leak detection before each burner firing sequence.

One important note upfront: this control does not include the S7800A1142 Keyboard Display Module, and that display is not optional for this model — it is required to program the VPS timing and post-purge settings. If you don't already have the S7800A1142 in the panel, it needs to be ordered separately.

✅ Genuine Honeywell. New original, boxed. Country of origin: Mexico.

What the "L1075" Suffix Tells You — Understanding the Catalog Number

The RM7840 family covers several variants, and picking the wrong one is an easy mistake when you're sourcing a replacement under pressure.

RM — Relay Module. The fundamental building block of the 7800 Series system, containing the microprocessor logic, safety relays, and flame amplifier socket.

7840 — The RM7840 subgroup within the 7800 family. The RM7840 incorporates pre-purge sequencing (controlled by the ST7800A purge timer card), distinguishing it from the RM7800, which doesn't include pre-purge timing capability. For applications where NFPA 85/86 or IRI/FM requirements mandate a timed pre-purge cycle, the RM7840 is the correct choice.

L — Valve Proving System capability. Within RM7840, the "L" suffix indicates the model is designed for applications using a Valve Proving System, with the necessary logic for testing gas valve seat integrity before and/or after each firing sequence. The "G" variant (RM7840G) does not have VPS capability.

1075 — Specific configuration within the L variant. The 1075 configuration provides: LHL-LF and HF proven interlock (both low-high fire switch and high fire switch proven), 4-second or 10-second Pilot Flame Establishing Period (PFEP), 10-second or 15-second Main Flame Establishing Period (MFEP), 5-second Early Spark Termination, selectable airflow check, and interrupted pilot sequence. The S7800A1142 display is required to program VPS timing and post-purge settings — this is not merely a monitoring accessory, but a functional requirement for commissioning this specific model.

Compare with the related RM7840L1091, which has a fixed 4-second MFEP — a different timing configuration suited to different applications. Always verify the suffix when sourcing a replacement.

Technical Specifications

Parameter	Specification
Model	RM7840L1075
Series	7800 Series Relay Module
Application	Programming Control with VPS (Valve Proving System)
Supply Voltage	120V AC (+10/-15%)
Frequency	50/60 Hz (±10%)
Power Dissipation	10W maximum
Maximum Connected Load	2,000 VA
Fusing	15A maximum, Type SC or equivalent Fast Blow
PFEP (Pilot Flame Establishing Period)	4 seconds or 10 seconds (selectable)
MFEP (Main Flame Establishing Period)	10 seconds or 15 seconds
Early Spark Termination	5 seconds
Pre-Purge	Determined by ST7800A Purge Timer Card
Post-Purge	Programmed via S7800A1142 display
Interlocks	LHL-LF and HF Proven
Airflow Check	Selectable
Pilot Type	Interrupted pilot
Operating Temperature	-40°F to +140°F (-40°C to +60°C)
Storage Temperature	-40°F to +150°F (-40°C to +66°C)
Humidity	85% RH continuous, noncondensing
Vibration	0.5G environment
Dimensions	127mm W × 127mm H × 133mm D (with Q7800A subbase)
Weight	1 lb 10 oz
Display Module Required	S7800A1142 (not included)
Compatible Subbase	Q7800A or Q7800B
Certifications	UL Listed (File MP268, MCCZ), CSA (LR9S329-3), FM Approved
Origin	Mexico
Condition	New Original / Genuine

Valve Proving System — What It Does and Why It Matters

The VPS capability in the RM7840L1075 is what sets it apart from the simpler RM7840G. Rather than just assuming the gas supply valves are closed and gas-tight before firing, the VPS conducts an active test of valve seat integrity during each cycle.

Here's how the test sequence works: the system uses two shutoff valves in series (MV1 and MV2 in Honeywell's terminology). By briefly closing and opening the valves in a specific sequence and monitoring the pressure in the cavity between them, the controller can detect a leaking valve seat — one that allows gas to slowly pass through even when commanded closed. The pressure test logic is straightforward: if MV1 is leaking, gas pressure builds in the inter-valve space (low pressure test). If MV2 is leaking, gas escapes from the same space (high pressure test). Either condition triggers lockout before the ignition sequence begins.

The RM7840L1075 offers four VPS timing options, programmed through the S7800A1142 display: Never (device default — VPS doesn't run), Before (VPS concurrent with pre-purge), After (VPS concurrent with post-purge), and Split (the high-pressure downstream seat test runs Before, the low-pressure upstream seat test runs After). For most industrial boiler and process burner applications with regulatory requirements, the "Before" configuration is the most common — it validates both valve seats before every firing cycle without adding delay beyond the pre-purge period.

Maximum valve opening time for the test is 13 seconds. This is a hard limit from the installation instructions and matters when sizing the bypass valve used in the test circuit.

System Components — What You Need for a Complete Installation

The RM7840L1075 relay module is one component in a complete 7800 Series combustion control system. A functional installation requires:

Required:

Q7800A or Q7800B Wiring Subbase — The relay module plugs into the subbase; all field wiring connects to the subbase terminals. The Q7800A mounts the control with a 5¼" depth profile; the Q7800B is deeper at 6 3/32". Both subbases have identical terminal assignments.
S7800A1142 Keyboard Display Module — Mandatory for the RM7840L1075. Required to configure VPS timing (Before/After/Both/Split/Never), set post-purge duration, and access the nonvolatile history and diagnostic files. Without it, the VPS cannot be programmed, and some models may not run at all.
ST7800A Purge Timer Card — Plugs into the relay module and sets the pre-purge duration. The RM7840 requires a purge card to be installed; without it, the control will lockout.
Flame Amplifier — A plug-in amplifier matched to the flame detector type in use (UV, IR, or rectification). The amplifier slides into the relay module. The RM7840L1075 accepts all standard 7800 Series interchangeable plug-in amplifiers.

Optional:

S7820A1007 Remote Reset Module
S7810A1009 Data ControlBus Module (for SCADA integration)
ZM7850A1001 Combustion System Manager

Five-LED Status Display — Reading the Burner State at a Glance

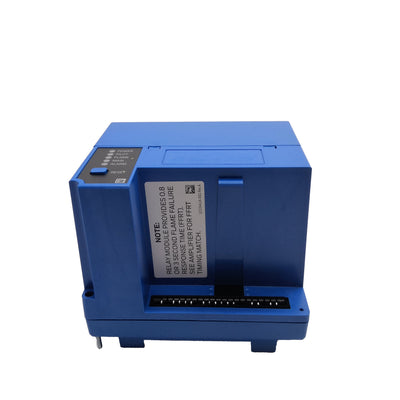

One of the most practical features in daily operation is the five-LED sequence display on the relay module face. Each LED has a symbol and a dedicated meaning:

PWR (Power) — Solid green during normal operation. During a lockout condition, this LED blinks a fault code — the "Blinkum" diagnostic system. Counting the blink pattern identifies the specific fault without needing a display module connected, which is invaluable during field troubleshooting.

PILOT — Illuminates during the pilot flame establishing period.

FLAME — Confirms flame presence; stays illuminated during main burner operation.

MAIN — Indicates main fuel valve energization.

ALARM — Indicates lockout or alarm condition.

The five-function Run/Test switch allows technicians to step through the burner sequence manually during commissioning and checkout — a feature that significantly reduces startup time compared to live-firing the burner through complete cycles for each adjustment.

Applications

The RM7840L1075 is specified for single-burner, automatically fired applications using gas, oil, coal, or combination fuels. It's not a multi-burner management system — the 7800 Series is fundamentally one-control, one-burner.

In practice, you'll find this control on industrial and commercial boilers where insurance carriers or local codes (particularly under FM Global or IRI requirements) mandate valve proving. Process heating equipment with specific pre-purge requirements from NFPA 86 (Standard for Ovens and Furnaces) is another common application. In boiler rooms subject to annual NFPA 85 (Boiler and Combustion Systems Hazards Code) compliance reviews, the VPS feature often becomes a requirement at certain input ratings.

The Honeywell 7800 Series communicates over the ControlBus interface when the S7810A Data ControlBus Module is installed, enabling integration with building automation systems (BAS) or remote monitoring — relevant for larger facilities managing multiple boiler plants from a central point.

❓ FAQ — Honeywell RM7840L1075

Q1: Does the S7800A1142 Keyboard Display come included with the RM7840L1075?

This is the most common source of confusion with this model, so it's worth being direct: no, it does not come included in most standard listings — and for the RM7840L1075 specifically, the display is not optional. The S7800A1142 is required to program the VPS timing configuration and post-purge settings. Without it, you cannot set the valve proving sequence (Before/After/Split/Never), and you cannot change the post-purge duration from the default. The Stromquist catalog data for this specific model explicitly notes "Display Included: No" and "Requires S7800A1142." If you don't have this display module in your existing panel, plan to order it as a companion item. Some vendors bundle the display with the control — verify before purchasing.

Q2: What is the difference between RM7840L1075 and RM7840G1022?

Both are RM7840 relay modules, but they serve different application requirements. The RM7840G1022 is the non-VPS variant — it sequences the burner through its normal pre-purge, pilot, and main flame cycles, but does not include Valve Proving System logic. It's the right choice when VPS is not required. The RM7840L1075 (this unit) is the VPS-capable variant, adding the ability to test gas valve seat integrity before and/or after each firing cycle. The "L" in the catalog number is Honeywell's designator for VPS capability in this family. The 1075 variant specifically includes LHL-LF and HF proven interlocks and selectable 4/10-second PFEP, while the G1022 has a different timing configuration. If your application requires FM or IRI compliance with valve proving, the L1075 is the required model.

Q3: What subbase does the RM7840L1075 mount on, and does the subbase come with it?

The relay module requires either a Q7800A or Q7800B wiring subbase — these are the connection bases where all field wiring terminates. The relay module itself plugs directly into the subbase. The subbase is not included with the relay module and must be ordered separately if not already present in the panel. The Q7800A gives a mounted depth of 5¼" while the Q7800B is 6 3/32" deep; terminal arrangements are identical. If you're replacing an existing RM7840L1075 in an already-wired panel, the existing subbase stays in place — only the relay module plugs out and back in, which is one of the practical advantages of the 7800 Series modular design.

Q4: What flame detectors and amplifiers work with the RM7840L1075?

The relay module uses interchangeable plug-in flame amplifiers matched to the detector type. Compatible amplifier types for the 7800 Series include UV (ultraviolet) amplifiers for gas and light oil flames, rectification amplifiers for gas flames detected by a flame rod, and IR (infrared) types for heavier oil and some industrial applications. The specific amplifier model selected must match the flame detector installed. Honeywell's 7800 Series accepts amplifiers including the R7847, R7849, R7861, R7886, and others — the correct choice depends on the detector type and application. The relay module is compatible with existing Honeywell flame detectors from earlier 7800 Series installations, which makes it a practical direct replacement without requiring detector changes. Verify amplifier compatibility against Honeywell's selection guide (publication 65-0055 or equivalent) for your specific detector model.

Q5: How does the Valve Proving System sequence actually work in practice?

When VPS is configured for "Before" operation (the most common setting), the test runs concurrently with the pre-purge period, adding no net time to the startup sequence. Here's what happens: MV1 (the upstream valve, wired to terminal 9) and MV2 (the downstream valve closest to the burner, wired to terminal 21) are briefly cycled in a specific pattern while a pressure switch monitors the inter-valve space. If MV1 is leaking, gas pressure builds in the cavity and the low-pressure test fails — lockout. If MV2 is leaking, pressure drops where it shouldn't, and the high-pressure test fails — also lockout. Either failure prevents the ignition sequence from starting. The maximum valve opening time during the test is 13 seconds, per the installation instructions. The bypass valve in the test circuit must be sized and wired carefully to obtain correct test pressures — refer to the wiring diagrams in Honeywell publication 66-1162-05 for the specific terminal assignments and valve wiring sequence.

Q6: What does the "Blinkum" fault code mean, and how do I read it?

"Blinkum" is Honeywell's colloquial name for the blink-code diagnostic on the PWR LED. When the control goes to lockout, instead of just showing a steady alarm LED, the Power LED blinks a coded pattern that identifies the specific fault — similar in concept to OBD fault codes in automotive diagnostics. You count the number of blinks in a repeating group to identify the fault category. Common blink patterns indicate conditions like: no pilot flame established during PFEP, no main flame established during MFEP, airflow interlock failure, VPS test failure, purge card missing or faulty, and others. A complete blink code reference is in the S7800A Keyboard Display Module product data (publication 65-0090). For field troubleshooting without the display connected, the Blinkum code often narrows the fault down to a single probable cause before any wiring or sensor checking begins — a practical time-saver during service calls.

Q7: Is the RM7840L1075 a direct replacement for the older 7800 Series controls like RM7800L?

The RM7840L1075 uses the same Q7800 subbase as the RM7800 series, which makes physical subbase replacement unnecessary when modernizing. However, the wiring configuration is not always a direct one-for-one swap — the RM7840L (with VPS) has a different terminal arrangement and sequence than a basic RM7800L without VPS. Honeywell publishes conversion wiring diagrams (publication 65-0100) specifically for modernizing older controls to the 7800 Series, covering common scenarios from earlier Honeywell controls and those from North American and other manufacturers. The key practical point: use the existing subbase if it's a Q7800, verify the wiring matches the L1075 terminal configuration (not the G variant configuration), and ensure the ST7800A purge card and S7800A1142 display are installed and configured before commissioning. Don't assume a G-variant wiring diagram applies to the L1075 installation.
