SK-R1-PC1-F8 — 755 Series Frame 8 Inverter Power Control Board Kit

The SK-R1-PC1-F8 is a replacement power control board kit for the 755 series AC drive in Frame 8 configuration. The power control board is the primary interface between the drive's main control electronics and the IGBT power modules — it carries the gate drive circuits that switch the output transistors, along with the current sensing and fault protection circuitry that monitors the output stage in real time. When this board fails, the drive typically produces DC bus or output transistor fault codes and cannot run the motor.

Frame 8 drives represent substantial capital equipment in any facility. The cost of replacing a Frame 8 drive outright is significant; replacing the failed PCB through a spare parts kit is the standard approach for extending drive service life when the failure is isolated to the power control board rather than the IGBT modules themselves. The SK-R1-PC1-F8 provides the complete board assembly — not just the bare PCB — as a direct replacement unit.

Specifications

Parameter	Value
Part Number	SK-R1-PC1-F8
Compatible Drive Series	755 Series (including 755 HIHP variants)
Compatible Frame Size	Frame 8 (also covers Frame 9 and 10 on some variants)
Board Function	Inverter power control — gate drive, current sensing, fault protection

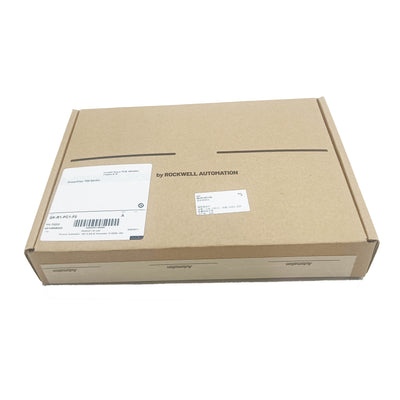

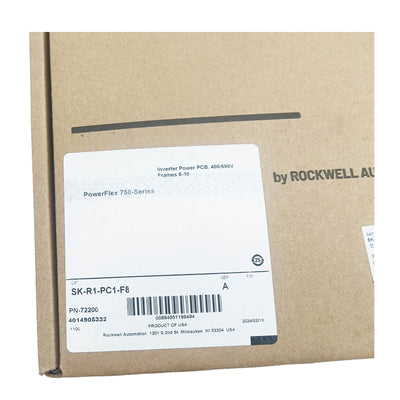

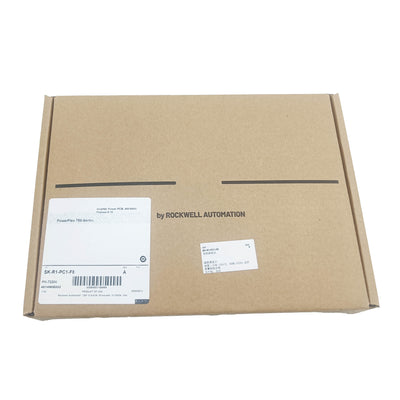

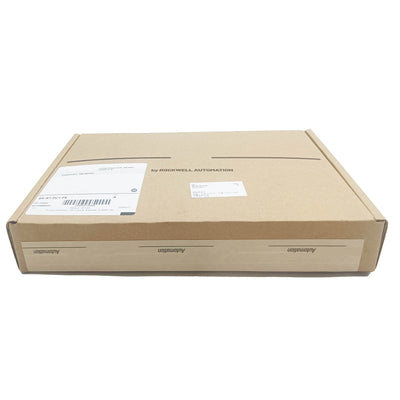

Kit Contents	Replacement power control PCB assembly with hardware
Installation Type	Field replaceable (drive chassis stays in place)
Application	Spare parts maintenance / field repair

Replacement Procedure Overview

Replacing the power control board in a Frame 8 drive is a technical procedure that requires proper training and hazardous energy awareness. Frame 8 drives contain lethal voltages at multiple points, and the DC bus capacitors store significant energy that remains present for several minutes after AC power is removed.

Full discharge verification: remove AC input power and wait the full discharge time specified in the drive's service manual (typically 5–10 minutes for Frame 8). Verify DC bus voltage with a calibrated meter — do not proceed until bus voltage is below 50V DC.
Document before disassembly: photograph the board and all connector positions before removing any connectors. Power control boards in Frame 8 drives have multiple connectors of similar appearance; incorrect reconnection causes drive failure on startup.
ESD precautions: the gate drive components on this board are sensitive to electrostatic discharge. Use a grounded wrist strap and handle the board by its edges throughout the replacement process.
Connector-by-connector transfer: disconnect each connector from the old board, connect it to the same position on the replacement board before moving to the next. This incremental approach prevents missing a connector in the reconnection sequence.
Post-installation verification: before applying power, visually verify all connectors are fully seated and no wiring is pinched by the board. Apply power and check for startup faults before commanding the drive to run.

Frame 8 drives contain capacitors that store dangerous energy. Never work inside the drive without verifying DC bus voltage has discharged to a safe level with a calibrated meter. Visual inspection alone is not sufficient — the bus capacitors can retain charge for longer than expected if the discharge circuit has also failed.

Before Ordering — Confirming the Right Kit

The SK-R1-PC1-F8 is specific to Frame 8 (and some Frame 9/10) 755 series drives. Before ordering, confirm:

The drive's catalog number includes "Frame 8" — check the nameplate or the drive's online product selection documentation for frame size.
The failure is isolated to the power control board. If the IGBT modules themselves have failed (visible burn marks, failed diode tests, output phase open), the power control board replacement alone will not restore the drive. Both the IGBTs and the board may need replacement after a severe output fault.
The drive's firmware version is compatible with the replacement board. In some cases, board replacements require firmware reflash after installation — confirm with the drive manufacturer's service documentation.

FAQ

Q: Can this board be used in a 750 series (non-755) Frame 8 drive?

The 750 series includes both the 753 and 755 product families. Compatibility depends on the specific drive model and its production date. Verify the compatible drive catalog numbers listed in the SK-R1-PC1-F8 installation documentation before installing in a 753 series unit — the board assembly may differ between families.

Q: Does the replacement board come pre-configured, or does it need to be set up?

The power control board kit is a hardware replacement — the drive's parameter settings remain in the main control board, which is not being replaced. After installing the SK-R1-PC1-F8, the drive should retain its previous parameter configuration. However, verify critical parameters before returning to production — any drive that has been through a significant hardware fault should have its motor nameplate data and protection settings confirmed.

Q: How can I confirm the power control board is the failed component and not the IGBTs?

Basic IGBT module testing with a multimeter (diode check between gate, collector, and emitter terminals) can identify a clearly failed IGBT with a short circuit or open circuit. If all IGBT modules pass basic diode testing but the drive still faults on gate drive or desaturation codes, the power control board is the likely cause. When in doubt, consulting the drive manufacturer's service documentation or a qualified drive service technician before ordering parts avoids replacing the wrong component.

Q: Is this a repair typically done in the field or should the drive go to a service center?

Field replacement is possible for maintenance teams trained in hazardous energy control and drive servicing. Frame 8 is one of the larger drive frames and the replacement is more involved than smaller units, but it doesn't require a service center if the maintenance team has the proper training, tools, and the drive's service documentation. For facilities without trained drive service personnel, a qualified service center reduces risk.

Q: What fault codes on the drive typically indicate a power control board failure?

Common fault codes associated with power control board issues include output transistor desaturation faults, hardware overcurrent (different from software overcurrent), gate drive fault codes, and in some cases DC bus faults that persist even after the bus has discharged and recharged correctly. These codes overlap with IGBT module failures, which is why physical testing of the IGBT modules is an important step before concluding the power control board is the cause.
