SMC SS5Y5-45-08U-N7 Pneumatic Solenoid Valve Manifold | New Original OEM

Buy the SMC SS5Y5-45-08U-N7 — a genuine new original SMC SY5000 series 8-station pneumatic solenoid valve manifold. In stock and ready to ship worldwide for industrial automation, assembly line, and pneumatic control applications.

Product Overview

The SMC SS5Y5-45-08U-N7 (also referenced as SS5Y511S6ZE4508UN7) is a brand new, original SMC SY5000 series multi-station pneumatic manifold featuring 8 valve stations with NPT port connections. Designed for centralized pneumatic control in industrial automation systems, this manifold allows multiple SMC SY5000 series solenoid valves to be mounted on a single block, eliminating individual valve piping, reducing installation complexity, and improving system reliability.

Engineered to SMC OEM factory standards, the SS5Y5-45-08U-N7 delivers consistent airflow, minimal pressure drop, and long-term leak-free performance across all stations — making it the trusted choice for engineers, OEM machine builders, and system integrators worldwide.

Technical Specifications

Specification	Details
Part Number	SS5Y5-45-08U-N7
Cross Reference	SS5Y511S6ZE4508UN7
Brand	SMC
Series	SY5000
Manifold Type	Pneumatic Solenoid Valve Manifold
Number of Valve Stations	8
Port Type	NPT (N7 suffix)
Compatible Valve Series	SMC SY5000 Series
Operating Pressure	0.15–0.7 MPa (22–101 psi)
Operating Temperature	0–60°C (32–140°F)
Manifold Material	Aluminum alloy
Sealing Material	NBR / EPDM
Mounting Options	DIN rail / Panel mount
Electrical Connection	D-sub connector (45 suffix)
Wiring Type	8U (8-station unit wiring)
Condition	Brand New, Original OEM
Stock Status	In Stock – Ready to Ship

Key Features & Advantages

8-Station Centralized Control — Houses up to 8 SMC SY5000 series solenoid valves on a single manifold block, replacing individual valve assemblies and dramatically reducing pneumatic piping complexity.
NPT Port Connection — N7 suffix specifies NPT port thread standard, widely used in North American and global industrial applications for reliable, leak-free pneumatic connections.
D-Sub Electrical Connector — The 45 wiring option provides a compact, multi-pin D-sub connector for clean, organized electrical wiring to all solenoid valves in a single connection point.
High Flow Efficiency — Optimized internal flow channels minimize pressure drop across all stations, ensuring consistent actuator response and pneumatic system performance.
Genuine SMC OEM Quality — Manufactured to SMC factory standards with aluminum alloy construction, precision-machined ports, and high-quality NBR/EPDM seals for long-term leak-free operation.
Compact Modular Design — Space-efficient layout reduces cabinet footprint and simplifies maintenance access compared to individually mounted valves.
Industrial-Grade Durability — Corrosion-resistant aluminum manifold body designed for 24/7 operation in demanding factory environments.

Typical Applications

Automated Assembly Lines Controls multiple pneumatic cylinders and actuators simultaneously from a single manifold, enabling fast, coordinated motion sequences in pick-and-place, press, and assembly stations.

Material Handling & Robotics Manages pneumatic grippers, clamps, and linear actuators in robotic work cells and automated material handling systems requiring precise, repeatable pneumatic control.

Packaging Machinery Provides centralized solenoid valve control for filling, sealing, labeling, and conveying operations in high-speed packaging lines where space and reliability are critical.

Automotive Manufacturing Controls pneumatic tooling, clamping fixtures, and transfer systems in body shop, paint, and assembly line automation requiring robust, high-cycle pneumatic performance.

Food & Beverage Processing Manages pneumatic actuators in hygienic filling, sorting, and conveying systems with reliable seal materials suited for clean industrial environments.

Semiconductor & Electronics Precision pneumatic control for handling, positioning, and testing equipment in cleanroom-compatible automation systems.

SMC SY5000 Manifold Part Number Decoder

Code	Meaning
SS5Y5	SY5000 series manifold
45	D-sub connector wiring (multi-pin)
08	8 valve stations
U	Unit wiring type
N7	NPT port connection

Understanding the part number helps confirm you are ordering the exact configuration required for your application. Contact us if you need a different station count, port type, or wiring option within the SY5000 manifold range.

Why Order From Us?

✅ Genuine New OEM Unit — Original SMC product, never refurbished or counterfeit
✅ In Stock — Ships within 1–3 business days
✅ Global Shipping — Worldwide delivery with full tracking
✅ Secure Packaging — Shock-resistant packaging for safe international transport
✅ 15+ Years Experience — Specialist supplier of SMC and industrial automation components
✅ Technical Support — Pre-sale compatibility and application assistance via WhatsApp and email

FAQ — SMC SS5Y5-45-08U-N7 Pneumatic Manifold

Q1: What is the SMC SS5Y5-45-08U-N7 used for? The SS5Y5-45-08U-N7 is an 8-station pneumatic solenoid valve manifold from SMC's SY5000 series. It provides a centralized mounting block for up to 8 SMC SY5000 series solenoid valves, allowing a single air supply inlet to feed multiple valve stations simultaneously. It is used wherever multiple pneumatic actuators need to be controlled from one central pneumatic assembly, reducing piping complexity and saving installation space.

Q2: What solenoid valves are compatible with the SS5Y5-45-08U-N7 manifold? The SS5Y5-45-08U-N7 is designed for use with SMC SY5000 series solenoid valves. This includes various 5/2-way and 5/3-way valve configurations within the SY5000 family. Always confirm the valve model code matches the manifold station footprint before ordering. Contact our team if you need assistance selecting compatible valves.

Q3: What does the "N7" in the part number mean? The "N7" suffix in SS5Y5-45-08U-N7 indicates NPT (National Pipe Thread) port connections. This is the thread standard widely used in North American industrial pneumatic systems and is also accepted globally. If your system uses a different thread standard (e.g., G-thread/BSPP or Rc), a different suffix variant would be required.

Q4: What does the "45" in the part number mean? The "45" refers to the D-sub multi-pin electrical connector wiring option. This provides a compact, organized multi-pin connector that connects the electrical signals for all 8 solenoid valves through a single D-sub plug, simplifying wiring and reducing the risk of connection errors compared to individual lead wire connections.

Q5: How many valve stations does the SS5Y5-45-08U-N7 have? The SS5Y5-45-08U-N7 has 8 valve stations (indicated by "08" in the part number). Each station accommodates one SMC SY5000 series solenoid valve, allowing independent pneumatic control of up to 8 actuators from a single manifold assembly.

Q6: What is the operating pressure range of this manifold? The SS5Y5-45-08U-N7 operates within a pressure range of 0.15–0.7 MPa (approximately 22–101 psi). This covers the typical operating pressures used in industrial pneumatic systems. Ensure your supply pressure falls within this range for safe and reliable operation.

Q7: Is this a genuine new manifold or a used/refurbished unit? This is a 100% brand new, original SMC OEM unit. We do not supply used, refurbished, or aftermarket substitutes. All units are quality-inspected and shipped in protective packaging to ensure safe arrival in perfect condition.

Q8: Is the SS5Y5-45-08U-N7 in stock and how fast can you ship? Yes, this manifold is currently in stock. We typically dispatch within 1–3 business days. Estimated delivery is 5–12 business days depending on your location. Contact us for express shipping options if your project requires urgent delivery.

Q9: What is the difference between SS5Y5-45-08U-N7 and other SY5000 manifold variants? The SY5000 manifold range is available in different station counts (4, 6, 8, 10, etc.), port thread types (NPT, G-thread, Rc), wiring options (D-sub, flat ribbon, individual leads), and valve mounting configurations. The SS5Y5-45-08U-N7 specifically offers 8 stations, D-sub wiring, and NPT ports. If you need a different configuration, contact our team and we can help identify the correct part number for your requirements.

Q10: Can I add or remove valve stations from the SS5Y5-45-08U-N7? The SS5Y5-45-08U-N7 is a fixed 8-station manifold. While the SY5000 series does offer expandable manifold configurations in some variants, this specific model is pre-configured for 8 stations. If you need a different station count, a different manifold part number should be selected. Contact us for assistance.

Q11: Do you provide technical support or installation guidance? Yes. Our team can assist with valve compatibility, port thread verification, wiring configuration, and installation questions. Contact us via WhatsApp (+86 186 2050 5228) or email at amy2013@topsdevice.com for pre-sale technical support.

Q12: What warranty and return policy applies? All products are covered under our standard warranty. Please visit our Refund Policy page for full details, or contact our support team for any post-purchase assistance.

📏 Installation & Mounting Diagram

Port Labeling: Each station marked as V1–V5 for easy tubing and solenoid connection.
Mounting: DIN rail clip or screw panel mount.
Flow Direction: Inlet on common port; each station supplies individual solenoid.

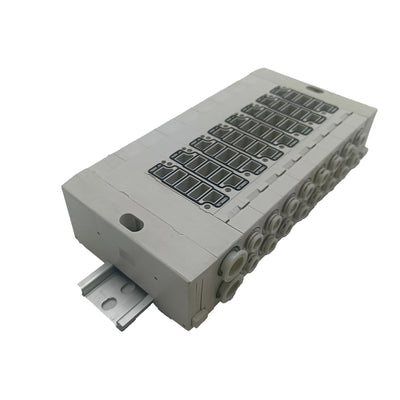

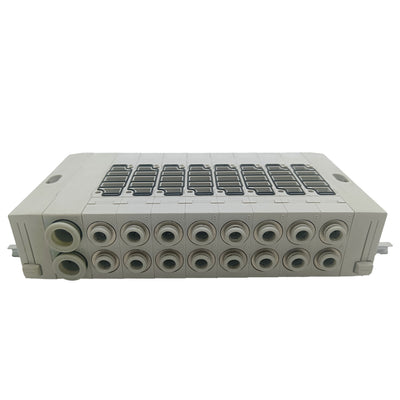

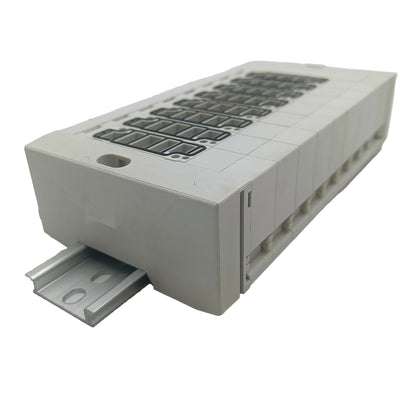

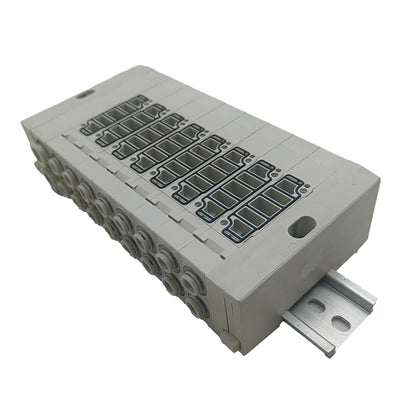

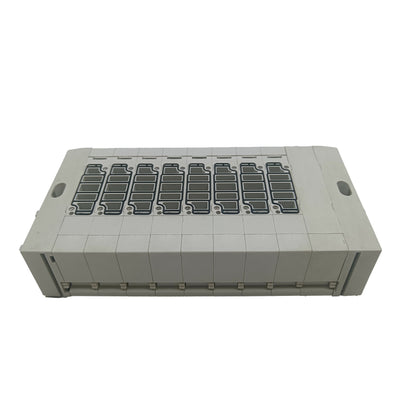

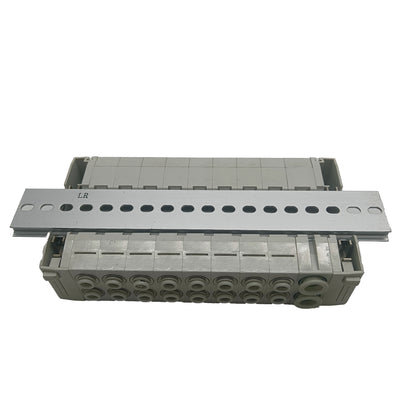

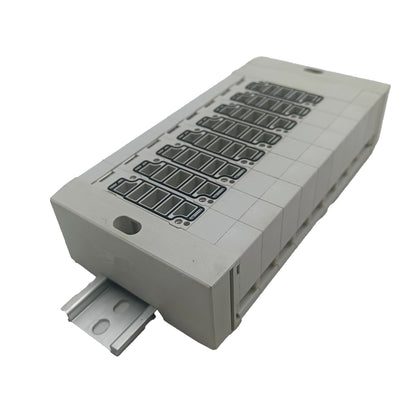

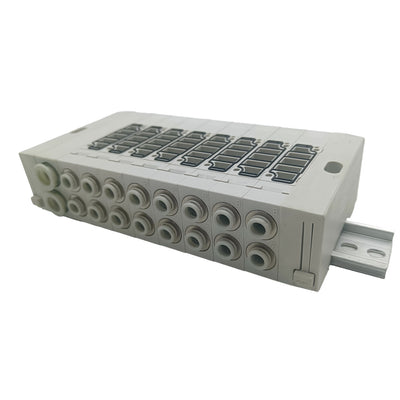

SS5Y5-45-08U-N7 New Original SS5Y511S6ZE4508UN7 SMC Manifold
