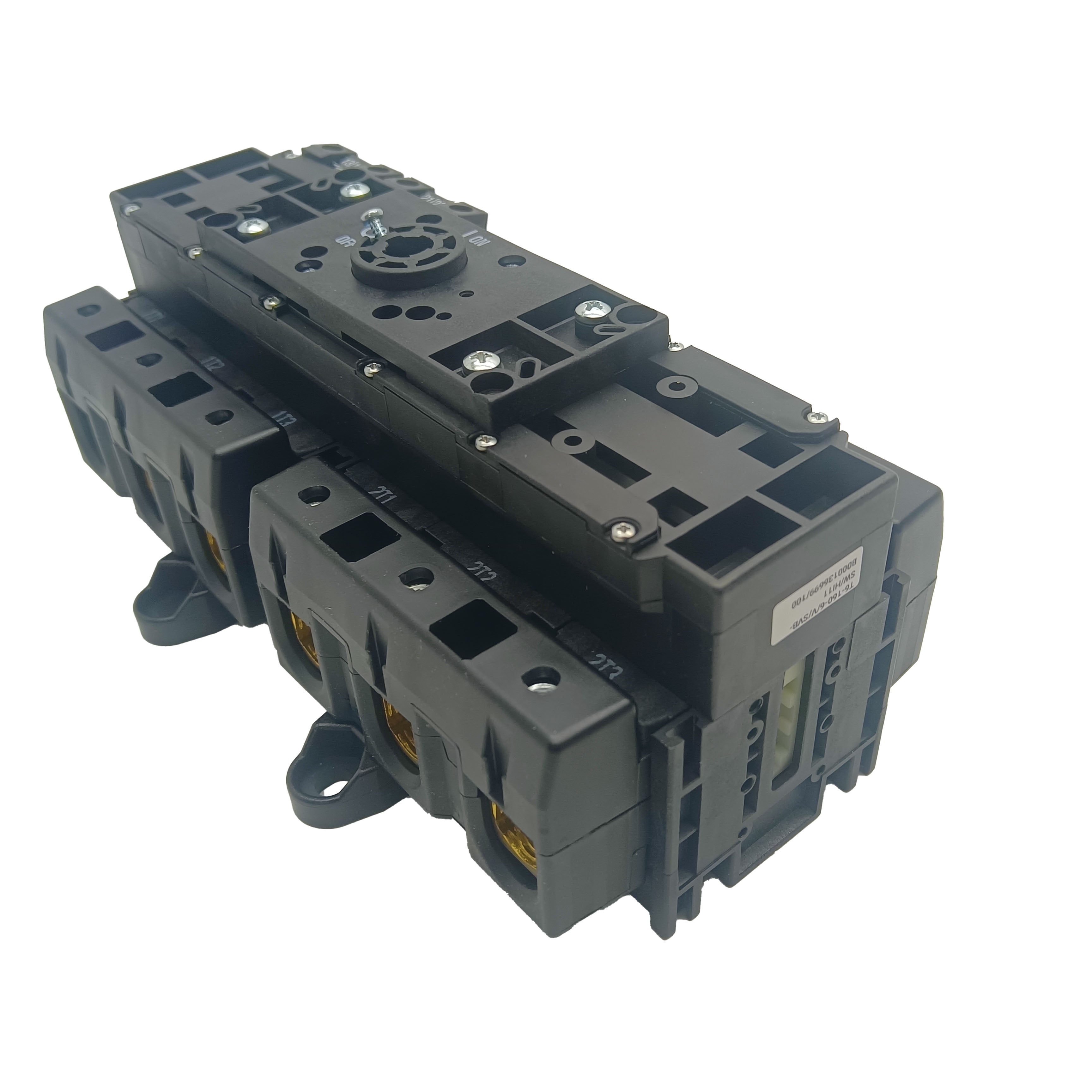

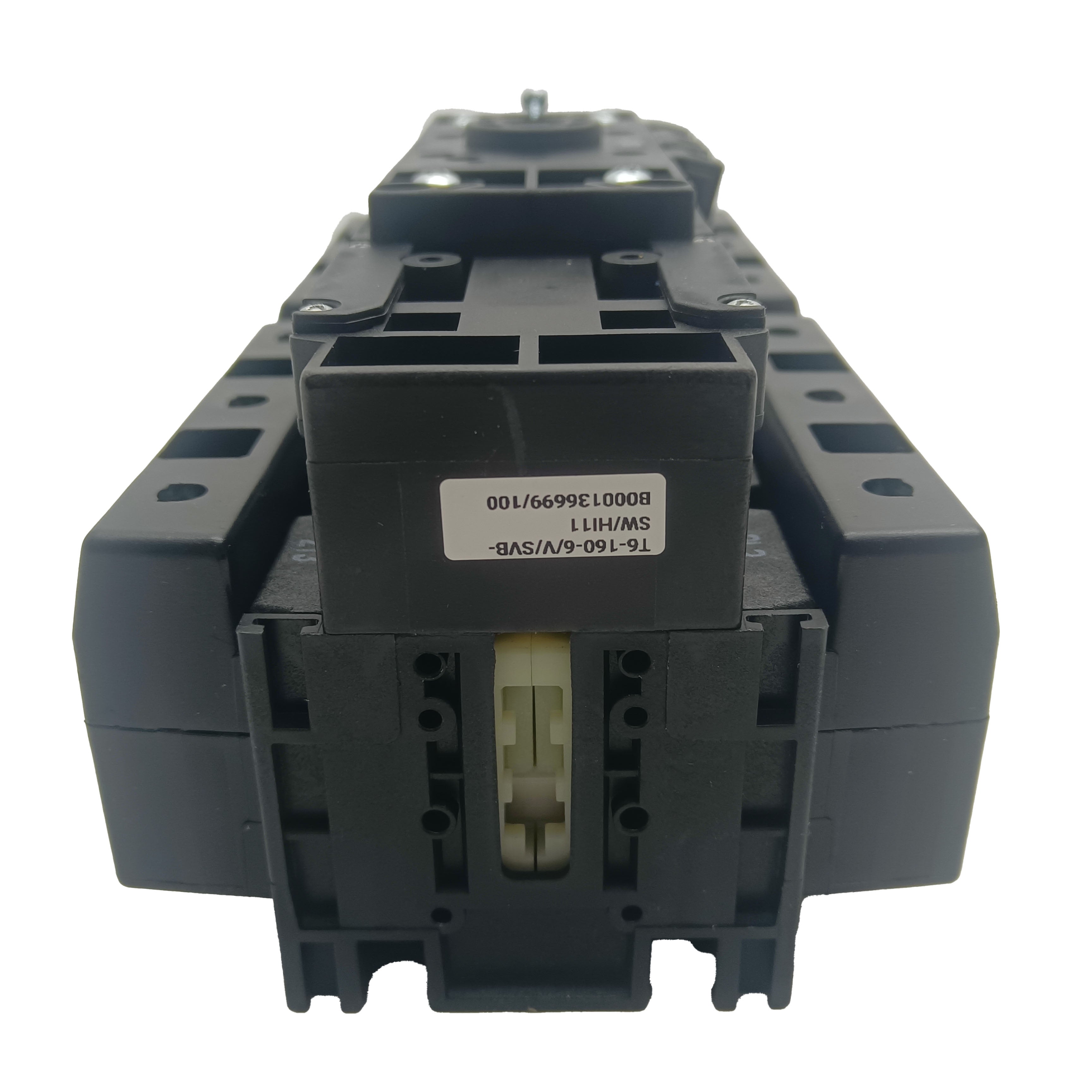

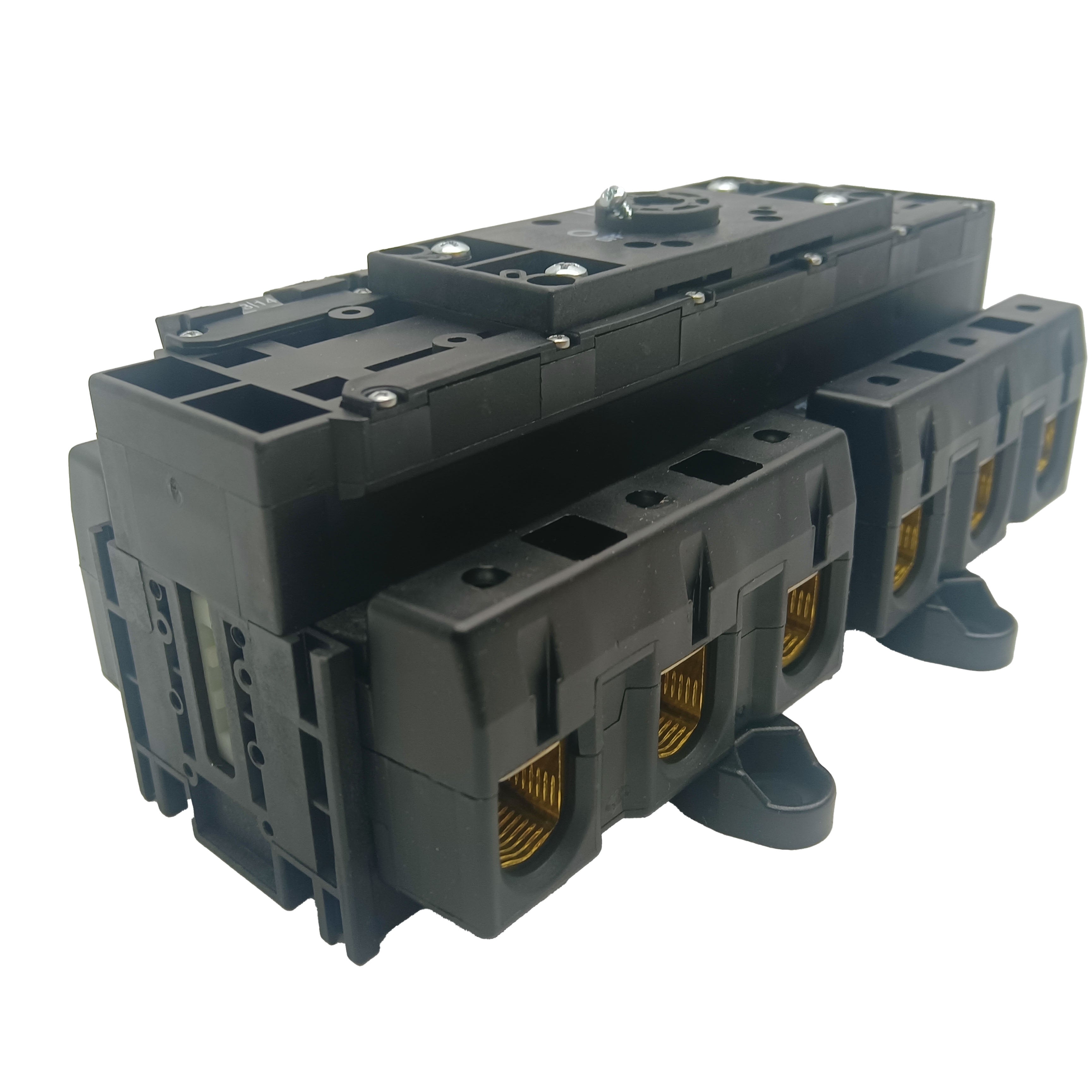

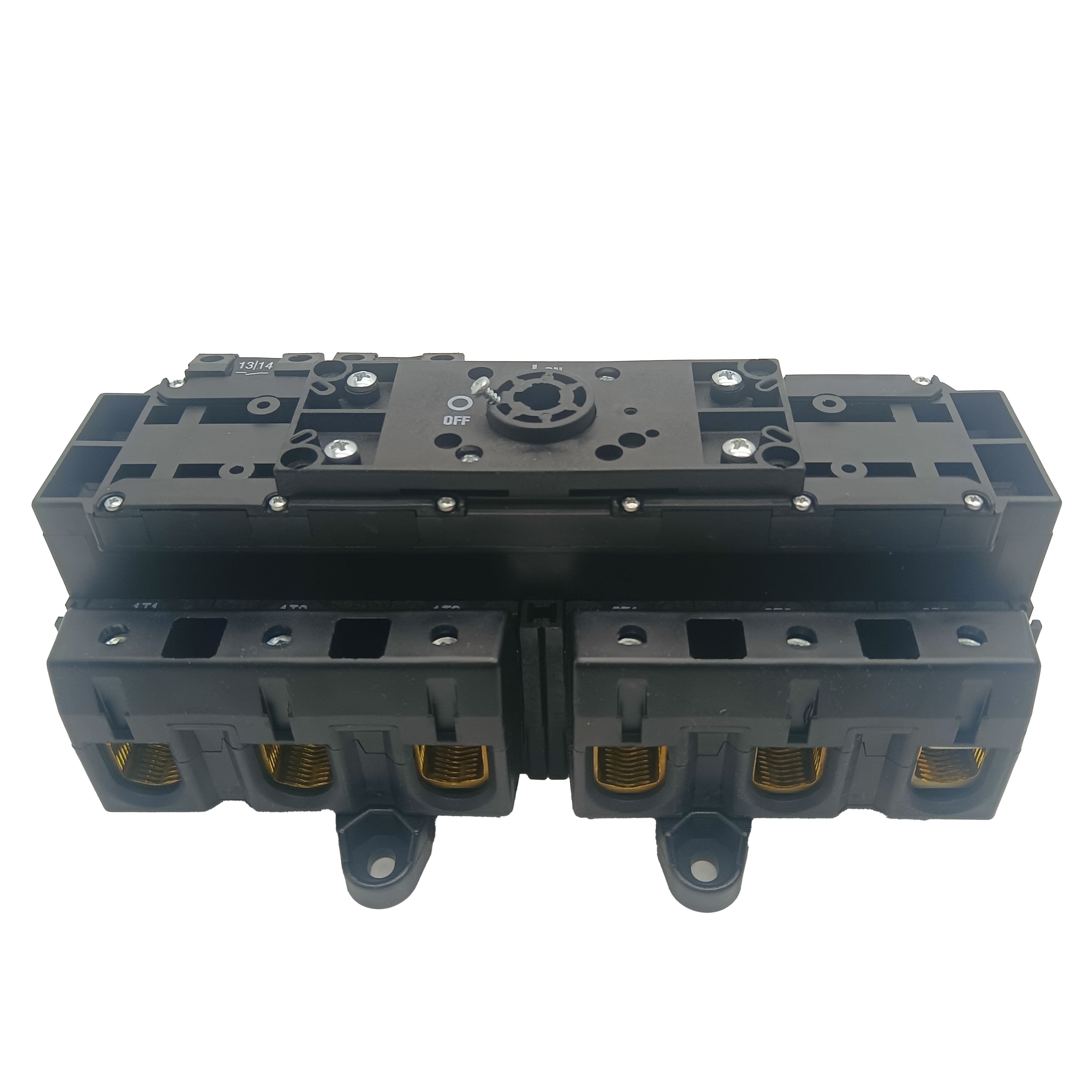

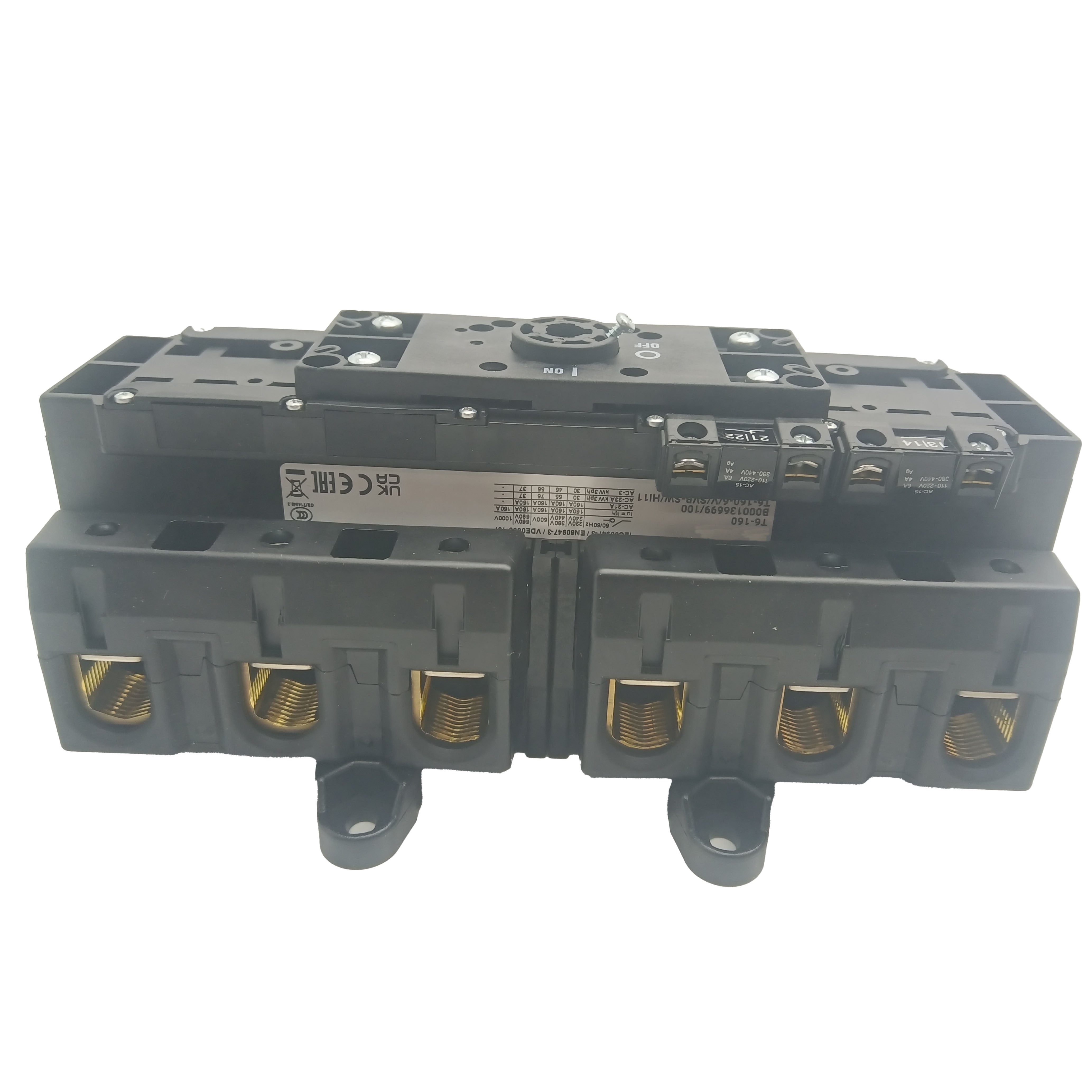

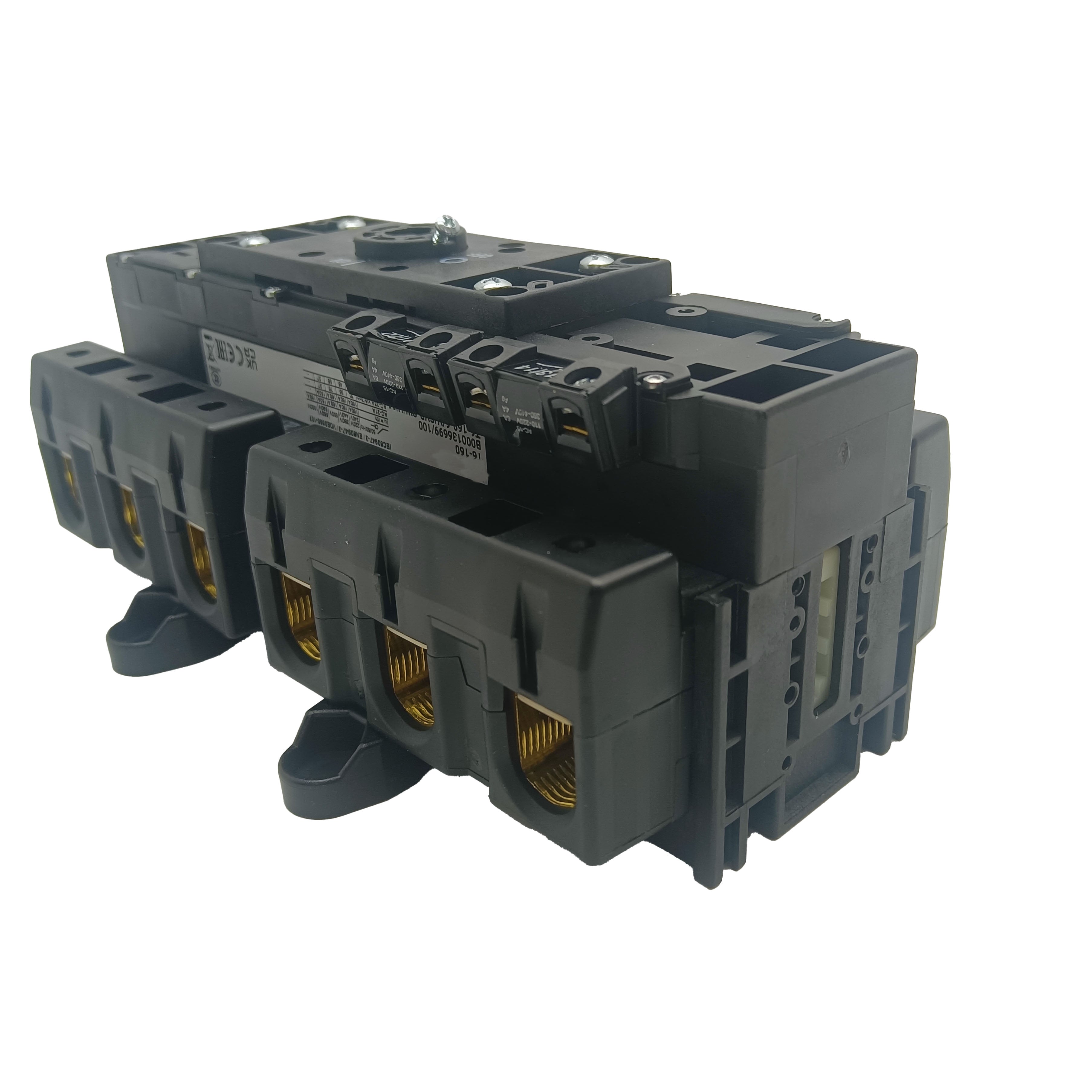

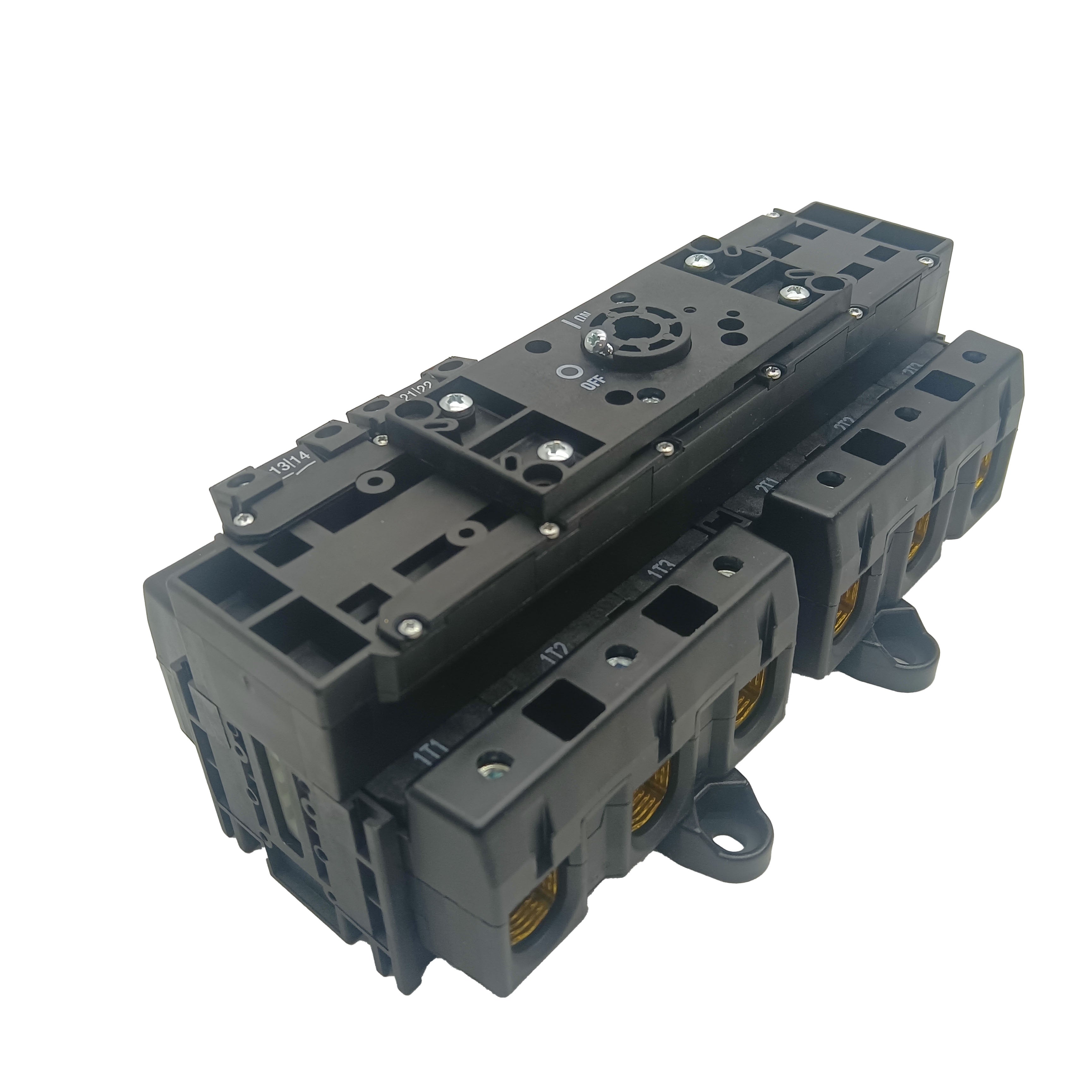

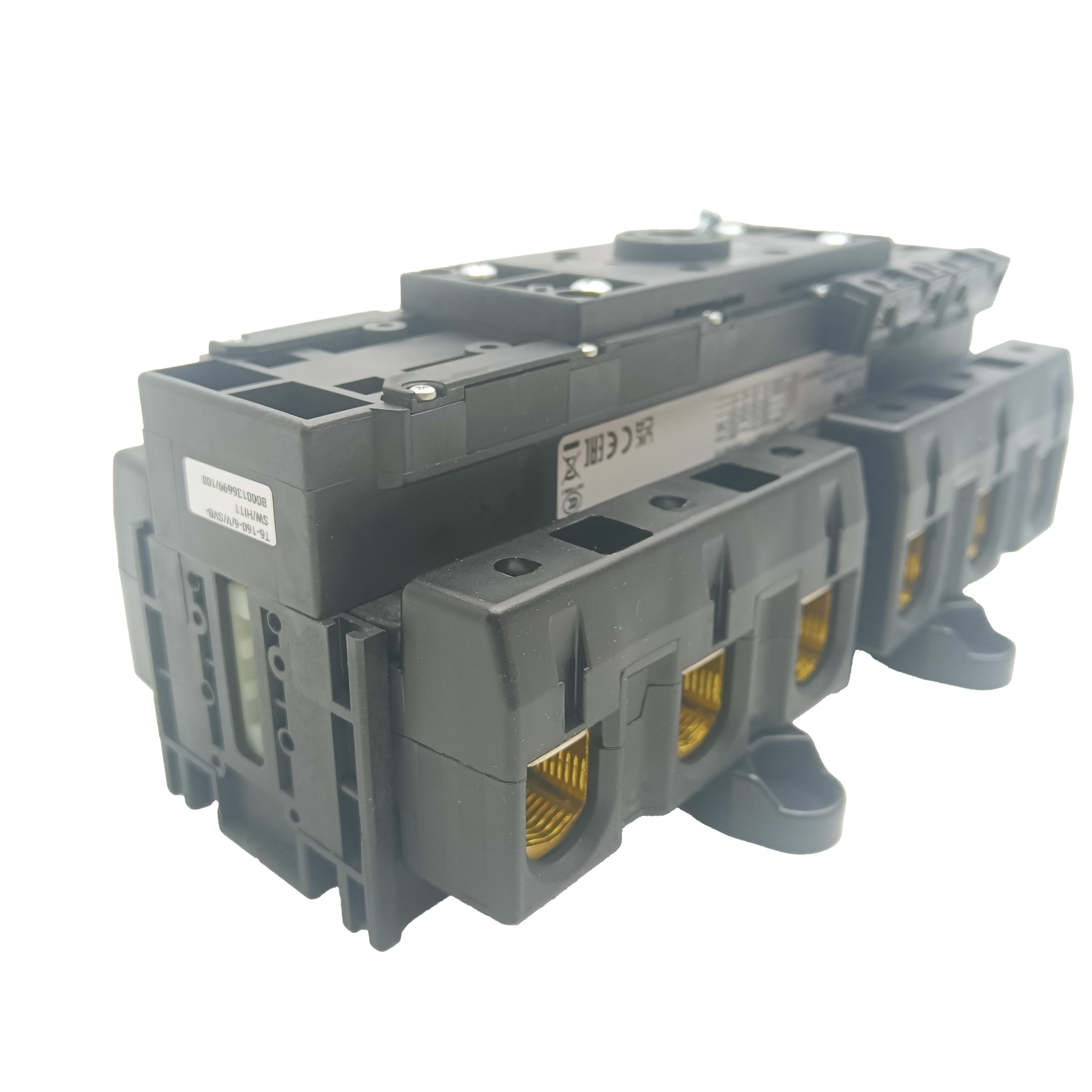

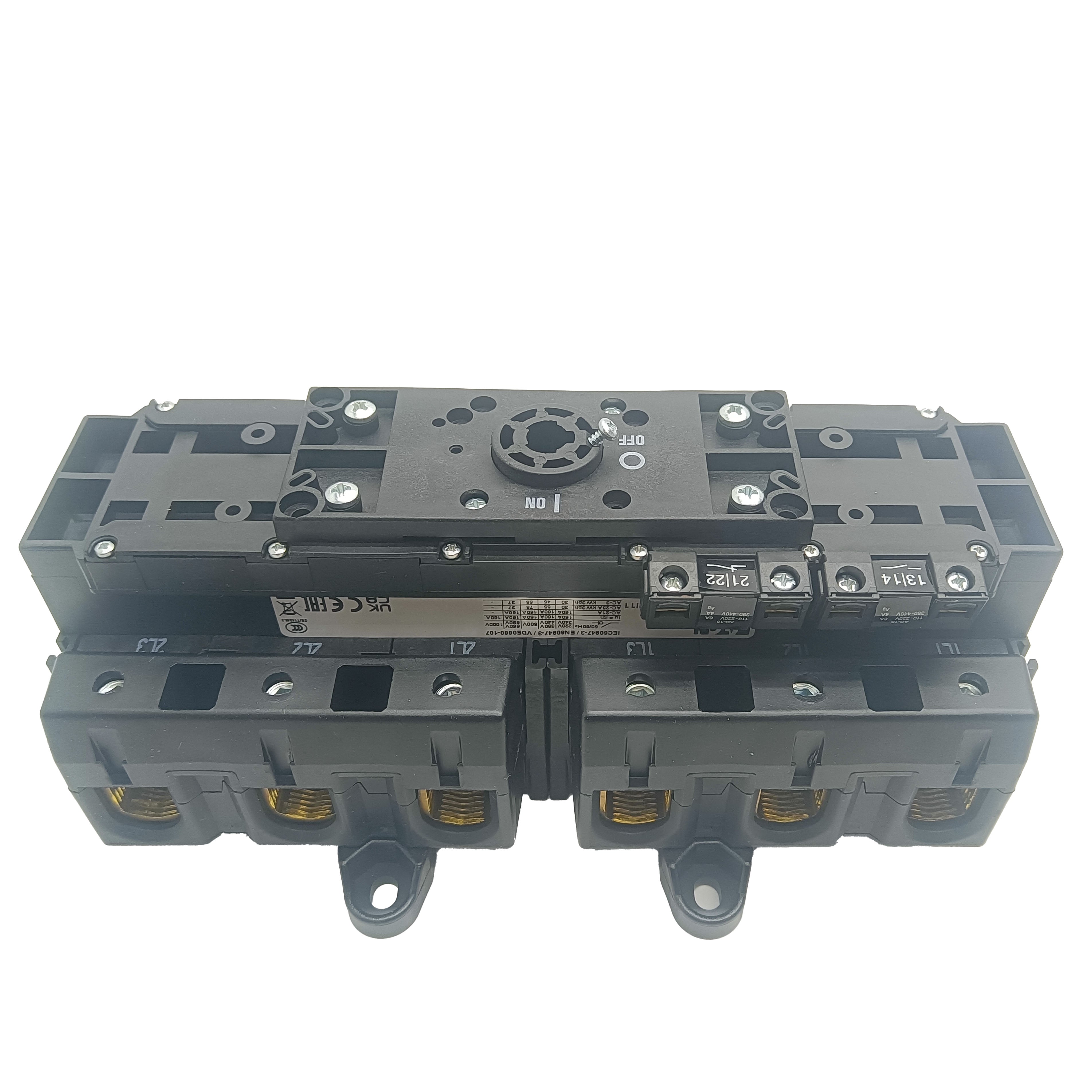

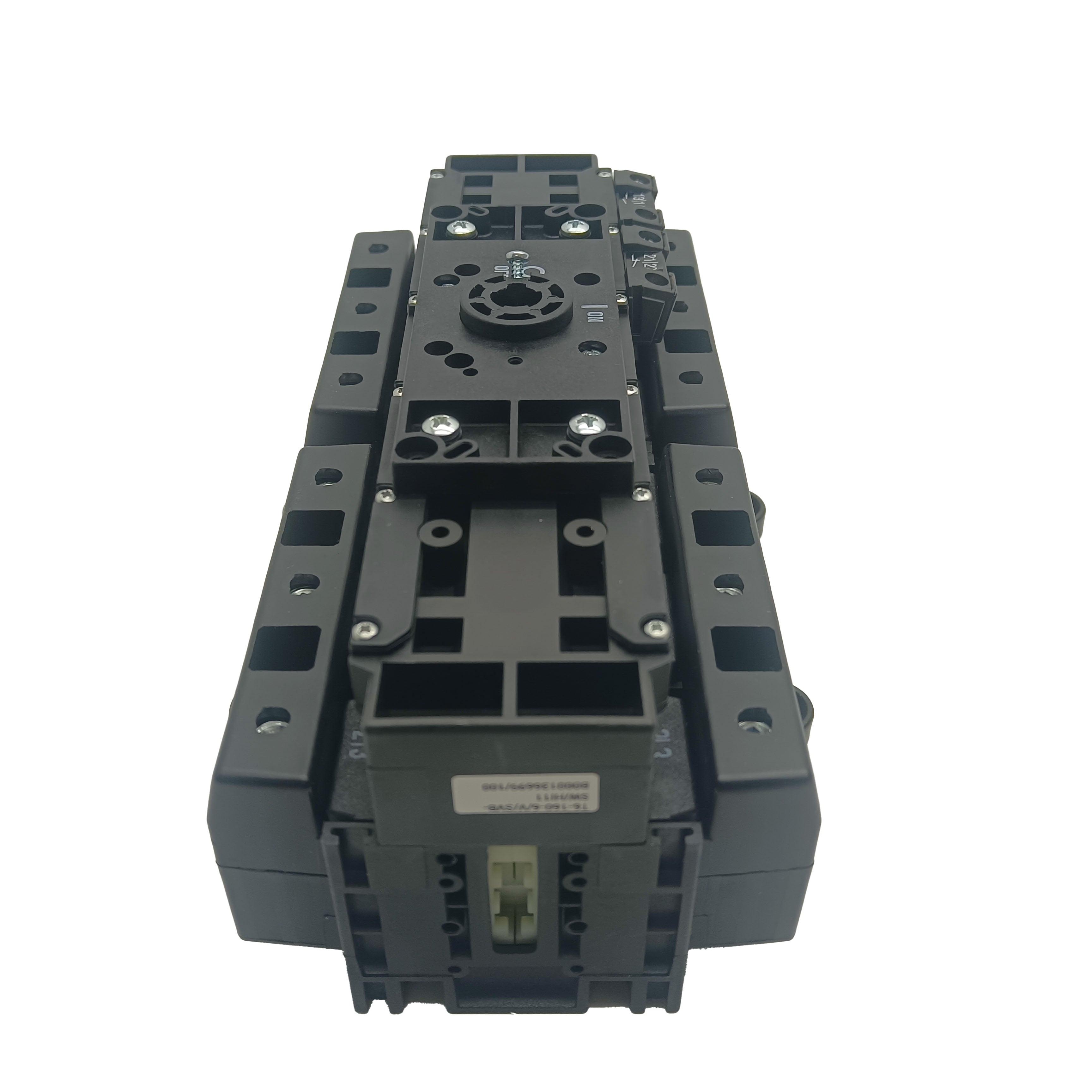

T6-160-6/V/SVB-SW/HI11 Eaton Moeller Main Switch W/Rotary Handle T246012 Genuine
PRODUCT DETAILS
Eaton Moeller T6-160-6/V/SVB-SW/HI11 | 160A Rotary Main Switch | Genuine OEM
Is Your Industrial Panel Running a Switch You Can Actually Trust?
When a main isolation switch fails in a live production environment, the consequences go beyond downtime — they become a safety issue. The Eaton Moeller T6-160-6/V/SVB-SW/HI11 is engineered precisely for this responsibility: a 160A, 690V AC, 3-pole rotary main switch built to isolate industrial circuits safely, reliably, and in full compliance with IEC 60947-3 and UL 508.
This is a genuine OEM unit — new, original, and in stock for immediate worldwide dispatch.
What This Switch Does — and Why It Matters
At its core, the T6-160-6/V/SVB-SW/HI11 is a manual rotary isolation switch for industrial control panels, motor control centers, and machine switchgear. Its job is straightforward: provide a clear, reliable, lockable ON/OFF break between incoming power and the equipment it protects.
What sets it apart from generic alternatives is the engineering behind that simplicity. The rotary handle provides an unmistakable mechanical position indication — operators and maintenance teams can confirm isolation status at a glance, without relying on indicator lights or digital feedback. The lockable handle adds a second layer of protection, allowing a padlock to secure the switch in the OFF position during service or maintenance, meeting LOTO (Lockout/Tagout) requirements on factory floors.
Technical Specifications
| Parameter | Specification |
|---|---|
| Part Number | T6-160-6/V/SVB-SW/HI11 |
| Reference Number | T246012 |
| Brand | Eaton Moeller |
| Switch Type | Main Isolation Switch with Rotary Handle |
| Rated Current | 160A |
| Rated Voltage | 690V AC |
| Number of Poles | 3 |
| Switching Function | ON / OFF (manual) |
| Handle Type | Rotary (lockable, padlock capable) |
| Mechanical Life | ≥ 10,000 switching cycles |
| Electrical Life | ≥ 5,000 switching cycles at rated load |
| Operating Temperature | -25°C to +60°C |
| Protection Class | IP20 / IP40 (panel installation dependent) |
| Standards Compliance | IEC 60947-3, UL 508 |
| Mounting | Panel / DIN rail compatible |
| Condition | Genuine Brand New OEM |
| Stock Status | In Stock – Ready to Ship |
Built for the Environments Where Failure Isn't an Option
The T6-160-6/V/SVB-SW/HI11 is designed for sustained performance in demanding industrial conditions. Its rugged housing resists mechanical impact, vibration, and dust ingress — the daily reality of manufacturing, chemical, energy, and automotive plant environments. With a mechanical life exceeding 10,000 cycles and an electrical life of 5,000 cycles at full rated load, this switch is built to outlast the equipment it protects.
Eaton Moeller's T6 series is one of the most specified main switch ranges in European and global industrial panel building precisely because of this combination of safety, durability, and IEC compliance. The genuine OEM product ensures all published ratings and certifications are valid — something that cannot be said for non-original alternatives.
Where This Switch Gets Installed
Industrial Control Panels & Switchgear — Main power isolation for motor control centers, distribution boards, and machine control enclosures requiring 160A break capacity.
Manufacturing & Automated Production Lines — Safe circuit isolation during maintenance, tooling changes, and emergency stops on automated assembly, packaging, and conveyor systems.
Motor Control & Drive Systems — Upstream isolation for VFDs, servo drives, and soft starters where a reliable manual break point is required by electrical safety standards.
Energy Distribution Cabinets — Used as main incoming switches in workshops, substations, and utility distribution panels handling three-phase 690V systems.
OEM Machine Building — Specified by machine builders who need a certified, globally recognized main switch that satisfies both IEC and UL requirements for export markets.
Part Number Explained
| Code | Meaning |
|---|---|
| T6 | T6 series main switch (160A frame) |
| 160 | 160A rated current |
| 6 | 690V AC rated voltage |
| V | Visible break / positive opening |
| SVB-SW | Side-mounted rotary handle (black) |
| HI11 | 1 NO + 1 NC auxiliary contact included |
The HI11 auxiliary contact built into this variant is particularly valuable — it provides a signaling contact for remote monitoring, interlock circuits, or PLC feedback, indicating switch position without requiring additional contact blocks.
Genuine OEM vs Non-OEM: Why It Matters Here
A main isolation switch is a safety-critical component. Non-genuine or counterfeit switches frequently fail to meet the published current ratings, lack proper arc-quenching design, and may not provide true positive opening under fault conditions. With the T6-160-6/V/SVB-SW/HI11, you receive a factory-certified Eaton Moeller product with documented compliance to IEC 60947-3 — giving you full confidence in both performance and regulatory traceability.
Ordering & Support
- ✅ Genuine Eaton Moeller OEM — New original unit, not refurbished or counterfeit
- ✅ In Stock — Ships within 1–3 business days
- ✅ Worldwide Delivery — Full tracking on all international shipments
- ✅ Secure Packaging — Protective packaging for safe transit
- ✅ 15+ Years Industry Experience — Trusted supplier of industrial switchgear and automation components
- ✅ Pre-Sale Technical Support — Available via WhatsApp and email
FAQ — Eaton Moeller T6-160-6/V/SVB-SW/HI11 Main Switch
Q1: What is the T6-160-6/V/SVB-SW/HI11 and what is it used for?
The T6-160-6/V/SVB-SW/HI11 is a 160A, 690V AC, 3-pole rotary main isolation switch from Eaton Moeller. It is used as a manual power isolation device in industrial control panels, motor control centers, and machine switchgear. Its primary function is to provide a safe, reliable, and clearly visible break in the power circuit to allow maintenance, emergency isolation, or operational switching of industrial equipment.
Q2: What does the "HI11" suffix mean in this part number?
HI11 indicates that this switch includes 1 normally open (NO) and 1 normally closed (NC) auxiliary contact built into the assembly. These contacts mirror the main switch position and can be wired to a PLC, interlock circuit, alarm, or indicator light to provide remote status feedback or to enforce electrical interlocks. This is a significant advantage over base models without auxiliary contacts.
Q3: Is the rotary handle lockable for LOTO compliance?
Yes. The rotary handle on the T6-160-6/V/SVB-SW/HI11 supports padlock installation in the OFF position, making it compliant with LOTO (Lockout/Tagout) safety procedures required in most industrial safety regulations worldwide, including those aligned with IEC and OSHA standards.
Q4: What standards does this switch comply with?
The T6-160-6/V/SVB-SW/HI11 complies with IEC 60947-3 (low-voltage switchgear and controlgear — switches, disconnectors, and fuse combination units) and UL 508 (industrial control equipment). These are the primary international and North American standards governing the use of main isolation switches in industrial panels.
Q5: What is the rated voltage and current of this switch?
The switch is rated at 160A continuous current and 690V AC, making it suitable for use on standard three-phase industrial power systems including 380V, 400V, 415V, and 480V networks — all well within the 690V rating.
Q6: What does "V" mean in the part number (T6-160-6/V/...)?
The "V" designates visible break / positive opening — a critical safety feature confirming that when the switch is in the OFF position, the contacts are physically separated and visually confirmed open. This is required by IEC standards for isolation switches used in safety-critical applications.
Q7: Is the T246012 the same product as T6-160-6/V/SVB-SW/HI11?
Yes. T246012 is the Eaton Moeller catalog/order number for the T6-160-6/V/SVB-SW/HI11 configuration. Both numbers refer to the identical product and can be used interchangeably when sourcing or referencing this switch.
Q8: Is this a genuine new switch or a refurbished unit?
This is a 100% genuine, brand new Eaton Moeller OEM unit. We do not supply refurbished, repaired, or aftermarket substitutes. All units are quality-inspected and shipped in original protective packaging.
Q9: Is it in stock and how fast can you ship?
Yes, this switch is currently in stock and typically dispatches within 1–3 business days. Estimated delivery is 5–12 business days internationally depending on destination. Express shipping is available — contact us for details.
Q10: Do you offer technical or installation support?
Yes. Our team is available for pre-sale support on wiring, auxiliary contact configuration, panel integration, and compliance queries. Contact us via WhatsApp (+86 186 2050 5228) or email at amy2013@topsdevice.com.
Q11: What is your return and warranty policy?
All products are covered under our standard warranty. Full details are available on our Refund Policy page. Contact our support team directly for any post-purchase issues.
