TS5213N510 Genuine New TAMAGAWA OIH482048P6L65V Encoder
PRODUCT DETAILS

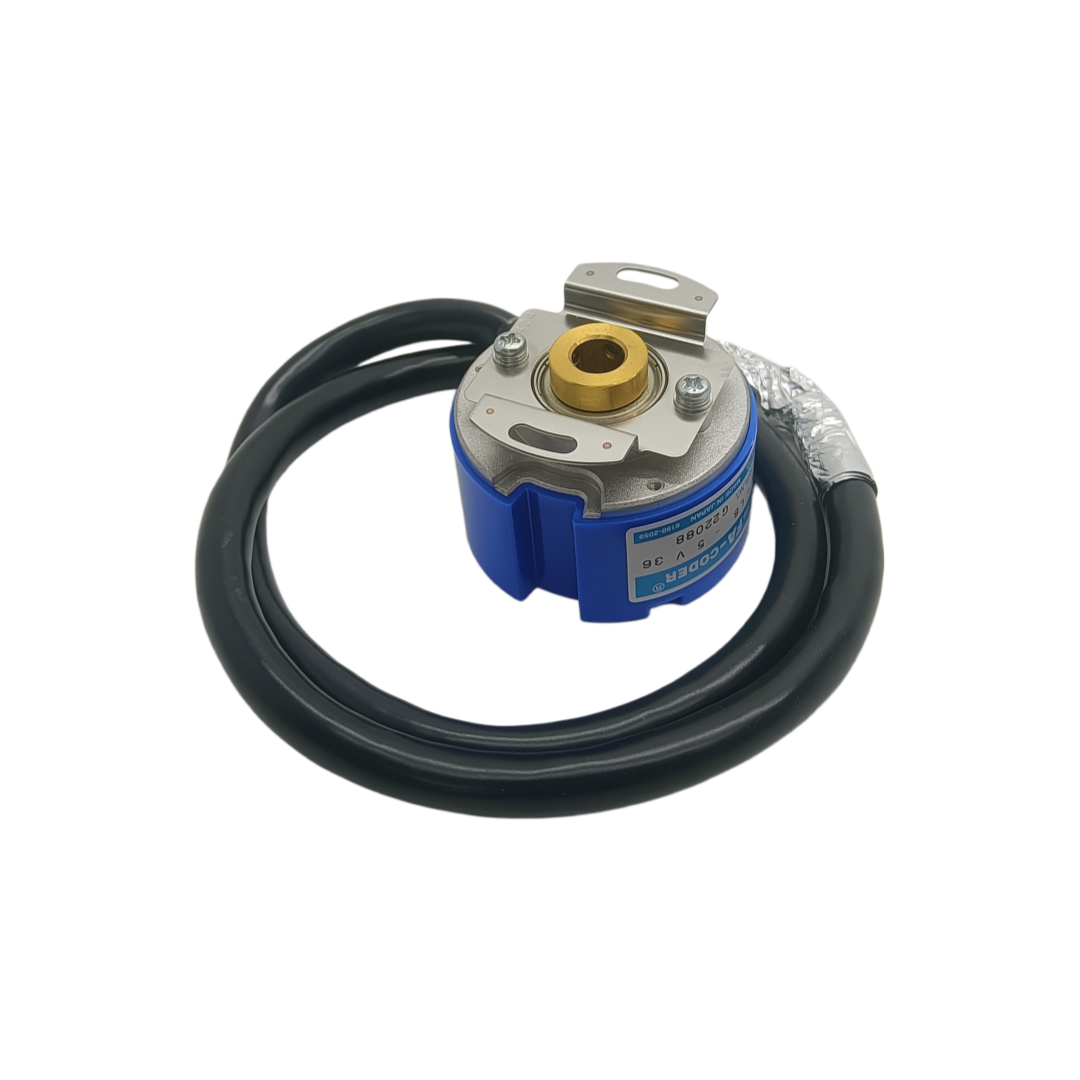

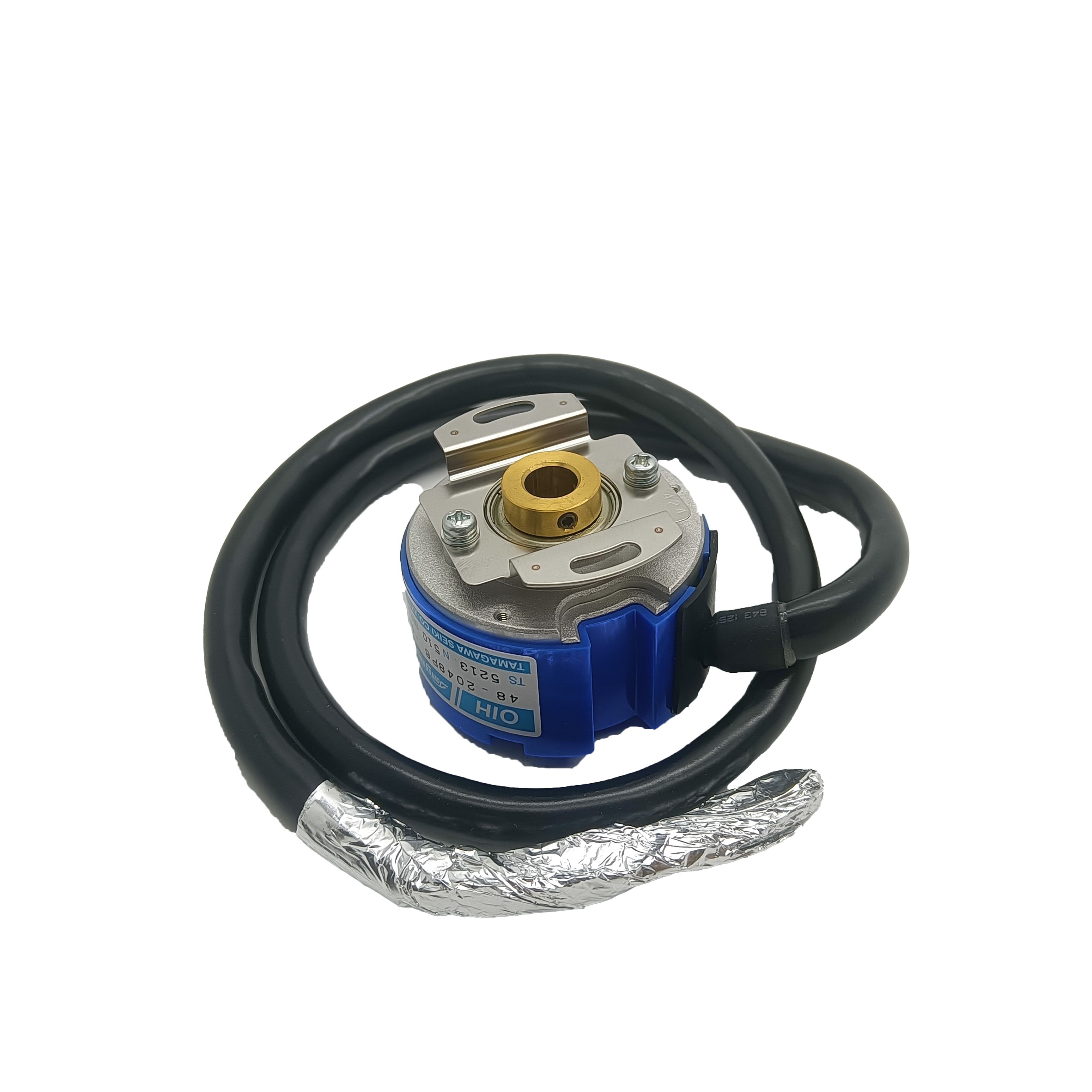

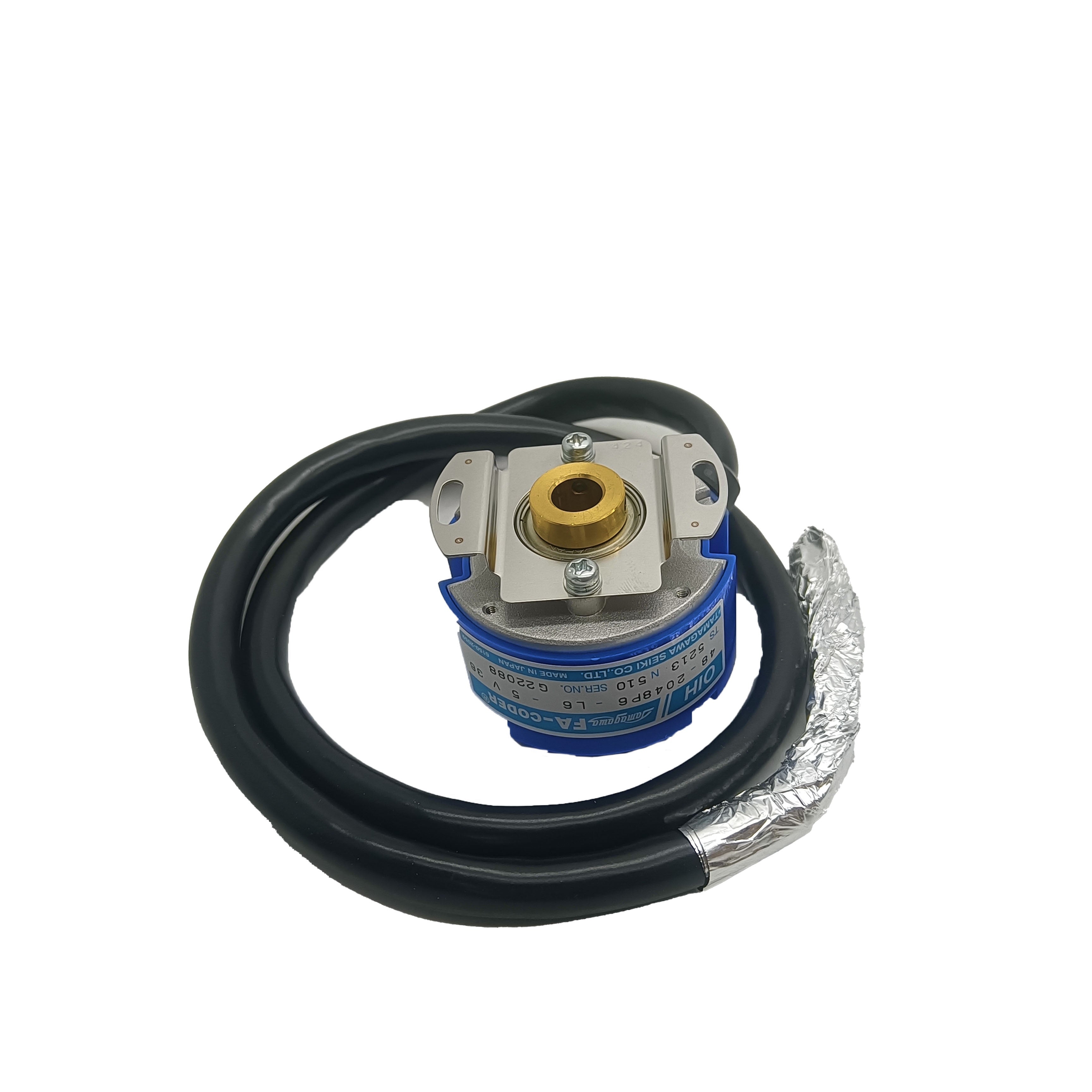

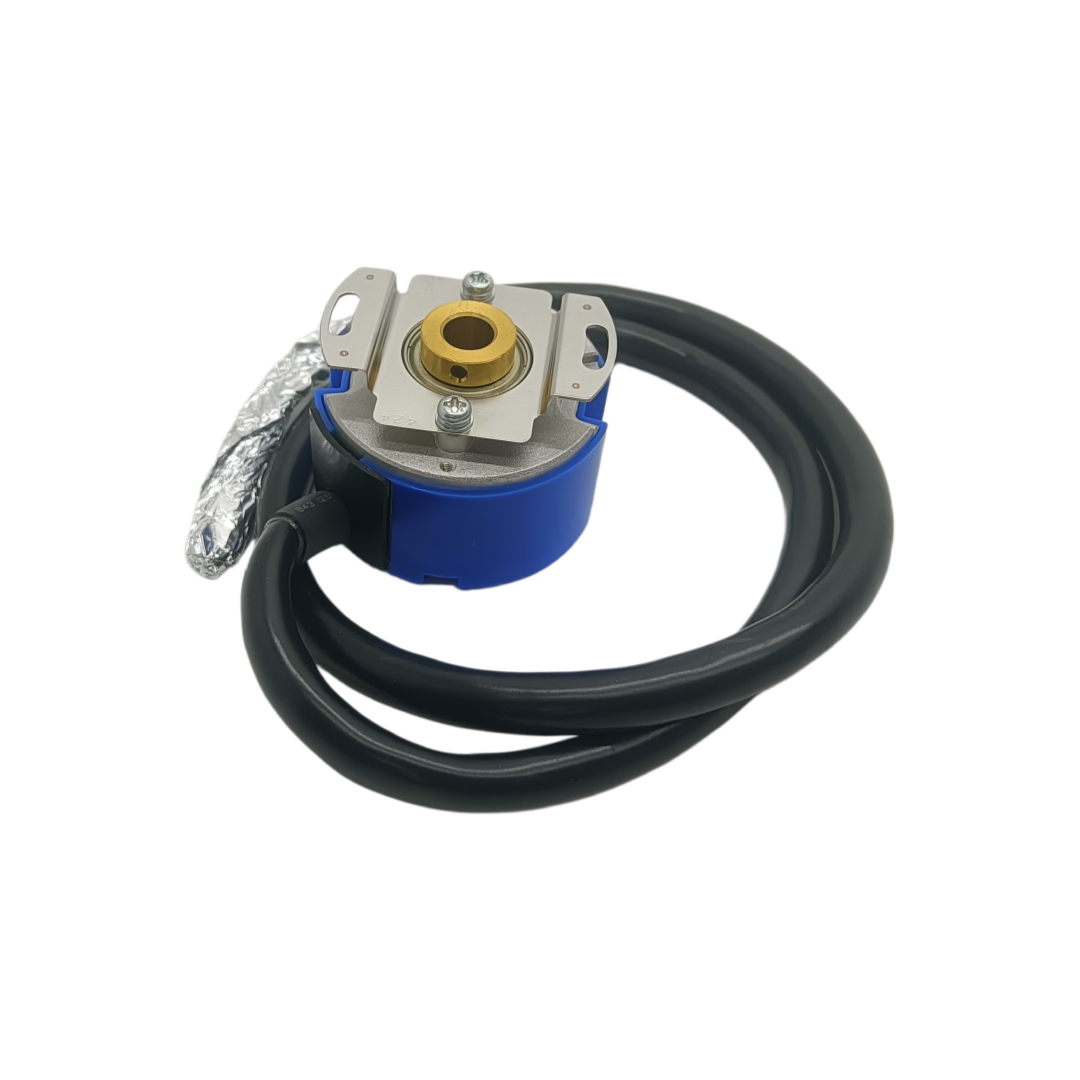

TS5213N510 High-Precision Incremental Encoder for Industrial Motion Feedback
The TS5213N510 incremental encoder is designed for accurate rotational position and speed feedback in industrial motion systems. With stable signal output and compact construction, it supports precise control requirements in automation equipment.
Product Specifications
| Product Specifications | Details |
|---|---|
| Product Type | Incremental Rotary Encoder |
| Encoder Series | OIH48 Series |
| Resolution | 2048 Pulses Per Revolution |
| Output Signal | A/B/Z Phase Signal |
| Supply Voltage | DC 5V |
| Output Type | Line Driver |
| Mounting Style | Hollow Shaft |
| Protection Rating | IP40 |
Performance Features
-
High-resolution position feedback
-
Stable digital signal transmission
-
Compact hollow shaft structure
-
Suitable for high-speed rotation monitoring
-
Reliable feedback for motion control systems
Typical Applications
-
Servo motor feedback systems
-
CNC machine tools
-
Industrial robots
-
Packaging machinery
-
Automated production equipment
Installation Guide
-
Mount the encoder securely on the rotating shaft.
-
Align the hollow shaft and mechanical coupling correctly.
-
Connect power and signal wiring according to the system configuration.
-
Check A/B/Z signal feedback before operation.
-
Verify encoder direction and rotation accuracy.
FAQ
Q1: What is the main function of this encoder?
A: It provides rotational position and speed feedback.
Q2: Is this an incremental encoder?
A: Yes, it provides incremental pulse output signals.
Q3: What type of output signal does it provide?
A: It provides A/B/Z phase digital signals.
Q4: Where is this encoder commonly used?
A: It is used in CNC, robotics, and automation systems.
Q5: Does it support precision motion control?
A: Yes, it provides accurate feedback for motion applications.
