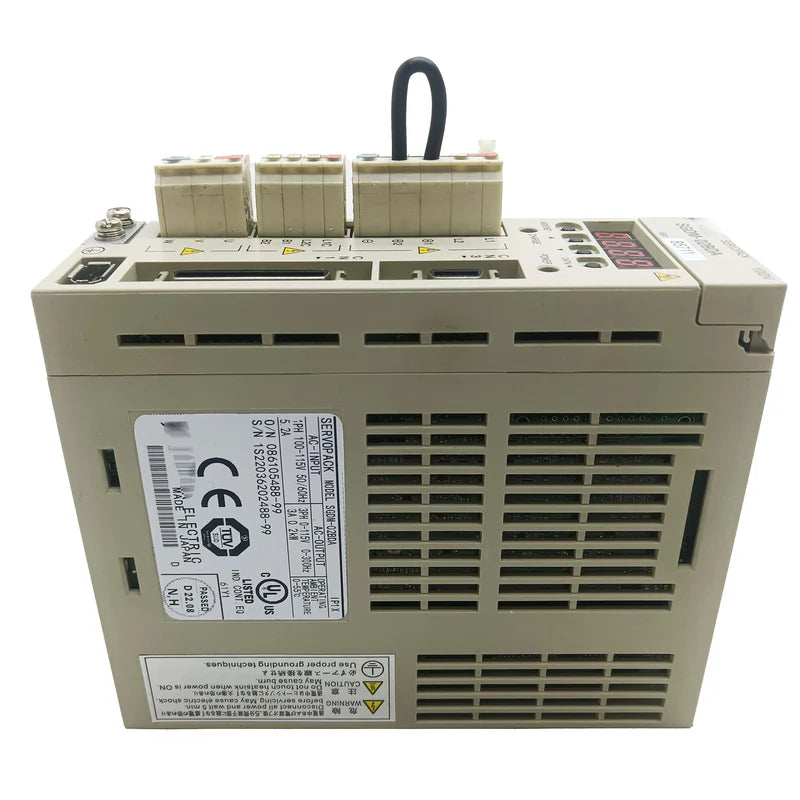

Is the error message from the YASKAWA servo drive A.810 due to encoder communication issues?

This article provides a detailed explanation of the causes, diagnosis, and repair process for the A.810 error code, helping readers better understand and address this issue.

Firstly: Overview of the A.810 Error Code
The YASKAWA servo drive error code A.810 typically indicates an encoder communication failure. The encoder is a crucial component of the servo drive, used to measure motor position and speed for precise control. When communication between the encoder and the drive fails, the drive will report the A.810 error code.

Secondly: Causes of the A.810 Error Code

1. Encoder Circuit Fault: Encoder circuit faults may occur due to aging, wear, or external interference.

2. Encoder Damage: The encoder itself may be damaged due to quality issues, overload, or external impact, rendering it inoperable.

3. Drive Control Board Fault: The drive control board processes encoder signals; a faulty control board can also lead to the A.810 error code.

4. Interference Sources: Strong electromagnetic interference can affect communication between the encoder and the drive, causing communication failures.

Thirdly: A.810 Code Error Diagnosis

1. Check the encoder: Remove the encoder and check its appearance for any damage or abnormalities. If the encoder is damaged, replace it with a new one.

2. Check the encoder wiring: First, check the encoder wiring for any damage, aging, or poor contact. If any problems are found, replace or repair the wiring immediately.

3. Check the driver control board: If the encoder wiring and the encoder itself are fine, check the driver control board. You can replace the control board or use diagnostic tools to test it to determine if there is a fault.

4. Check for interference sources: If the above checks do not reveal any problems, check for strong electromagnetic interference sources in the surrounding area. If interference sources are present, take measures to eliminate the interference, such as adding shielding or adjusting the equipment position.

Fourthly: A.810 Code Error Repair

1. Replace the encoder wiring: If the encoder wiring is diagnosed as faulty, replace it with a new encoder wiring. During replacement, ensure that the wiring is of the same specifications as the original wiring and that the connection is secure and reliable.

2. Encoder Replacement: If the encoder is diagnosed as damaged, a new encoder must be installed. During replacement, ensure the encoder is the same model as the original and that it is installed correctly and securely.

3. Driver Control Board Replacement: If the driver control board is diagnosed as faulty, a new control board must be installed. During replacement, ensure the control board is the same model as the original and that it is installed correctly and reliably. Simultaneously, the new control board needs to be configured and debugged to ensure it functions properly.

4. Interference Elimination: If interference is diagnosed, measures must be taken to eliminate it. This can be achieved by adding shielding, adjusting equipment position, or using filters to reduce interference intensity and ensure normal communication between the encoder and driver.

Fifthly: Maintenance Precautions

1. During maintenance, ensure the equipment is powered off and in a safe condition to avoid dangers such as electric shock or mechanical injury.

2. When replacing encoders, wiring, or control boards, select parts of the same model as the original equipment to ensure compatibility and stability.

3. After maintenance, conduct a comprehensive test on the equipment to ensure it functions properly and meets production requirements.

4. If problems or difficulties are encountered during maintenance, seek help and support from professionals promptly to ensure the smooth progress of the maintenance work.

In summary, the YASKAWA servo drive error code A.810 is a common fault phenomenon. By thoroughly understanding and analyzing the cause of the error and taking effective diagnostic and maintenance measures, this problem can be quickly resolved, ensuring the normal operation of the equipment and production efficiency.
