CDM2F20-25A SMC Pneumatic Cylinder CDM2F2025A Brand New
PRODUCT DETAILS

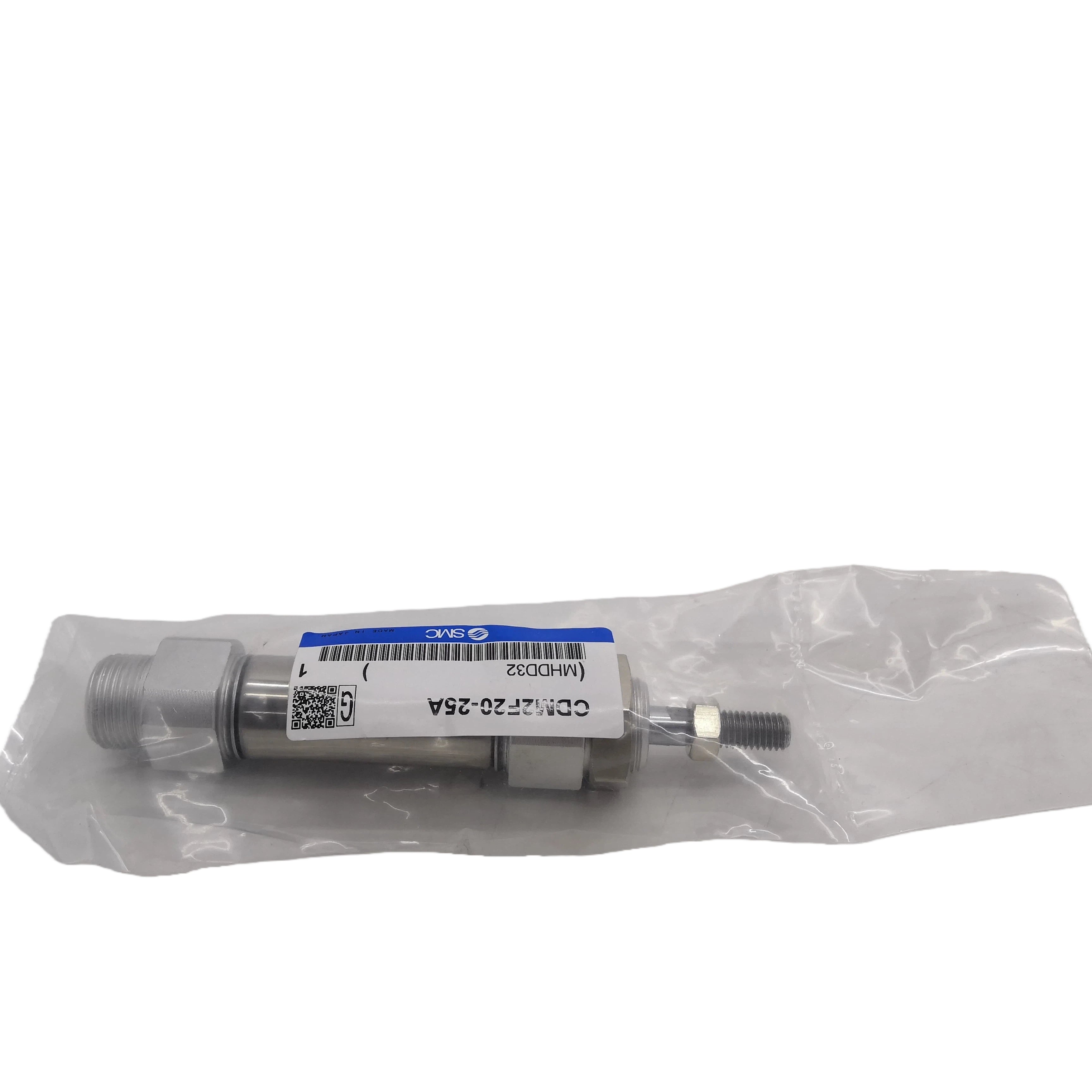

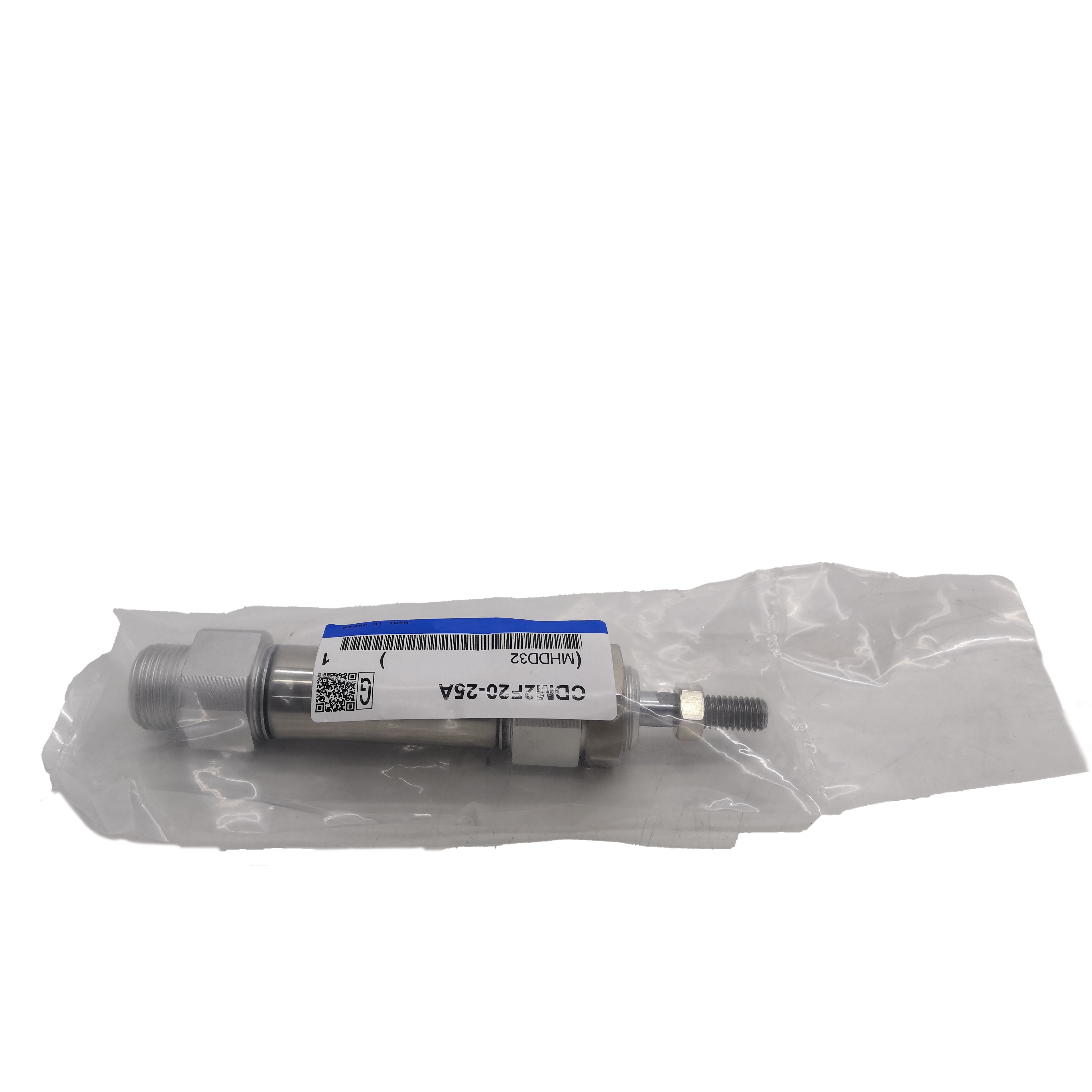

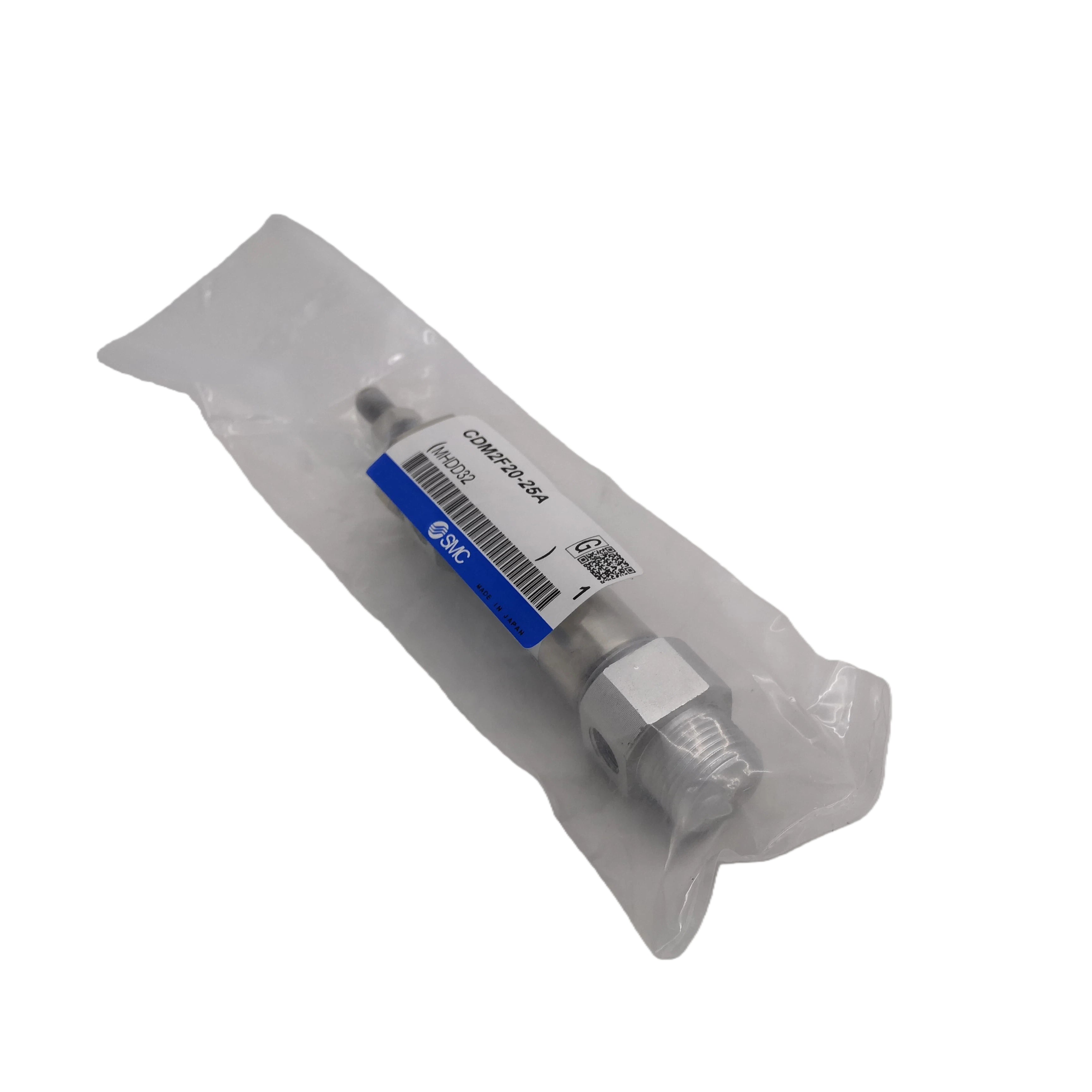

✅ SMC CDM2F20-25A Pneumatic Cylinder – Brand New
Compact, High-Precision Air Cylinder for Industrial Automation
The SMC CDM2F20-25A is a double-acting compact pneumatic cylinder designed for applications requiring stable linear motion, space-saving installation, and long-term reliability.
With a 20 mm bore diameter and 25 mm stroke, this model is widely used in automated machinery, assembly equipment, material handling systems, and OEM automation projects.
Manufactured by SMC Japan, the CDM2 series delivers high sealing performance, smooth operation, and consistent output force, making it a trusted choice in industrial pneumatic systems worldwide.
🔧 Key Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | SMC |
| Model | CDM2F20-25A |
| Cylinder Type | Compact Pneumatic Cylinder |
| Operation | Double Acting |
| Bore Size | 20 mm |
| Stroke Length | 25 mm |
| Mounting Type | Front Flange (F type) |
| Cushion | Rubber Cushion |
| Operating Medium | Clean, Dry Compressed Air |
| Operating Pressure | 0.05 – 1.0 MPa |
| Proof Pressure | 1.5 MPa |
| Ambient Temperature | −10°C to +70°C |
| Piston Speed | 50 – 500 mm/s |
| Port Thread | M5 |
| Body Material | Aluminum Alloy |
| Condition | Brand New, Original SMC |
⚙️ Functional Advantages
✔ Compact Structure Design
The CDM2F series features a short overall length, ideal for installations where space is limited, while maintaining sufficient thrust output.
✔ Stable and Smooth Motion
Optimized piston seal structure ensures low friction, reduced vibration, and consistent stroke accuracy during repeated operation.
✔ High Durability & Long Service Life
High-quality aluminum body and wear-resistant seals provide excellent resistance to leakage and pressure loss, even in high-cycle environments.
✔ Easy Installation & Maintenance
Front flange mounting allows direct and rigid fixing, improving positioning accuracy and simplifying equipment integration.
✔ Wide System Compatibility
Fully compatible with SMC solenoid valves, FRL units, and standard pneumatic accessories, suitable for global automation systems.
🏭 Typical Applications
-
Automated assembly lines
-
Packaging machinery
-
Pick & place systems
-
Industrial manipulators
-
Conveyor positioning units
-
OEM pneumatic equipment
-
Semiconductor & electronics machinery
📦 Package Includes
-
1 × SMC CDM2F20-25A Pneumatic Cylinder
-
Factory original packaging
-
Manufacturer label & traceable model code
