CDQ2KB25-200MZ-M9B SMC Compact Air Cylinder CDQ2KB25200MZM9B Genuine

The CDQ2KB25-200MZ-M9B from SMC is a high-performance compact air cylinder that combines precise stroke control, reliable magnetic sensing, and robust construction in a slim body design. With a 25 mm bore and 200 mm stroke, it ensures consistent actuation and seamless integration into modern pneumatic automation systems.

📌 Product Overview

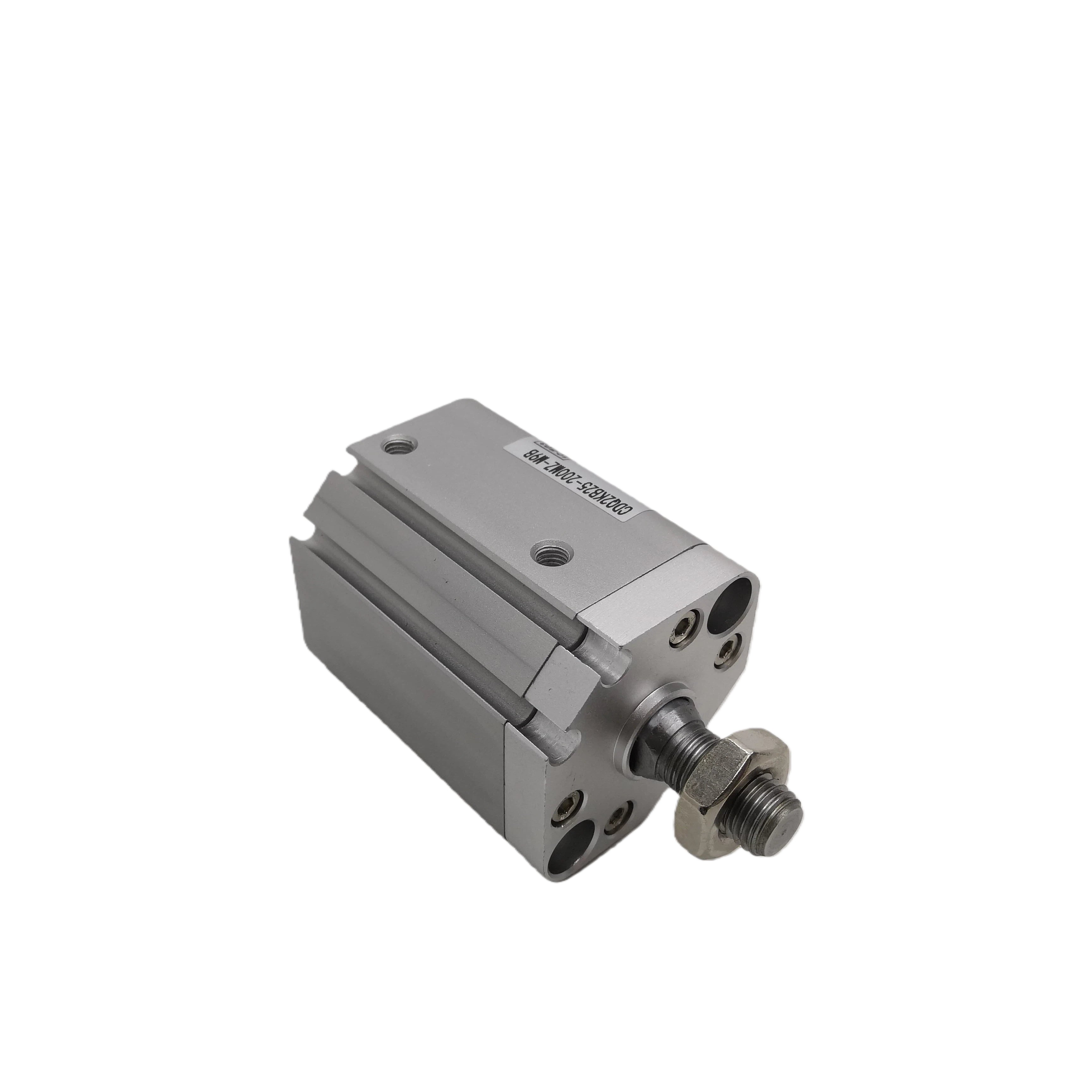

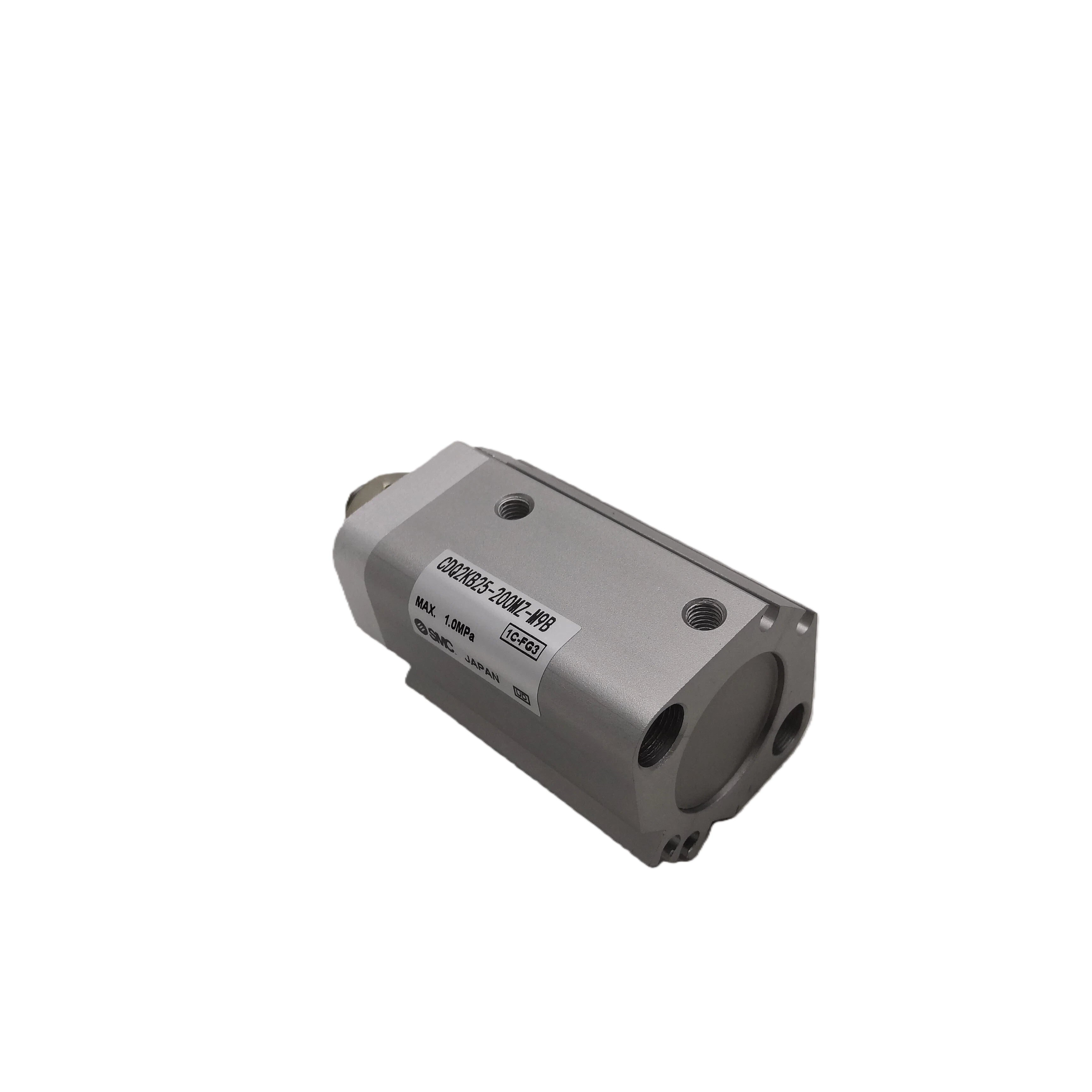

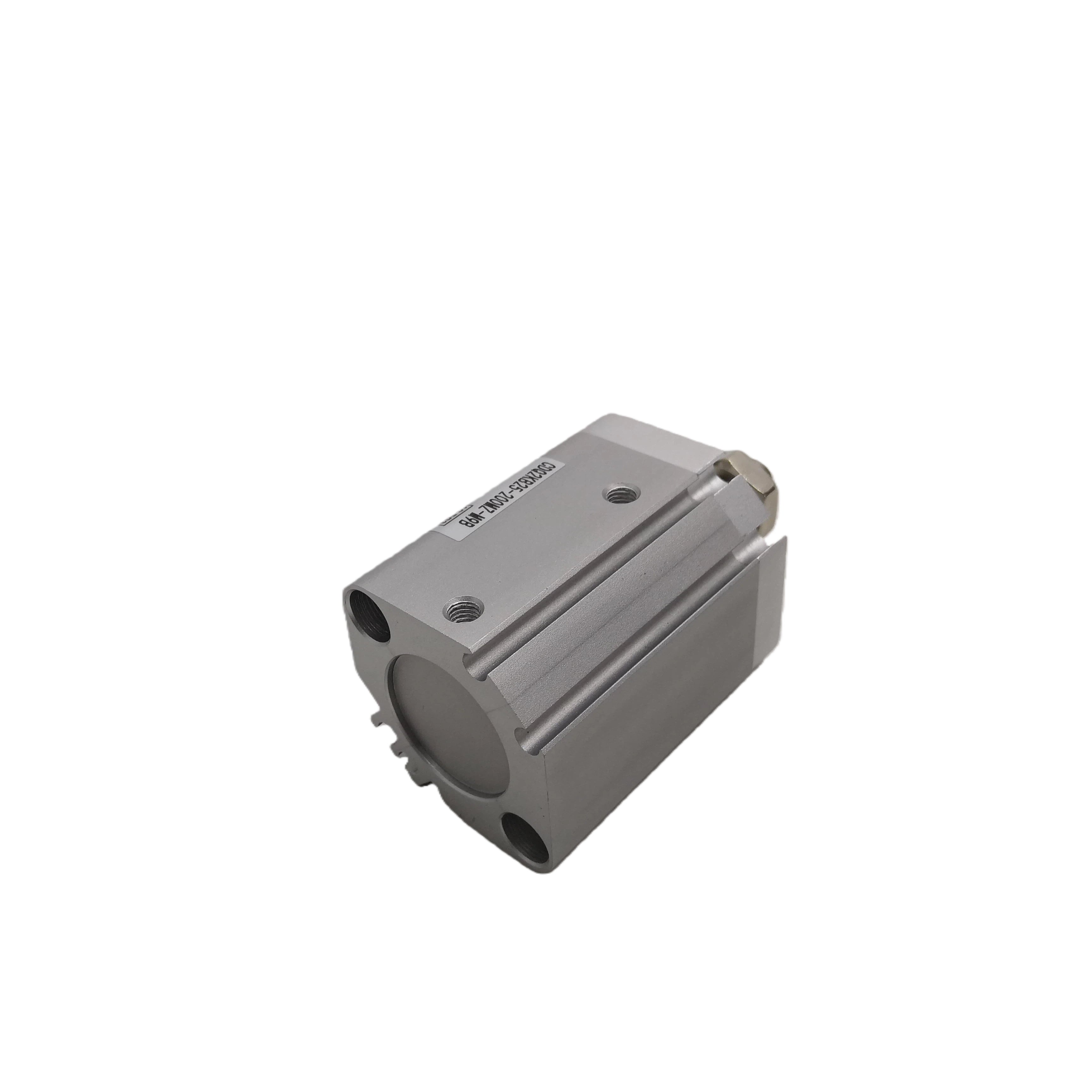

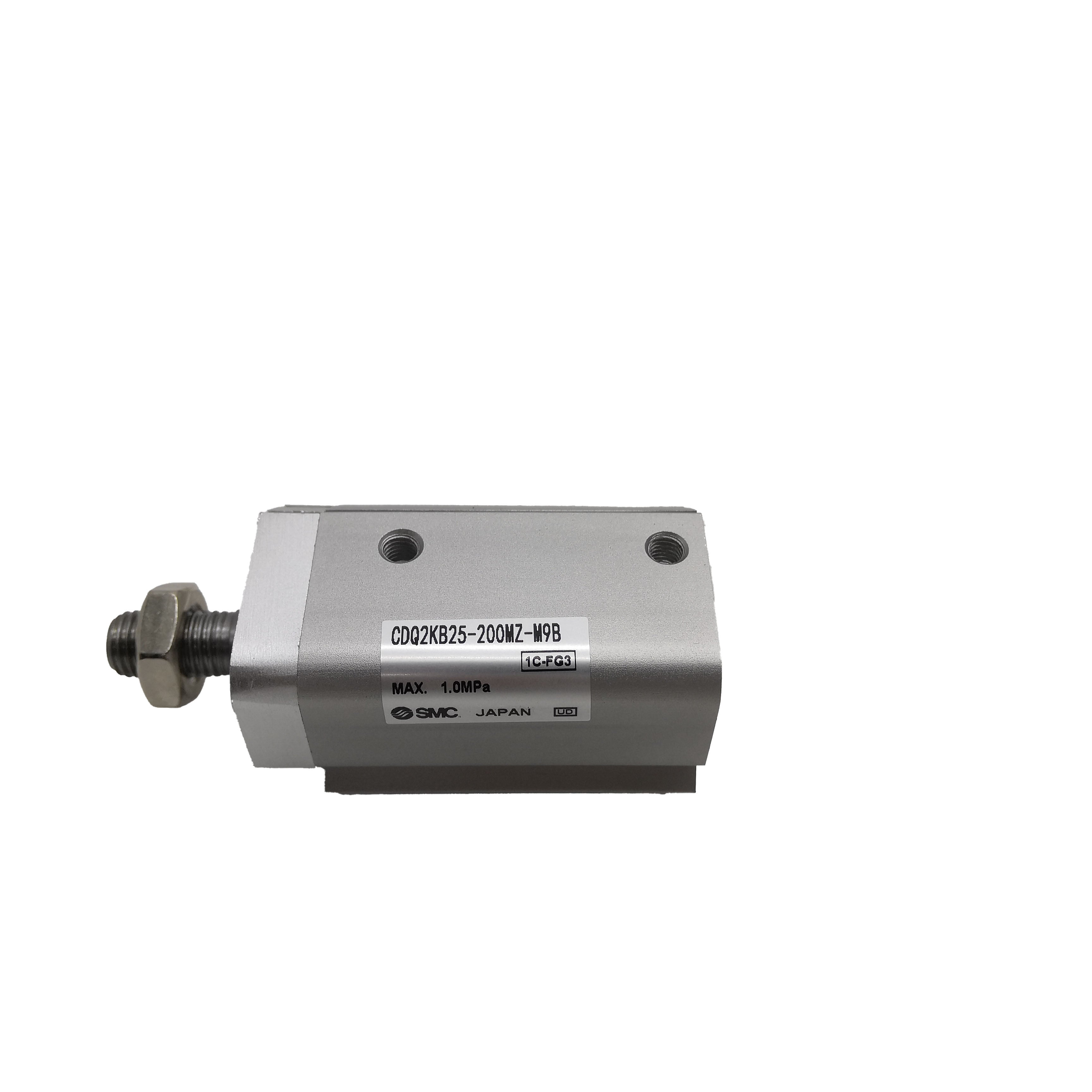

The SMC CDQ2KB25-200MZ-M9B Compact Air Cylinder is a genuine SMC pneumatic actuator designed to deliver precise linear motion in confined installation spaces. As part of the CDQ2KB series, it features a compact body, high-strength aluminum construction, and a built-in magnetic piston compatible with SMC auto switches.

Equipped with an M9B solid-state auto switch, this model enables accurate stroke detection and stable signal output, making it suitable for high-speed, high-cycle industrial automation applications.

⚙️ Key Technical Specifications

• Manufacturer: SMC Corporation

• Series: CDQ2KB

• Cylinder Type: Compact, Double-Acting

• Bore Size: 25 mm

• Stroke Length: 200 mm

• Mounting Style: Basic Type (Direct Mounting)

• Magnet: Built-in Magnet (M)

• Auto Switch: M9B Solid-State Proximity Switch

• Operating Medium: Clean, Dry Compressed Air

• Operating Pressure Range: 0.1 – 1.0 MPa

• Proof Pressure: 1.5 MPa

• Ambient & Fluid Temperature: -10°C to +60°C (No freezing)

• Port Thread Type: Rc / NPT (depending on regional configuration)

• Body Material: Aluminum Alloy

• Seal Material: High-durability synthetic rubber

🔧 Functional Advantages

• Compact Design for Space-Saving Installations
  Optimized body length allows installation in tight mechanical layouts without sacrificing stroke length.

• High-Precision Linear Motion
  Ensures smooth, repeatable actuation for positioning, clamping, and transfer operations.

• Integrated Magnetic Piston
  Fully compatible with SMC auto switches for accurate position detection and automation feedback.

• M9B Auto Switch Included
  Solid-state, wear-free sensor delivers fast response and long service life.

• Durable Industrial Construction
  Engineered for continuous operation in demanding factory environments.

🏭 Typical Applications

• PLC-controlled automation systems

• Assembly and packaging machinery

• Pick-and-place units

• Industrial handling and transfer devices

• Semiconductor and electronics manufacturing equipment

📦 What’s Included

• 1 × SMC CDQ2KB25-200MZ Compact Air Cylinder

• 1 × M9B Auto Switch (Pre-installed or supplied separately, per configuration)

• Original SMC factory packaging

✅ Authenticity & Quality Assurance

This product is 100% Genuine SMC, manufactured under strict quality control standards. Each unit is tested to ensure consistent performance, reliability, and compliance with global industrial automation requirements.

🔍Keywords

SMC CDQ2KB25-200MZ-M9B, SMC Compact Air Cylinder, 25mm Bore Pneumatic Cylinder, SMC Pneumatic Actuator, Compact Double Acting Air Cylinder, Industrial Pneumatic Cylinder, SMC M9B Auto Switch
