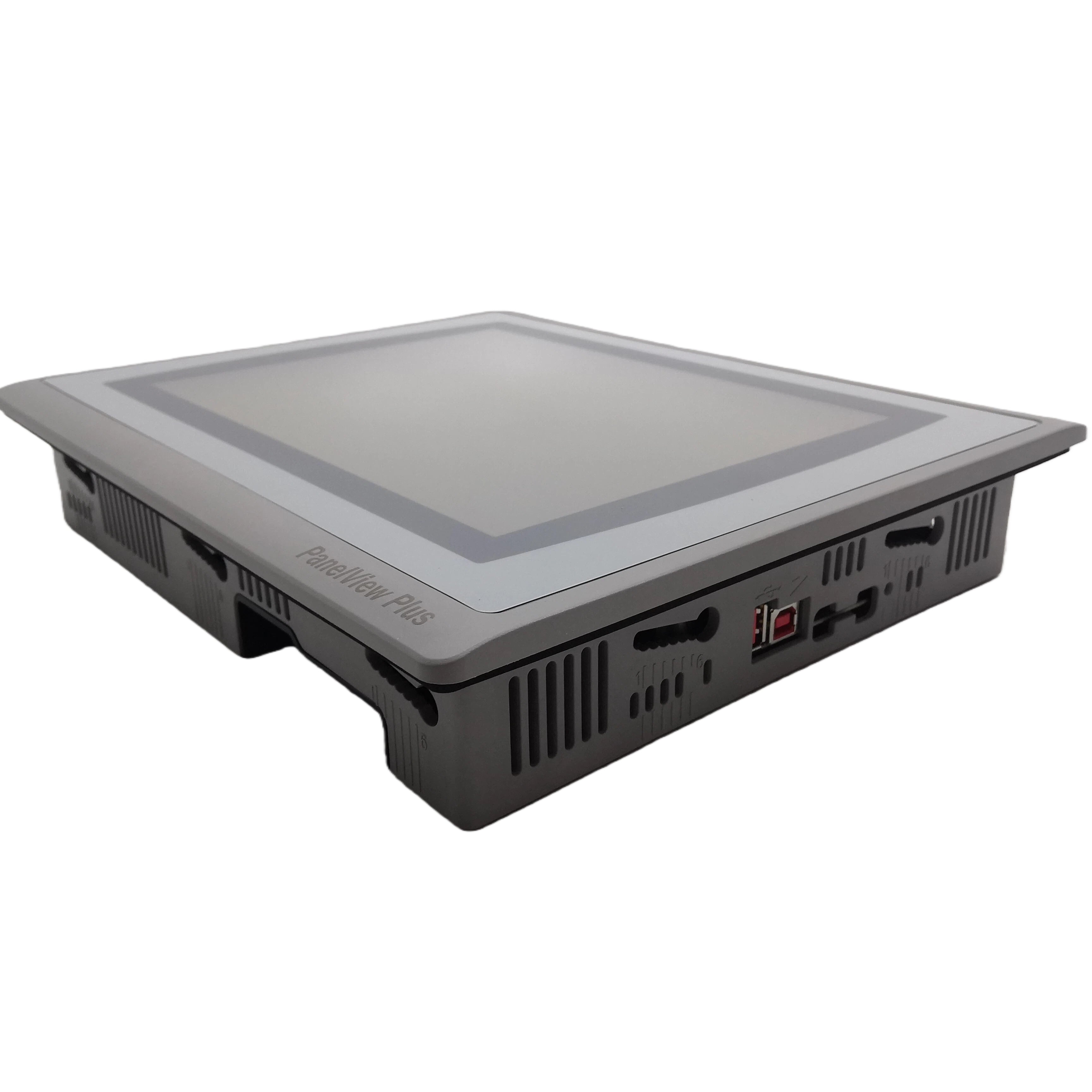

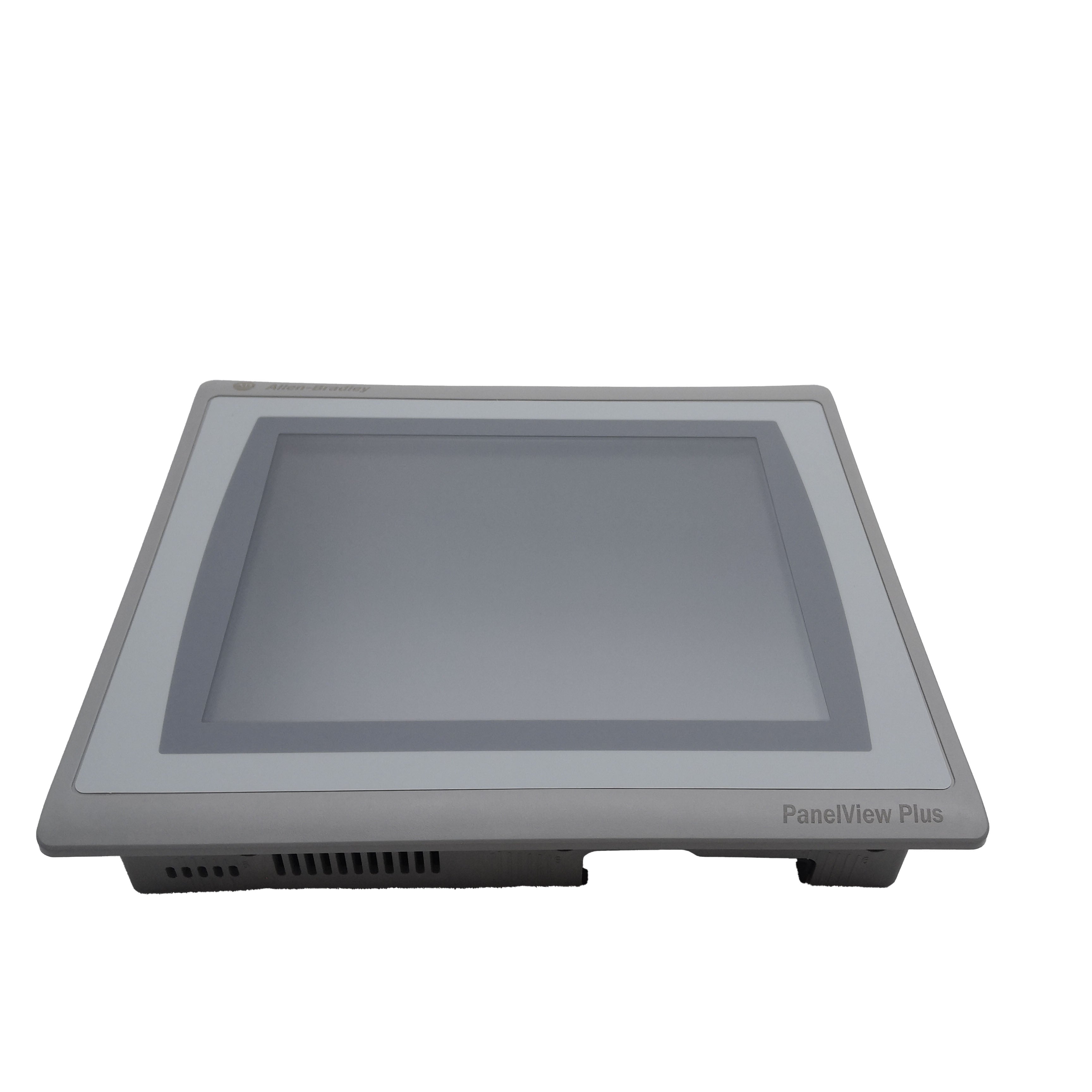

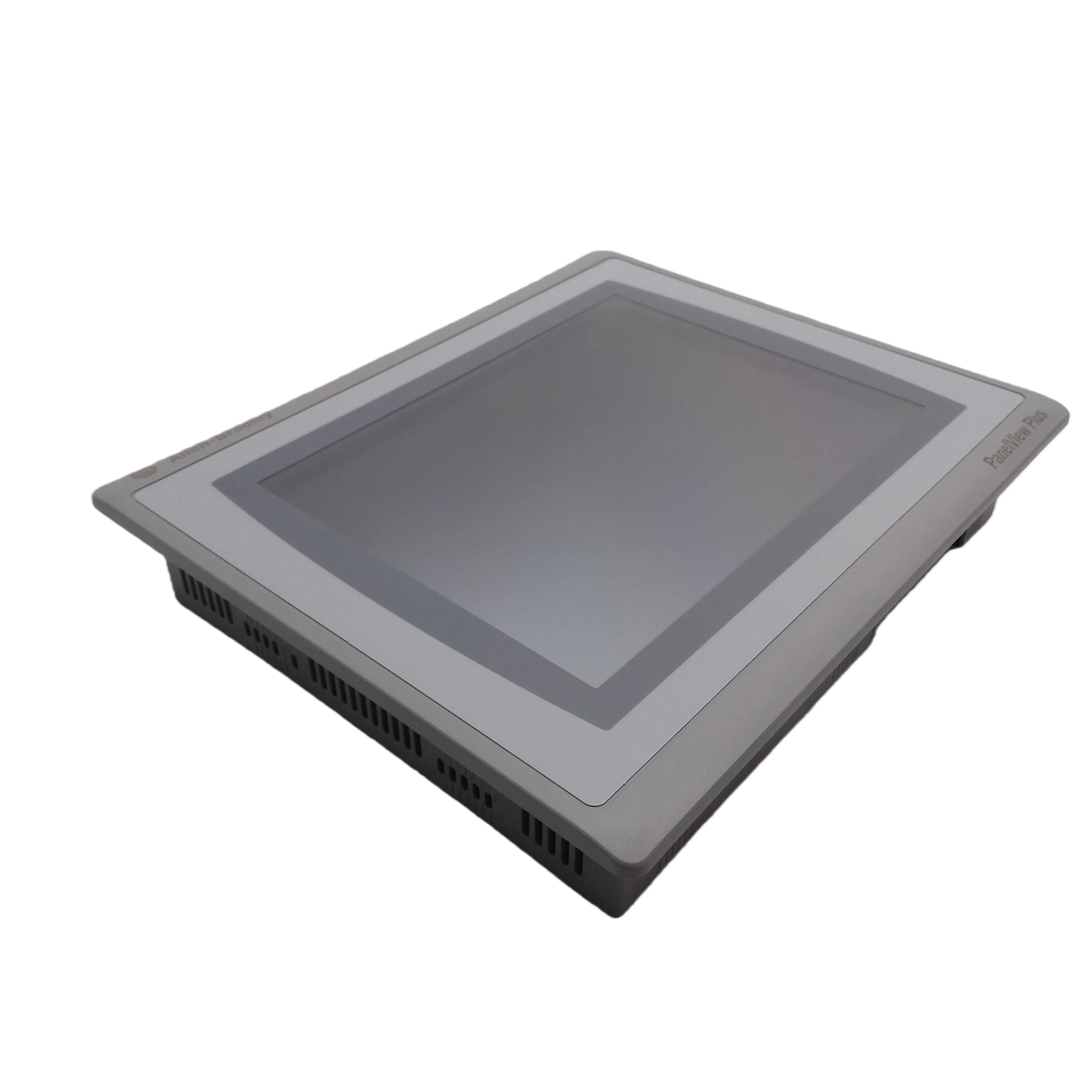

2711P-T10C21D8S Industrial 10.4-Inch Color Touch Operator Terminal
The 2711P-T10C21D8S is an industrial operator interface featuring a 10.4-inch color touchscreen for machine visualization and process control. It delivers responsive operation, intuitive graphics, and reliable performance in demanding industrial environments.
Technical Specifications
| Key Product Data | |
|---|---|
| Product Type | Operator Interface Terminal |
| Display Size | 10.4 in |
| Display Type | TFT Color LCD |
| Touch Technology | Analog Resistive Touchscreen |
| Input Voltage | 24 VDC |
| Communication | Ethernet / USB / Serial |
| Mounting | Panel Mount |
| Protection Rating | Front Panel Industrial Grade |
Installation Guide
- Cut the panel opening according to the installation dimensions.
- Insert the terminal into the mounting opening.
- Secure the unit using the supplied mounting clamps.
- Connect the 24 VDC power supply.
- Attach communication cables and verify all connections before startup.
Typical Applications
- Factory automation
- Machine monitoring
- Production lines
- Material handling systems
- Process visualization
- Equipment diagnostics
FAQ
Q1: Is the display color?
Yes, it uses a color TFT display.
Q2: Does it support touchscreen operation?
Yes.
Q3: What power supply is required?
24 VDC.
Q4: Can it communicate with industrial controllers?
Yes, through supported communication interfaces.
Q5: Is it intended for panel installation?
Yes.
