6AV6647-0AA11-3AX0 New Simatic HMI Ktp400 Basic Mono Panel 6AV66470AA113AX0
PRODUCT DETAILS
Product Page Content
Title Tag (Meta Title):
Siemens 6AV6647-0AA11-3AX0 SIMATIC HMI KTP400 Basic Mono PN | 4" Touch Panel 6AV6 647-0AA11-3AX0
Siemens 6AV6647-0AA11-3AX0 SIMATIC HMI KTP400 Basic Mono PN | 4" Touch Panel 6AV6 647-0AA11-3AX0
Meta Description:
Original Siemens 6AV6647-0AA11-3AX0 KTP400 Basic Mono PN HMI. 4-inch STN display, PROFINET interface, rugged industrial design. New & in stock. Global shipping. Request quote today.
Original Siemens 6AV6647-0AA11-3AX0 KTP400 Basic Mono PN HMI. 4-inch STN display, PROFINET interface, rugged industrial design. New & in stock. Global shipping. Request quote today.
Hero Section: Product Overview
Siemens SIMATIC HMI KTP400 Basic Mono PN
Part Number: 6AV6647-0AA11-3AX0 (6AV6 647-0AA11-3AX0)
Part Number: 6AV6647-0AA11-3AX0 (6AV6 647-0AA11-3AX0)
Engineered for seamless machine visualization, the KTP400 Basic Mono PN delivers essential HMI functionality with uncompromising Siemens reliability. This compact 4-inch touch panel combines intuitive monochrome clarity with robust PROFINET connectivity—ideal for space-constrained industrial environments where precision matters.
Key Features
-
Precision Monochrome Interface – 4-inch STN black/white display (320 x 240 pixels) ensures crystal-clear readability under any lighting condition, minimizing eye strain during continuous operation
-
Industrial-Grade Touch Technology – Analog resistive touch screen with IP65 front protection, engineered to withstand harsh factory floors, dust, and moisture
-
Seamless Integration – Integrated PROFINET interface enables high-speed communication with SIMATIC S7-1200/1500 controllers and third-party PLCs
-
Compact Efficiency – Panel-mount design with minimal installation depth (43mm), optimizing space in small control cabinets and portable machinery
-
Maintenance-Free Operation – LED backlighting with 50,000-hour lifespan eliminates downtime and replacement costs associated with older CCFL technology
-
Global Certification – CE, UL, cULus, and ATEX certified for worldwide deployment in manufacturing, process automation, and building management systems
Technical Specifications
| Attribute | Specification |
|---|---|
| Manufacturer | Siemens Industry Automation |
| Product Type | KTP400 Basic Mono PN (Touch Panel) |
| Part Number | 6AV6647-0AA11-3AX0 / 6AV6 647-0AA11-3AX0 |
| Display Size | 4" (actual viewing area: 3.8 inches) |
| Display Technology | STN (Super Twisted Nematic), Monochrome |
| Resolution | 320 x 240 pixels (QVGA) |
| Touch Technology | Analog resistive, single-touch |
| Colors | Black/White (grayscale levels) |
| Backlight | LED (50,000 hours MTBF) |
| Interface | PROFINET (Ethernet-based) |
| Processor | ARM RISC 32-bit |
| Memory | 256 KB Flash, 128 KB RAM |
| Protection Rating | IP65 (front), IP20 (rear) |
| Mounting | Panel mount with spring clamps |
| Cutout Dimensions | 123mm x 99mm (+1mm tolerance) |
| Overall Dimensions | 140mm x 116mm x 43mm (W x H x D) |
| Operating Temperature | 0°C to +50°C |
| Power Supply | 24V DC (18-32V DC range) |
| Current Consumption | ≈ 150 mA |
| Certifications | CE, UL, cULus, ATEX Zone 2/22 |
| Software | WinCC Basic V13 SP1 or higher |
Typical Applications
Designed for OEMs and system integrators requiring cost-effective visualization in:
-
Packaging machinery – Operator control for filling, sealing, and labeling lines
-
Textile manufacturing – Loom control and production parameter monitoring
-
Food & Beverage processing – Recipe management and batch control interfaces
-
Material handling – Conveyor system diagnostics and fault management
-
Pump and compressor stations – Local monitoring of pressure, flow, and temperature
Why Choose 6AV6647-0AA11-3AX0?
Industrial Longevity
Unlike consumer-grade tablets, the KTP400 Basic is built for 24/7 operation in electromagnetic-heavy environments. Its die-cast aluminum housing dissipates heat while protecting sensitive electronics from vibration and shock.
Unlike consumer-grade tablets, the KTP400 Basic is built for 24/7 operation in electromagnetic-heavy environments. Its die-cast aluminum housing dissipates heat while protecting sensitive electronics from vibration and shock.
Investment Protection
Fully compatible with TIA Portal (Totally Integrated Automation), ensuring seamless migration paths when upgrading to larger color displays or advanced SCADA systems—protecting your engineering time and configuration investment.
Fully compatible with TIA Portal (Totally Integrated Automation), ensuring seamless migration paths when upgrading to larger color displays or advanced SCADA systems—protecting your engineering time and configuration investment.
Zero-Compromise Connectivity
The integrated PROFINET interface eliminates the need for additional communication modules, reducing cabinet wiring complexity and potential failure points by 30% compared to serial-based HMIs.
The integrated PROFINET interface eliminates the need for additional communication modules, reducing cabinet wiring complexity and potential failure points by 30% compared to serial-based HMIs.
Packaging & Logistics
| Item | Details |
|---|---|

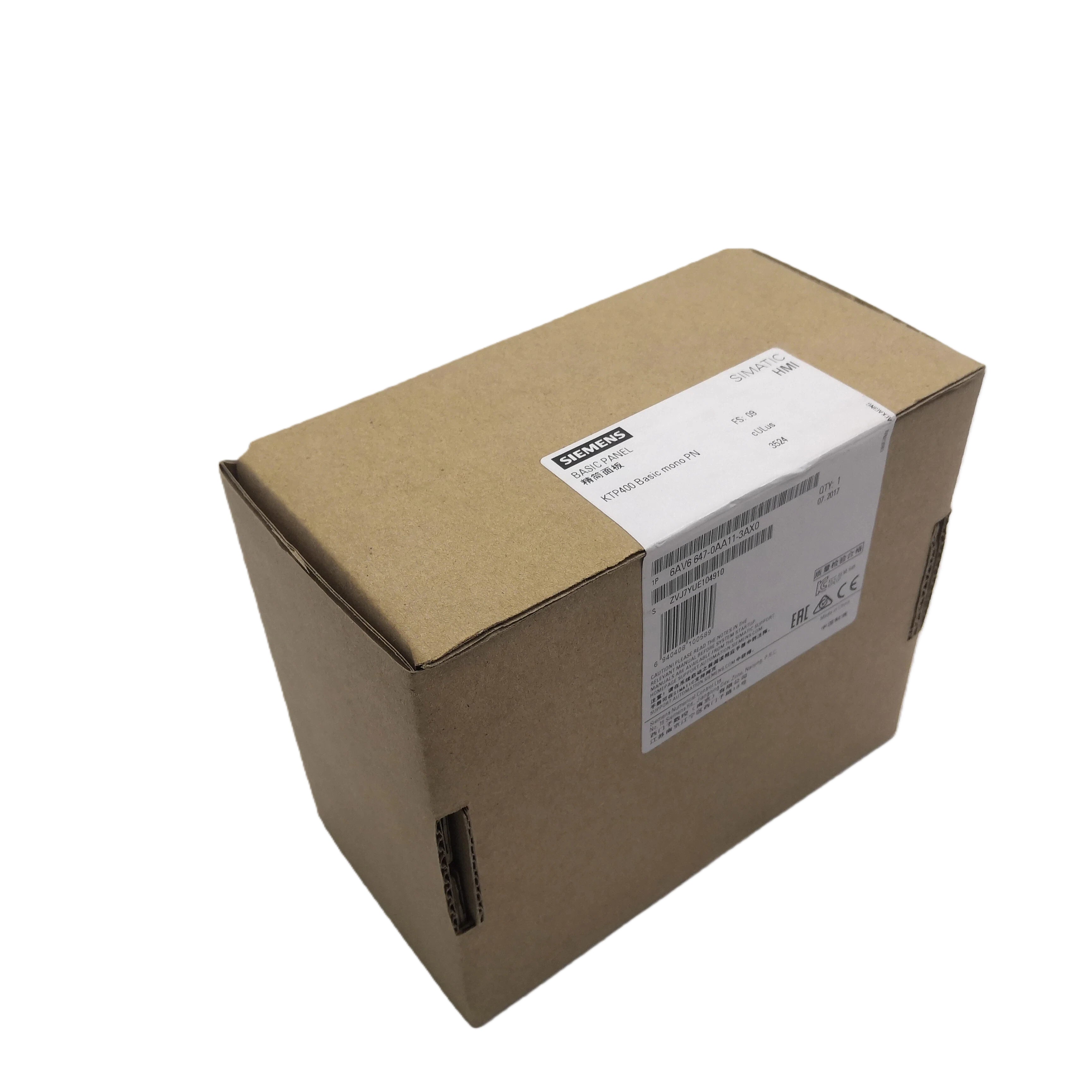

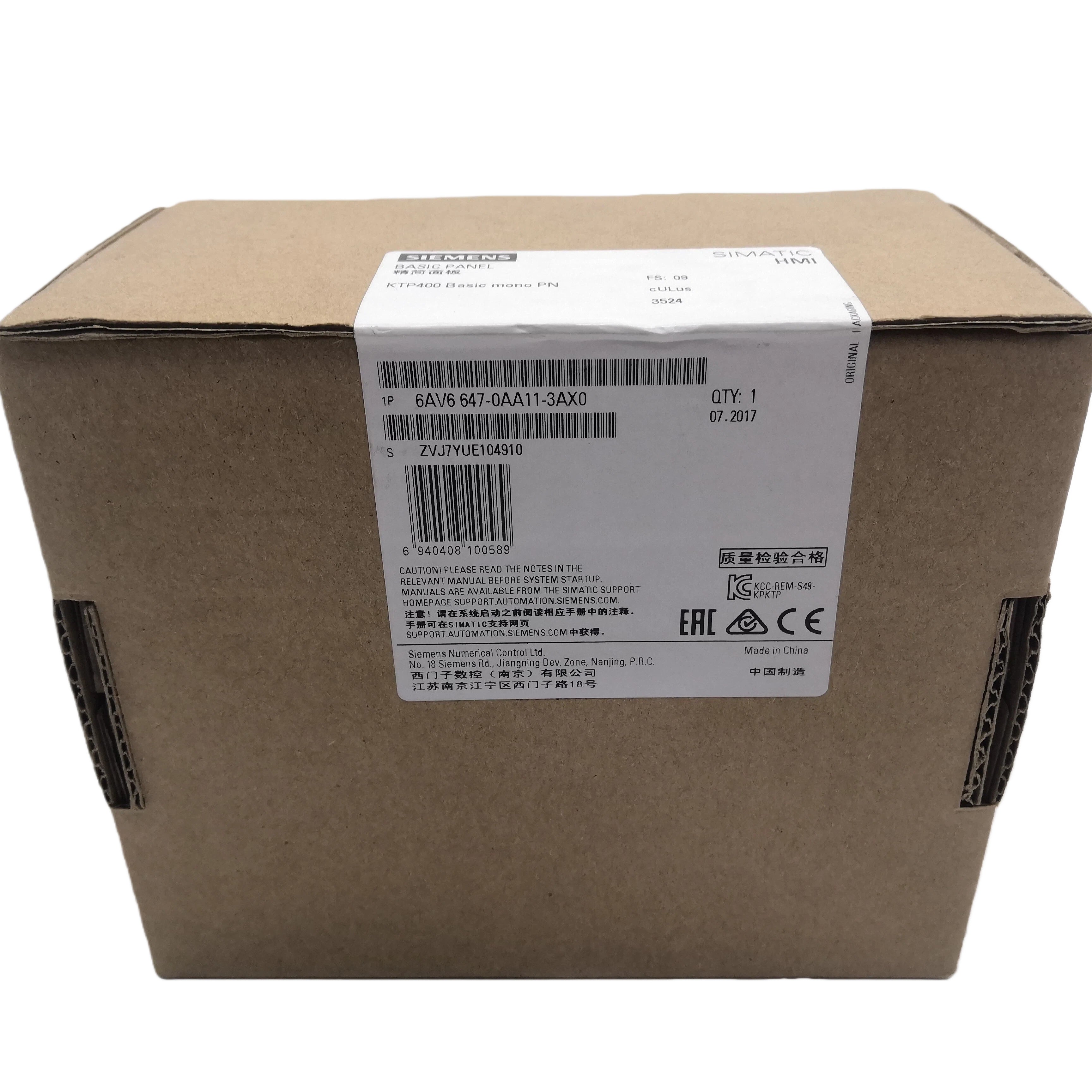

| Condition | Brand New, Original Siemens Factory Packaging |
| Gross Weight | 0.58 kg (1.28 lbs) |
| Package Dimensions | 220mm x 180mm x 75mm |
| Warranty | 12 months Siemens international warranty |
| Delivery | Ships within 24 hours from EU/US/Asia warehouses |
| HS Code | 8537.10.90 (Control Panels) |
