1769-IF4FXOF2F Combination Analog Input and Output Module for Precision Process Control

The 1769-IF4FXOF2F is a combination analog I/O module designed for applications requiring accurate analog signal acquisition and output control. It integrates multiple analog functions into a compact module, helping simplify system design and improve control efficiency.

Product Data

Product Data	Specification
Product Type	Analog Combination I/O Module
Analog Inputs	4 Differential Inputs
Analog Outputs	2 Outputs
Signal Type	Voltage / Current
Mounting	DIN Rail or Panel
Wiring	Removable Terminal Block
Application	Process Automation

Applications

Process control systems
Water treatment equipment
Chemical processing
Industrial temperature regulation
Pump and valve control
Factory automation

Installation Guide

Install the module on the appropriate mounting rail, verify field wiring before energizing the system, keep analog wiring separated from power cables, and ensure secure terminal connections for stable signal performance.

FAQ

Q1: What functions does this module provide?
It combines analog input and analog output in one module.

Q2: Which signal types are supported?
Standard industrial voltage and current signals.

Q3: Is it suitable for process control?
Yes, it is designed for precise analog monitoring and control.

Q4: How should signal wiring be routed?
Keep analog wiring separated from high-voltage cables.

Q5: What industries commonly use this module?
Manufacturing, utilities, water treatment, and process automation.

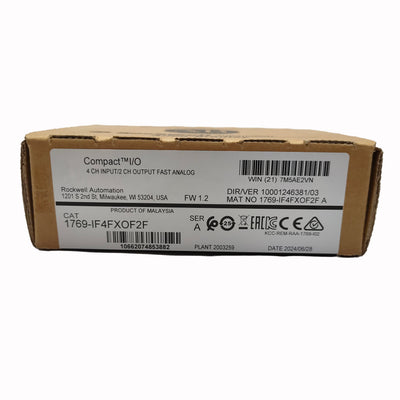

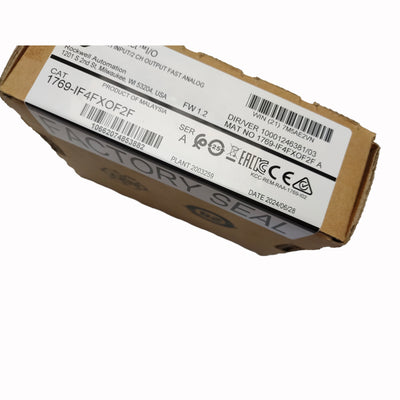

1769-IF4FXOF2F New Sealed 1769IF4FXOF2F Ser A I/O Module
