20D-P2-DG01 DriveGuard SAFE-Off Board

The 20D-P2-DG01 is a DriveGuard SAFE-Off board designed for industrial drive systems requiring functional safety. It provides a hardware-based Safe Torque Off (STO) function to help prevent unintended motor torque while supporting a second encoder interface for advanced motion control applications.

Key Specifications

Parameter	Description
Product Type	DriveGuard SAFE-Off Board
Safety Function	Safe Torque Off (STO)
Encoder Support	Second encoder interface
Installation	Internal drive option board
Compatibility	PowerFlex 700S Phase II drives
Cooling	Passive
Application	Functional safety for motion control

Applications

Typical applications include:

Motion control systems
Packaging machinery
Conveyor equipment
Automated production lines
Robotics
Industrial machine safety systems

Product Features

Provides hardware-based Safe Torque Off functionality.
Supports integration of a second encoder.
Helps improve machine functional safety.
Compact option board for easy drive integration.
Designed for demanding industrial automation environments.

FAQ

Q1: What is the primary function of this board?
A: It provides a Safe Torque Off (STO) safety function for compatible drives.

Q2: Does it support encoder feedback?
A: Yes. It supports connection of a second encoder.

Q3: Where is the board installed?
A: It is installed internally as an option board within a compatible drive.

Q4: What applications is it suitable for?
A: It is used in motion control and machine safety applications requiring functional safety.

Q5: Does the board replace external safety devices?
A: No. It is intended to operate as part of an overall machine safety system.

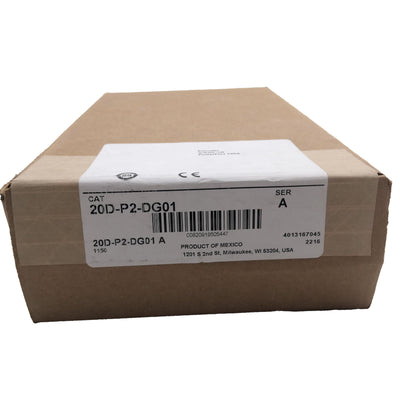

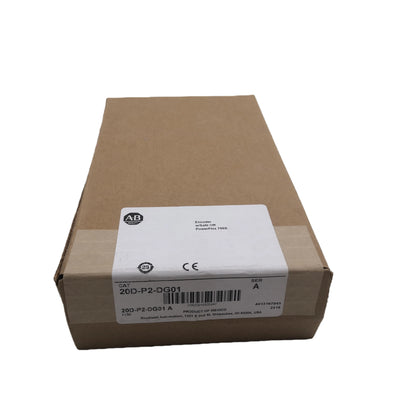

20D-P2-DG01 Genuine Driveguard Safe-Off Board 20DP2DG01
